Morel Elate Carbon Alto Neo tweeters

tweeters, Ø dome 28 mm, 180 W RMS, 4 Ω, 91.5 dB (2.83V/1m), silk dome with Acuflex™
More about the product
We will help you with your purchase
  • You can return the goods to us within 14 days
Morel Elate Carbon Alto Neo tweeters
NewTip

Morel Elate Carbon Alto Neo Tweeters

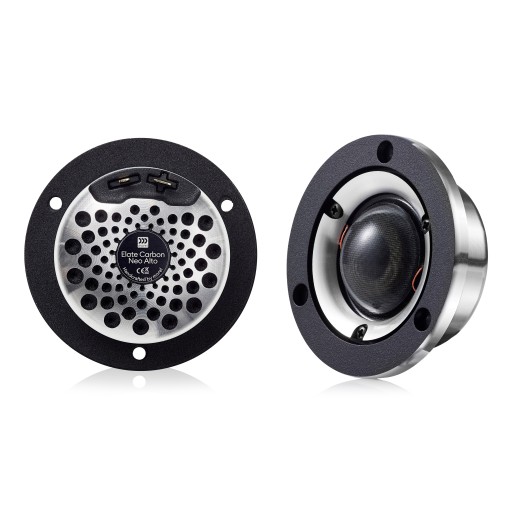

The Morel Elate Carbon Alto Neo represents a new generation of high-end tweeters designed for the Elate Carbon Neo Pro systems. Structurally derived from the technologies of the flagship Supremo Piccolo tweeter, they combine a hand-finished 28 mm silk Acuflex™ dome, a new more powerful neodymium motor, and a completely redesigned ASW™ rear acoustic chamber. The new generation also offers a significantly more compact body that simplifies installation in modern cars with limited space in A-pillars or other visible locations, and a refreshed premium design matching the Elate Carbon Neo Pro lineup. The result is an exceptionally clean, open and natural presentation with high resolution, impressive dynamics and the ability to accurately render the recording’s space even at very high playback levels.

Hand-applied Acuflex™ dome

At the heart of the Alto Neo is a 28 mm soft silk dome to which Morel hand-applies a special damping layer called Acuflex™. Its purpose is to give the delicate dome the necessary stiffness while precisely controlling its resonances and breakup modes. Individual membrane deformations are thus effectively suppressed instead of producing unwanted coloration or harshness in the highest frequencies. This combination of very low mass, controlled damping and a relatively large dome diameter is what defines the typical character of Morel’s top-tier tweeters. Alto Neo reveals an extraordinary amount of fine detail without sounding overly analytical or aggressive, so long listening sessions remain natural and fatigue-free.

New ASW™ rear chamber

One of the most important innovations of the Neo generation is the ASW™ (Anti-Standing Wave) technology. The specially shaped rear acoustic chamber works with the energy generated behind the dome to limit standing waves, internal resonances and resulting distortion. The tweeter thus operates in a much better controlled acoustic environment, which is reflected not only in measurable figures but above all in listening. Morel emphasizes higher purity, better dynamics, greater openness and more accurate spatial rendering with the new design. Subtle reverberations, spatial cues of the recording or the precise position of a vocal become more readable, and the resulting soundstage feels more natural and convincing.

More powerful dual neodymium motor

The redesigned magnetic system uses a pair of neodymium magnets and delivers higher efficiency and better control of the dome movement. Alto Neo achieves a sensitivity of 91.5 dB while offering substantial power reserve, allowing it to retain clarity and dynamics even at very high levels. The lightweight 28 mm voice coil with an aluminum former and Hexatech™ conductor reacts very quickly to signal changes and accurately captures sharp note onsets and the finest dynamic nuances. The result is not just higher loudness but, more importantly, the ability to maintain control, micro-dynamics and fine recording textures even in demanding passages.

Exceptional spatiality and resolution

A major strength of Alto Neo is not only the amount of detail but how it places that detail in space. The combination of low distortion, the new ASW™ rear chamber, high sensitivity and a fast dome enables very precise reproduction of subtle spatial information embedded in the recording. The listener better perceives instrument placement, the size of the recording space and distances between sound sources. In a properly designed and tuned system, this creates a wide, deep and convincingly three-dimensional soundstage that detaches from the speakers themselves. Morel cites spatial rendering as one of the main areas where Neo Pro advances beyond the previous Elate Carbon series.

Designed for the most demanding active systems

Alto Neo is an ideal choice for top-tier active installations driven by a DSP processor, where its high resolution, sensitivity and power reserve can be fully exploited. A great advantage is the very low resonant frequency Fs of only 800 Hz, which gives an experienced installer significant freedom when choosing crossover points and integrating with midrange or midbass drivers. This allows working with relatively low crossover frequencies and creating smoother band transitions—crucial in sophisticated three-way systems. In the Elate Carbon Neo Pro setup, Alto Neo can show its full potential and offer a combination of precision, dynamics, spatiality and natural musicality that is typical for Morel’s best drivers.

Main features

  • Reference tweeter for Elate Carbon Neo Pro systems.
  • Design derived from technologies of the flagship Supremo Piccolo model.
  • Significantly more compact body suited to modern cars.
  • Hand-finished 28 mm silk dome with Acuflex™ coating.
  • New ASW™ rear chamber to reduce standing waves, resonances and distortion.
  • Powerful dual neodymium magnetic system.
  • Lightweight Hexatech™ voice coil with aluminum conductor.
  • Very low distortion and precise reproduction of fine detail.
  • Exceptional spatiality, imaging and three-dimensional soundstage reproduction.
  • Open, natural and musical character typical of Morel.
  • Suitable for the most demanding active SQ installations.

About the brand

Morel is among the manufacturers that have developed an unmistakable signature over decades. Since 1975 the company has followed Meir Mordechai’s idea that a good loudspeaker should not only reproduce music accurately but above all preserve its emotion, naturalness and atmosphere. That is why Morel products have such a distinctive character—they can be highly detailed, dynamic and technically precise while never losing musicality or the ability to draw the listener into the recording. Each product is hand-assembled in Israel and created using in-house development, long-standing know-how and a range of original technologies and patented solutions that significantly influence both construction and sound. Morel owes much of its success to its home high-end audio work, where the brand develops its own drivers and loudspeaker systems and then adapts many technologies for automotive use. Combined with exceptional workmanship, timeless design and an extraordinary sense for detail, this produces products for people who want not just to hear music but to truly experience it.

Catalog numberELATE CARBON NEO ALTO
BrandMorel
LinksOfficial web presentation
Speaker typeCoaxial speakers:
Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam.

Component Speakers:
Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.
Tweeter
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! 180 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! 500 W
Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker.

Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter.

A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.
91.5 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using.

Example:
A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.
4 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band.

Professionally:
In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph.

Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB.

The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.
1400 – 25000 Hz
Overall tweeter diameterThe total diameter of the tweeter is given as the diameter of the individual tweeter without the installation houses. 62.5 mm
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter. 28 mm
The overall depth of the tweeterThe total depth of the tweeter itself without the installation houses. 21 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter. Silk with hand-applied Acuflex™ coating
The resonant frequency of the tweeter800 Hz
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. Pair
