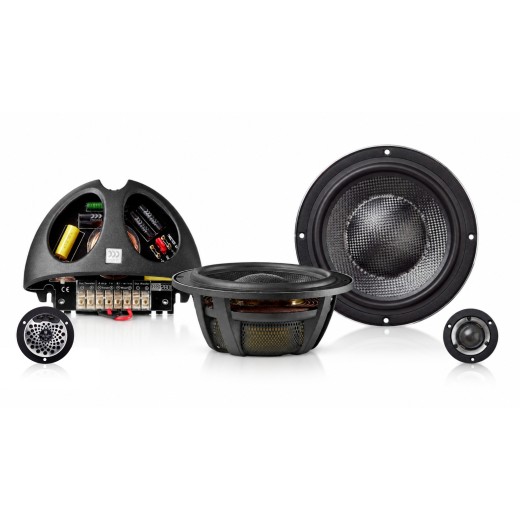

Morel Elate Carbon Neo 62 speakers
More about the product
Morel Elate Carbon Neo 621 to 4 weeks 2 199,60 EUR
Morel Elate Carbon Neo 62A1 to 4 weeks 1 999,60 EUR- You can return the goods to us within 14 days

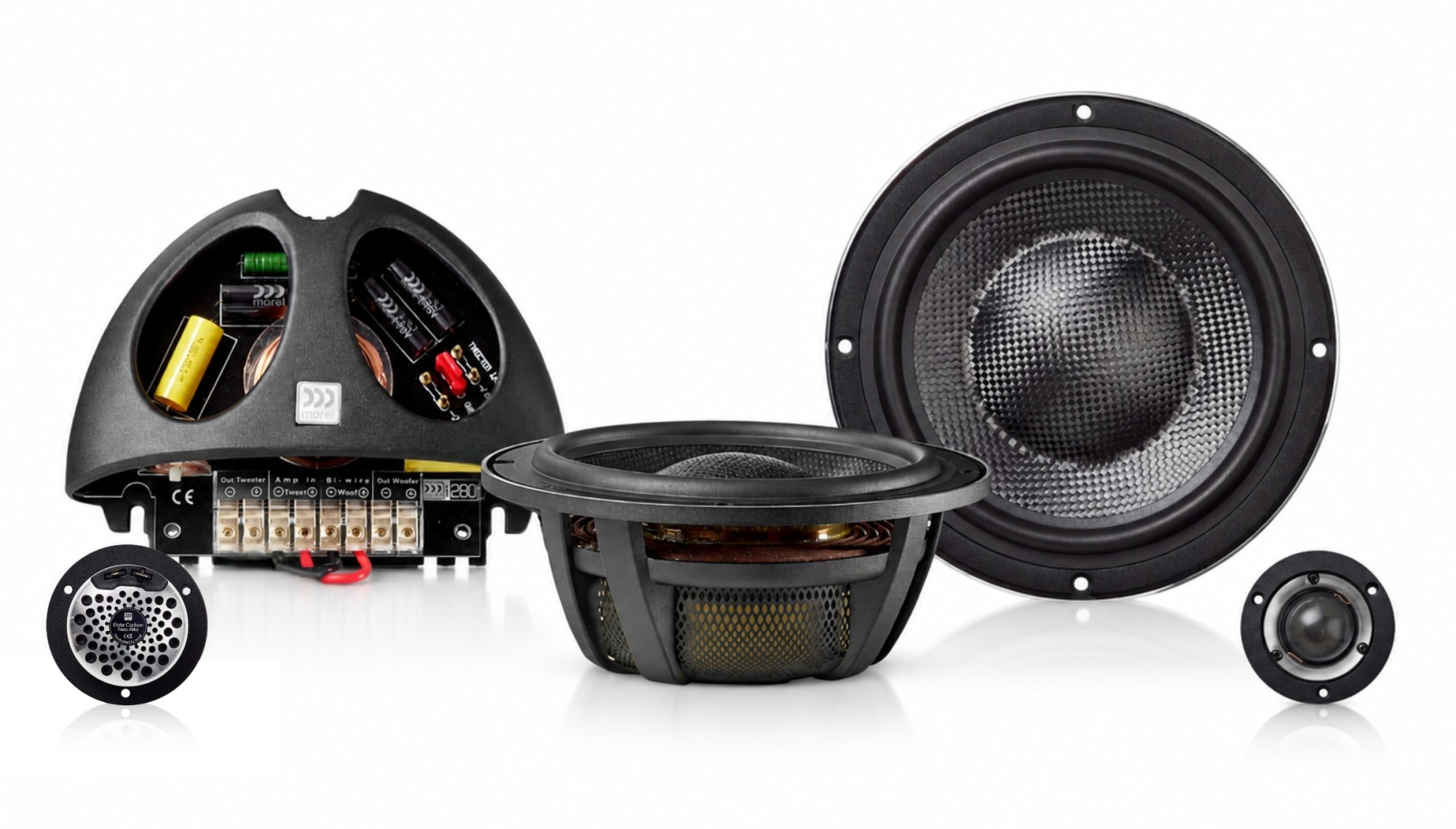

2‑way component speakers Morel Elate Carbon Neo 62
Morel Elate Carbon Neo 62 represent a new generation of a top‑level 2‑way component system from one of Morel's most important and long‑respected lines. In the manufacturer's hierarchy Elate Carbon sits just below the reference Supremo and for years has been the key high‑end platform that transfers technologies from the flagship models into solutions better suited for real automotive installations. The line is characterized by especially lightweight and exceptionally stiff TLC cones made of carbon fibers and Rohacell, large voice coils, powerful motor systems and the natural, musical character typical of Morel. The new Neo generation advances this concept further with reworked mechanics, higher linearity, faster transient response and a more premium design.
The Elate Carbon Neo 62 system combines the 165 mm MW6 midbass, the new MT‑550 tweeter and a precisely designed passive crossover into a complete 2‑way solution for demanding SQ installations. Its greatest strength is not only the quality of the individual drivers, but especially the way they work together as a single unit. The MW6 delivers fast, solid and authoritative midbass, while the MT‑550 naturally follows in the upper band without a marked change in character. The result is a coherent, spatially open and highly detailed sound with a large dynamic reserve that retains naturalness even at higher levels. The combination of technical precision, musicality and long‑term non‑fatiguing presentation is precisely why the Elate series has built such a strong reputation among discerning listeners.

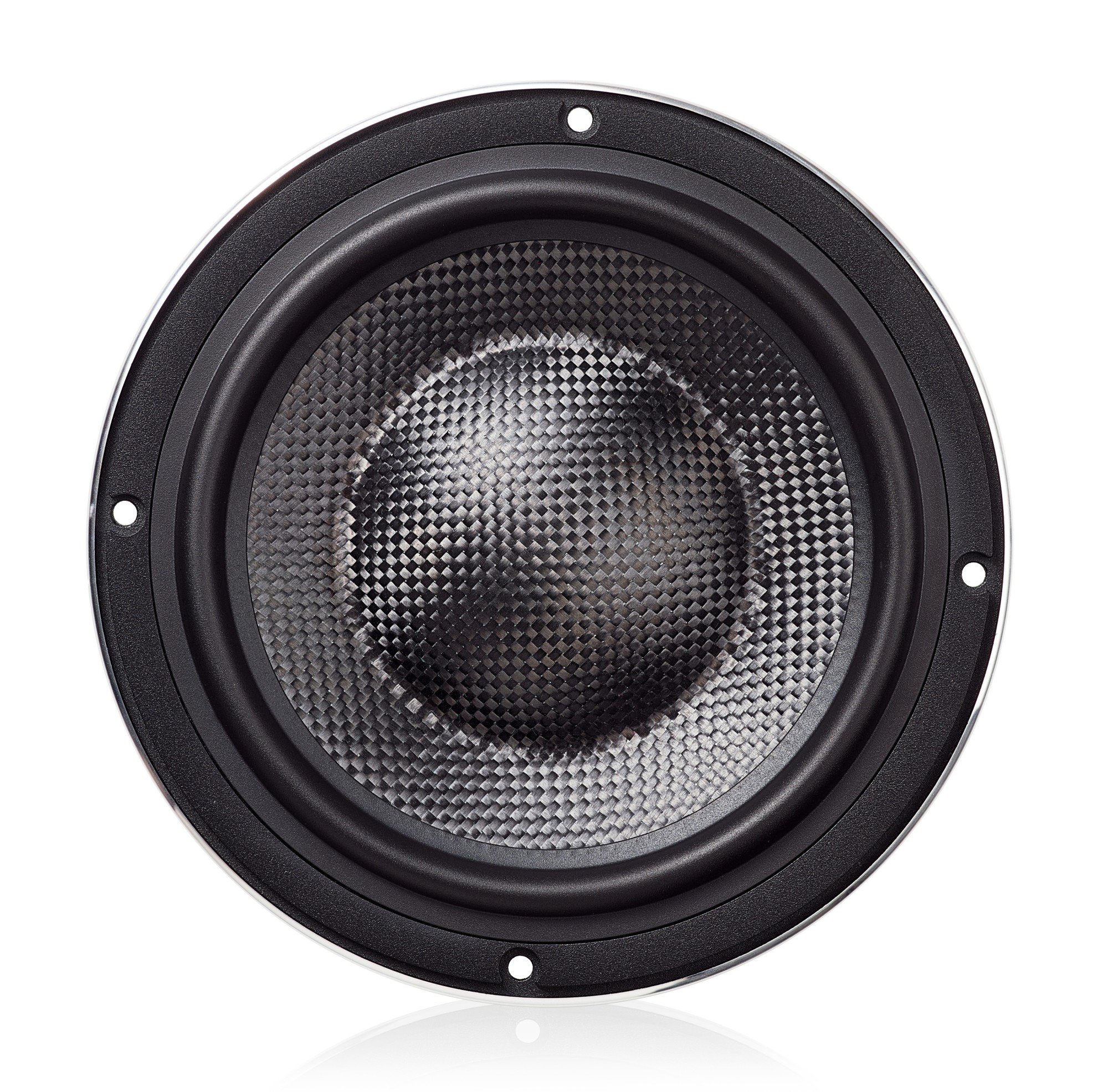

TLC MW6 midbass in carbon fiber and Rohacell
The foundation of the system is the 165 mm MW6 midbass with a TLC (Triple‑Layer Composite) cone that combines two layers of carbon fiber with a lightweight Rohacell core. This sandwich construction offers an exceptionally favorable ratio of low mass to high stiffness, so the cone can follow signal changes very accurately while resisting unwanted deformation at higher excursions. The result is a fast, solid and well‑defined midbass with excellent detail, natural instrument texture and the ability to maintain control even in demanding dynamic passages. The combination of carbon and Rohacell has long been one of the most characteristic features of the Elate Carbon line.
75 mm voice coil and powerful neodymium motor
The MW6 uses an unusually large 75 mm external voice coil, which is oversized for a 165 mm driver and is a typical construction feature of Morel's high‑end drivers. The large coil area allows effective heat dissipation, high power handling and precise control of cone motion. The newly reworked motor system uses a strong neodymium magnet that provides high magnetic flux density and the necessary force for exact cone control in very compact dimensions. The optimized suspension also improves linearity and reduces distortion, so the midbass can transition from fine detail to strong dynamic peaks without losing control or feeling compressed.
New MT‑550 tweeter
High frequencies are handled by the entirely new MT‑550 developed specifically for the Elate Carbon Neo generation. It features a 28 mm soft dome with a hand‑applied damping layer Acuflex™ that helps precisely control the dome's resonances while preserving its low mass and fast response. The optimized dual neodymium magnet system delivers higher efficiency, low distortion and very precise control of the dome motion. The result is clean, open and detailed highs that do not sound harsh or overly analytical and retain Morel's typical musicality even during long listening sessions.

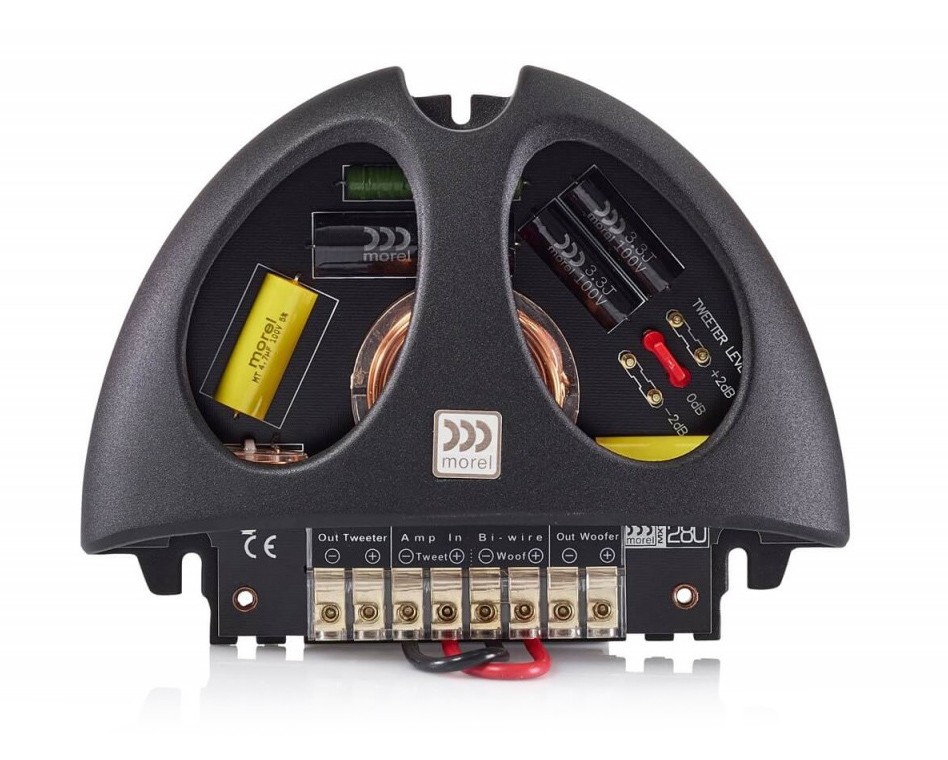

Precise passive crossover MXT280C
The system includes a 2‑way passive crossover MXT280C, designed so both drivers operate as one homogeneous unit. The crossover ensures an accurate division of the working band between the MW6 and MT‑550 and also allows system adaptation to a specific installation and vehicle acoustics. Bi‑wire / bi‑amp support additionally provides greater flexibility in system design and gives an experienced installer more options to fine‑tune the final sound. This makes the Elate Carbon Neo 62 usable as a full passive system while also offering a solid foundation for more advanced installation solutions.
Main features
- Top‑level 2‑way component system from the Elate Carbon Neo series.
- 165 mm MW6 midbass driver.
- TLC triple‑layer cone of carbon fiber and Rohacell.
- Exceptionally large 75 mm external voice coil.
- Powerful neodymium motor system.
- Reworked motor and suspension design for higher linearity.
- New MT‑550 tweeter.
- 28 mm soft dome with hand‑applied Acuflex™ damping layer.
- Optimized dual neodymium magnet system for the tweeter.
- 2‑way passive crossover MXT280C.
- Bi‑wire / bi‑amp capability and tweeter level adjustment.
- Low distortion and fast transient response.
About the brand
Morel is one of the manufacturers that has developed an unmistakable signature over decades. Since 1975 the company has built on Meir Mordechai's idea that a good speaker should not only reproduce music accurately but above all preserve its emotion, naturalness and atmosphere. That's why Morel products have such a distinctive character – they can be detailed, dynamic and technically extremely precise, yet never lose musicality or the ability to draw the listener into the recording. Each product is hand‑assembled in Israel and is created using in‑house development, long‑standing know‑how and a range of original technologies and patented solutions that significantly influence both construction and the resulting sound. Morel owes much of its success to domestic high‑end audio, where the company has long developed its own drivers and loudspeakers and from which it transfers and adapts many technologies for automotive use. Combined with exceptional craftsmanship, timeless design and extraordinary attention to detail, this produces products for people who want not just to hear music, but to truly experience it.
| Catalog number | ELATE CARBON NEO 62 |
| Brand | Morel |
| Links | Official web presentation |
| Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection. | 2-way component |
| RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! | 180 W |
| Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! | 1000 W |
| Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 87 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm. | 4 Ω |
| Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 30 – 25000 Hz |
| The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. | 165 mm |
| Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces. | 61 mm |
| Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems. | Carbon fiber composite |
| Resonant frequency of the mid-bass speaker | 45 Hz |
| Voice coil diameter of the mid-bass speaker | 75 mm (3") |
| Magnet | Neodymium |
| Overall tweeter diameterThe total diameter of the tweeter is given as the diameter of the individual tweeter without the installation houses. | 43 mm |
| Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter. | 28 mm |
| The overall depth of the tweeterThe total depth of the tweeter itself without the installation houses. | 13 mm |
| Tweeter dome materialThe shell material that was used in the manufacture of the tweeter. | Silk with hand-applied Acuflex™ coating |
| The resonant frequency of the tweeter | 900 Hz |
| Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter. | Yes |
| Options for setting the frequency crossoverThe unwritten rule is that the more expensive the speakers, the more options the crossover has for adjusting the sound. The most common way to adjust the crossover is attenuation on the tweeter. More advanced crossovers also offer the option of setting the steepness on the mid-bass and tweeter or adjusting the frequency range. | Yes |
| Cover grids included in the packageOriginal cover grilles in speaker packaging. | Yes |
| Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. | Pair |
