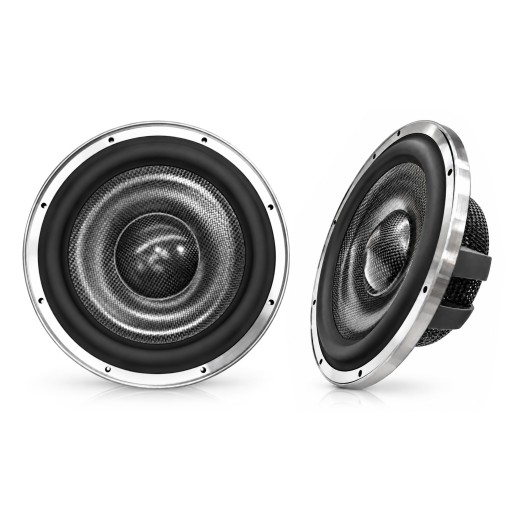

Morel Elate Carbon Neo MW9 mid-bass speakers

midbass speakers, Ø 220 mm, 200 W RMS, 4 Ω, 89 dB (2.83V/1m), diaphragm: carbon fiber / Rohacell
More about the product
We will help you with your purchase
  • You can return the goods to us within 14 days
Morel Elate Carbon Neo MW9 mid-bass speakers
New

Morel Elate Carbon Neo MW9 Midbass Speakers

The Morel Elate Carbon Neo MW9 represents a new generation of 9" midbass drivers from one of Morel’s most significant and long-respected lines. In the company hierarchy, Elate Carbon sits just below the reference Supremo and for years has been a key high-end platform that combines high power reserve, exceptional musicality and technologies borrowed from top models with practical usability in automotive installations. The series is characterized by lightweight and exceptionally stiff TLC diaphragms made from carbon fiber and Rohacell, large external voice coils and powerful motor systems that together create Morel’s characteristically fast, natural and authoritative sound. The new Neo generation advances this concept with lower distortion, improved linearity, faster transient response and a more premium design with precisely machined aluminum elements. With its large diaphragm, the MW9 adds greater capability to work with lower frequencies and deliver a powerful yet precisely controlled foundation for ambitious three-way systems.

TLC carbon fiber and Rohacell diaphragm

At the heart of the MW9 is the TLC (Triple-Layer Composite) diaphragm, combining two layers of carbon fiber with a lightweight Rohacell core. This sandwich construction offers an excellent ratio of low mass to high stiffness, enabling the large diaphragm to accurately follow signal changes while resisting unwanted deformation at higher excursions. This is especially important for a 9" driver because the larger surface places high demands on mechanical stability. The result is deeper, more physically impactful bass without sacrificing speed, contour or the fine detail Morel expects from this series.

Exceptionally large 75 mm voice coil

Like the MW6, the MW9 uses a massive 75 mm external voice coil, a hallmark of Morel’s high-end drivers. The large coil area provides efficient heat dissipation, high power handling and very precise control of diaphragm motion even at large excursions. For the MW9 this principle is even more critical because the bigger and heavier diaphragm requires an extraordinarily strong and stable motor. As a result, the MW9 handles 200 W RMS while maintaining authority, dynamics and clarity at high volumes and pronounced bass peaks.

Redesigned neodymium motor and suspension for improved linearity

The new Elate Carbon Neo generation introduces a revised motor system using a strong neodymium magnet that, in a more compact form, creates very high magnetic flux density and gives the motor the force needed to precisely control the large 9" diaphragm. Combined with the 75 mm voice coil, this yields a motor with high efficiency, control and substantial dynamic reserve. The optimized suspension improves linearity across the operating range and limits distortion at both small and large excursions. MW9 can therefore move large volumes of air without losing speed or accuracy, transitioning from subtle detail to powerful dynamic peaks with very natural ease.

Powerful bass with high-end driver control

The MW9’s greatest strength is its ability to combine the physical authority of a large 9" driver with the speed and precision normally expected from smaller high-end midbass drivers. The larger diaphragm can move significantly more air, producing bass with greater weight, depth and naturalness without sounding sluggish or smeared. The lightweight TLC diaphragm, strong neodymium motor and large voice coil keep the driver under precise control even at high levels. MW9 is therefore an ideal foundation for three-way systems aiming to marry authentic dynamics and physical impact with the clarity, speed and musicality characteristic of the Elate Carbon series.

Main features

  • High-end 9" midbass driver of the Elate Carbon Neo series.
  • TLC triple-layer diaphragm of carbon fiber and Rohacell.
  • Large diaphragm area for greater authority and deeper bass foundation.
  • Exceptionally large 76 mm external voice coil.
  • Powerful neodymium magnetic system.
  • Redesigned motor and suspension for improved linearity.
  • Low distortion and fast transient response.
  • Powerful, deep and precisely controlled bass performance.
  • High dynamic reserve and stable sound even at high volumes.
  • Premium construction matching the new Elate Carbon Neo generation.
  • Ideal foundation for top-tier three-way SQ systems.

About the brand

Morel is among the manufacturers that have developed an unmistakable signature over decades. Since 1975 the company has followed Meir Mordechai’s idea that a good loudspeaker should not only reproduce music accurately but above all preserve its emotion, naturalness and atmosphere. That is why Morel products have such a distinctive character—they can be highly detailed, dynamic and technically precise while never losing musicality or the ability to draw the listener into the recording. Each product is hand-assembled in Israel and created using in-house development, long-standing know-how and a range of original technologies and patented solutions that significantly influence both construction and sound. Morel owes much of its success to its home high-end audio work, where the brand develops its own drivers and loudspeaker systems and then adapts many technologies for automotive use. Combined with exceptional workmanship, timeless design and an extraordinary sense for detail, this produces products for people who want not just to hear music but to truly experience it.

Catalog numberELATE CARBON NEO MW9
BrandMorel
LinksOfficial web presentation
Speaker typeCoaxial speakers:
Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam.

Component Speakers:
Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.
Mid-bass
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! 200 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! 1000 W
Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker.

Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter.

A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.
89 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using.

Example:
A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.
4 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band.

Professionally:
In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph.

Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB.

The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.
25 – 3000 Hz
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm. 220 mm
Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces. 71 mm
Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems. Carbon fiber composite
Resonant frequency of the mid-bass speaker44 Hz
Voice coil diameter of the mid-bass speaker75 mm (3\")
MagnetNeodymium
Cover grids included in the packageOriginal cover grilles in speaker packaging. Yes
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. Pair
