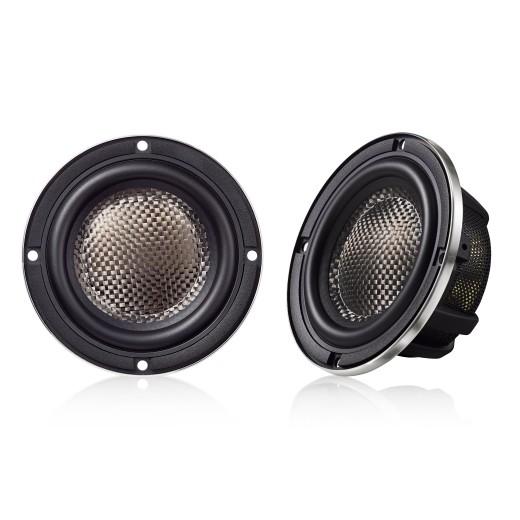

Morel Elate Carbon Neo MM3 Midrange Speakers
The Morel Elate Carbon Neo MM3 represents a new generation of high-end midrange drivers from one of Morel’s most important and long-respected lines. In Morel’s hierarchy, Elate Carbon sits just below the reference Supremo and for years has been a key high-end platform that combines top-model technologies with greater installation flexibility for real-world automotive applications. The series is characterized by lightweight and exceptionally stiff TLC diaphragms made from carbon fiber and Rohacell, large voice coils, powerful motor systems and Morel’s typically musical character. The new Neo generation advances this concept with redesigned mechanics, improved linearity, faster response and a more premium design. The compact 89 mm MM3 unites a three-layer carbon diaphragm, an exceptionally large 54 mm voice coil and a powerful neodymium motor into a driver that reproduces the critical midrange with extraordinary purity, naturalness and dynamic reserve.
TLC carbon fiber and Rohacell diaphragm
At the core of the MM3 is a lightweight and extremely stiff TLC (Triple-Layer Composite) diaphragm. Morel combines two layers of carbon fiber with a light Rohacell structural core to create a sandwich construction with an excellent mass-to-stiffness ratio. The diaphragm can thus precisely follow rapid signal changes without unwanted deformation that would otherwise cause loss of detail or coloration in the midrange. The result is very clean and accurate reproduction of vocals and acoustic instruments while retaining the naturalness and finesse typical of Morel’s higher ranges.
Exceptionally large 54 mm voice coil
One of the most notable design elements of the MM3 is its 54 mm voice coil—an unusually large diameter for a driver of this size. The large coil allows more efficient heat dissipation, increases power handling and gives the motor system significantly better control of diaphragm movement. MM3 handles 120 W RMS and maintains a clean, stable performance even at high levels where smaller midrange drivers often begin to lose dynamic control or precision. Morel’s architecture with a large coil also helps keep the moving mass low and response fast.
Redesigned neodymium motor and improved linearity
The new Elate Carbon Neo generation also introduces a revised magnetic system and diaphragm suspension aimed at improving linearity across the operating range. The powerful neodymium magnet provides high magnetic flux density in a compact package and enables more precise control of the voice coil. Together with an optimized suspension, it helps reduce distortion at both small and large excursions and maintain a consistent reproduction character regardless of playback level. MM3 thus transitions from the finest details to pronounced dynamic peaks without feeling compressed or out of control.
Natural, high-resolution midrange
The midrange carries most of the information by which the human ear perceives the character of voices, instruments and recordings, and MM3 is designed to reproduce this region as faithfully as possible. The light TLC diaphragm and fast motor system reveal subtle vocal textures, instrument reverbs and small dynamic differences without slipping into harshness or excessive analytical sound. The result is a natural, open and highly intelligible midrange that can be both delicate and energetic, providing a firm foundation for convincing music reproduction.
Main features
- High-end midrange driver for Elate Carbon Neo and Neo Pro systems.
- Compact 89 mm design suitable for demanding three-way installations.
- TLC triple-layer diaphragm of carbon fiber and Rohacell.
- Exceptionally large 54 mm voice coil.
- Powerful neodymium magnetic system.
- Redesigned motor and suspension for improved linearity.
- Low distortion and fast transient response.
- Natural and highly detailed reproduction of vocals and the midrange.
- High dynamic reserve and stable performance at high volumes.
- Perfectly matches MW6 and MW9 midwoofers and MT-550 or Alto Neo tweeters.
- Ideal for active three-way SQ systems with a DSP processor.
About the brand
Morel is among the manufacturers that have developed an unmistakable signature over decades. Since 1975 the company has followed Meir Mordechai’s idea that a good loudspeaker should not only reproduce music accurately but above all preserve its emotion, naturalness and atmosphere. That is why Morel products have such a distinctive character—they can be highly detailed, dynamic and technically precise while never losing musicality or the ability to draw the listener into the recording. Each product is hand-assembled in Israel and created using in-house development, long-standing know-how and a range of original technologies and patented solutions that significantly influence both construction and sound. Morel owes much of its success to its home high-end audio work, where the brand develops its own drivers and loudspeaker systems and then adapts many technologies for automotive use. Combined with exceptional workmanship, timeless design and an extraordinary sense for detail, this produces products for people who want not just to hear music but to truly experience it.
| Catalog number | ELATE CARBON NEO MM3 |
| Brand | Morel |
| Links | Official web presentation |
| Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection. | Midrange |
| RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! | 120 W |
| Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! | 400 W |
| Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker. Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume. | 87 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm. | 4 Ω |
| Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 90 – 6000 Hz |
| Center speaker diameterThe diameter of the center speaker is given as the diameter of a round speaker, not including the mount, where the mounts protrude even more on smaller speakers. | 89 mm |
| Mounting depth of the center speakerThe mounting depth of the center speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket. | 38 mm |
| Center speaker diaphragm materialDiaphragm material that was used in the manufacture of the center speakers. | Carbon fiber composite |
| Resonant frequency of the center speaker | 87 Hz |
| Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. | Pair |
