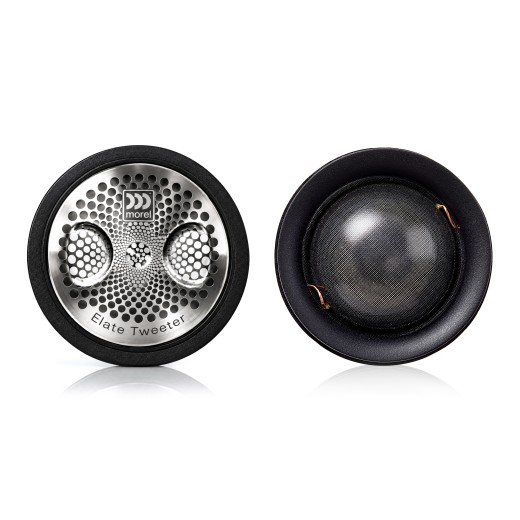

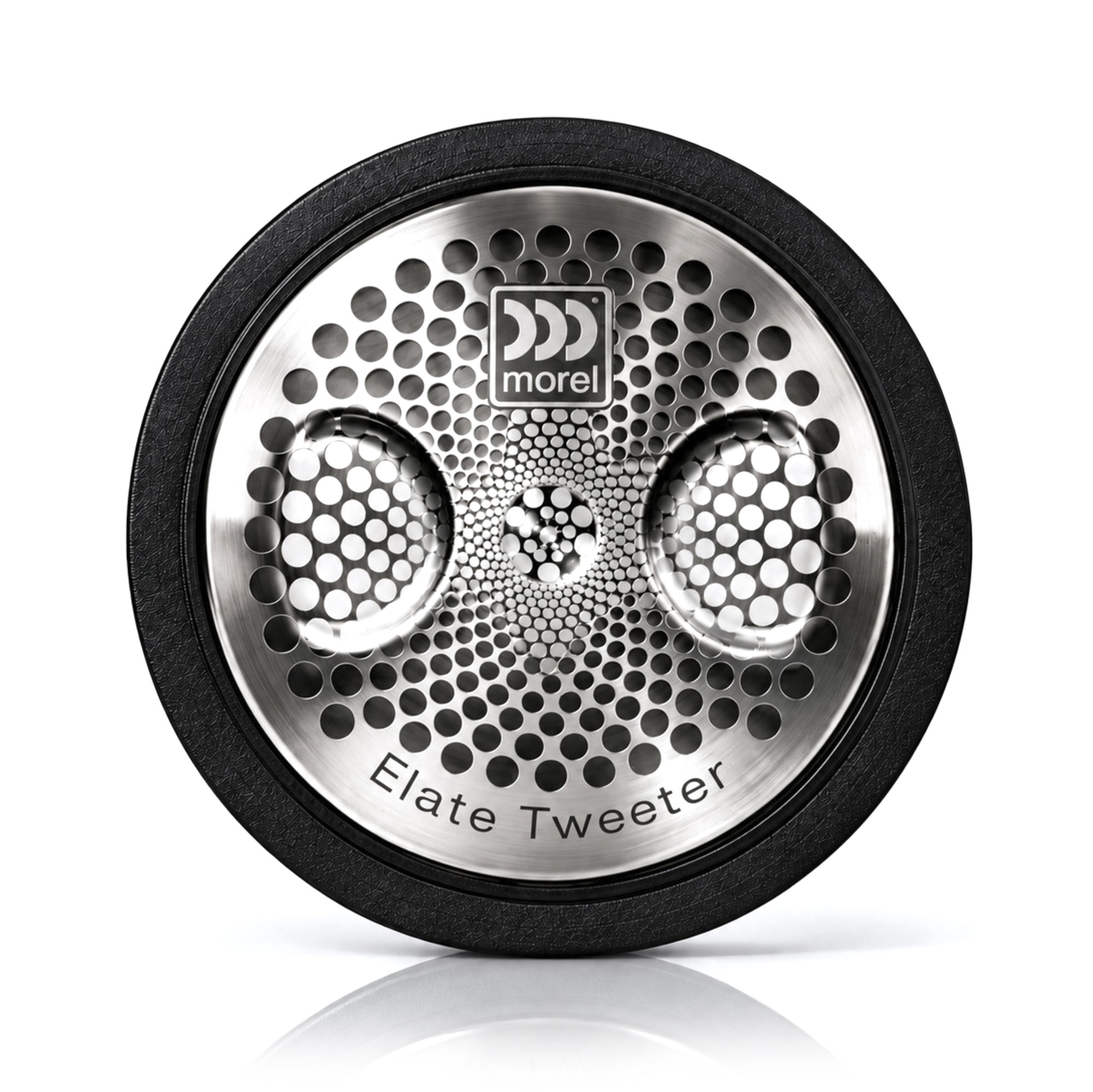

Morel Elate Carbon MT550 Neo Tweeters

tweeters, 28 mm Ø dome, 130 W RMS, 6 Ω, 90 dB (2.83V/1m), silk dome with Acuflex™
More about the product
We will help you with your purchase
  • You can return the goods to us within 14 days
Morel Elate Carbon MT550 Neo Tweeters
NewTip

Morel Elate Carbon MT550 Neo Tweeters

The Morel Elate Carbon Neo MT-550 represent a new generation of tweeters designed for the Elate Carbon Neo systems. Elate Carbon sits in the manufacturer’s lineup just below the reference Supremo and has long been one of Morel’s most important high-end platforms, combining technologies from higher models with greater installation flexibility for real-world automotive applications. The new Neo generation advances this concept further with lower distortion, higher efficiency, faster response and an overall more open and realistic sound. The MT-550 is a completely new tweeter developed specifically for this series and combines a hand-finished 28 mm soft dome with an Acuflex™ surface treatment, an optimized dual neodymium magnetic system and a compact construction suitable even for demanding installations in modern cars.

Hand-applied Acuflex™ layer

At the core of the MT-550 is a 28 mm soft dome with a hand-applied damping Acuflex™ layer, one of Morel’s characteristic tweeter solutions. Its purpose is to precisely control the resonances of the delicate diaphragm while preserving its low mass and fast response. As a result, the tweeter can reproduce high frequencies with very good purity and a wealth of fine detail, without sounding harsh or overly analytical. This smooth, natural and consistently pleasant treble presentation is one of the main hallmarks of Morel’s sonic character.

Optimized dual neodymium motor

The MT-550 uses an optimized dual neodymium magnetic system that provides strong magnetic force in very compact dimensions. The result is higher efficiency, more precise control of diaphragm motion and very fast response to signal changes. Morel emphasizes the combination of higher efficiency and lower distortion in the new generation, which allows the tweeter to maintain clarity, fine resolution and natural tonality even at higher volume levels. The MT-550 therefore focuses not only on the amount of detail, but primarily on their precise and refined presentation.

Natural character and open soundstage

One of the main advantages of the MT-550 is its ability to combine high resolution with the smooth and natural character typical of Morel. The tweeter does not sound sharp or aggressive, yet it can reproduce subtle reverbs, cymbals, vocal sibilance and small spatial cues in a recording with great precision. In a well-designed system it contributes to an open, airy and precisely defined soundstage that can detach from the speaker positions and sounds noticeably more natural.

Main features

  • Next-generation tweeter for the Elate Carbon Neo series.
  • 28 mm soft dome with a hand-applied Acuflex™ layer.
  • Optimized dual neodymium magnetic system.
  • Higher efficiency and low distortion.
  • Fast transient response and high resolution of fine details.
  • Smooth, natural and non-fatiguing treble character.
  • Open and precise spatial rendering.
  • Compact construction suitable for modern automotive installations.
  • Perfectly matched with MW6 and MW9 midwoofers and the MM3 midrange.
  • Suitable for both two-way and three-way active systems.

About the brand

Morel is one of the manufacturers that over decades has created an unmistakable signature. Since 1975 it has been based on the idea of Meir Mordechai that a good loudspeaker should not only reproduce music accurately but, above all, preserve its emotion, naturalness and atmosphere. That is why Morel products have such a distinctive character—they can be detailed, dynamic and technically exceptionally accurate, yet they never lose musicality or the ability to draw the listener into the recording. Every product is hand-assembled in Israel and is created using in-house development, long-standing know-how and a range of original technologies and patented solutions that fundamentally influence both the construction and the final sound of the loudspeakers. Morel owes much of its success to the domestic high-end audio market, where the brand has long developed its own drivers and speaker systems and from which it subsequently transfers and adapts many technologies for automotive use. Combined with exceptional workmanship, timeless design and an extraordinary attention to detail, this results in products for people who want not only to hear music but to truly experience it.

Catalog numberMT550 NEO
BrandMorel
LinksOfficial web presentation
Speaker typeCoaxial speakers:
Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam.

Component Speakers:
Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.
Tweeter
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged! 130 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged! 350 W
Sensitivity (SPL 2.83V/1m)Sensitivity, sensitivity or efficiency of the speaker.

Speaker sensitivity is given in decibels (dB) and simply put, the higher the value, the lower the demands on the amplifier's power. This is a defacto rating of how a speaker converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the speaker using 1 W (watt of power) or using 2.83 volts at the source at 1 meter.

A higher decibel level means the speaker is louder with less power. For every 3 dB increase in sensitivity, the speaker requires half the power to reproduce the same volume. For example, if an 88 dB speaker needs 100 Watts to produce a certain volume, then a speaker with a sensitivity of 91 dB needs only 50 Watts to reach the same volume.
90 dB
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using.

Example:
A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.
4 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band.

Professionally:
In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph.

Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB.

The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.
1400 – 25000 Hz
Overall tweeter diameterThe total diameter of the tweeter is given as the diameter of the individual tweeter without the installation houses. 43 mm
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter. 28 mm
The overall depth of the tweeterThe total depth of the tweeter itself without the installation houses. 13 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter. Silk with hand-applied Acuflex™ coating
The resonant frequency of the tweeter900 Hz
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover. Pair
