SGM Cloud noise-absorbing material

Noise-absorbing material SGM Cloud

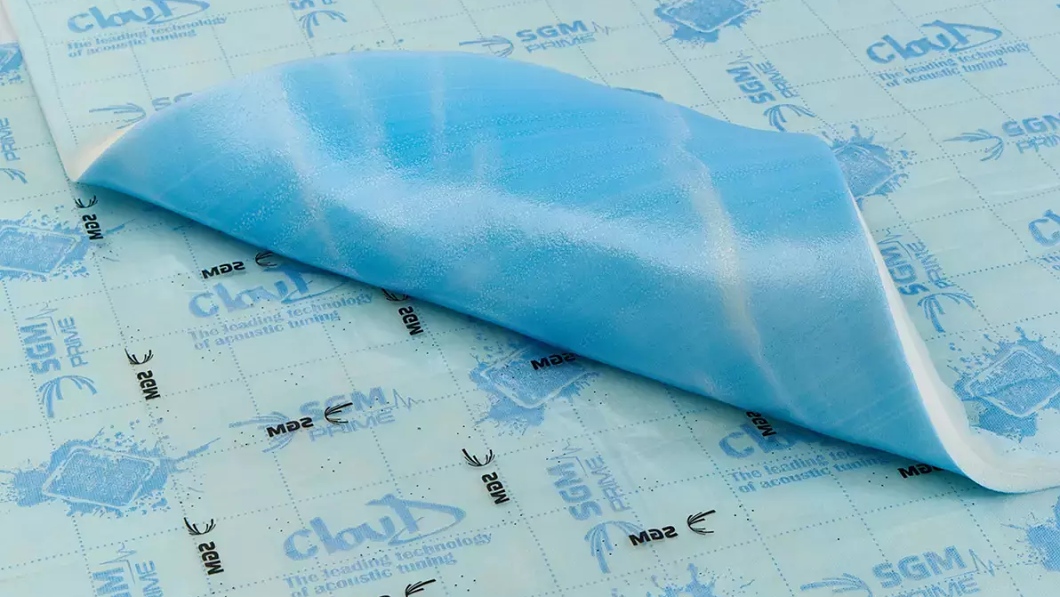

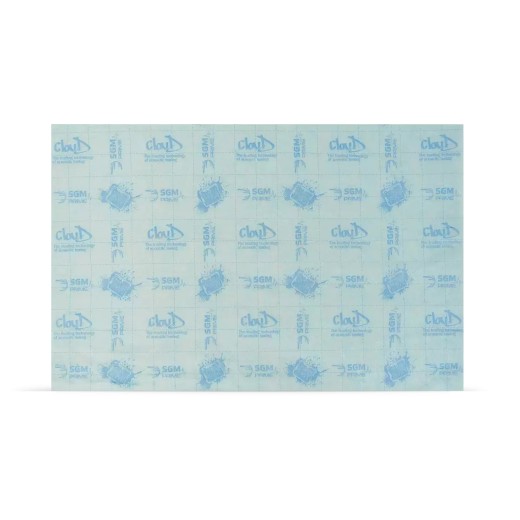

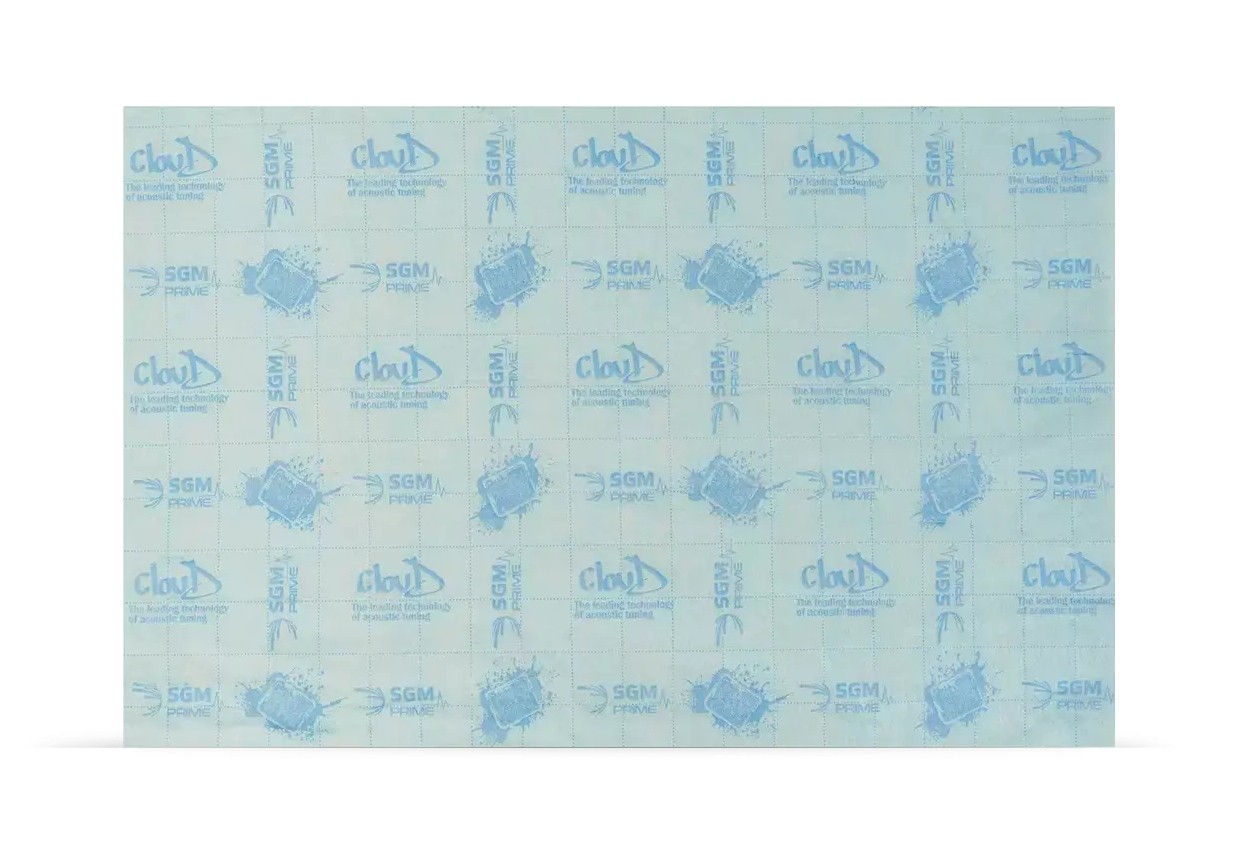

SGM Cloud is an innovative sound-absorbing material from the premium SGM Prime range that combines three acoustic principles – absorption, reflection and insulation. Its unique multi-layer structure with variable wave impedance achieves record efficiency of up to 97% at 2000 Hz, making it one of the most effective materials for vehicle soundproofing. Special volumetric geometry combined with a soft structure ensures high efficiency in the 315–2250 Hz range, which is the most sensitive area of human hearing. Compared to traditional foam materials, absorption efficiency is up to 150% higher, while Cloud retains low weight, flexibility and easy application. The material is equipped with a self-adhesive acrylic layer that simplifies installation on both horizontal and vertical surfaces. In practice it is primarily used on the vehicle roof, inner door linings and other areas requiring top acoustic performance.

Main features

• Professional acoustic material with a multi-layer structure and variable wave impedance.
• Combines three acoustic functions in one material – absorption, reflection and insulation.
• Record efficiency up to 97% at 2000 Hz, 150% higher than traditional foam materials.
• Optimized for the 315–2250 Hz frequency range – the area of highest human hearing sensitivity.
• Special volumetric geometry for higher efficiency compared to homogeneous absorbers.
• Self-adhesive acrylic layer – easy installation without additional adhesives.
• Excellent flexibility, stability and resistance to temperatures from –40 °C to +90 °C.
• Recommended for soundproofing roofs, door panels and other acoustically loaded areas.

How to apply

SGM Cloud is used to absorb and also insulate noise in areas such as plastic door linings and roofs. Thanks to its shape flexibility you can use the material wherever it is difficult to apply thicker materials. For roofs it is applied as a second layer over anti-vibration material; for plastic door panels Cloud alone is sufficient, although for maximum effect we also recommend applying an anti-vibration material as the first layer. The most common uses of the SGM Cloud damping material are:

• Plastic door linings
• Plastic trunk lid lining
• Roof

About the SGM brand

SGM Technology was founded in 2006 and is among the world’s leading manufacturers of acoustic and thermal insulation materials for the automotive, marine, aerospace and construction industries. SGM products stand out for their excellent physical properties, high efficiency and consistent quality, the result of long-term development and precise manufacturing. The company offers more than 200 types of materials that meet strict international quality standards ISO 9001 and ISO/TS 16949. The top Prime range represents the pinnacle of the brand’s technological level and offers some of the most advanced materials for vehicle soundproofing on the current market.

Catalog number	SGM CLOUD
Brand	SGM
