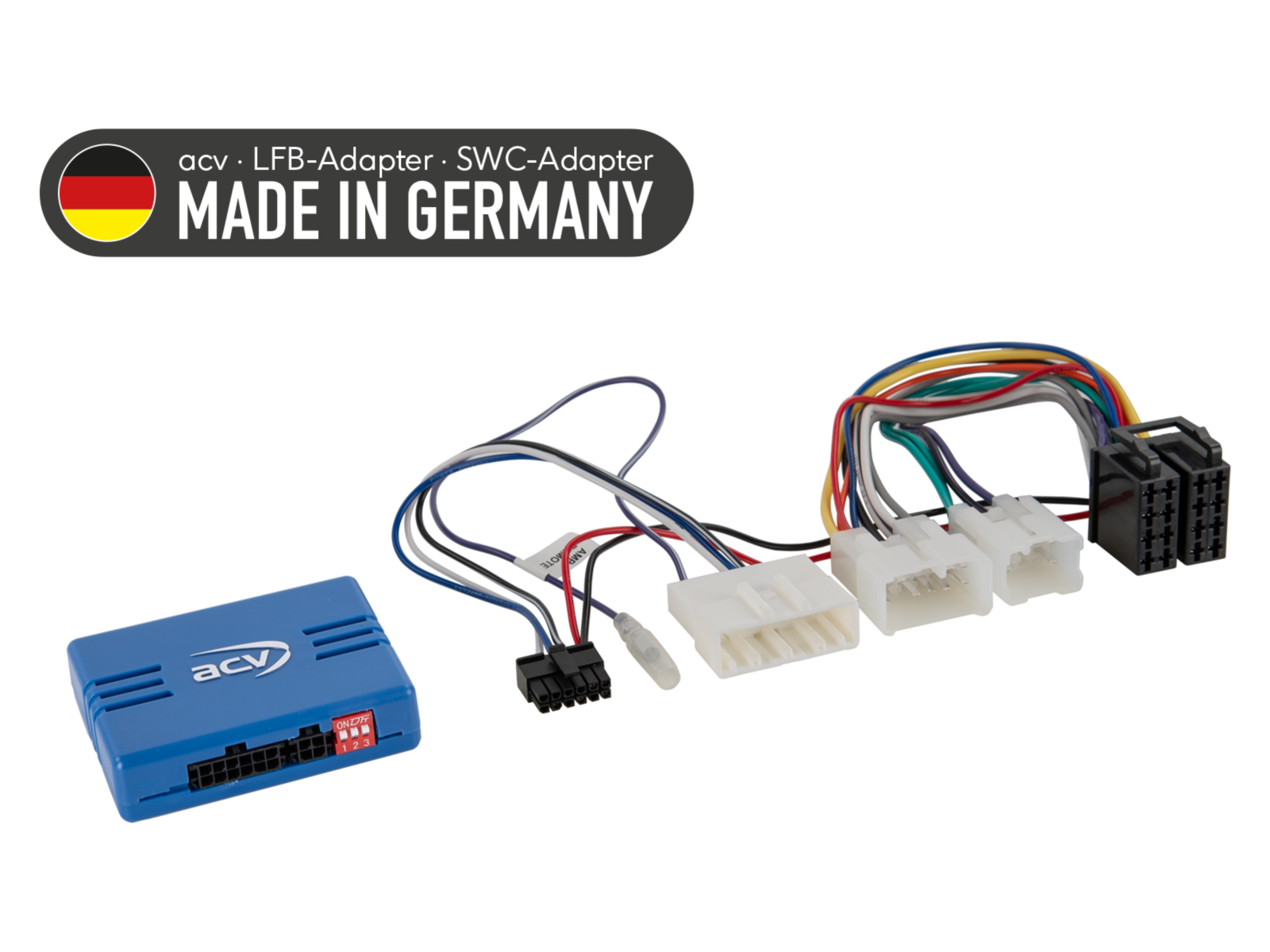

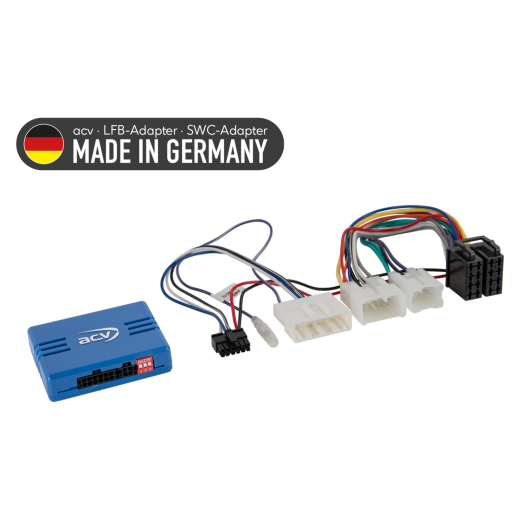

Steering Wheel Control Adapter for Toyota ACV SWC 42A-1300-002-0

Maintain the original steering wheel radio control functions when replacing the original radio with an aftermarket unit. Depending on the vehicle's features, the range of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle to ensure they match both technically and visually. Check if one of the listed OEM radios was originally installed. Verify the vehicle's functionality, system settings, and proper operation of the steering wheel control (SWC) before final installation.

Designed for Vehicles

Toyota Auris (E150) 03/2010 -> 01/2013 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Avensis (T27) 01/2012 -> 06/2015 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Corolla (E170) 04/2014 -> 12/2016 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Fortuner 2011 -> 2015 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Hilux (N25) 12/2011 -> 08/2016 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Hilux (AN1P) 11/2016 -> 09/2020 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Hilux (AN1P) 10/2020 -> 2025 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system, without OEM JBL audio system.
Toyota Innova 2011 -> 2015 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Prius ZVW30/ZVW35 (XW3) 04/2012 -> 02/2016 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Prius+ (XW3/XW4) 06/2012 -> 01/2015 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota RAV4 (XA3) 04/2009 -> 05/2010 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota RAV4 (XA3) 05/2010 -> 02/2013 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota RAV4 (XA3/XA4) 04/2013 -> 01/2016 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota RAV4 (XA3/XA4) 01/2016 -> 12/2018 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Verso (AR2) 04/2009 -> 01/2013 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Verso (AR2) 04/2013 -> 06/2018 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Verso-S (XP12) 03/2011 -> 07/2014 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Verso-S (XP12) 07/2014 -> 12/2015 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Yaris (XP13) 11/2011 -> 08/2014 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Yaris (XP13) 09/2014 -> 03/2017 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.
Toyota Yaris (XP13) 04/2017 -> 08/2020 - original radio Matsushita / Fujitsu Ten, vehicles with OEM parking camera, without OEM 360° camera system.

CAN Bus Information

Connectors and Power:

System type: analog.
Connectors: 10pin / 6pin / 28pin Toyota.

Settings:

Check DIP switches according to the manual (BDA).

Special Notes:

Vehicles on the edge of model years: use 20pin + 28pin wiring (item: 42a-1300-00c).

Diagnostic LED Indication:

Blue light: interface active, +12 V ignition power present.
Red light: steering wheel button function detected.

Important Additional Information

Designed for aftermarket radios Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
To fully activate the adapter, an interconnecting cable for the specific brand of radio must be ordered.

General Installation Instructions

Pre-Installation Verification:

Check all vehicle control functions and settings with the original OEM head unit.
Disconnect the original radio (OEM HU) without power.
Check all interface connections to ensure they are correctly connected – without power.

Connection and Wiring Sequence:

Check the interface settings and HW configuration – without power.
Check the configuration of the connection cable to the HU – without power.
Connect the cable to the HU according to the aftermarket device manual.
Connect other wires according to the device manual.
Connect the entire installation to the vehicle – connect the main power connection last.
Perform software configuration of the interface according to the product description or manual instructions.
Configure the aftermarket HU (e.g., steering wheel control, camera, hands-free, antenna power).
Perform a functional test of the steering wheel control and communication with the vehicle.

Changing Interface and HU Cable Configuration:

Make all changes without power.
Repeat steps 5 to 8 listed above.

In Case of Interface or Vehicle System Malfunction:

Reinstall the original OEM HU.
Start the original unit.
Trigger the shutdown of the CAN Bus system.
Check the HW configuration of the interface.
After shutting down the CAN Bus, repeat steps 5 and 6 listed above.

When Modifying Wiring or Cable Routing:

Only professionally trained personnel should perform the wiring and modifications.
All changes must be verified in terms of manufacturer approval or impact on the vehicle warranty before connection.
All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
Modifications are made at your own responsibility, without warranty for functionality.
Modifications are at your own risk, with no guarantee against damage to the vehicle, device, or interface.
Modifying pre-assembled wiring may lead to loss of product warranty.
