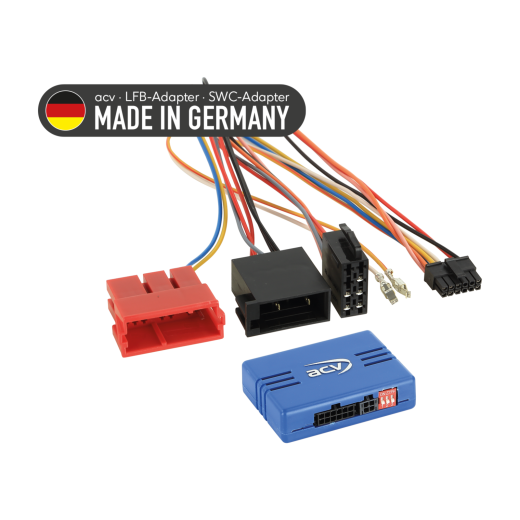

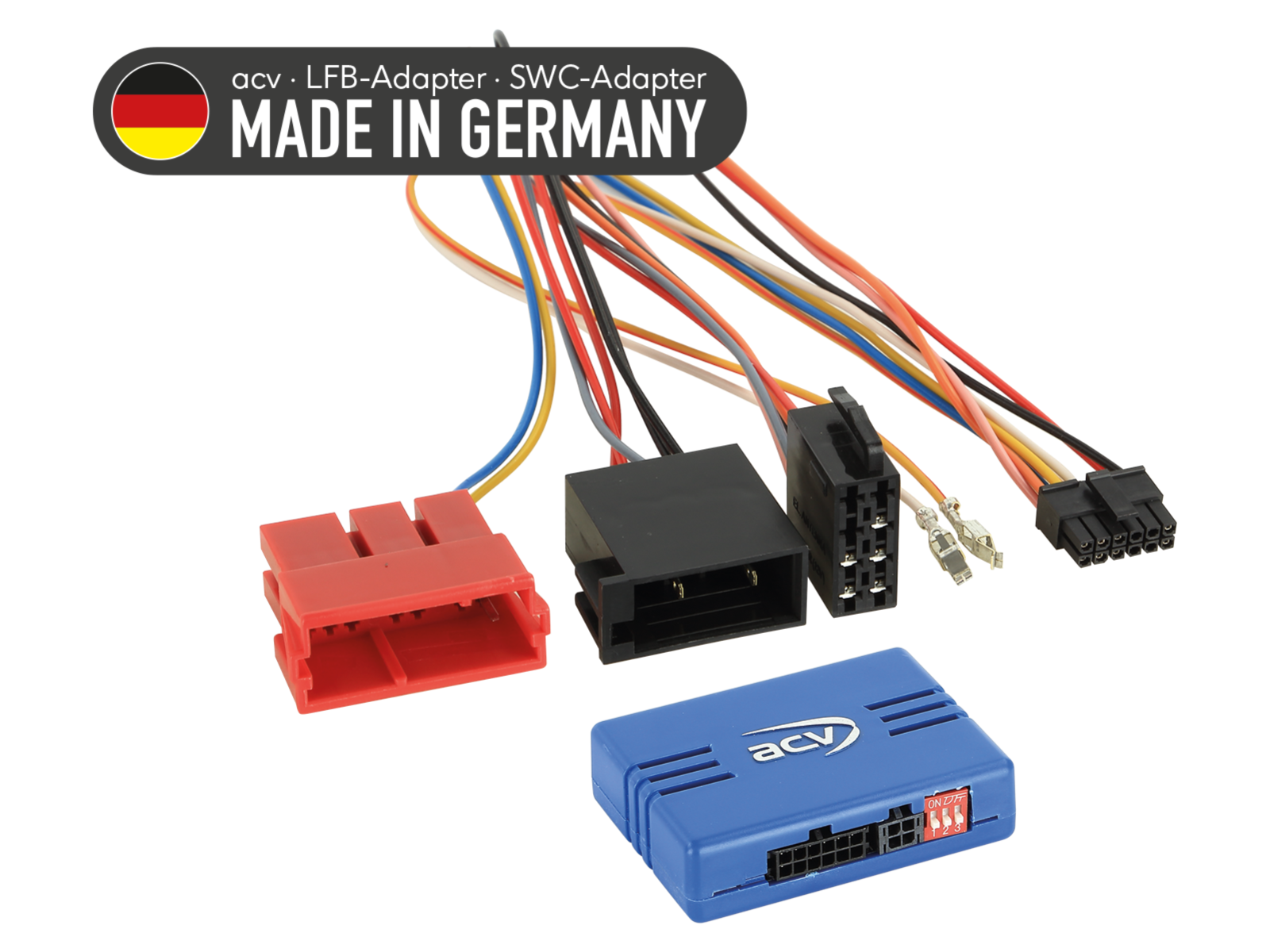

Steering Wheel Control Adapter for Škoda ACV SWC 42A-1444-002-0

Retain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with those in your vehicle and ensure they match both technically and visually. Check if one of the listed OEM radios was originally installed. Verify the vehicle's functionality, system settings, and proper steering wheel control (SWC) operation before final installation.

Designed for Cars

• Škoda Octavia (1U) (01/2000 -> 09/2004) - original Symphony or Technisat OEM radio.
• Škoda Superb (3U) (01/2002 -> 09/2006) - original Symphony or Technisat OEM radio.
• Škoda Superb (3U) (09/2006 -> 04/2008) - original Symphony or Technisat OEM radio.

CAN Bus Information

Connectors and Power Supply:

• Connector: ISO / Mini ISO connector Škoda (item: 42cx22).

Settings and Limitations:

• Check the DIP switch settings on the aftermarket head unit (HU).

Signals Provided by the Adapter:

• Pink: +12 V ignition (Klemme 15) max. 1.5 A
• Orange: +12 V lighting (Klemme 58) max. 0.1 A
• White: +12 V reverse signal max. 1.5 A
• Yellow/green, yellow/red: speed signal

Important Additional Information

• Designed for aftermarket radios Alpine, Blaupunkt, Clarion, Digital Dynamics, ESX, JVC, Kenwood, Pioneer, Snooper, Sony, XZent, Zenec and others (multilead solution).
• To fully activate the adapter, it is necessary to order a connecting cable for the specific radio brand.

General Installation Guidelines

Verification Before Installation:

1. Check all vehicle control functions and settings with the original OEM head unit.
2. Remove the original radio (OEM HU) without power.
3. Check all interface connections for correct wiring - without power.

Connection and Wiring Order:

1. Perform interface settings and hardware configuration without power.
2. Check the connection cable configuration to the HU.
3. Connect the cable to the HU according to the aftermarket device instructions.
4. Connect other wires according to the device instructions.
5. Connect the entire installation to the vehicle - main power connection should be the last.
6. Perform software configuration of the interface according to product description and BDA instructions.
7. Configure aftermarket HU (steering wheel control, camera, handsfree, antenna power, and others).
8. Conduct functional test of steering wheel control and vehicle communication.

Changing Interface and HU Cable Configuration:

• Make all changes without power.
• After changes, repeat steps 5 to 8 above.

In Case of Interface or Vehicle System Failure:

• Return the original OEM HU to the vehicle.
• Start the original unit.
• Initiate CAN Bus system sleep.
• Check interface HW configuration.
• After CAN Bus calm, repeat steps 5 to 8 above.

When Modifying Connections or Wiring:

• Only professionally trained personnel should perform connections and modifications.
• All changes must be verified for manufacturer approval or impact on vehicle warranty before connection.
• All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
• Modifications are made at your own risk, without warranty for functionality.
• Modifications are made at your own risk, without guarantee of avoiding damage to the vehicle, device, or interface.
• Modifications to pre-assembled wiring may result in loss of product warranty.
