Steering wheel button control adapter for Seat / Skoda / VW ACV SWC 42XVW019-0

Be the first to rate the product
steering wheel adapter for Seat Alhambra (7N) (10/10->04/15, 06/16->08/19), Altea (5P) (06/04->03/09, 04/09->07/15), Ibiza (6J) (06/08->02/12, 03/12->06/15), Leon (1P) (09/05->03/09, 04/09->11/12), Mii (AA) (12/11->06/19, 05/17->06/19, 01/20->02/21), Toledo (5P) (01/05->10/09), Toledo (NH) (03/13->05/15), Škoda Citigo (AA) (06/12->05/17, 05/17->06/19), Citigo iv (AA) (01/20->08/21), Fabia (5J) (03/07->04/10, 06/10->06/14), Octavia (1Z) (06/04->05/09, 01/09->03/13), Rapid (NH) (10/12->04/15), Roomster (5J) (09/06->04/10, 06/10->02/15), Superb (3T) (07/08->05/13, 06/13->05/15), Yeti (5L) (08/09->10/13), VW Amarok (2H) (03/10->08/16, 09/16->07/20), Beetle (16) (11/11->06/16), Caddy III (2K) (10/03->08/10, 09/10->04/15), Caddy IV (DU) (06/15->09/20), CC (3C/35) (06/08->08/16), Eos (1F) (05/06->10/10, 10/10->04/15), Fox (5Z) (04/05->08/11), Fusca (Brazil) (2005->2011), Golf V (1K) (11/03->09/08), Golf V (1KM) (06/07->10/09), Golf V Plus (1KP) (01/05->02/09), Golf VI (1K) (11/08->09/12), Golf VI (1KM) (11/09->04/13), Golf VI Plus (1KP) (03/09->01/14), Grand California (SY/SZ) (03/19->06/24), Jetta III (1K5/1KM) (09/05->10/10), Jetta IV (162) (01/11->08/14), Magotan (Asia) (2005->2011), Passat B6 (3C2) (11/05->07/10), Passat B6 (3C5) (08/05->07/10), Passat B7 (3C/362) (11/10->10/14), Polo IV (9N) (03/05->03/09), Polo V (6R) (06/09->01/14), Scirocco III (13) (08/08->04/14), Sagitar (China) (2005->2011), Sharan II (7N) (08/10->04/15, 07/15->10/21), Suran (2009->2015), Tiguan I (5N) (10/07->02/11, 06/11->04/16), Tiguan II (5N) (05/16->05/21), Touran (1T) (01/03->09/06, 11/06->04/10, 08/10->04/15), T6 (7HC) (07/15->08/19), T6.1 (7HC) (10/19->04/24), UP! (AA) (12/11->06/16, 07/16->12/22), e-UP! (AA) (08/16->08/23) a Vento (Mexico) (2005->2011)
More about the product
83,60 EUR
Catalog number: 42XVW019-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days

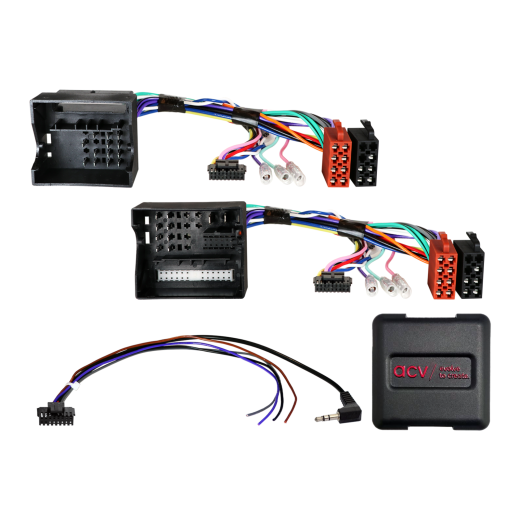

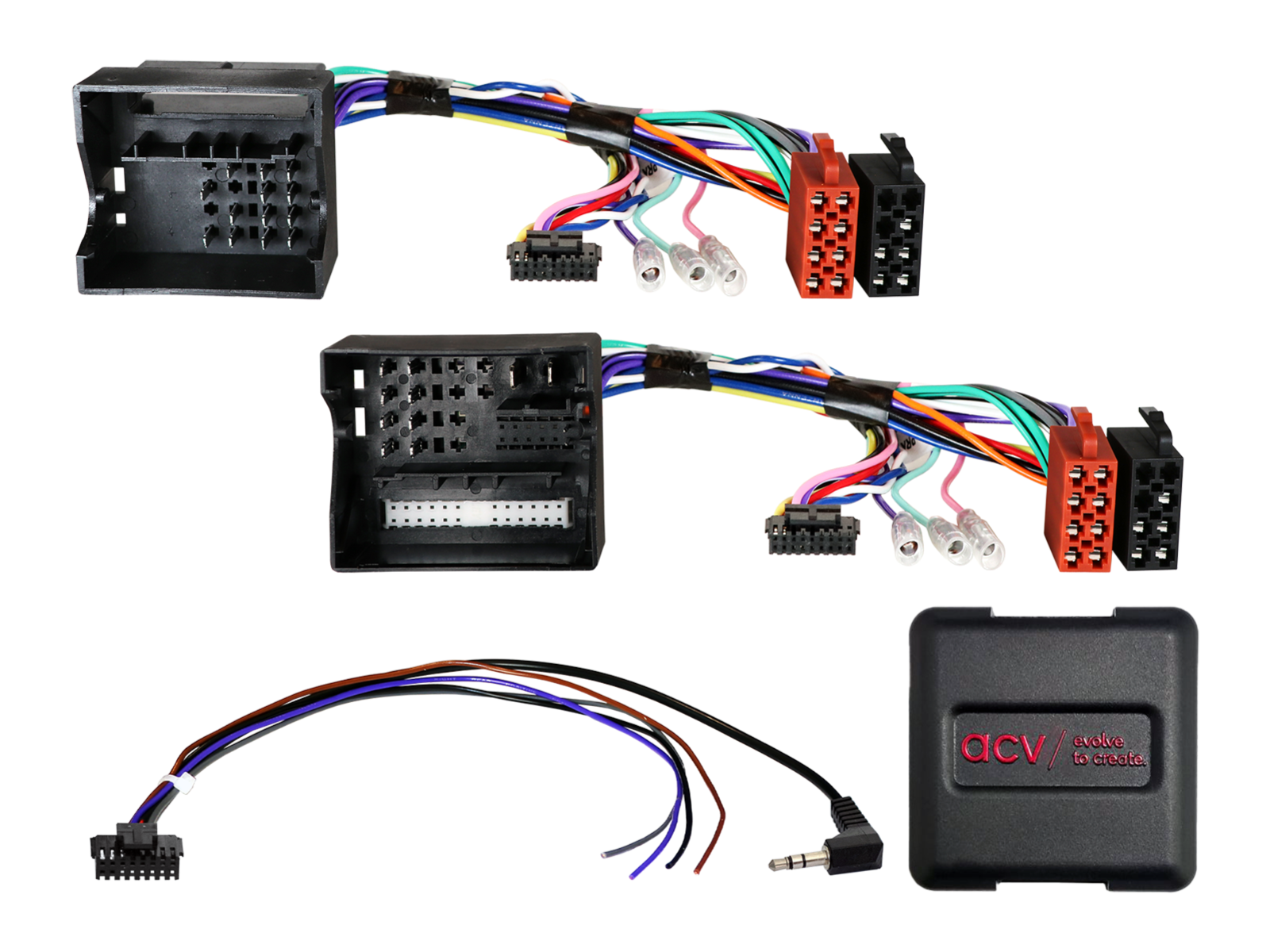

Steering wheel button control adapter for Seat / Skoda / VW ACV SWC 42XVW019-0

Steering wheel button control adapter for Seat / Skoda / VW ACV SWC 42XVW019-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

  • Seat Alhambra (7N) (10/2010 -> 04/2015) - original OEM head unit.
  • Seat Alhambra (7N) (06/2016 -> 08/2019) - original OEM head unit.
  • Seat Altea (5P) (06/2004 -> 03/2009) - original OEM head unit.
  • Seat Altea (5P) (04/2009 -> 07/2015) - original OEM head unit.
  • Seat Ibiza (6J) (06/2008 -> 02/2012) - original OEM head unit.
  • Seat Ibiza (6J) (03/2012 -> 06/2015) - original OEM head unit.
  • Seat Leon (1P) (09/2005 -> 03/2009) - original OEM head unit.
  • Seat Leon (1P) (04/2009 -> 11/2012) - original OEM head unit.
  • Seat Mii (AA) (12/2011 -> 06/2019) - original OEM head unit, vehicles without OEM amplifier.
  • Seat Mii (AA) (05/2017 -> 06/2019) - original OEM head unit, vehicles without OEM amplifier.
  • Seat Mii (AA) (01/2020 -> 02/2021) - original OEM head unit, vehicles without OEM amplifier.
  • Seat Toledo (5P) (01/2005 -> 10/2009) - original OEM head unit.
  • Seat Toledo (NH) (03/2013 -> 05/2015) - original OEM head unit.
  • Skoda Citigo (AA) (06/2012 -> 05/2017) - original OEM head unit, vehicles without OEM amplifier.
  • Skoda Citigo (AA) (05/2017 -> 06/2019) - original OEM head unit, vehicles without OEM amplifier.
  • Skoda Citigo iv (AA) (01/2020 -> 08/2021) - original OEM head unit, vehicles without OEM amplifier.
  • Skoda Fabia (5J) (03/2007 -> 04/2010) - original OEM head unit.
  • Skoda Fabia (5J) (06/2010 -> 06/2014) - original OEM head unit.
  • Skoda Octavia (1Z) (06/2004 -> 05/2009) - original OEM head unit.
  • Skoda Octavia (1Z) (01/2009 -> 03/2013) - original OEM head unit.
  • Skoda Rapid (NH) (10/2012 -> 04/2015) - original OEM head unit.
  • Skoda Roomster (5J) (09/2006 -> 04/2010) - original OEM head unit.
  • Skoda Roomster (5J) (06/2010 -> 02/2015) - original OEM head unit.
  • Skoda Superb (3T) (07/2008 -> 05/2013) - original OEM head unit.
  • Skoda Superb (3T) (06/2013 -> 05/2015) - original OEM head unit.
  • Skoda Yeti (5L) (08/2009 -> 10/2013) - original OEM head unit.
  • VW Amarok (2H) (03/2010 -> 08/2016) - original OEM head unit.
  • VW Amarok (2H) (09/2016 -> 07/2020) - original OEM head unit.
  • VW Beetle (16) (11/2011 -> 06/2016) - original OEM head unit.
  • VW Caddy III (2K) (10/2003 -> 08/2010) - original OEM head unit.
  • VW Caddy III (2K) (09/2010 -> 04/2015) - original OEM head unit.
  • VW Caddy IV (DU) (06/2015 -> 09/2020) - original OEM head unit.
  • VW CC (3C/35) (06/2008 -> 08/2016) - original OEM head unit.
  • VW Eos (1F) (05/2006 -> 10/2010) - original OEM head unit.
  • VW Eos (1F) (10/2010 -> 04/2015) - original OEM head unit.
  • VW Fox (5Z) (04/2005 -> 08/2011) - original OEM head unit.
  • VW Fusca (Brazil) (2005 -> 2011) - original OEM head unit.
  • VW Golf V (1K) (11/2003 -> 09/2008) - original OEM head unit.
  • VW Golf V (1KM) (06/2007 -> 10/2009) - original OEM head unit.
  • VW Golf V Plus (1KP) (01/2005 -> 02/2009) - original OEM head unit.
  • VW Golf VI (1K) (11/2008 -> 09/2012) - original OEM head unit.
  • VW Golf VI (1KM) (11/2009 -> 04/2013) - original OEM head unit.
  • VW Golf VI Plus (1KP) (03/2009 -> 01/2014) - original OEM head unit.
  • VW Grand California (SY/SZ) (03/2019 -> 06/2024) - original OEM head unit.
  • VW Jetta III (1K5/1KM) (09/2005 -> 10/2010) - original OEM head unit.
  • VW Jetta IV (162) (01/2011 -> 08/2014) - original OEM head unit.
  • VW Magotan (Asia) (2005 -> 2011) - original OEM head unit.
  • VW Passat B6 (3C2) (11/2005 -> 07/2010) - original OEM head unit.
  • VW Passat B6 (3C5) (08/2005 -> 07/2010) - original OEM head unit.
  • VW Passat B7 (3C/362) (11/2010 -> 10/2014) - original OEM head unit.
  • VW Polo IV (9N) (03/2005 -> 03/2009) - original OEM head unit.
  • VW Polo V (6R) (06/2009 -> 01/2014) - original OEM head unit.
  • VW Scirocco III (13) (08/2008 -> 04/2014) - original OEM head unit.
  • VW Sagitar (China) (2005 -> 2011) - original OEM head unit.
  • VW Sharan II (7N) (08/2010 -> 04/2015) - original OEM head unit.
  • VW Sharan II (7N) (07/2015 -> 10/2021) - original OEM head unit.
  • VW Suran (2009 -> 2015) - original OEM head unit.
  • VW Tiguan I (5N) (10/2007 -> 02/2011) - original OEM head unit.
  • VW Tiguan I (5N) (06/2011 -> 04/2016) - original OEM head unit.
  • VW Tiguan II (5N) (05/2016 -> 05/2021) - original OEM head unit.
  • VW Touran (1T) (01/2003 -> 09/2006) - original OEM head unit.
  • VW Touran (1T) (11/2006 -> 04/2010) - original OEM head unit.
  • VW Touran (1T) (08/2010 -> 04/2015) - original OEM head unit.
  • VW T6 (7HC) (07/2015 -> 08/2019) - original OEM head unit.
  • VW T6.1 (7HC) (10/2019 -> 04/2024) - original OEM head unit.
  • VW UP! (AA) (12/2011 -> 06/2016) - original OEM head unit, vehicles without OEM amplifier.
  • VW UP! (AA) (07/2016 -> 12/2022) - original OEM head unit, vehicles without OEM amplifier.
  • VW e-UP! (AA) (08/2016 -> 08/2023) - original OEM head unit, vehicles without OEM amplifier.
  • VW Vento (Mexico) (2005 -> 2011) - original OEM head unit.

CAN Bus Information

Connectors and Power Supply:

  • Connectors: 40 Pin or 52 Pin Quadlock VAG.
  • OEM steering wheel control connection: 3.5 mm jack or loose wire to the SWC input of the head unit.

Settings:

  • DIP switch settings according to the manufacturer of the aftermarket unit (see BDA).

Vehicle Compatibility:

  • Supported vehicles: Seat, Škoda and VW with MIB-PQ system and Quadlock connector.
  • Supported Škoda vehicles with Bolero / Stream HU and Amundson / Columbus Sat Nav.
  • Supported VW vehicles with RCD200–510 HU and RNS315 / 510 Sat Nav.
  • Seat Mii, Škoda Citigo and VW UP! with dashboard monitor are not supported.
  • For 40 Pin Quadlock with OEM amplifier an LFB 42a-1324-001 adapter is required.
  • For 52 Pin Quadlock vehicle settings and E-Call functions are not supported.
  • For E-Call an adapter 1424-02 is required.
  • For vehicles with OEM camera an adapter 771324-1037 is required.
  • Vehicles with RCD320 ISO connector are not supported.

Special Cases and Notes:

  • Re-imported vehicles or vehicles with different software versions may have limited functionality.

Important Additional Information

  • Compatible with aftermarket HU with CAN Bus input.
  • To fully activate the adapter, a connection cable for the specific HU brand must be ordered.

General Installation Instructions

Verification Before Installation:

  1. Check all control functions and vehicle settings using the OEM HU.
  2. Disconnect OEM HU in a voltage-free condition.
  3. Check all interface connections in a voltage-free condition.

Connection and Installation Sequence:

  1. Set the HW configuration of the interface in a voltage-free condition.
  2. Check the configuration of the HU cable in a voltage-free condition.
  3. Connect the cable to the HU according to the aftermarket unit manual.
  4. Connect the remaining wires according to the manual.
  5. Connect the complete installation to the vehicle – connect the main power supply last.
  6. Perform the software configuration of the interface according to the manual.
  7. Configure the aftermarket HU (SWC, camera, handsfree, antenna power supply etc.).
  8. Verify the functionality of SWC and the vehicle system.

Configuration Changes:

  • All changes must be carried out in a voltage-free condition.
  • After making changes repeat installation steps 5 to 8.

In Case of Failure:

  • Reinstall OEM HU.
  • Start OEM HU.
  • Initiate CAN Bus shutdown.
  • Check the HW configuration of the interface.
  • After CAN Bus shutdown repeat installation steps 5 and 6.

When Modifying Wiring:

  • Installation and modifications may only be carried out by qualified personnel.
  • All changes must be verified regarding manufacturer approval or impact on warranty.
  • All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
  • Modifications are carried out at your own responsibility.
Catalog number42XVW019-0
BrandACV
LinksOfficial web presentation
