Steering wheel button control adapter for Porsche ACV SWC 42A-1323-001-0

steering wheel adapter for Porsche 911 (977) (08/08->05/13), Boxster (987) (02/09->01/12), Boxster (981) (04/12->01/16), Cayenne (9PA/955) (02/07->02/10), Cayenne (92A/958) (05/10->07/14, 10/14->12/17), Cayman (987C) (02/09->11/12, 03/13->04/16), Panamera (970) (09/09->04/13, 07/13->07/16)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

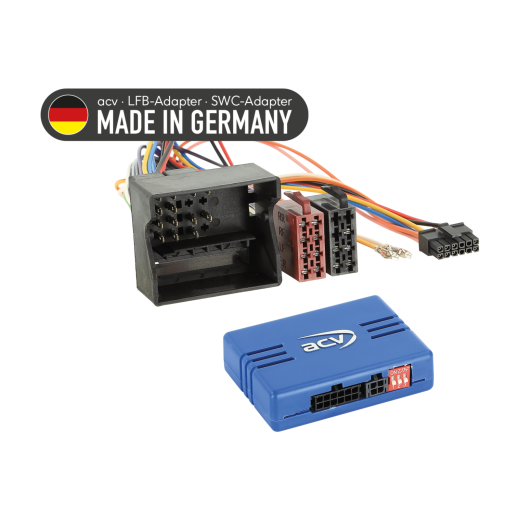

Steering wheel button control adapter for Porsche ACV SWC 42A-1323-001-0

Description and parameters
Comments0
Evaluation0
Category

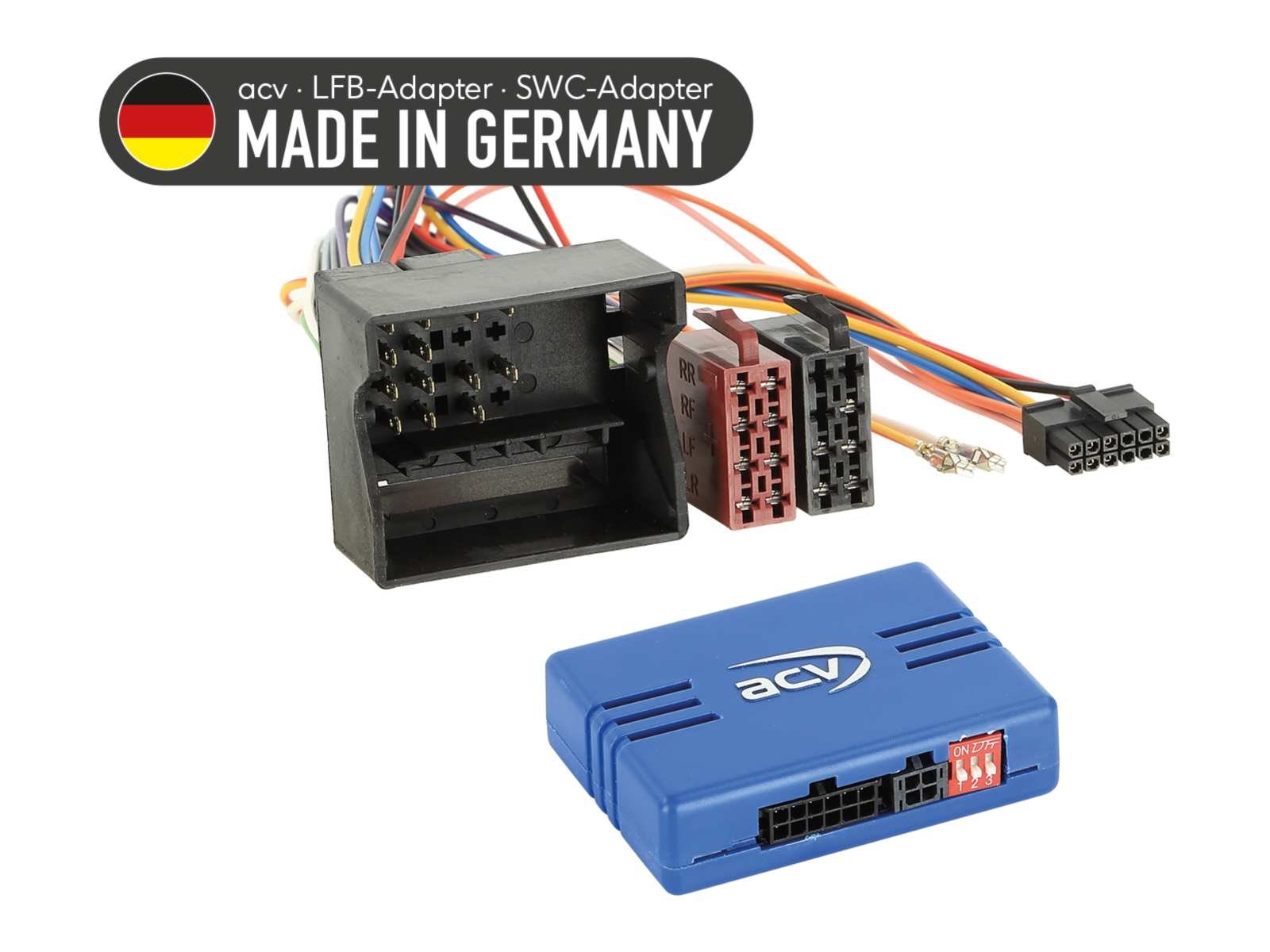

Steering Wheel Control Adapter for Porsche ACV SWC 42A-1323-001-0

Maintain the original steering wheel radio control functions when replacing the original radio with an aftermarket unit. Compare the displayed wiring connectors with the connectors in your vehicle to ensure they match both technically and visually. Verify if any of the listed OEM radios were originally installed. Check vehicle functionality, system settings, and proper operation of steering wheel controls (SWC) before final installation.

Designed for Vehicles

Porsche 911 (977) 08/2008 -> 05/2013 - original radio PCM 3.0 / PCM 3.1 / CRD30, for vehicles with MOST OEM system, a MOST -> Cinch adapter is required, for OEM system with speaker cable MQS chamber C pin 4 white/red, +12V Amp Remote must be verified with OEM unit before installation.
Porsche Boxster (987) 02/2009 -> 01/2012 - original radio PCM 3.0 / PCM 3.1 / CRD30, for vehicles with MOST OEM system, a MOST -> Cinch adapter is required, for OEM system with speaker cable MQS chamber C pin 4 white/red, +12V Amp Remote must be verified with OEM unit before installation.
Porsche Boxster (981) 04/2012 -> 01/2016 - original radio PCM 3.0 / PCM 3.1 / CRD30.
Porsche Cayenne (9PA/955) 02/2007 -> 02/2010 - original radio PCM 3.0 / PCM 3.1 / CRD30, for vehicles with MOST OEM system, a MOST -> Cinch adapter is required, for OEM system with speaker cable MQS chamber C pin 4 white/red, +12V Amp Remote must be verified with OEM unit before installation.
Porsche Cayenne (92A/958) 05/2010 -> 07/2014 - original radio PCM 3.0 / PCM 3.1 / CRD30.
Porsche Cayenne (92A/958) 10/2014 -> 12/2017 - original radio PCM 3.0 / PCM 3.1 / CRD30.
Porsche Cayman (987C) 02/2009 -> 11/2012 - original radio PCM 3.0 / PCM 3.1 / CRD30, for vehicles with MOST OEM system, a MOST -> Cinch adapter is required, for OEM system with speaker cable MQS chamber C pin 4 white/red, +12V Amp Remote must be verified with OEM unit before installation.
Porsche Cayman (987C) 03/2013 -> 04/2016 - original radio PCM 3.0 / PCM 3.1 / CRD30.
Porsche Panamera (970) 09/2009 -> 04/2013 - original radio PCM 3.0 / PCM 3.1 / CRD30.
Porsche Panamera (970) 07/2013 -> 07/2016 - original radio PCM 3.0 / PCM 3.1 / CRD30.

CAN Bus Information

Connectors and Power Supply:

40 pin Quadlock Porsche connector.
+12V antenna remote to be verified with OEM unit before installation: chamber A pin 13 or alternatively pin 14.
+12V AMP remote to be verified with OEM unit before installation: chamber B blue pin 4.

Settings:

Check DIP switches according to the type of aftermarket radio.
Supports OEM units PCM 3.0, PCM 3.1, CRD30.
Vehicle settings functions are not supported.

Diagnostic LED Indication:

Blue flashing: searching for CAN Bus.
Blue solid: CAN Bus active.
Red: +12V ignition active.

Available Signals:

Pink: +12V ignition (Klemme 15) max. 1.5A.
Orange: +12V illumination (Klemme 58) max. 0.1A.
White: +12V reverse max. 1.5A.
Yellow/green, yellow/red: speed signal.

Important Additional Information

To fully activate the adapter, an interconnecting cable for the specific radio brand is required.

General Installation Guidelines

Verification Before Installation:

Check all control functions and vehicle settings with the original OEM head unit.
Disconnect the original radio (OEM HU) without power.
Verify all interface connections are properly connected - without power.

Connection and Wiring Order:

Check the interface settings and HW configuration - without power.
Verify the connection cable configuration to HU - without power.
Connect the cable to HU according to the aftermarket device instructions.
Connect other wires according to the device instructions.
Connect the entire installation to the vehicle - connect the main power connection last.
Perform software configuration of the interface according to product description or manual.
Configure the aftermarket HU (e.g., steering wheel control, camera, hands-free, antenna power).
Perform a functional test of steering wheel control and vehicle communication.

Changing Interface and HU Cable Configuration:

Make all changes without power.
Repeat steps 5 to 8 mentioned above.

In Case of Interface or Vehicle System Malfunction:

Reinstall the original OEM HU.
Start the original unit.
Trigger the CAN Bus system shutdown.
Check the HW configuration of the interface.
After shutting down the CAN Bus, repeat steps 5 and 6 mentioned above.

When Modifying Connections or Cable Routing:

Connections and modifications should only be performed by professionally trained personnel.
All changes must be verified for manufacturer approval or impact on vehicle warranty before connecting.
All modifications must be verified by measurement and comparison to the vehicle's wiring diagram before connecting.
Modifications are made at your own risk, with no guarantee of functionality.
Modifications are made at your own risk, with no guarantee against damage to the vehicle, device, or interface.
Modifications to pre-installed wiring may void the product warranty.
