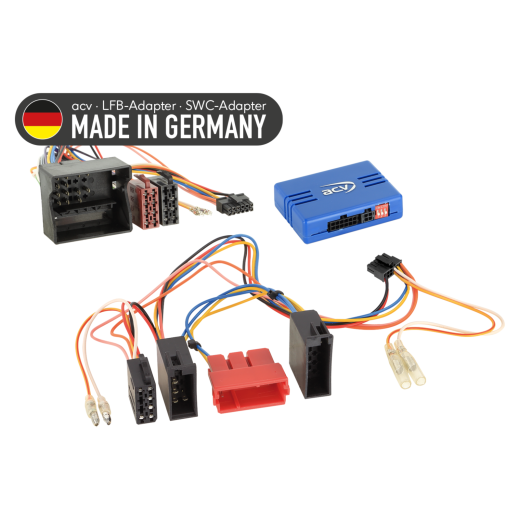

Steering wheel button control adapter for Mercedes / Smart / VW ACV SWC 42A-1190-00C

steering wheel adapter for Mercedes A-class (C169/W169) (10/04->04/08, 06/08->06/12), B-class (T245) (07/05->04/08, 04/08->09/11), C-class (W203) (03/00->01/05), C-class (CL203/S203/W203) (02/04->09/07), C-class (C204/S204/W204) (08/07->01/11, 03/11->10/15), Citan 420 (W420) (10/21->24), CLC-class (CL203) (06/08->02/11), CLK-class (C208) (07/99->03/03), CLK-class (C209) (03/02->05/05), CLK-class (W209) (04/05->01/10), CLS-class (C219) (04/08->09/10), E-class (W210) (06/99->12/02), E-class (S211/W211) (03/08->01/09), E-class (A212/C212/S212/W204) (02/09->03/13), G-class (W463) (04/07->06/08), G-class (W164) (09/08->06/12), GL-class (X164) (09/06->05/09, 05/09->07/12), M-class (W164) (07/05->04/08, 10/08->07/11), ML (W164) (07/05->04/08, 10/08->07/11), R-class (W251) (09/05->05/07, 05/07->05/10), SL-class (R230) (08/01->02/06), SLK-class (R171) (04/08->03/11), SLR (C199) (12/03->12/09), Sprinter (W906) (04/06->08/13, 08/13->05/18), Sprinter (W907/W910) (06/18->12/20, 11/19->24), Vito/Viano (W639) (04/06->08/10, 09/10->03/14), Vito (W447) (10/14->02/19, 05/19->01/24), Smart For Four (W454) (01/04->04/07) and VW Crafter I (2EC/2EK/2F) (03/06->07/11, 07/11->11/16)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for Mercedes / Smart / VW ACV SWC 42A-1190-00C

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Button Control Adapter for Mercedes / Smart / VW 42A-1190-00C

Preserve the original steering wheel radio control functions when replacing the factory radio with an aftermarket head unit. Depending on vehicle equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the shown wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify vehicle functionality, system settings and correct operation of steering wheel control (SWC).

Intended for vehicles

Mercedes A-class C169 W169 2004 -> 2008 - original head unit Audio 5/10.
Mercedes A-class C169 W169 2008 -> 2012 - original head unit Audio 5/10.
Mercedes B-class T245 2005 -> 2008 - original head unit Audio 5/10.
Mercedes B-class T245 2008 -> 2011 - original head unit Audio 5/10.
Mercedes C-class CL203 S203 W203 2004 -> 2007 - original head unit Audio 20/30.
Mercedes C-class C204 S204 W204 2007 -> 2011 - original head unit Audio 20/30/50/Comand NTG 2/2.5. Vehicles with +12V disconnection of permanent power (terminal 30).
Mercedes C-class C204 S204 W204 2011 -> 2015 - original head unit Audio 20/30/50/Comand NTG 2/2.5. Vehicles with +12V disconnection of permanent power (terminal 30).
Mercedes Citan 420 W420 2021 -> 2023 - original head unit Browse 1-DIN.
Mercedes CLC-class CL203 2008 -> 2011 - original head unit Audio 20/30.
Mercedes CLK-class C208 1999 -> 2003 - original head unit Audio 10.
Mercedes CLK-class C209 2002 -> 2005 - original head unit Audio 20.
Mercedes CLK-class W209 2005 -> 2010 - original head unit Audio 20/30.
Mercedes CLS-class C219 2008 -> 2010 - original head unit Audio 20/30.
Mercedes E-class W210 1999 -> 2002 - original head unit Audio 10/30.
Mercedes E-class S211 W211 2008 -> 2009 - original head unit Audio 20/30.
Mercedes E-class A212 C212 S212 W204 2009 -> 2013 - original head unit Audio 20/30/50/Comand NTG 2/2.5. Vehicles with +12V disconnection of permanent power (terminal 30).
Mercedes G-class W463 2007 -> 2008 - original head unit Audio 20/30.
Mercedes G-class W164 2008 -> 2012 - original head unit Audio 20/30/50/Comand NTG 2/2.5.
Mercedes GL-class X164 2006 -> 2009 - original head unit Audio 20/30.
Mercedes GL-class X164 2009 -> 2012 - original head unit Audio 20/30.
Mercedes M-class W164 2005 -> 2008 - original head unit Audio 20/30.
Mercedes M-class W164 2008 -> 2011 - original head unit Audio 20/30.
Mercedes ML W164 2005 -> 2008 - original head unit Audio 20/30.
Mercedes ML W164 2008 -> 2011 - original head unit Audio 20/30.
Mercedes R-class W251 2005 -> 2007 - original head unit Audio 20/30.
Mercedes R-class W251 2007 -> 2010 - original head unit Audio 20/30.
Mercedes SL-class R230 2001 -> 2006 - original head unit Audio 20/30.
Mercedes SLK-class R171 2008 -> 2011 - original head unit Audio 20/30.
Mercedes SLR C199 2003 -> 2009 - original head unit Audio 20/30.
Mercedes Sprinter W906 2006 -> 2013 - original head unit Audio 10/15/30.
Mercedes Sprinter W906 2013 -> 2018 - original head unit Audio 10/15/30.
Mercedes Sprinter W907 W910 2018 -> 2020 - original head unit Audio 10/15/30. Volume control function only.
Mercedes Sprinter W907 W910 2019 -> 2024 - original head unit Audio 10/15/30. Volume control function only.
Mercedes Vito/Viano W639 2003 -> 2010 - original head unit Audio 10/15.
Mercedes Vito/Viano W639 2010 -> 2014 - original head unit Audio 10/15.
Mercedes Vito W447 2014 -> 2019 - original head unit Audio 10/15/30/40. Vehicles with +12V disconnection of permanent power (terminal 30). Volume control function only.
Mercedes Vito W447 2019 -> 2024 - original head unit Audio 10/15/30/40. Vehicles with +12V disconnection of permanent power (terminal 30). Volume control function only.

Smart ForFour W454 2004 -> 2007 - original head unit Comand.

VW Crafter I 2EC 2EK 2F 2006 -> 2011 - original head unit RCD 2001.
VW Crafter I 2EC 2EK 2F 2011 -> 2016 - original head unit RCD 3002. Vehicles with +12V disconnection of permanent power (terminal 30).

CAN Bus information

Connectors and power:

Connector: 40-pin Mercedes Quadlock (item: 42cx28).
Connector: ISO / 10-pin ISO / Mercedes Mini ISO (item: 42cx26).

Settings:

Check the DIP switches on the aftermarket head unit (HU).

Vehicle compatibility:

Vehicles with original head units Audio 5/10/20/30/40.
Vehicles with OEM navigation systems Audio 30 APS, Audio 50 APS, Comand NTG 2/2.5.
Vehicles with Browse 1-DIN (Citan, Sprinter).

Vehicles with OEM amplifier:

An active system adapter is required depending on the type (MOST to RCA, ISO to ISO).

Diagnostic LED indication:

Blue blinking: searching for CAN Bus signal.
Blue steady: CAN Bus active.
Red steady: ignition +12V present.

Important additional information

Intended for aftermarket head units by Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
To fully activate the adapter, you must order the connection cable for the specific head unit brand.

General installation instructions

Pre-installation verification:

Check all steering wheel control functions and vehicle settings with the original OEM head unit installed.
Disconnect the original radio (OEM HU) with power off.
Check all interface connections to ensure they are correctly connected – with power off.

Connection and wiring sequence:

Check the interface settings and hardware configuration – with power off.
Check the configuration of the connection cable to the HU – with power off.
Connect the cable to the HU according to the aftermarket device manual.
Connect the other wires according to the device manual.
Connect the entire installation to the vehicle – connect the main power connection last.
Perform the software configuration of the interface according to the product description or manual.
Configure the aftermarket HU (e.g. steering wheel control, camera, handsfree, antenna power).
Perform a functional test of steering wheel control and communication with the vehicle.

Changing the interface configuration and HU cable:

Make all changes with power off.
Repeat steps 5 to 8 listed above.

If the interface or vehicle system fails:

Reinstall the original OEM HU.
Start the original unit.
Invoke CAN Bus shutdown.
Check the hardware configuration of the interface.
After CAN Bus shutdown, repeat steps 5 and 6 above.

When modifying wiring or cable routing:

Wiring and modifications must only be performed by professionally trained personnel.
All changes must be verified for manufacturer approval or impact on the vehicle warranty before connection.
All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
Modifications are performed at your own risk, without warranty for functionality.
Modifications are carried out at your own risk, without guarantee of preventing damage to the vehicle, device or interface.
Pre-modified cabling may result in loss of product warranty.
