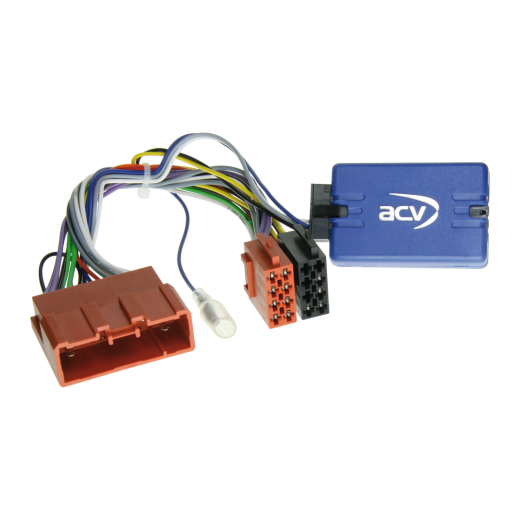

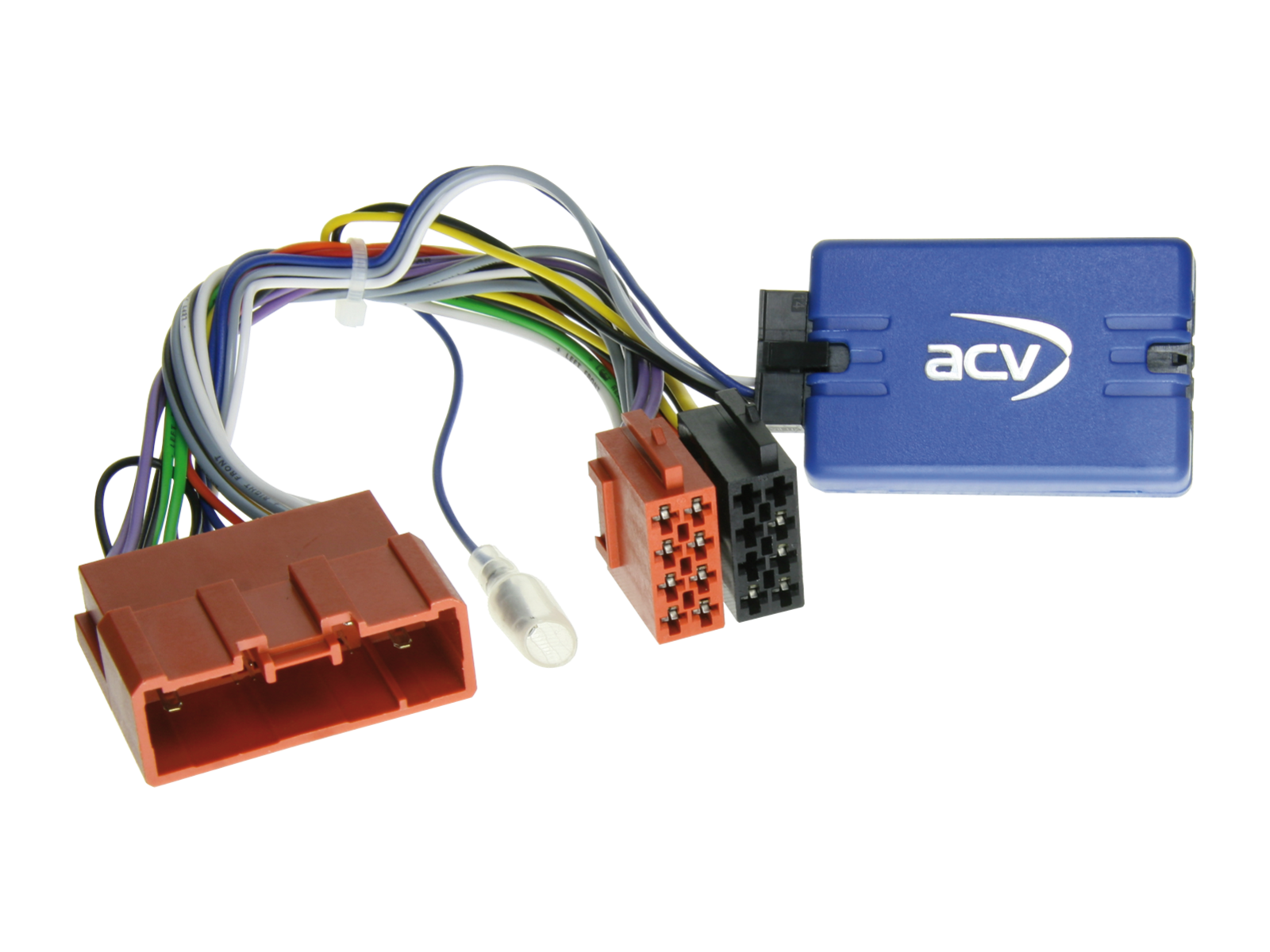

Steering wheel button control adapter for Mazda ACV SWC 42SMZ009-0

steering wheel adapter for Mazda 6 (GJ) (02/13->02/15), CX-5 (GH) (04/12->02/15), CX-7 (ER) (10/07->09/09) and CX-7 (ER) (10/09->09/13)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for Mazda ACV SWC 42SMZ009-0

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Control Adapter for Mazda ACV SWC 42SMZ009-0

Preserve the original steering wheel control functions of your car radio when replacing the original radio with a non-original unit. Depending on the vehicle's equipment, the range of functions, and the software of the non-original unit, some functions may be limited or replaced by others. Compare the displayed connectors of the adapter with those in your vehicle and ensure they match both visually and technically. Verify if one of the specified original car radios was used in the vehicle. Before final installation, check the vehicle's functions, settings, and steering wheel control.

Designed for Vehicles

Mazda 6 (GJ) (02/2013->02/2015) with a 24 Pin Mazda connector, without BOSE audio system; for versions with BOSE, use adapter 42smz009, for versions with Sanyo 2-DIN OEM navigation OEM camera 4 Pin green connector Video+ / red Video.
Mazda CX-5 (GH) (04/2012->02/2015) with a 24 Pin Mazda connector, without BOSE audio system; for versions with BOSE, use adapter 42smz009, OEM radio Panasonic.
Mazda CX-7 (ER) (10/2007->09/2009) with a 24 Pin Mazda connector, without BOSE audio system; for versions with BOSE, use adapter 42smz009.
Mazda CX-7 (ER) (10/2009->09/2013) with a 24 Pin Mazda connector, without BOSE audio system; for versions with BOSE, use adapter 42smz009.

CAN Bus Information

Connection: 24 Pin Mazda connector.
Connection: OEM Soundsystem ISO(m) -> ISO(f).
Vehicles without BOSE audio system — for vehicles with BOSE, use adapter 42smz009.
Before connecting, check the wiring and function of analog signals for speed and parking brake.
Supported settings: date/time, mileage, and fader.

Important Additional Information

To fully activate the adapter, it is necessary to order a connecting cable for the specific brand of car radio.

General Installation Guidelines

Pre-Installation Verification

Check all vehicle control functions and settings with the original OEM car radio.
Remove the OEM unit without power.
Check all interface connections without power.

Connection and Wiring Order

Perform all settings and configurations without power.
Check the configuration of the radio connection cable.
Connect the cable according to the aftermarket radio manual.
Connect other wires as per the device manual.
Connect the main power supply last.
Perform software configuration of the interface according to the instructions in the description and BDA.
Configure the aftermarket radio for SWC functions, camera, hands-free, antenna power, etc.
Test the steering wheel control function and communication with the vehicle.

Changing Interface and HU Cable Configuration

Make changes without power.
After the change, follow steps 5–8 above.

In Case of Interface or Vehicle System Malfunction

Reinstall the original OEM unit in the vehicle.
Turn on the OEM unit.
Wait for the CAN Bus to go to sleep.
Check the hardware configuration of the interface.
After the CAN Bus goes to sleep, follow steps 5–8 above.

When Modifying Wiring or Cable Routing

Modifications should only be made by professionally trained personnel.
Verify compliance with the manufacturer's requirements and impact on warranty before connecting.
Verify function by measurement and according to the vehicle's diagram before connecting.
Modifications are made at your own risk without warranty of functionality.
Modifications are made without warranty for potential damage to the vehicle, device, or interface.
Modifications to pre-installed wiring may void the product warranty.
