Steering wheel button control adapter for Lexus / Toyota ACV SWC 42A-1300-00C-0
steering wheel adapter for Lexus IS (XE1) (10/01->11/05), IS (XE2) (12/05->11/08, 11/08->11/10), IS Cabriolet (XE2) (07/09->11/10, 11/10->10/13), Toyota 4Runner (02->09), Auris (E150) (07/07->03/10, 03/10->01/13), Avanza (03->11), Avensis (T25) (01/03->06/06, 06/06->01/09), Avensis (T27) (01/09->12/11, 01/12->06/15), Camry (07->11), Celica (T23) (10/99->01/06), Corolla (E120) (01/02->07/04, 07/04->02/07), Corolla (E170) (04/14->12/16), Corolla Verso (R1) (05/04->06/07, 07/07->04/09), Estima (06->16), FJ Cruiser (01->07), Fortuner (11->15), Hiace (H1) (11/06->10/10), Hilux (N25) (10/05->11/08, 11/08->12/11, 12/11->08/16), Hilux (AN1P) (11/16->09/20), Innova (06->11, 11->15), Landcruiser (J12) (01/03->01/09), Matrix (03->14), MR2 (W3) (04/00->03/03), Prado (03->09), Previa (06->19), Prius ZVW30/ZVW35 (XW3) (06/09->04/12, 04/12->02/16), Prius+ (XW3/XW4) (06/12->01/15), RAV4 (XA2) (10/00->12/03, 12/03->01/06), RAV4 (XA3) (03/06->04/09, 04/09->05/10, 05/10->02/13), RAV4 (XA3/XA4) (04/13->01/16, 01/16->12/18), Verso (AR2) (04/09->01/13, 04/13->06/18), Verso-S (XP12) (03/11->07/14, 07/14->12/15), Vios (03->07), Yaris (XP9) (01/06->01/09, 01/09->10/11), Yaris (XP13) (11/11->08/14, 09/14->03/17, 04/17->08/20) and Yaris (XP150) (13->23)
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days

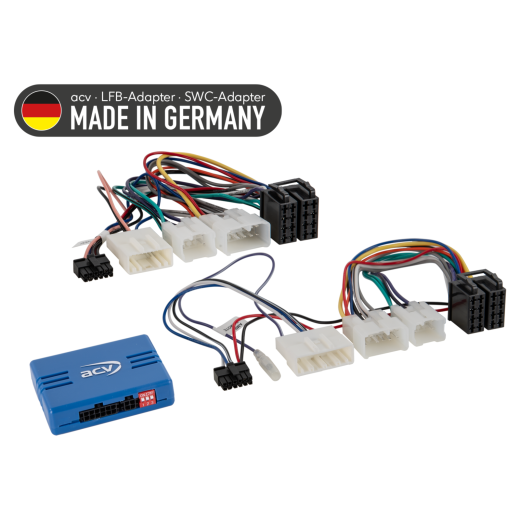

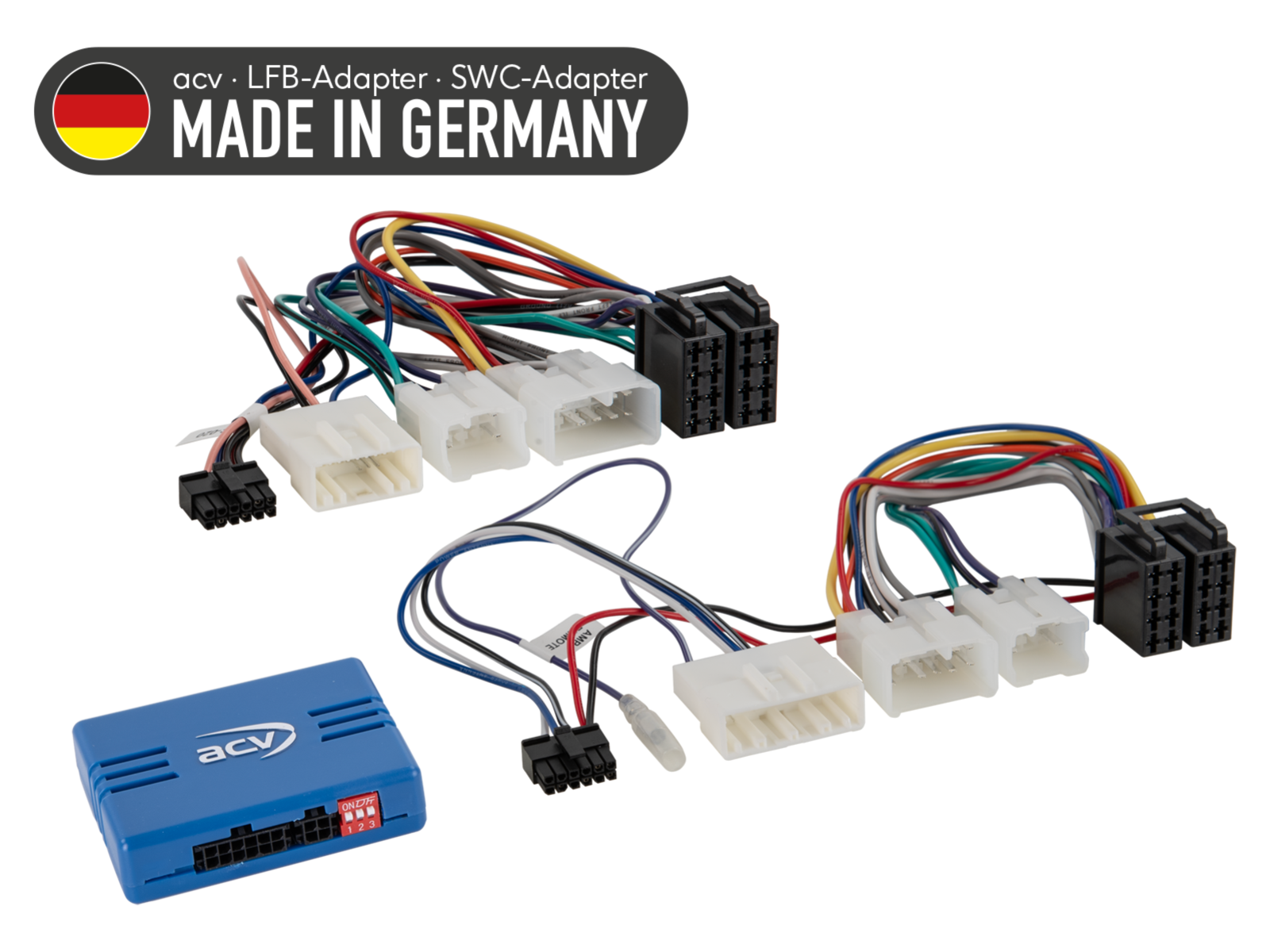

Steering wheel button control adapter for Lexus / Toyota ACV SWC
Retain the original steering-wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle equipment, range of functions and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the shown wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM radios was originally installed. Before final installation verify vehicle functions, system settings and correct operation of the steering wheel controls (SWC).
Designed for vehicles
- Lexus IS (XE1) 10/2001 -> 11/2005 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Lexus IS (XE2) 12/2005 -> 11/2008 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Lexus IS Cabriolet (XE2) 07/2009 -> 11/2010 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Lexus IS (XE2) 11/2008 -> 11/2010 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Lexus IS Cabriolet (XE2) 11/2010 -> 10/2013 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota 4Runner 2002 -> 2009 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Auris (E150) 07/2007 -> 03/2010 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Auris (E150) 03/2010 -> 01/2013 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Avanza 2003 -> 2011 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Avensis (T25) 01/2003 -> 06/2006 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Avensis (T25) 06/2006 -> 01/2009 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Avensis (T27) 01/2009 -> 12/2011 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Avensis (T27) 01/2012 -> 06/2015 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Camry 2007 -> 2011 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Celica (T23) 10/1999 -> 01/2006 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Corolla (E120) 01/2002 -> 07/2004 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Corolla (E120) 07/2004 -> 02/2007 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Corolla (E170) 04/2014 -> 12/2016 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Corolla Verso (R1) 05/2004 -> 06/2007 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Corolla Verso (R1) 07/2007 -> 04/2009 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Estima 2006 -> 2016 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota FJ Cruiser 2001 -> 2007 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Fortuner 2011 -> 2015 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Hiace (H1) 11/2006 -> 10/2010 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Hilux (N25) 10/2005 -> 11/2008 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Hilux (N25) 11/2008 -> 12/2011 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Hilux (N25) 12/2011 -> 08/2016 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Hilux (AN1P) 11/2016 -> 09/2020 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Innova 2006 -> 2011 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Innova 2011 -> 2015 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system. Vehicles with OEM 360° camera system: use LFB Toyota 10Pin/6Pin/28Pin/24Pin.
- Toyota Landcruiser (J12) 01/2003 -> 01/2009 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Matrix 2003 -> 2014 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota MR2 (W3) 04/2000 -> 03/2003 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Prado 2003 -> 2009 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Previa 2006 -> 2019 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Prius ZVW30/ZVW35 (XW3) 06/2009 -> 04/2012 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Prius ZVW30/ZVW35 (XW3) 04/2012 -> 02/2016 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Prius+ (XW3/XW4) 06/2012 -> 01/2015 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota RAV4 (XA2) 10/2000 -> 12/2003 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota RAV4 (XA2) 12/2003 -> 01/2006 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota RAV4 (XA3) 03/2006 -> 04/2009 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota RAV4 (XA3) 04/2009 -> 05/2010 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota RAV4 (XA3) 05/2010 -> 02/2013 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota RAV4 (XA3/XA4) 04/2013 -> 01/2016 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota RAV4 (XA3/XA4) 01/2016 -> 12/2018 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system. Vehicles with OEM 360° camera system: use LFB Toyota 10Pin/6Pin/28Pin/24Pin.
- Toyota Verso (AR2) 04/2009 -> 01/2013 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Verso (AR2) 04/2013 -> 06/2018 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Verso-S (XP12) 03/2011 -> 07/2014 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Verso-S (XP12) 07/2014 -> 12/2015 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Vios 2003 -> 2007 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Yaris (XP9) 01/2006 -> 01/2009 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Yaris (XP9) 01/2009 -> 10/2011 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Yaris (XP13) 11/2011 -> 08/2014 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Yaris (XP13) 09/2014 -> 03/2017 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Yaris (XP13) 04/2017 -> 08/2020 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
- Toyota Yaris (XP150) 2013 -> 2023 - original radio Fujitsu Ten / Matsushita, without OEM 360° camera system and without OEM JBL / JBL Synthesis / Mark Levinson audio system.
CAN Bus information
Connectors and power:
- System type: analog.
- Connectors: Toyota 10-pin / 6-pin / 20-pin and Toyota 10-pin / 6-pin / 28-pin.
Settings:
- Check DIP switches according to the manual (BDA).
Special notes:
- Vehicles without 18-pin CN700 LAN connector.
- Vehicles with 18-pin LAN connector: before connecting verify connector CN800 – pin 6: SWC GND, pin 7: SWC 1, pin 8: SWC 2.
Diagnostic LED indicators:
- Blue illumination: interface active, +12 V ignition power present.
- Red illumination: steering wheel button function detected.
Important additional information
- Compatible with LFB interfaces: Lexus/Toyota 10Pin/6Pin/20Pin analog and Toyota 10Pin/6Pin/28Pin analog.
- To fully activate the adapter you must order the connecting cable for the specific radio brand.
General installation instructions
Checks before installation:
- Check all steering controls and vehicle settings with the original OEM head unit installed.
- Disconnect the original radio (OEM HU) with power off.
- Check all interface connections to ensure they are correctly connected – with power off.
Connections and wiring sequence:
- Check the interface settings and hardware configuration – with power off.
- Check the configuration of the connection cable to the HU – with power off.
- Connect the cable to the HU according to the aftermarket device manual.
- Connect the remaining wires according to the device manual.
- Connect the entire installation to the vehicle – connect the main power last.
- Perform the software configuration of the interface according to the product description or manual.
- Configure the aftermarket HU (e.g. steering wheel control, camera, handsfree, antenna power).
- Perform a function test of the steering wheel controls and vehicle communication.
Changing interface configuration and HU cable:
- Make all changes with power off.
- Repeat steps 5 to 8 listed above.
If the interface or vehicle system fails:
- Reinstall the original OEM HU.
- Start the original unit.
- Trigger CAN Bus shutdown.
- Check the hardware configuration of the interface.
- After CAN Bus shutdown repeat steps 5 and 6 listed above.
When modifying wiring or cable routing:
- Connections and modifications may only be performed by professionally trained personnel.
- All changes must be verified in terms of manufacturer approval or impact on vehicle warranty before connection.
- All modifications must be verified by measurement and comparison with the vehicle wiring diagram before connection.
- Modifications are carried out at your own risk, without guarantee of functionality.
- Modifications are at your own risk, without guarantee against damage to the vehicle, device or interface.
- Pre-modified cabling may result in loss of product warranty.
Catalog number | 42A-1300-00C-0 |
Brand | ACV |
Links | Official web presentation |
