Steering wheel button control adapter for Lexus / Toyota ACV SWC 42A-1300-001-0

Be the first to rate the product
steering wheel adapter for Lexus IS (XE1) (10/01->11/05), IS (XE2) (12/05->11/08, 11/08->11/10), IS Cabriolet (XE2) (07/09->11/10, 11/10->10/13), Toyota 4Runner (02->09), Auris (E150) (07/07->03/10), Avanza (03->11), Avensis (T25) (01/03->06/06, 06/06->01/09), Avensis (T27) (01/09->12/11), Camry (07->11), Celica (T23) (10/99->01/06), Corolla (E120) (01/02->07/04, 07/04->02/07), Corolla Verso (R1) (05/04->06/07, 07/07->04/09), Estima (06->16), FJ Cruiser (01->07), Hiace (H1) (11/06->10/10), Hilux (N25) (10/05->11/08, 11/08->12/11), Innova (06->15), Landcruiser (J12) (01/03->01/09), Matrix (03->14), MR2 (W3) (04/00->03/03), Prado (03->09), Previa (06->19), Prius ZVW30/ZVW35 (XW3) (06/09->04/12), RAV4 (XA2) (10/00->12/03, 12/03->01/06), RAV4 (XA3) (03/06->04/09, 04/09->05/10), Yaris (XP9) (01/06->01/09, 01/09->10/11), Vios (03->07)
More about the product
55,60 EUR
Catalog number: 42A-1300-001-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days

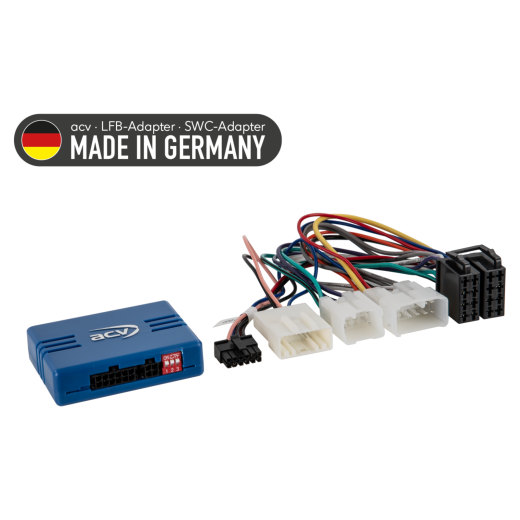

Steering wheel button control adapter for Lexus / Toyota ACV SWC 42A-1300-001-0

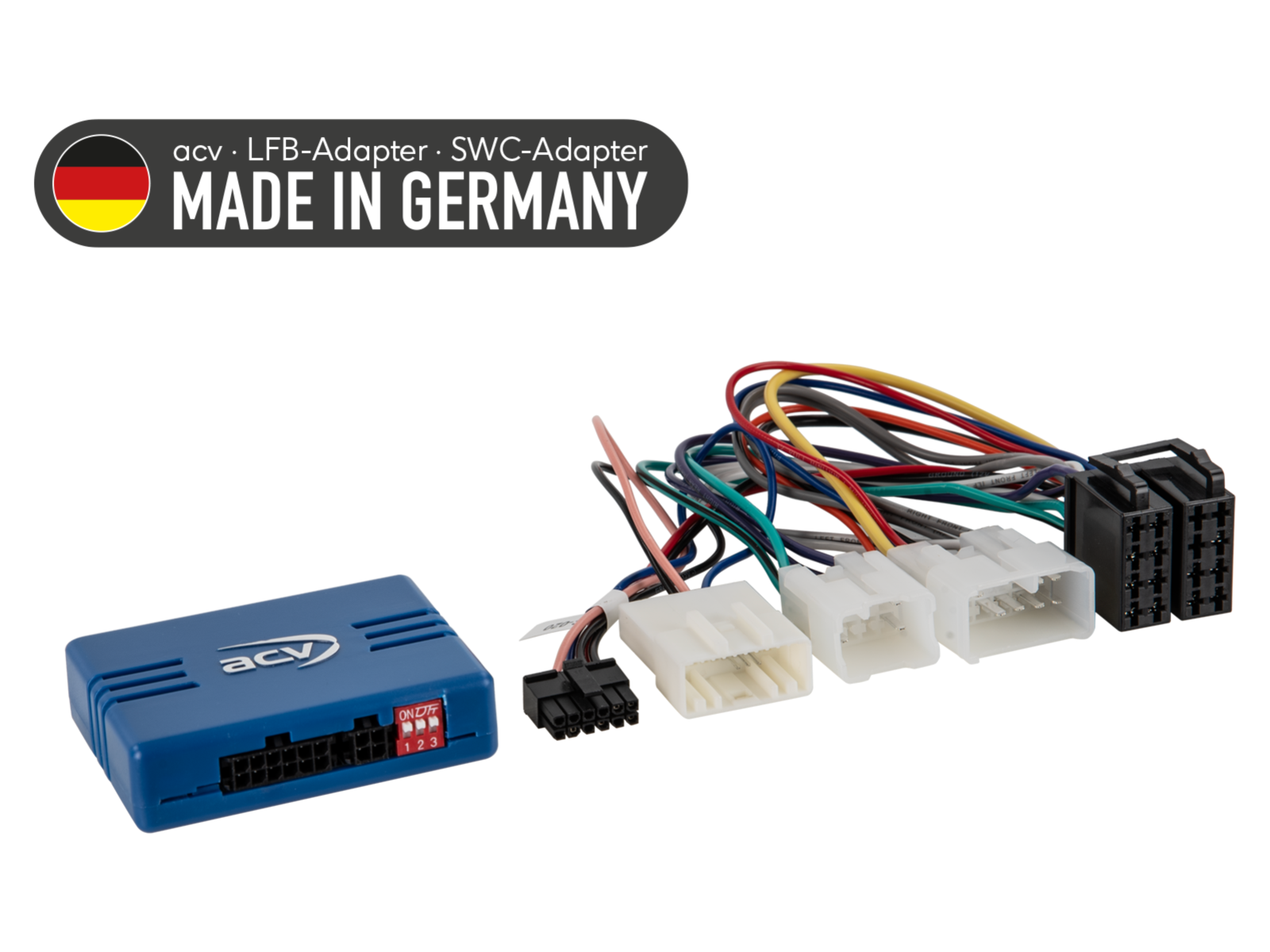

Steering wheel button control adapter for Lexus / Toyota ACV SWC 42A-1300-001-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

  • Lexus IS (XE1) 2001 -> 2005 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Lexus IS (XE2) 2005 -> 2008 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Lexus IS (XE2) 2008 -> 2010 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Lexus IS Cabriolet (XE2) 2009 -> 2010 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Lexus IS Cabriolet (XE2) 2010 -> 2013 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota 4Runner 2002 -> 2009 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Auris (E150) 2007 -> 2010 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Avanza 2003 -> 2011 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Avensis (T25) 2003 -> 2006 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Avensis (T25) 2006 -> 2009 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Avensis (T27) 2009 -> 2011 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Camry 2007 -> 2011 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Celica (T23) 1999 -> 2006 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Corolla (E120) 2002 -> 2004 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Corolla (E120) 2004 -> 2007 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Corolla Verso (R1) 2004 -> 2007 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Corolla Verso (R1) 2007 -> 2009 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Estima 2006 -> 2016 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota FJ Cruiser 2001 -> 2007 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Hiace (H1) 2006 -> 2010 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Hilux (N25) 2005 -> 2008 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Hilux (N25) 2008 -> 2011 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Innova 2006 -> 2015 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Landcruiser (J12) 2003 -> 2009 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Matrix 2003 -> 2014 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota MR2 (W3) 2000 -> 2003 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Prado 2003 -> 2009 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Previa 2006 -> 2019 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Prius ZVW30/ZVW35 (XW3) 2009 -> 2012 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota RAV4 (XA2) 2000 -> 2003 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota RAV4 (XA2) 2003 -> 2006 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota RAV4 (XA3) 2006 -> 2009 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota RAV4 (XA3) 2009 -> 2010 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Yaris (XP9) 2006 -> 2009 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Yaris (XP9) 2009 -> 2011 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.
  • Toyota Vios 2003 -> 2007 - original head unit Matsushita / Fujitsu Ten, without OEM audio system JBL / JBL Synthesis / Mark Levinson.

CAN Bus Information

Connectors and Power:

  • System type: analog.
  • Connectors: 10 pin / 6 pin / 20 pin Toyota.

Settings:

  • Check DIP switch settings according to the manual (BDA).

Special notes:

  • Vehicles at model year transition: use 20 pin + 28 pin harness (item: 42a-1300-00c).
  • Vehicles with 18 pin LAN connector: before connection check pins at connector CN800 – Pin 6 SWC GND, Pin 7 SWC 1, Pin 8 SWC 2.

Diagnostic LED indication:

  • Blue solid: interface active, +12 V ignition present.
  • Red solid: steering wheel button function detected.

Important Additional Information

  • Suitable for Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker aftermarket radios.
  • To fully activate the adapter, it is necessary to order the connection cable for the specific head unit brand.

General Installation Instructions

Verification Before Installation:

  1. Check all control functions and vehicle settings using the original OEM HU.
  2. Disconnect the original radio (OEM HU) in a voltage-free condition.
  3. Check all interface connections – without power.

Connection and Installation Sequence:

  1. Set and check the HW configuration of the interface – without power.
  2. Check the configuration of the HU connection cable – without power.
  3. Connect the cable to the HU according to the aftermarket device manual.
  4. Connect the remaining wires according to the device manual.
  5. Connect the complete installation to the vehicle – connect the main power supply last.
  6. Perform the software configuration of the interface according to the product description or manual.
  7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power etc.).
  8. Perform a functional test of steering wheel control and vehicle communication.

Configuration Changes:

  • All changes must be carried out without power.
  • After changes repeat steps 5 to 8 above.

In Case of Failure:

  • Reinstall the original OEM HU.
  • Start the original unit.
  • Initiate CAN Bus shutdown.
  • Check the HW configuration of the interface.
  • After CAN Bus shutdown repeat steps 5 and 6.

When Modifying Wiring:

  • Installation and modifications may only be carried out by professionally trained personnel.
  • All changes must be verified before connection regarding manufacturer approval or impact on vehicle warranty.
  • All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
  • Modifications are carried out at your own responsibility without guarantee of functionality.
  • Modifications are performed at your own risk without guarantee against damage to the vehicle, device or interface.
  • Modifications of pre-installed wiring may result in loss of product warranty.
Catalog number42A-1300-001-0
BrandACV
LinksOfficial web presentation

Evaluation

Overall rating
0 %
No one has rated the product yet
0×
0×
0×
0×
0×
