Steering wheel button control adapter for Hyundai / Kia ACV SWC 42XHY019-0

steering wheel adapter for Hyundai Azera (2011->2017), Elantra (2011->2015), H1 (TQ) (03/11->08/18), H1 (TQ) (08/18->07/20), H350 (06/15->12/19), i10 (IA) (11/13->12/16), i10 (IA) (01/17->12/19), i40 (VF) (09/11->05/15), i40 (VF) (05/15->08/18), i40 (VF) (08/18->07/19), i45 (2009->2014), i800 (2007->2021), ix35 (EL) (03/10->09/13), ix35 (EL) (09/13->07/15), ix45 (2013->2018), Santa-Fe (DM) (10/12->11/15), Sonata (YF) (2009->2014), Tucson (TL) (04/10->06/15), Tucson (TL) (07/15->07/18), Tucson (TL) (07/18->12/20) and Kia Cee'd (JD) (06/12->09/15), Forte (2012->2016), Picanto (TA) (09/11->04/15), Picanto (TA) (04/15->03/17), Pro-Cee'd (JD) (07/13->09/15), Rio (UB) (09/11->01/15), Rio (UB) (01/15->01/17), Rio (YB) (02/17->02/20), Rio (YB) (08/20->04/23), Seoul (AM) (09/11->03/14), Seoul (PS) (03/14->11/16), Sportage (SL) (08/10->03/14), Sportage (SL) (03/14->01/16)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

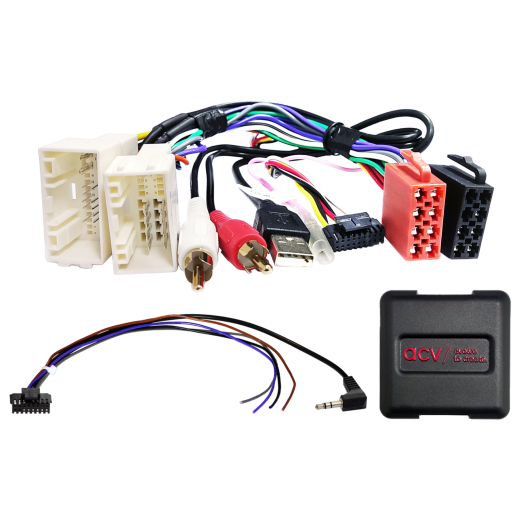

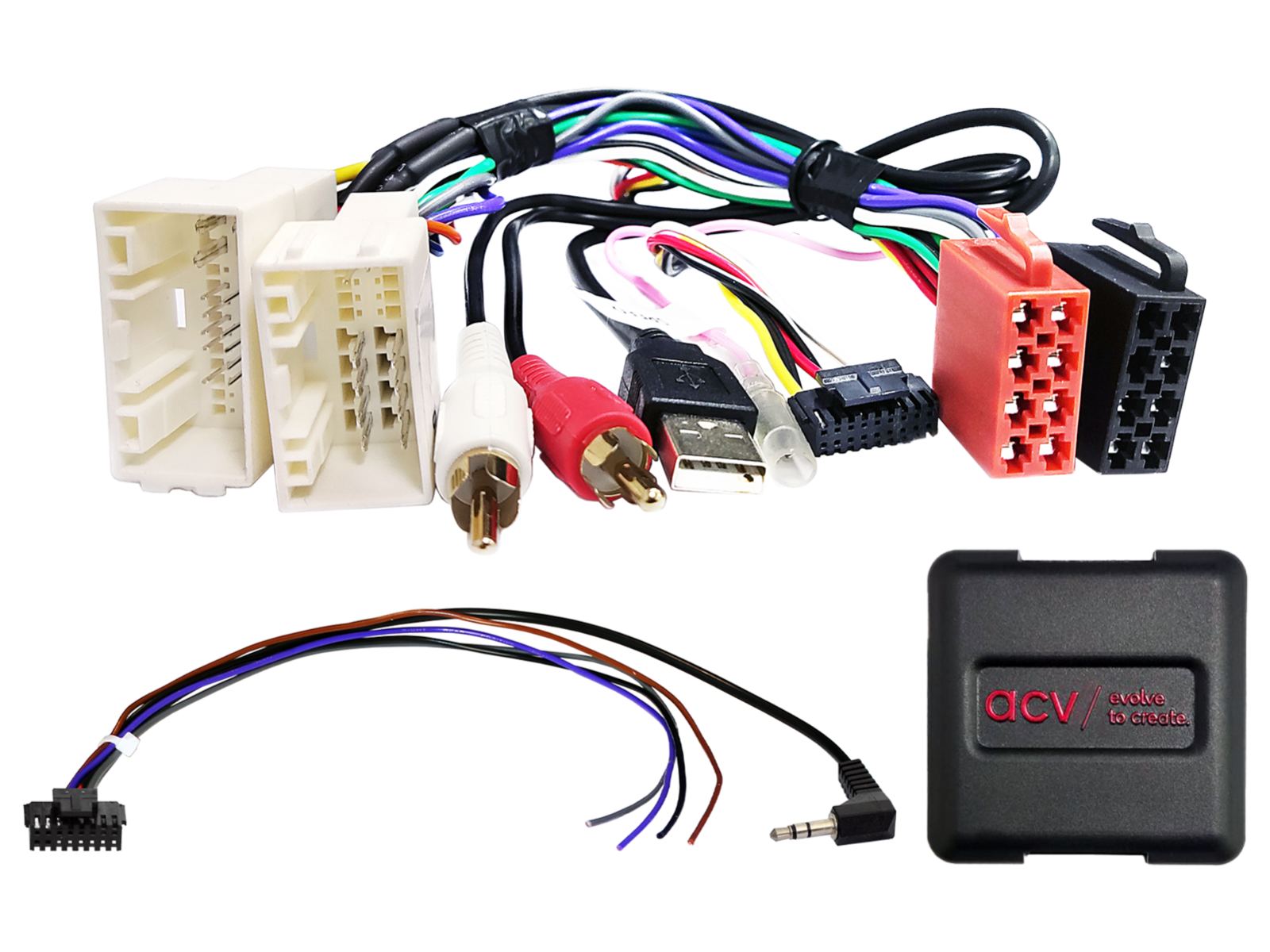

Steering wheel button control adapter for Hyundai / Kia ACV SWC 42XHY019-0

New

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Button Control Adapter for Hyundai / Kia ACV SWC 42XHY019-0

Keep the original steering wheel radio controls when replacing the factory radio with an aftermarket unit. Depending on the vehicle equipment, range of functions and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify vehicle functionality, system settings and correct operation of the steering wheel control (SWC).

Intended for vehicles

Hyundai Azera (2011 -> 2017) - original OEM head unit.
Hyundai Elantra (2011 -> 2015) - original OEM head unit.
Hyundai H1 [TQ] (03/2011 -> 08/2018) - original OEM head unit, vehicles without OEM navigation.
Hyundai H1 [TQ] (08/2018 -> 07/2020) - original OEM head unit, vehicles without OEM navigation.
Hyundai H350 (06/2015 -> 12/2019) - original OEM head unit, vehicles without OEM navigation.
Hyundai i10 [IA] (11/2013 -> 12/2016) - original OEM head unit.
Hyundai i10 [IA] (01/2017 -> 12/2019) - original OEM head unit, vehicles without OEM navigation.
Hyundai i40 [VF] (09/2011 -> 05/2015) - original OEM head unit, vehicles with factory Continental navigation.
Hyundai i40 [VF] (05/2015 -> 08/2018) - original OEM head unit, vehicles with factory Continental navigation.
Hyundai i40 [VF] (08/2018 -> 07/2019) - original OEM head unit, vehicles with factory Continental navigation.
Hyundai i45 (2009 -> 2014) - original OEM head unit.
Hyundai i800 (2007 -> 2021) - original OEM head unit, vehicles without OEM navigation.
Hyundai ix35 [EL] (08/2010 -> 03/2014) - original OEM head unit.
Hyundai ix35 [EL] (03/2014 -> 01/2016) - original OEM head unit.
Hyundai ix45 (2013 -> 2018) - original OEM head unit, vehicles with basic OEM head unit with 4 preset buttons, 1× FAV, 1× BACK.
Hyundai Santa Fe [DM] (10/2012 -> 11/2015) - original OEM head unit.
Hyundai Sonata [YF] (2009 -> 2014) - original OEM head unit.
Hyundai Tucson [TL] (04/2010 -> 06/2015) - original OEM head unit.
Hyundai Tucson [TL] (07/2015 -> 07/2018) - original OEM head unit, vehicles without OEM navigation.
Hyundai Tucson [TL] (07/2018 -> 12/2020) - original OEM head unit, vehicles without OEM navigation.

Kia Cee'd [JD] (06/2012 -> 09/2015) - original OEM head unit.
Kia Forte (2012 -> 2016) - original OEM head unit.
Kia Picanto [TA] (09/2011 -> 04/2015) - original OEM head unit.
Kia Picanto [TA] (04/2015 -> 03/2017) - original OEM head unit.
Kia Pro-Cee'd [JD] (07/2013 -> 09/2015) - original OEM head unit.
Kia Rio [UB] (09/2011 -> 01/2015) - original OEM head unit.
Kia Rio [UB] (01/2015 -> 01/2017) - original OEM head unit.
Kia Rio [YB] (02/2017 -> 02/2020) - original OEM head unit, vehicles with basic OEM head unit with 4 preset buttons, 1× FAV, 1× BACK.
Kia Rio [YB] (08/2020 -> 04/2023) - original OEM head unit, vehicles with basic OEM head unit with 4 preset buttons, 1× FAV, 1× BACK.
Kia Soul [AM] (09/2011 -> 03/2014) - original OEM head unit, vehicles without OEM navigation.
Kia Soul [PS] (03/2014 -> 11/2016) - original OEM head unit.
Kia Sportage [SL] (08/2010 -> 03/2014) - original OEM head unit.
Kia Sportage [SL] (03/2014 -> 01/2016) - original OEM head unit.

CAN Bus information

Connectors and power:

Interface: analog.
Connectors: 24-pin / 18-pin Hyundai.
OEM steering wheel control (SWC) connection: 3.5 mm jack or free wire.
OEM AUX connection: RCA (male) red/white.
OEM USB connection: USB-A.
Vehicles from 2016: +12 V ignition supply (terminal 15) from the fuse box – if required.

Settings:

Set DIP switches according to the aftermarket unit manufacturer (see device manual).

Vehicle compatibility:

Vehicles without an OEM amplified audio system.
For vehicles with different pin assignments or with OEM navigation always verify the pinout by measurement before connecting to avoid errors or damage.

Special cases (AUX/USB/camera):

AUX: verify correct wiring to the OEM head unit by measurement before connecting.
USB: verify correct wiring to the OEM head unit by measurement before connecting.
USB Apple CarPlay / Android Auto: may not be supported in all vehicles.

Important additional information

Analog steering wheel control (SWC). Reimported vehicles or vehicles with different software may experience function incompatibilities.
To fully activate the adapter, it is necessary to order a connecting cable for the specific brand of head unit.

General installation instructions

Checks before installation:

Check all steering wheel control functions and vehicle settings with the original OEM head unit.
Disconnect the original radio (OEM HU) with the power off.
Check all interface connections to ensure they are correctly connected – with the power off.

Connections and wiring order:

Check interface settings and hardware configuration – with the power off.
Check the configuration of the connection cable to the head unit – with the power off.
Connect the cable to the head unit according to the aftermarket device manual.
Connect the other wires according to the device manual.
Connect the entire installation to the vehicle – connect the main power connection last.
Perform software configuration of the interface according to the product description or manual.
Configure the aftermarket head unit (steering wheel control, camera, handsfree, antenna power and others).
Perform a functional test of the steering wheel control and communication with the vehicle.

Changing interface configuration and HU cable:

Make all changes with the power off.
After changes, repeat steps 5 to 8 listed above.

If the interface or vehicle system fails:

Reinstall the original OEM head unit.
Start the original unit.
Initiate CAN Bus system shutdown.
Check the hardware configuration of the interface.
After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When modifying wiring or cable routing:

Wiring and modifications must only be performed by professionally trained personnel.
All changes must be verified before connection regarding manufacturer approval or impact on the vehicle warranty.
All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
Modifications are made at your own risk, without guarantee of functionality.
Modifications are at your own risk, without guarantee against damage to the vehicle, device or interface.
Pre-modified wiring may lead to loss of product warranty.

Catalog number	42XHY019-0
