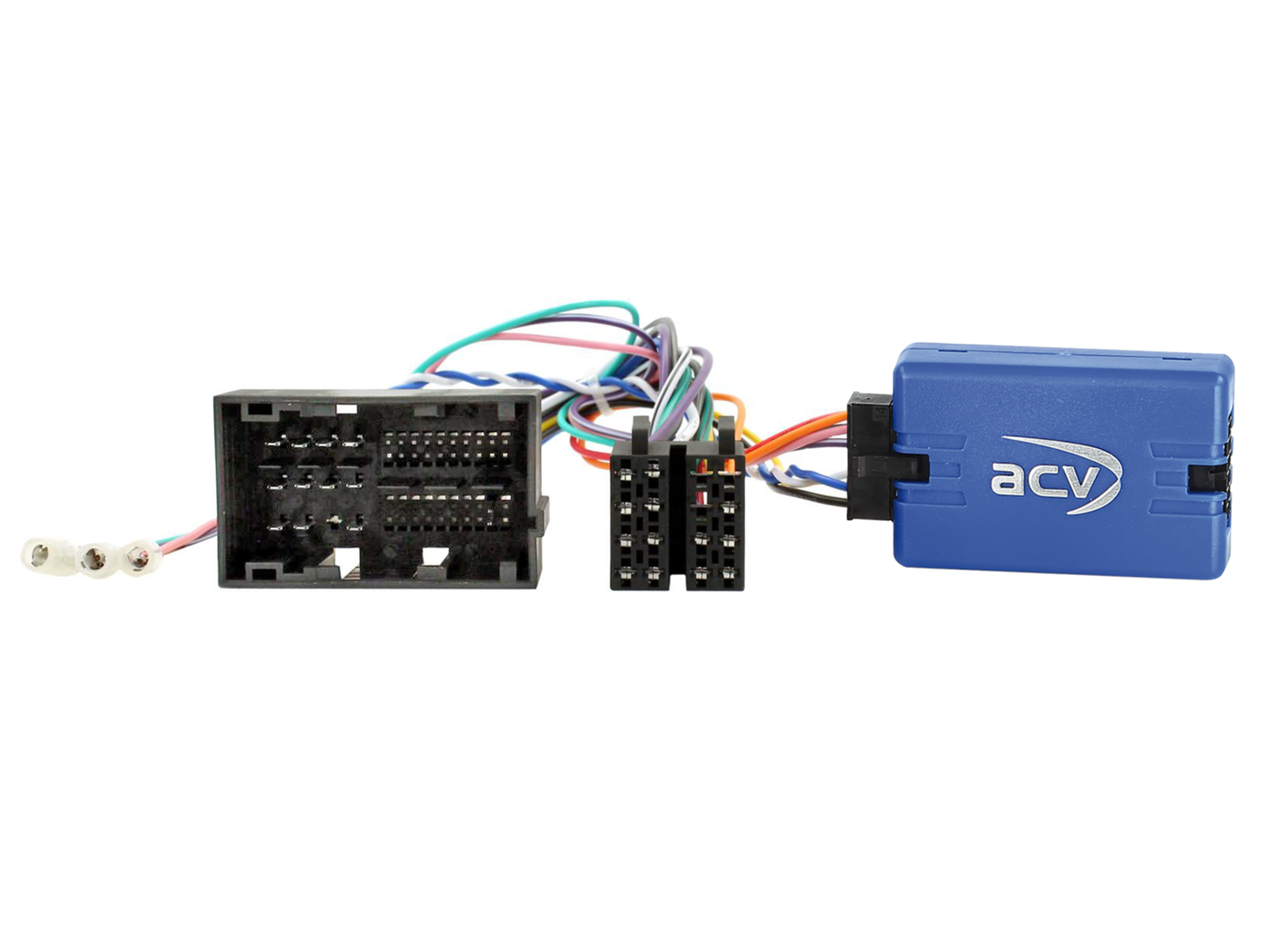

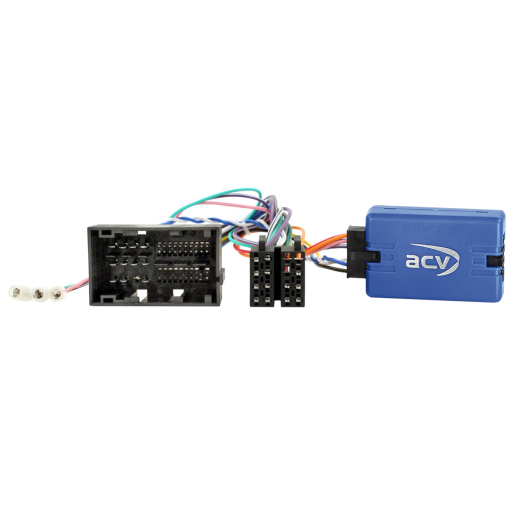

Steering Wheel Control Adapter for Dodge ACV SWC 42SDG003-0

Maintain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Compare the displayed wiring connectors with those in your vehicle to ensure they match both technically and visually. Before installation, verify if one of the listed original radios was used in the vehicle. Always test the vehicle's functions, system settings, and steering wheel controls (SWC) before final assembly.

Designed for Vehicles

Dodge Dart (2013 -> 2016) vehicles with a small monitor
Dodge RAM (2013 -> 2021) vehicles with a small monitor
Dodge RAM Promaster (2013 -> 2021) vehicles with a 5" OEM monitor and OEM navigation
Dodge RAM Promaster-City (2015 -> 2021), all vehicles with OEM navigation

CAN Bus Information

Connection: 52 Pin Fiat connector
Vehicles with OEM navigation, units 250VP1/250VP2/Blue&Me
No Blind Spot support
Vehicles with OEM touch screens do not support date and time settings
No support for vehicle settings, PDC, blind spot assistant, and OEM audio system
Recommended to check DIP switch settings in case of speedometer error

Important Additional Information

To fully activate the adapter, an interconnecting cable for the specific radio brand must be ordered.

General Installation Guidelines

Pre-installation Verification

Check all control functions and vehicle settings with the original OEM radio (if installed).
Remove the OEM unit without power.
Check all interface connections without power.

Connection and Wiring Order

Perform all settings and configurations without power.
Check the connection cable configuration.
Connect the cable according to the instructions for the aftermarket radio.
Connect other wires according to the device's instructions.
Connect the main power connection last.
Perform the software configuration of the interface following the instructions in the description and BDA.
Configure the aftermarket radio for SWC functions, camera, hands-free, antenna power, etc.
Perform a test of the steering wheel control functions and vehicle communication.

Changing Interface and HU Cable Configuration

Make changes without power.
After changes, follow steps 5-8 above.

In Case of Interface or Vehicle System Failure

Return the original OEM unit to the vehicle.
Turn on the OEM unit.
Wait for the CAN Bus to sleep.
Check the hardware configuration of the interface.
After the CAN Bus sleeps, follow steps 5-8 above.

When Modifying Wiring or Cable Routing

Modifications should only be performed by professionally trained personnel.
Verify compliance with manufacturer requirements and the impact on the warranty before connection.
Verify functionality by measuring and according to the vehicle's diagram before connection.
Modifications are at your own risk without a guarantee of functionality.
Modifications are without a warranty for potential vehicle, device, or interface damage.
Modifications to pre-installed wiring may void the product warranty.
