Steering wheel button control adapter for Citroen / Fiat / Peugeot / Toyota ACV SWC 42XPG007-0

steering wheel adapter for Citroën Berlingo (7) (06/08->03/12), Berlingo (7) (04/12->05/15), Berlingo (7) (06/15->06/18), C2 (J) (12/04->12/09), C3 (F) (10/05->01/10), C3 (S) (01/10->01/17), C4 (L) (11/04->08/10), C5 (D) (10/04->04/08), C8 (E) (01/08->07/12), C8 (E) (07/12->06/14), DS3 (S) (03/10->07/14), Jumpy (X) (02/07->03/12), Jumpy (X) (03/12->05/16), Nemo (A) (08/08->12/15), Xsara Picasso (C) (03/04->02/10) and Fiat Scudo (ZAF 270) (02/07->07/16), Peugeot 207 (WC) (06/06->06/09), 207 (W) (06/09->07/15), 208 (C) (04/12->04/15), 307 (3/3 Break/3 SW/3 CC) (06/05->03/09), 308 (4/4 GTI/4 SW/4 CC) (09/07->07/15), 407 (6/6 SW/6 Coupé) (05/04->07/08), 407 (6/6 SW/6 Coupé) (02/06->03/11), 807 (E) (07/02->02/08), 807 (E) (02/08->06/14), 3008 (oU) (06/09->10/13), 5008 Van (O) (10/09->10/13), Bipper (A) (12/07->12/15), Expert (X) (02/07->08/16), Partner (7) (05/08->03/12), RCZ (4J) (04/10->09/15) and Toyota Proace (03/13->08/16)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for Citroen / Fiat / Peugeot / Toyota ACV SWC 42XPG007-0

New

Description and parameters
Comments0
Evaluation0
Category

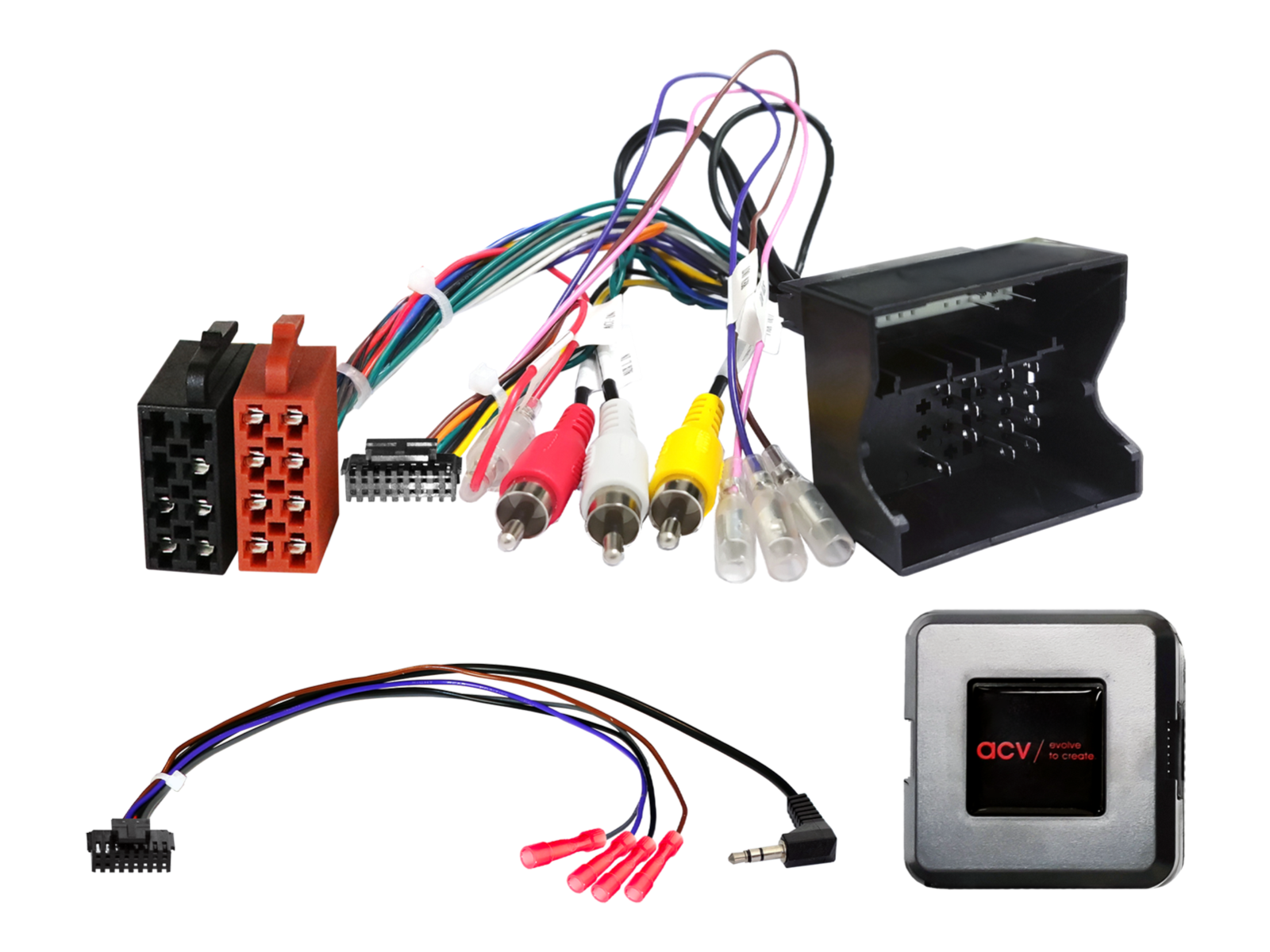

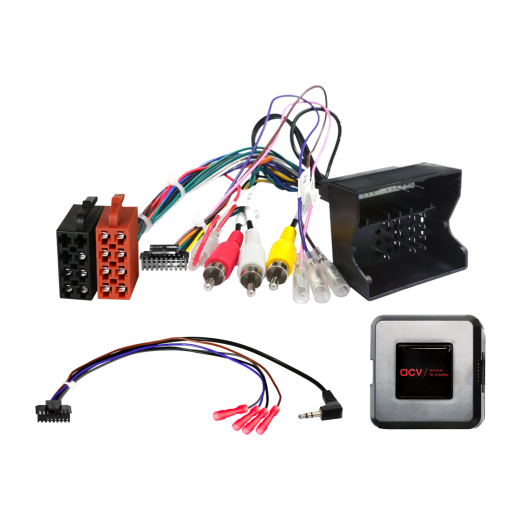

Steering wheel button control adapter for Citroën / Fiat / Peugeot / Toyota ACV SWC 42XPG007-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on vehicle equipment, available functions and the software of the newly installed radio, some functions may be limited or substituted by others. Compare the shown wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation verify vehicle functionality, system settings and correct operation of the steering wheel control (SWC).

Intended for vehicles

Citroën Berlingo (7) (06/2008 -> 03/2012, 04/2012 -> 05/2015, 06/2015 -> 06/2018) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Citroën C2 (J) (12/2004 -> 12/2009) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Citroën C3 (F) (10/2005 -> 01/2010) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Citroën C3 (S) (01/2010 -> 01/2017) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Citroën C4 (L) (11/2004 -> 08/2010) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Citroën C5 (D) (10/2004 -> 04/2008) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Citroën C8 (E) (01/2008 -> 07/2012, 07/2012 -> 06/2014) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Citroën DS3 (S) (03/2010 -> 07/2014) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Citroën Jumpy (X) (02/2007 -> 03/2012, 03/2012 -> 05/2016) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Citroën Nemo (A) (08/2008 -> 12/2015) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Citroën Xsara Picasso (C) (03/2004 -> 02/2010) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.

Fiat Scudo (ZAF 270) (02/2007 -> 07/2016) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.

Peugeot 207 (WC) (06/2006 -> 06/2009), 207 (W) (06/2009 -> 07/2015) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Peugeot 208 (C) (04/2012 -> 04/2015) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Peugeot 307 (3/3 Break/3 SW/3 CC) (06/2005 -> 03/2009) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Peugeot 308 (4/4 GTI/4 SW/4 CC) (09/2007 -> 07/2015) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Peugeot 407 (6/6 SW/6 Coupé) (05/2004 -> 07/2008, 02/2006 -> 03/2011) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Peugeot 807 (E) (07/2002 -> 02/2008, 02/2008 -> 06/2014) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Peugeot 3008 (oU) (06/2009 -> 10/2013) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Peugeot 5008 Van (O) (10/2009 -> 10/2013) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Peugeot Bipper (A) (12/2007 -> 12/2015) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Peugeot Expert (X) (02/2007 -> 08/2016) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Peugeot Partner (7) (05/2008 -> 03/2012) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.
Peugeot RCZ (4J) (04/2010 -> 09/2015) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.

Toyota Proace (03/2013 -> 08/2016) vehicles with OEM HU Blaupunkt / Continental / Siemens VDO RD4 with volume control.

CAN Bus information

Connectors and power:

Connector: 40 Pin Quadlock.
Connector: OEM SWC > 3.5mm jack / spare wire.
Connector: OEM AUX > RCA(m) red/white.
Connector: RCA(m) yellow – not connected.

Power signals:

Red: +12V switched ignition (terminal 15).
Orange: +12V illumination (terminal 58).
Purple/white: +12V reverse signal.
Pink: speed signal.
Green: parking brake ground signal.

Compatibility and functions:

Vehicles with rear PDC supported – requires Chimes Interface BMW/Citroen/Peugeot/Fiat/Ford/Volvo (can-pdc).
Vehicles with a PDC switch supported – the PDC audible signal function must be activated.
Vehicle settings supported as per manual.
ECO-mode support – +12V permanent (terminal 30) via battery fuse.

Important additional information

To fully activate the adapter it is necessary to order a connection cable for the specific head unit brand.

General installation instructions

Checks before installation:

Check all steering wheel control functions and vehicle settings with the original OEM head unit.
Disconnect the original radio (OEM HU) with power off.
Check all interface connections to ensure they are correctly connected – with power off.

Connection and wiring order:

Check the interface settings and hardware configuration – with power off.
Check the configuration of the radio connection cable – with power off.
Connect the cable to the radio according to the aftermarket device manual.
Connect the remaining wires according to the device manual.
Connect the entire installation to the vehicle – connect the main power last.
Perform software configuration of the interface according to the product description or manual.
Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power and others).
Perform a functional test of steering wheel controls and vehicle communication.

Changing the interface configuration and HU cable:

Make all changes with power off.
After changes repeat steps 5 to 8 listed above.

If the interface or vehicle system fails:

Reinstall the original OEM head unit.
Start the original unit.
Initiate CAN Bus shutdown.
Check the hardware configuration of the interface.
After CAN Bus shutdown repeat steps 5 and 6 listed above.

When modifying wiring or cable routing:

Wiring and modifications must be performed only by properly trained personnel.
All changes must be verified regarding manufacturer approval or impact on vehicle warranty before connection.
All modifications must be checked by measurement and compared with the vehicle wiring diagram before connection.
Modifications are performed at your own risk, without guarantee of functionality.
Modifications are performed at your own risk, without guarantee against damage to the vehicle, device or interface.
Pre-modified wiring may lead to loss of product warranty.
