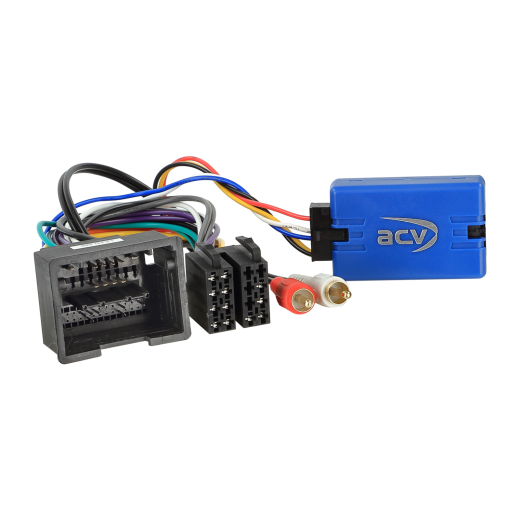

Steering Wheel Control Adapter for Chevrolet ACV SWC 42SCV005-0

Retain the original steering wheel radio control functions when replacing the original radio with an aftermarket unit. Compare the displayed wiring connectors with those in your vehicle to ensure they match both technically and visually. Verify vehicle functionality, system settings, and proper steering wheel control (SWC) operation before final installation.

Compatible with Vehicles

Chevrolet Spark (KL1M) (10/2012 -> 08/2014) – vehicles with GM OEM radio featuring a left rotary ON/OFF control, right rotary Menu control, and OEM navigation MYLINK LSP2GTX, 48-pin Opel connector, and OEM AUX output via RCA (red/black).

Connection Information

48-pin Opel connector
OEM AUX output via RCA (red/black)
Support for GM OEM devices with left ON/OFF control, right Menu control, and OEM navigation MYLINK LSP2GTX

Important Additional Information

To fully activate the adapter, an interconnecting cable for the specific brand of car radio is required.

General Installation Guidelines

Pre-installation Verification:

Check all control functions and vehicle settings with the original OEM head unit.
Remove the original radio (OEM HU) with power off.
Check all interface connections for proper connection – with power off.

Connection and Setup Order:

Perform interface settings and hardware configuration with power off.
Check the connecting cable configuration to the HU.
Connect the cable to the HU according to the aftermarket device instructions.
Connect other wires as per the device instructions.
Complete the entire installation with the vehicle – connect the main power connection last.
Perform software configuration of the interface as per the product description and BDA instructions.
Configure the aftermarket HU (steering wheel control, camera, hands-free, antenna power, and more).
Perform a functional test of the steering wheel control and vehicle communication.

Changing Interface and HU Cable Configuration:

All changes must be made with power off.
After changes, repeat steps 5 to 8 above.

In Case of Interface or Vehicle System Failure:

Return the original OEM HU to the vehicle.
Start the original unit.
Induce a CAN Bus system sleep.
Check the interface hardware configuration.
After CAN Bus stabilization, repeat steps 5 to 8 above.

When Modifying Connections or Wiring:

Only professionally trained personnel should perform connections and modifications.
All changes must be verified for manufacturer approval or impact on vehicle warranty before connection.
All modifications must be verified by measurement and compared with the vehicle's wiring diagram before connection.
Modifications are made at your own risk, without warranty on functionality.
Modifications are performed at your own risk, with no guarantee against damage to the vehicle, device, or interface.
Modifications to pre-installed wiring may lead to loss of product warranty.
