Steering wheel button control adapter for BMW / Mercedes / Smart / VW ACV SWC 42A-1190-003-0

Be the first to rate the product
steering wheel adapter for BMW 1er (E81/E82/E87/E88) (03/04->10/13), 3er (E90/E91/E92/E93) (03/05->10/13), Mercedes A-class (C169/W169) (10/04->04/08, 06/08->06/12), B-class (T245) (07/05->04/08, 04/08->09/11), C-class (CL203/S203/W203) (02/04->09/07), C-class (C204/S204/W204) (08/07->01/11, 03/11->10/15), Citan 420 (W420) (10/21->24), CLC-class (CL203) (06/08->02/11), CLK-class (W209) (04/05->01/10), CLS-class (C219) (04/08->09/10), E-class (S211/W211) (03/08->01/09), E-class (A212/C212/S212/W204) (02/09->03/13), G-class (W463) (04/07->06/08), G-class (W164) (09/08->06/12), GL-class (X164) (09/06->05/09, 05/09->07/12), M-class (W164) (07/05->04/08, 10/08->07/11), ML (W164) (07/05->04/08, 10/08->07/11), R-class (W251) (09/05->05/07, 05/07->05/10), SL-class (R230) (03/06->02/08, 04/08->12/11), SLK-class (R171) (04/08->03/11), Sprinter (W906) (04/06->08/13, 08/13->05/18), Sprinter (W907/W910) (06/18->12/20, 11/19->24), Vito/Viano (W639) (07/03->08/10, 09/10->03/14), Vito (W447) (10/14->02/19, 05/19->24), Smart For Four (W454) (01/04->04/07), VW Crafter I (2EC/2EK/2F) (03/06->07/11, 07/11->11/16)
More about the product
95,60 EUR
Catalog number: 42A-1190-003-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days

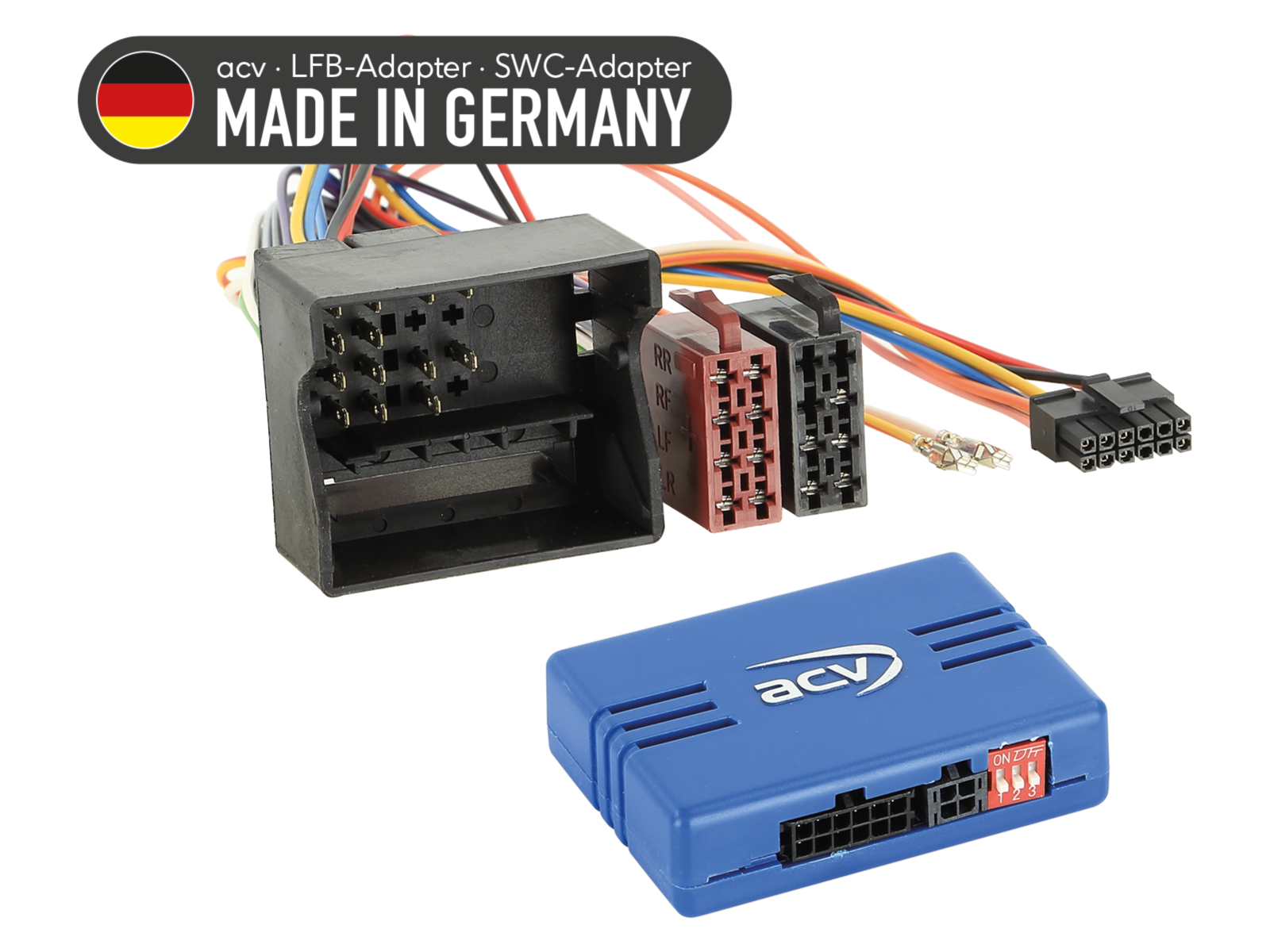

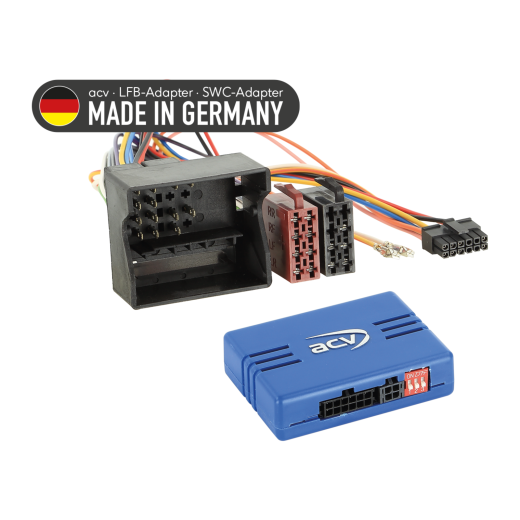

Steering wheel button control adapter for BMW / Mercedes / Smart / VW ACV SWC 42A-1190-003-0

Steering wheel button control adapter for BMW / Mercedes / Smart / VW ACV SWC 42A-1190-003-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

  • BMW 1 Series (E81/E82/E87/E88) (03/2004 -> 10/2013) - original OEM head unit. Vehicles with permanent +12V disconnect (terminal 30) — connect to the fuse box. Vehicles with rear PDC require adapter 42cxpdc.
  • BMW 3 Series (E90/E91/E92/E93) (03/2005 -> 10/2013) - original OEM head unit. Vehicles with permanent +12V disconnect (terminal 30) — connect to the fuse box. Vehicles with rear PDC require adapter 42cxpdc.
  • Mercedes A‑class (C169/W169) (10/2004 -> 04/2008) - original OEM head unit.
  • Mercedes A‑class (C169/W169) (06/2008 -> 06/2012) - original OEM head unit.
  • Mercedes B‑class (T245) (07/2005 -> 04/2008) - original OEM head unit.
  • Mercedes B‑class (T245) (04/2008 -> 09/2011) - original OEM head unit.
  • Mercedes C‑class (CL203/S203/W203) (02/2004 -> 09/2007) - original OEM head unit.
  • Mercedes C‑class (C204/S204/W204) (08/2007 -> 01/2011) - original OEM head unit. Vehicles with permanent +12V disconnect (terminal 30) — connect to the fuse box.
  • Mercedes C‑class (C204/S204/W204) (03/2011 -> 10/2015) - original OEM head unit. Vehicles with permanent +12V disconnect (terminal 30) — connect to the fuse box.
  • Mercedes Citan 420 (W420) (10/2021 -> 2024) - original OEM head unit.
  • Mercedes CLC‑class (CL203) (06/2008 -> 02/2011) - original OEM head unit.
  • Mercedes CLK‑class (W209) (04/2005 -> 01/2010) - original OEM head unit.
  • Mercedes CLS‑class (C219) (04/2008 -> 09/2010) - original OEM head unit.
  • Mercedes E‑class (S211/W211) (03/2008 -> 01/2009) - original OEM head unit.
  • Mercedes E‑class (A212/C212/S212/W204) (02/2009 -> 03/2013) - original OEM head unit. Vehicles with permanent +12V disconnect (terminal 30) — connect to the fuse box.
  • Mercedes G‑class (W463) (04/2007 -> 06/2008) - original OEM head unit.
  • Mercedes G‑class (W164) (09/2008 -> 06/2012) - original OEM head unit.
  • Mercedes GL‑class (X164) (09/2006 -> 05/2009) - original OEM head unit.
  • Mercedes GL‑class (X164) (05/2009 -> 07/2012) - original OEM head unit.
  • Mercedes M‑class (W164) (07/2005 -> 04/2008) - original OEM head unit.
  • Mercedes M‑class (W164) (10/2008 -> 07/2011) - original OEM head unit.
  • Mercedes ML (W164) (07/2005 -> 04/2008) - original OEM head unit.
  • Mercedes ML (W164) (10/2008 -> 07/2011) - original OEM head unit.
  • Mercedes R‑class (W251) (09/2005 -> 05/2007) - original OEM head unit.
  • Mercedes R‑class (W251) (05/2007 -> 05/2010) - original OEM head unit.
  • Mercedes SL‑class (R230) (03/2006 -> 02/2008) - original OEM head unit.
  • Mercedes SL‑class (R230) (04/2008 -> 12/2011) - original OEM head unit.
  • Mercedes SLK‑class (R171) (04/2008 -> 03/2011) - original OEM head unit.
  • Mercedes Sprinter (W906) (04/2006 -> 08/2013) - original OEM head unit.
  • Mercedes Sprinter (W906) (08/2013 -> 05/2018) - original OEM head unit.
  • Mercedes Sprinter (W907/W910) (06/2018 -> 12/2020) - original OEM head unit. Vehicles with permanent +12V disconnect (terminal 30) — connect to the fuse box.
  • Mercedes Sprinter (W907/W910) (11/2019 -> 2024) - original OEM head unit. Vehicles with permanent +12V disconnect (terminal 30) — connect to the fuse box.
  • Mercedes Vito/Viano (W639) (07/2003 -> 08/2010) - original OEM head unit.
  • Mercedes Vito/Viano (W639) (09/2010 -> 03/2014) - original OEM head unit.
  • Mercedes Vito (W447) (10/2014 -> 02/2019) - original OEM head unit. Vehicles with permanent +12V disconnect (terminal 30) — connect to the fuse box. Volume function only with OEM HU Audio 10.
  • Mercedes Vito (W447) (05/2019 -> 2024) - original OEM head unit. Vehicles with permanent +12V disconnect (terminal 30) — connect to the fuse box. Volume function only with OEM HU Audio 10.
  • Smart ForFour (W454) (01/2004 -> 04/2007) - original OEM head unit. Vehicles with Comand OEM Sat Nav 40‑Pin Quadlock.
  • VW Crafter I (2EC/2EK/2F) (03/2006 -> 07/2011) - original OEM head unit.
  • VW Crafter I (2EC/2EK/2F) (07/2011 -> 11/2016) - original OEM head unit. Vehicles with permanent +12V disconnect (terminal 30) — connect to the fuse box.

CAN Bus Information

Connectors and Power:

  • Connector: 40 pin Quadlock Mercedes (item: 42cx28).

Settings:

  • Check DIP switch settings on the aftermarket head unit (HU).

Vehicle compatibility:

  • Mercedes vehicles with Audio 20 2-DIN OEM HU.
  • Mercedes vehicles with Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav.
  • Mercedes Citan 420 (W420) vehicles with Browse 1-DIN OEM HU.
  • Mercedes Sprinter (W907/W910) vehicles with Browse 1-DIN OEM HU.
  • Mercedes Vito (W447) vehicles with Audio 10 / Audio 15 OEM HU.
  • Mercedes Vito (W447) vehicles with Audio 30 / Audio 40 OEM Sat Nav.
  • VW Crafter vehicles with RCD 3002 OEM HU.
  • VW Crafter vehicles with RNS 4001 / RNS 5001 OEM Sat Nav.

Diagnostic LED indication:

  • Blue flashing: searching for CAN Bus signal.
  • Blue solid: CAN Bus active.
  • Red solid: +12 V ignition active.

Important Additional Information

  • Suitable for Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker aftermarket radios.
  • To fully activate the adapter, it is necessary to order the connection cable for the specific head unit brand.

General Installation Instructions

Verification Before Installation:

  1. Check all control functions and vehicle settings using the original OEM HU.
  2. Disconnect the original radio (OEM HU) in a voltage-free condition.
  3. Check all interface connections – without power.

Connection and Installation Sequence:

  1. Set and check the HW configuration of the interface – without power.
  2. Check the configuration of the HU connection cable – without power.
  3. Connect the cable to the HU according to the aftermarket device manual.
  4. Connect the remaining wires according to the device manual.
  5. Connect the complete installation to the vehicle – connect the main power supply last.
  6. Perform the software configuration of the interface according to the product description or manual.
  7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power etc.).
  8. Perform a functional test of steering wheel control and vehicle communication.

Configuration Changes:

  • All changes must be carried out without power.
  • After changes repeat steps 5 to 8 above.

In Case of Failure:

  • Reinstall the original OEM HU.
  • Start the original unit.
  • Initiate CAN Bus shutdown.
  • Check the HW configuration of the interface.
  • After CAN Bus shutdown repeat steps 5 and 6.

When Modifying Wiring:

  • Installation and modifications may only be carried out by professionally trained personnel.
  • All changes must be verified before connection regarding manufacturer approval or impact on vehicle warranty.
  • All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
  • Modifications are carried out at your own responsibility without guarantee of functionality.
  • Modifications are performed at your own risk without guarantee against damage to the vehicle, device or interface.
  • Modifications of pre-installed wiring may result in loss of product warranty.
Catalog number42A-1190-003-0
BrandACV
LinksOfficial web presentation
