Steering wheel button control adapter for Audi / MAN / Seat / Skoda / VW ACV SWC 42A-1328-000-0

Be the first to rate the product
steering wheel adapter for Audi A1 (8X) (07/10->11/14, 11/14->04/18), A3 (8V) (02/13->05/16, 07/16->03/20), Q3 (8U) (10/11->11/14, 02/15->08/18), MAN TGE (04/17->24), Seat Alhambra (7N) (06/15->01/22), Arona (KJ) (11/17->06/21), Ateca (5FP) (08/16->08/20, 08/20->24), Ibiza (6P) (07/15->04/17), Ibiza (KJ) (07/17->03/21), Mii (AA) (05/15->04/18, 01/20->02/21), Leon (5F) (11/12->12/16, 11/16->01/20), Toledo (NH) (03/13->08/18), Škoda Citigo (AA) (05/17->06/19), Citigo iv (AA) (01/20->08/21), Fabia III (5J) (11/14->08/18, 08/18->05/21), Karoq (NU) (11/17->11/21), Kodiaq (NS) (03/17->06/21), Octavia III (5E) (02/13->12/16, 01/17->01/20), Rapid (NH) (04/15->05/17, 05/17->02/19), Superb (3V) (06/15->06/19), Yeti (5L) (10/13->07/17), VW Amarok (2H) (09/16->07/20), Arteon (3H) (11/17->06/20), Beetle (16) (06/16->03/18), Caddy IV (DU) (06/15->09/20), Crafter II (SY/SZ) (03/17->24), Golf VII (AU) (11/12->12/16, 03/17->05/20), Grand California (SY/SZ) (03/19->24), Passat B8 (10/14->05/19), Polo V (6R) (04/14->07/17), Polo VI (AW) (11/17->05/21), Scirocco (13) (08/14->10/17), Sharan II (7N) (07/15->10/21), T6 (7HC) (07/15->08/19), T6.1 (7HC) (11/19->04/24), T-Roc (A1) (11/17->10/21), Taigo (CS) (10/21->23), Tiguan II (5N) (05/16->05/21), Touran (5T) (09/15->04/24), UP! (AA) (07/16->12/22), e-UP! (AA) (08/16->08/23)
More about the product
95,60 EUR
Catalog number: 42A-1328-000-0
In stock (1 pcs)
We will help you with your purchase
  • You can return the goods to us within 14 days
Steering wheel button control adapter for Audi / MAN / Seat / Skoda / VW ACV SWC 42A-1328-000-0

Steering wheel button control adapter for Audi / MAN / Seat / Skoda / VW ACV SWC 42A-1328-000-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

  • Audi A1 [8X] (07/2010 -> 11/2014) - vehicles with Concert OEM unit with one SD slot and a color monitor in the instrument panel are not supported; vehicles with Chorus OEM unit with a monochrome display require a specific adapter.
  • Audi A1 [8X] (11/2014 -> 04/2018) - vehicles with Concert OEM unit with one SD slot and a color monitor in the instrument panel are not supported; vehicles with Chorus OEM unit with a monochrome display require a specific adapter.
  • Audi A3 [8V] (02/2013 -> 05/2016) - original OEM radio.
  • Audi A3 [8V] (07/2016 -> 03/2020) - original OEM radio.
  • Audi Q3 [8U] (10/2011 -> 11/2014) - vehicles with Concert OEM unit with one SD slot and a color monitor in the instrument panel are not supported; vehicles with Chorus OEM unit with a monochrome display require a specific adapter.
  • Audi Q3 [8U] (02/2015 -> 08/2018) - vehicles with Concert OEM unit with one SD slot and a color monitor in the instrument panel are not supported; vehicles with Chorus OEM unit with a monochrome display require a specific adapter.
  • MAN TGE (04/2017 -> 2024) - original OEM radio.
  • Seat Alhambra [7N] (06/2015 -> 01/2022) - original OEM radio.
  • Seat Arona [KJ] (11/2017 -> 06/2021) - original OEM radio.
  • Seat Ateca [5FP] (08/2016 -> 08/2020) - original OEM radio.
  • Seat Ateca [5FP] (08/2020 -> 2024) - original OEM radio.
  • Seat Ibiza [6P] (07/2015 -> 04/2017) - original OEM radio.
  • Seat Ibiza [KJ] (07/2017 -> 03/2021) - original OEM radio.
  • Seat Mii [AA] (05/2015 -> 04/2018) - instrument panel monitor not supported.
  • Seat Mii [AA] (01/2020 -> 02/2021) - instrument panel monitor not supported.
  • Seat Leon [5F] (11/2012 -> 12/2016) - original OEM radio.
  • Seat Leon [5F] (11/2016 -> 01/2020) - original OEM radio.
  • Seat Toledo [NH] (03/2013 -> 08/2018) - original OEM radio.
  • Škoda Citigo [AA] (05/2017 -> 06/2019) - vehicles with certain OEM units.
  • Škoda Citigo iV [AA] (01/2020 -> 08/2021) - vehicles with certain OEM units.
  • Škoda Fabia III [5J] (11/2014 -> 08/2018) - original OEM radio.
  • Škoda Fabia III [5J] (08/2018 -> 05/2021) - original OEM radio.
  • Škoda Karoq [NU] (11/2017 -> 11/2021) - original OEM radio.
  • Škoda Kodiaq [NS] (03/2017 -> 06/2021) - original OEM radio.
  • Škoda Octavia III [5E] (02/2013 -> 12/2016) - original OEM radio.
  • Škoda Octavia III [5E] (01/2017 -> 01/2020) - original OEM radio.
  • Škoda Rapid [NH] (04/2015 -> 05/2017) - original OEM radio.
  • Škoda Rapid [NH] (05/2017 -> 02/2019) - original OEM radio.
  • Škoda Superb [3V] (06/2015 -> 06/2019) - original OEM radio.
  • Škoda Yeti [5L] (10/2013 -> 07/2017) - original OEM radio.
  • VW Amarok [2H] (09/2016 -> 07/2020) - original OEM radio.
  • VW Arteon [3H] (11/2017 -> 06/2020) - original OEM radio.
  • VW Beetle [16] (06/2016 -> 03/2018) - original OEM radio.
  • VW Caddy IV [DU] (06/2015 -> 09/2020) - original OEM radio.
  • VW Crafter II [SY/SZ] (03/2017 -> 2024) - reverse signal available only with the engine running.
  • VW Golf VII [AU] (11/2012 -> 12/2016) - original OEM radio.
  • VW Golf VII [AU] (03/2017 -> 05/2020) - original OEM radio.
  • VW Grand California [SY/SZ] (03/2019 -> 2024) - reverse signal available only with the engine running.
  • VW Passat B8 (10/2014 -> 05/2019) - original OEM radio.
  • VW Polo V [6R] (04/2014 -> 07/2017) - original OEM radio.
  • VW Polo VI [AW] (11/2017 -> 05/2021) - original OEM radio.
  • VW Scirocco [13] (08/2014 -> 10/2017) - original OEM radio.
  • VW Sharan II [7N] (07/2015 -> 10/2021) - original OEM radio.
  • VW T6 [7HC] (07/2015 -> 08/2019) - vehicles without Composition Audio MIB Entry unit with front AUX/SD/USB.
  • VW T6.1 [7HC] (11/2019 -> 04/2024) - original OEM radio.
  • VW T-Roc [A1] (11/2017 -> 10/2021) - original OEM radio.
  • VW Taigo [CS] (10/2021 -> 2023) - original OEM radio.
  • VW Tiguan II [5N] (05/2016 -> 05/2021) - original OEM radio.
  • VW Touran [5T] (09/2015 -> 04/2024) - original OEM radio.
  • VW UP! [AA] (07/2016 -> 12/2022) - vehicles without OEM audio system; instrument panel monitor not supported.
  • VW e-UP! [AA] (08/2016 -> 08/2023) - vehicles without OEM audio system; instrument panel monitor not supported.

CAN Bus Information

Connectors and Power:

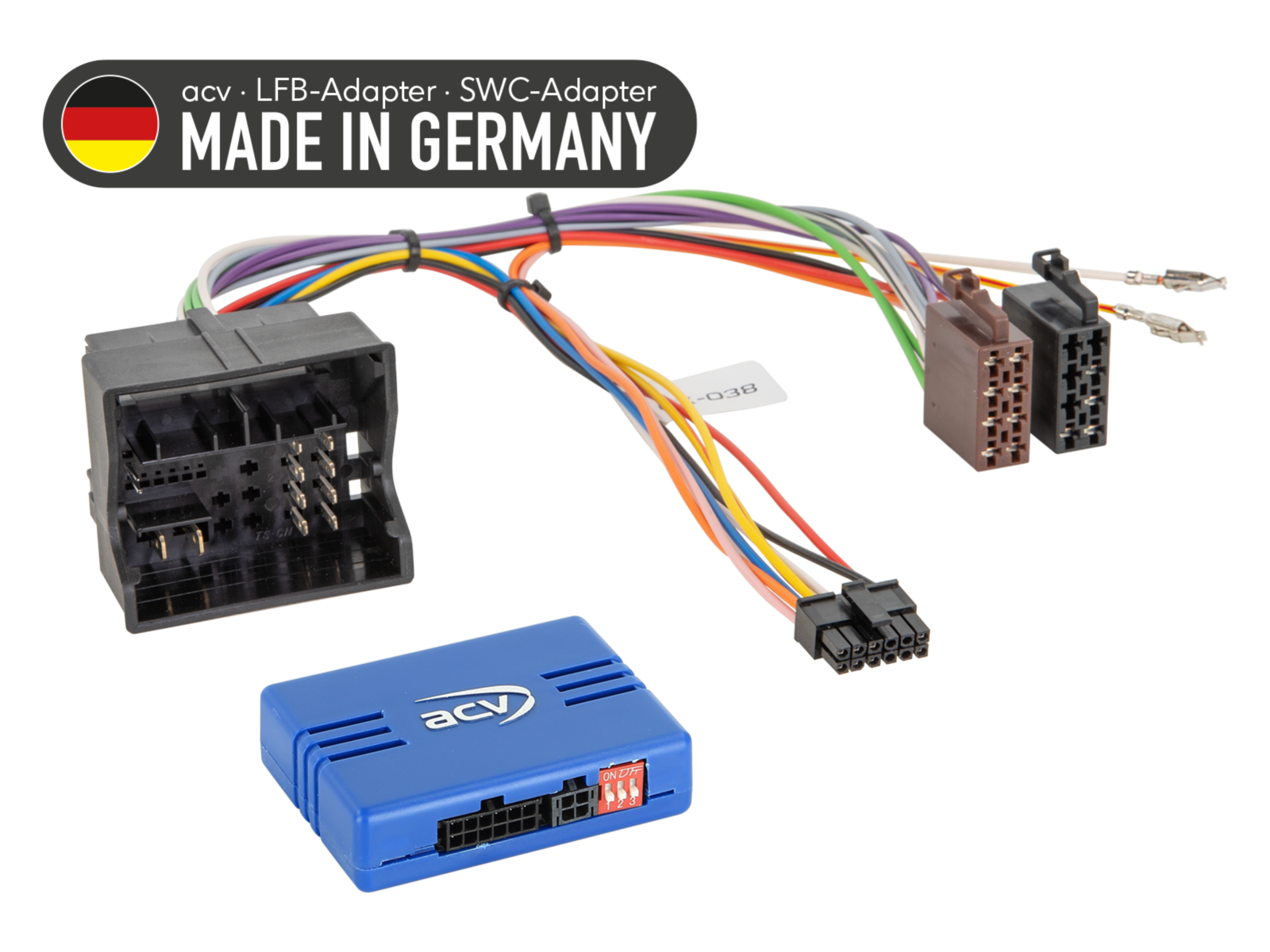

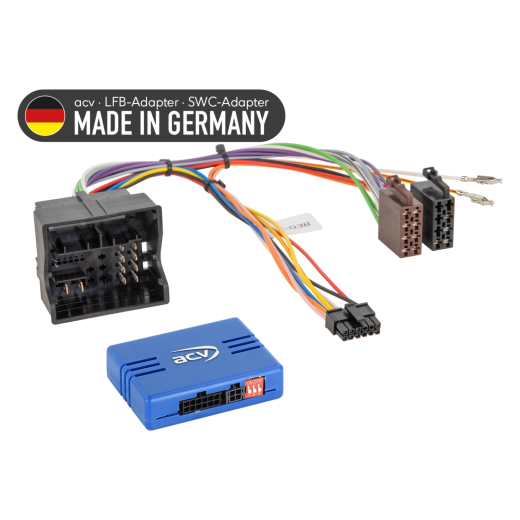

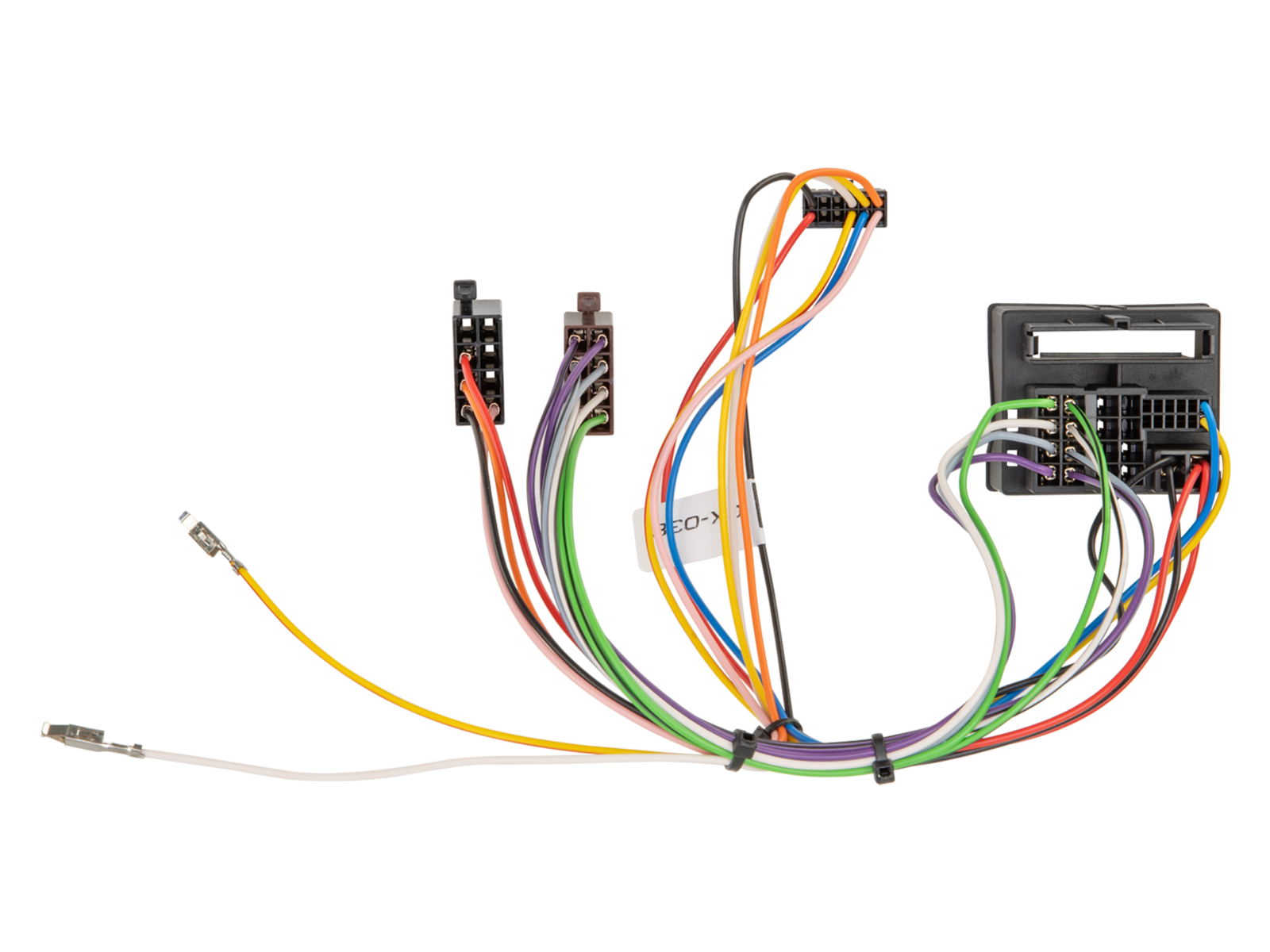

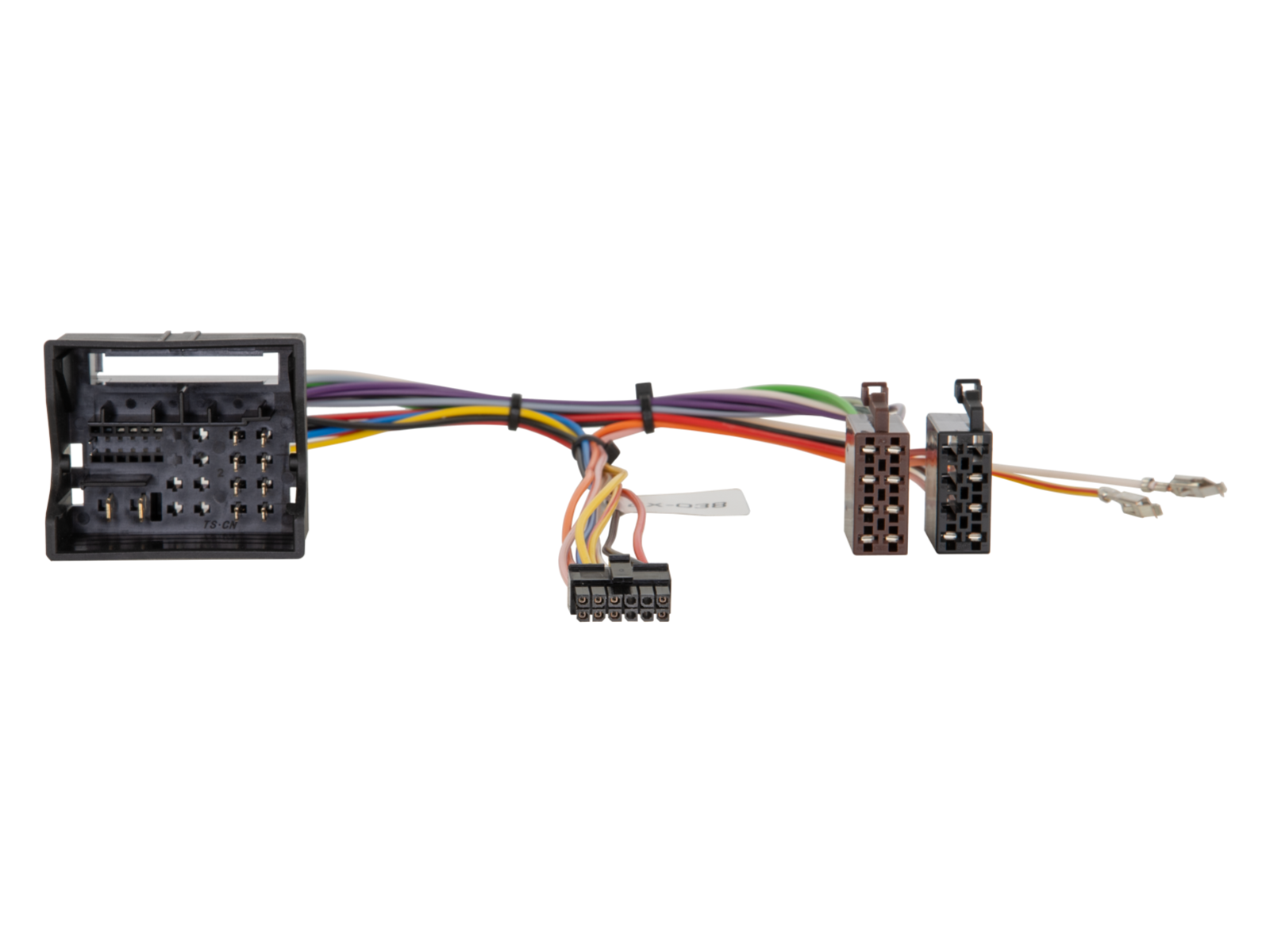

  • Connector: 52 pin VAG Quadlock (item: 42cx38).
Settings and Limitations:

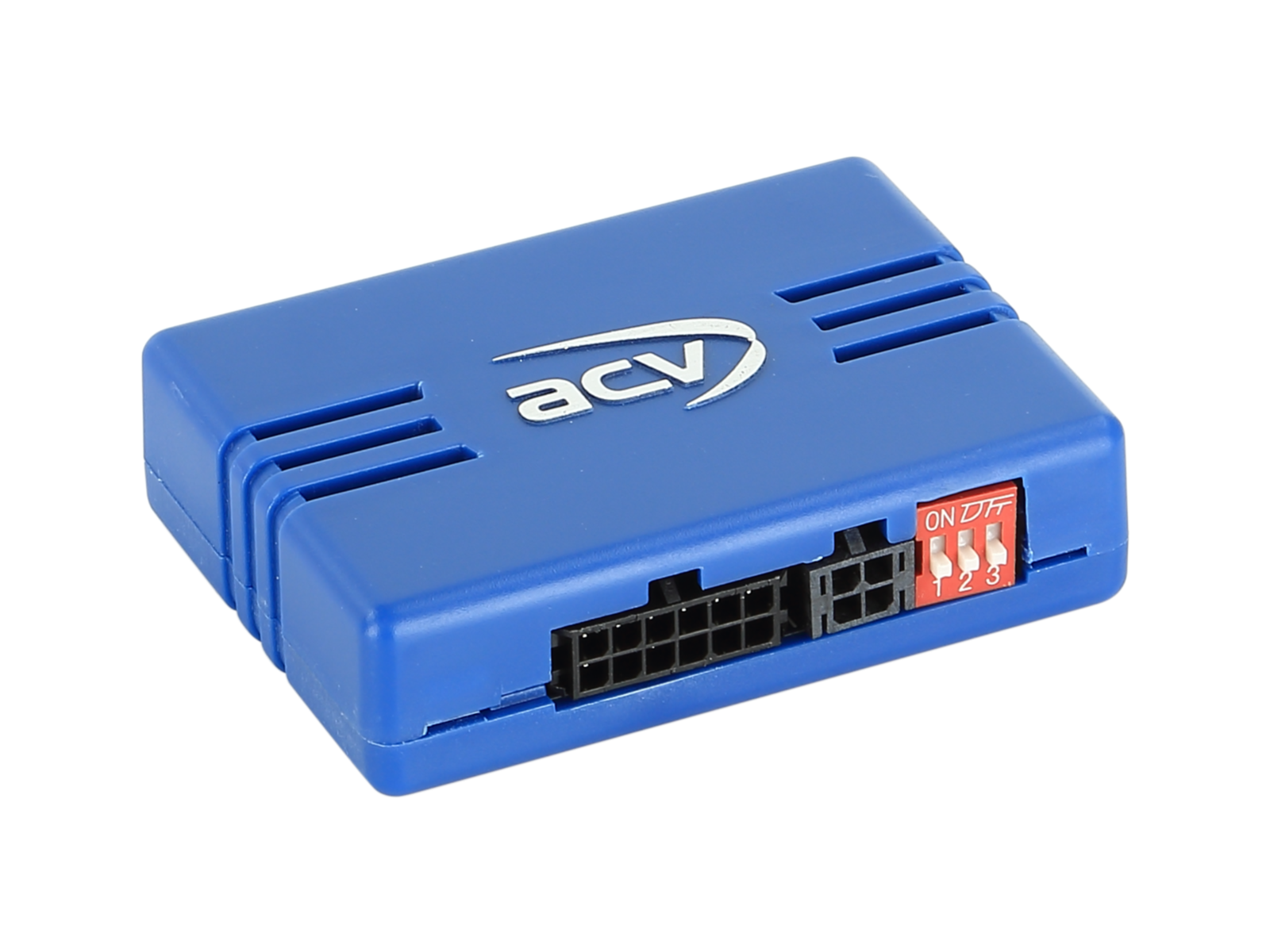

  • Check DIP switch settings on the aftermarket head unit (HU).
  • Support for MIB-PQ platform (MAN / Seat / Škoda / VW).
  • Vehicle settings are not supported.
  • E-Call is not supported.
  • Seat Mii, Škoda Citigo, VW UP!: dashboard display is not supported.

Accessories for specific equipment:

  • Vehicles with E-Call: E-Call retention module (MAN/Seat/Škoda/VW) 52 pin Quadlock (item: 1424-28).
  • Vehicles with rear OEM camera: rear camera adapter for various VW models with MIB-PQ (item: 771324-1037).

Diagnostic LED indication:

  • Blue flashing: CAN Bus search in progress.
  • Blue solid: CAN Bus active.
  • Red solid: +12 V ignition active.

Important Additional Information

  • Suitable for Alpine, Blaupunkt, Clarion, Digital Dynamics, ESX, JVC, Kenwood, Pioneer, Snooper, Sony, XZent, Zenec and others (multilead solution).
  • To fully activate the adapter, a connection cable must be ordered for the specific head unit brand.

General Installation Instructions

Verification Before Installation:

  1. Check all control functions and vehicle settings using the original OEM HU.
  2. Disconnect the original radio (OEM HU) in a voltage-free condition.
  3. Check all interface connections – without power.

Connection and Installation Sequence:

  1. Set and check the HW configuration of the interface – without power.
  2. Check the configuration of the HU connection cable – without power.
  3. Connect the cable to the HU according to the aftermarket device manual.
  4. Connect the remaining wires according to the device manual.
  5. Connect the complete installation to the vehicle – connect the main power supply last.
  6. Perform the software configuration of the interface according to the product description or manual.
  7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power etc.).
  8. Perform a functional test of steering wheel control and vehicle communication.

Configuration Changes:

  • All changes must be carried out without power.
  • After changes repeat steps 5 to 8 above.

In Case of Failure:

  • Reinstall the original OEM HU.
  • Start the original unit.
  • Initiate CAN Bus shutdown.
  • Check the HW configuration of the interface.
  • After CAN Bus shutdown repeat steps 5 and 8.

When Modifying Wiring:

  • Installation and modifications may only be carried out by professionally trained personnel.
  • All changes must be verified before connection regarding manufacturer approval or impact on vehicle warranty.
  • All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
  • Modifications are carried out at your own responsibility without guarantee of functionality.
  • Modifications are performed at your own risk without guarantee against damage to the vehicle, device or interface.
  • Modifications of pre-installed wiring may result in loss of product warranty.
