Steering wheel button control adapter for Mercedes ACV SWC 42SMC003-0

steering wheel adapter for Mercedes A-class (C169/W169) (10/04->04/08, 06/08->06/12), B-class (T245) (07/05->04/08, 04/08->09/11), C-class (CL203/S203/W203) (02/04->09/07), Sprinter (W906) (04/06->08/13, 08/13->05/18) and Vito/Viano (W639) (04/06->08/10, 09/10->03/14)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Description and parameters
Comments0
Evaluation0
Category

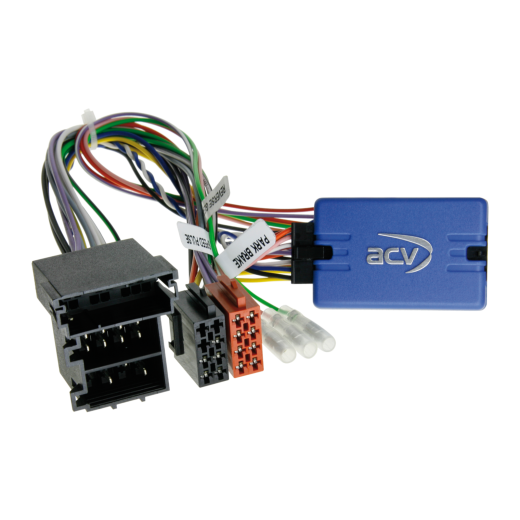

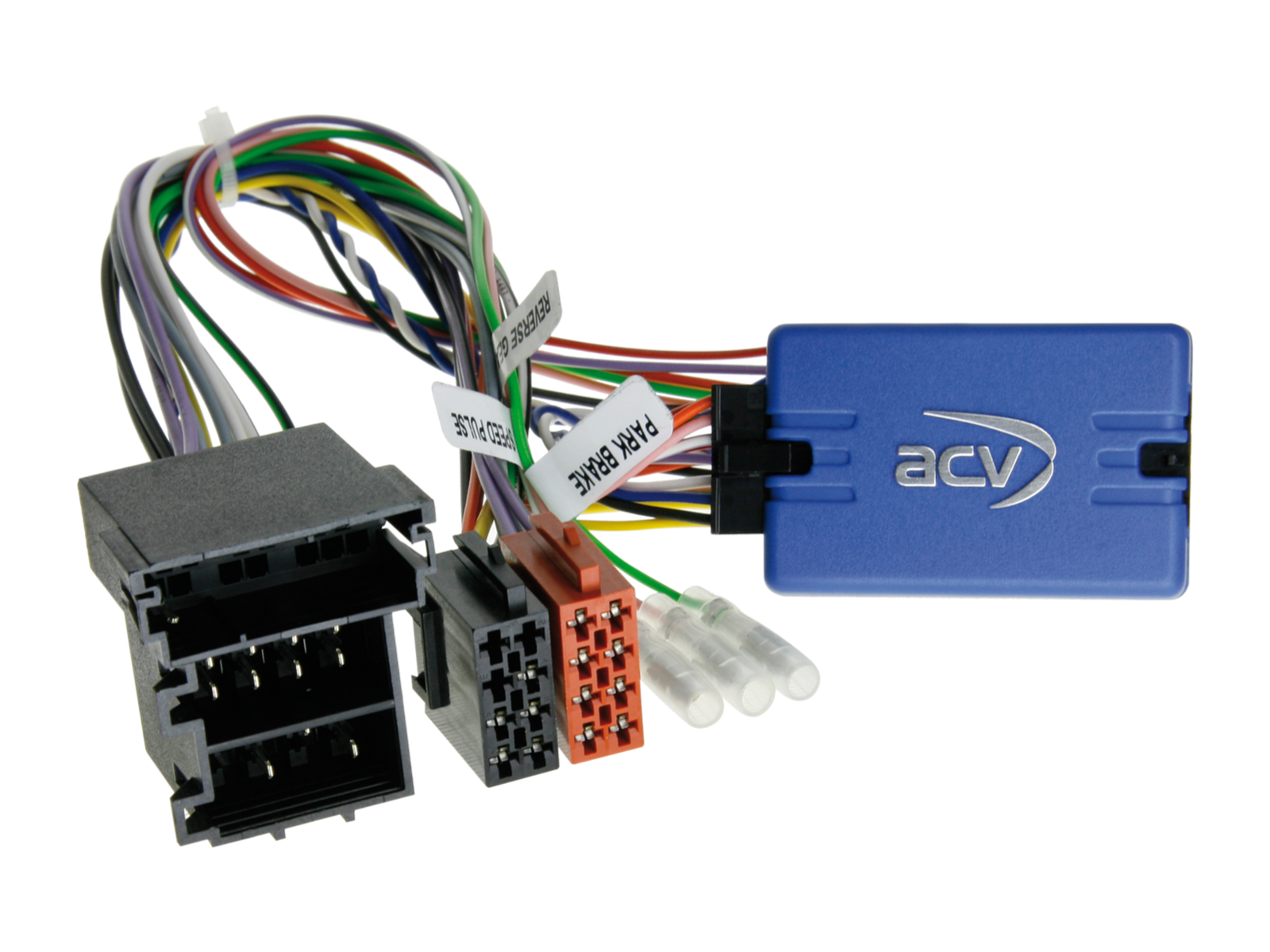

Steering Wheel Button Control Adapter for Mercedes ACV SWC 42SMC003-0

Retain the original steering wheel radio control functions when replacing the original radio with a non-original unit. Depending on the vehicle's equipment, the range of functions, and the software of the non-original unit, some features may be limited or replaced by others. Compare the adapter's connectors with those in your vehicle to ensure they match both visually and technically. Verify if one of the listed original radios was used in the vehicle. Check the functions of the vehicle, settings, and steering wheel controls before final installation.

Designed for Cars

Mercedes A-class (C169/W169) (10/2004->04/2008) with CAN Bus in Mini ISO connector and 1-DIN Audio 5 OEM unit, check the ISO connector wiring in vehicles with radio preparation before installation by measurement.
Mercedes A-class (C169/W169) (06/2008->06/2012) with CAN Bus in Mini ISO connector and 1-DIN Audio 5 OEM unit, check the ISO connector wiring in vehicles with radio preparation before installation by measurement.
Mercedes B-class (T245) (07/2005->04/2008) with CAN Bus in Mini ISO connector and 1-DIN Audio 5 OEM unit.
Mercedes B-class (T245) (04/2008->09/2011) with CAN Bus in Mini ISO connector and 1-DIN Audio 5 OEM unit.
Mercedes C-class (CL203/S203/W203) (02/2004->09/2007) with CAN Bus in Mini ISO connector and 1-DIN Audio 5 OEM unit.
Mercedes Sprinter (W906) (04/2006->08/2013) with CAN Bus in Mini ISO connector, use LFB Mercedes/VW Crafter ISO radio preparation adapter 42smc017 in vehicles with radio preparation without OEM unit.
Mercedes Sprinter (W906) (08/2013->05/2018) with CAN Bus in Mini ISO connector, use LFB Mercedes/VW Crafter ISO radio preparation adapter 42smc017 in vehicles with radio preparation without OEM unit.
Mercedes Vito/Viano (W639) (04/2006->08/2010) with CAN Bus in Mini ISO connector.
Mercedes Vito/Viano (W639) (09/2010->03/2014) with CAN Bus in Mini ISO connector.

CAN Bus Information

Connection: ISO / Mini ISO connector.
Designed for cars with CAN Bus in Mini ISO connector and 1-DIN Audio 5 OEM unit.
Check the ISO connector wiring in vehicles with radio preparation before installation by measurement – incorrect installation can damage the interface.
Pin 7: +12V ignition Klemme 15, Pin 6: +12V lighting Klemme 58.
Vehicles with different comfort CAN Bus wiring: brown-red twisted > blue twisted = CAN high, brown twisted > white twisted = CAN low.
Rückfahrsignal +12V may not always be supported – alternatively on the driver's side white/blue wire.

Important Additional Information

To fully activate the adapter, it is necessary to order a connecting cable for the specific radio brand.

General Installation Guidelines

Verification Before Installation

Check all control and setting functions of the vehicle with the original OEM radio.
Disassemble the OEM unit without power.
Check all interface connections without power.

Connection and Wiring Order

Perform all settings and configurations without power.
Check the radio's connecting cable configuration.
Connect the cable to the aftermarket radio according to the instructions.
Connect other wires according to the device's instructions.
Connect the main power connection last.
Perform software configuration of the interface according to the description and BDA instructions.
Configure the aftermarket radio for SWC functions, camera, hands-free, antenna power, etc.
Test the steering wheel control functions and vehicle communication.

Changing Interface and HU Cable Configuration

Make changes without power.
After changes, follow steps 5–8 above.

In Case of Interface or Vehicle System Failure

Return the original OEM unit to the vehicle.
Turn on the OEM unit.
Wait for the CAN Bus to go to sleep.
Check the hardware configuration of the interface.
After the CAN Bus goes to sleep, follow steps 5–8 above.

When Modifying Wiring or Cable Routing

Modifications should only be carried out by professionally trained personnel.
Verify compliance with the manufacturer's requirements and the impact on warranty before connection.
Verify functionality by measurement and according to the vehicle's diagram before connection.
Modifications are at your own risk without functionality guarantee.
Modifications are without warranty for potential vehicle, device, or interface damage.
Modifications on pre-installed cabling may void the product warranty.
