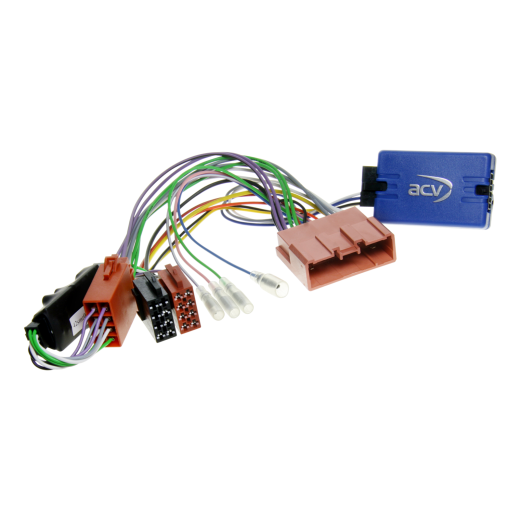

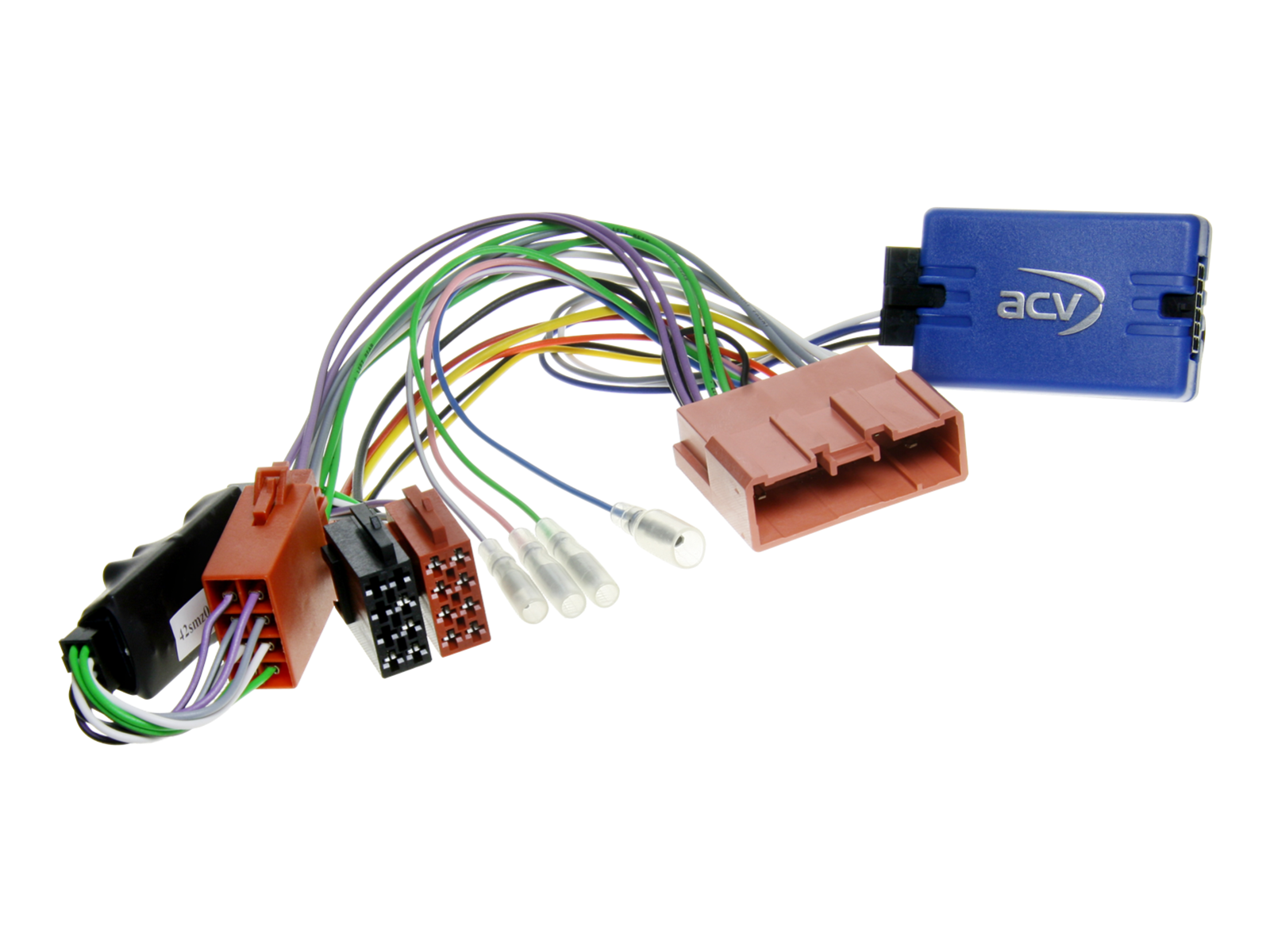

Steering Wheel Control Adapter for Mazda ACV SWC 42SMZ010-0

Retain the original radio control functions from the steering wheel when replacing the original radio with a non-original unit. Depending on the vehicle's equipment, the range of functions, and the software of the non-original unit, some functions may be limited or replaced by others. Compare the connectors of the adapter with those in your vehicle to ensure they match both visually and technically. Verify if any of the listed original radios were used in the vehicle. Before final installation, check the vehicle's functions, settings, and steering wheel controls.

Designed for Vehicles

• Mazda 3 (BM) (10/2013->01/2017) with a 24 Pin Mazda connector and BOSE audio system, for versions without BOSE use adapter 42smz011.
• Mazda 3 (BM) (02/2017->03/2019) with a 24 Pin Mazda connector and BOSE audio system, for versions without BOSE use adapter 42smz011.
• Mazda CX-9 (TB1) (01/2007->07/2016) with a 24 Pin Mazda connector and BOSE audio system, for versions without BOSE use adapter 42smz011, OEM radio Panasonic.

CAN Bus Information

• Connection: 24 Pin Mazda connector.
• Connection: OEM Soundsystem ISO(m) -> ISO(f).
• Vehicles with BOSE audio system — for vehicles without BOSE use adapter 42smz011.
• Amplifier output: blue-white wire +12V Amp Remote.
• Supports date/time settings, mileage settings, and fader.

Important Additional Information

• To fully activate the adapter, an interconnecting cable for the specific radio brand must be ordered.

General Installation Guidelines

Pre-installation Check

1. Check all control functions and settings of the vehicle with the original OEM radio.
2. Remove the OEM unit without voltage.
3. Check all interface connections without voltage.

Connection and Wiring Order

1. Perform all settings and configurations without voltage.
2. Check the configuration of the radio connecting cable.
3. Connect the cable according to the aftermarket radio instructions.
4. Connect other wires as per the device instructions.
5. Connect the main power supply last.
6. Perform the software configuration of the interface as per the description and BDA.
7. Configure the aftermarket radio for SWC functions, camera, hands-free, antenna power, etc.
8. Test the steering wheel control function and vehicle communication.

Interface and HU Cable Configuration Changes

• Make changes without voltage.
• After changes, follow steps 5–8 above.

In Case of Interface or Vehicle System Malfunction

• Return the original OEM unit to the vehicle.
• Turn on the OEM unit.
• Wait for the CAN Bus to sleep.
• Check the hardware configuration of the interface.
• After CAN Bus sleeping, follow steps 5–8 above.

When Modifying Connections or Wiring

• Modifications should be made only by professionally trained personnel.
• Before connecting, verify compliance with manufacturer requirements and impact on warranty.
• Before connecting, verify function by measuring and according to the vehicle diagram.
• Modifications are made at your own risk without a guarantee of functionality.
• Modifications are made without warranty for any potential damage to the vehicle, device, or interface.
• Modifications to pre-installed wiring may void the product warranty.
