Steering wheel button control adapter for BMW / Mini ACV SWC 42XBM005-0

steering wheel adapter for BMW 1 (E81/E82/E87/E88) (03/04->10/13), 3 (E90/E91/E92/E93) (03/05->10/13), 5 (E60/E61) (07/03->07/10), 6 (E63/E64) (09/04->11/10), 7 (E65/E66) (08/01->11/08), Z4 (E89) (05/09->08/16), X1 (E84) (10/09->06/15), X5 (E70) (03/07->09/13), X6 (E71/E72) (05/08->06/14) and Mini (R55/R56/R57/R58/R59) (11/06->05/15)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for BMW / Mini ACV SWC 42XBM005-0

Description and parameters
Comments0
Evaluation0
Category

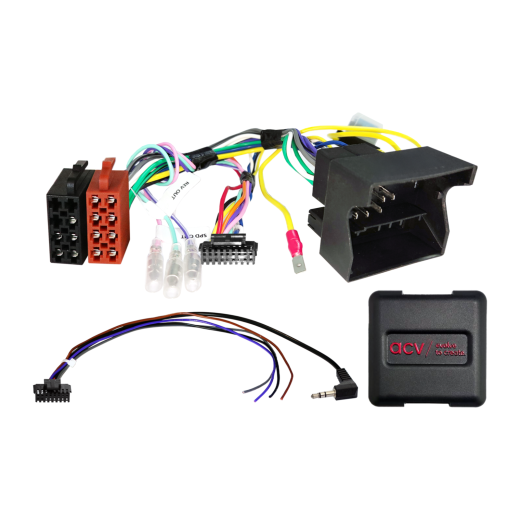

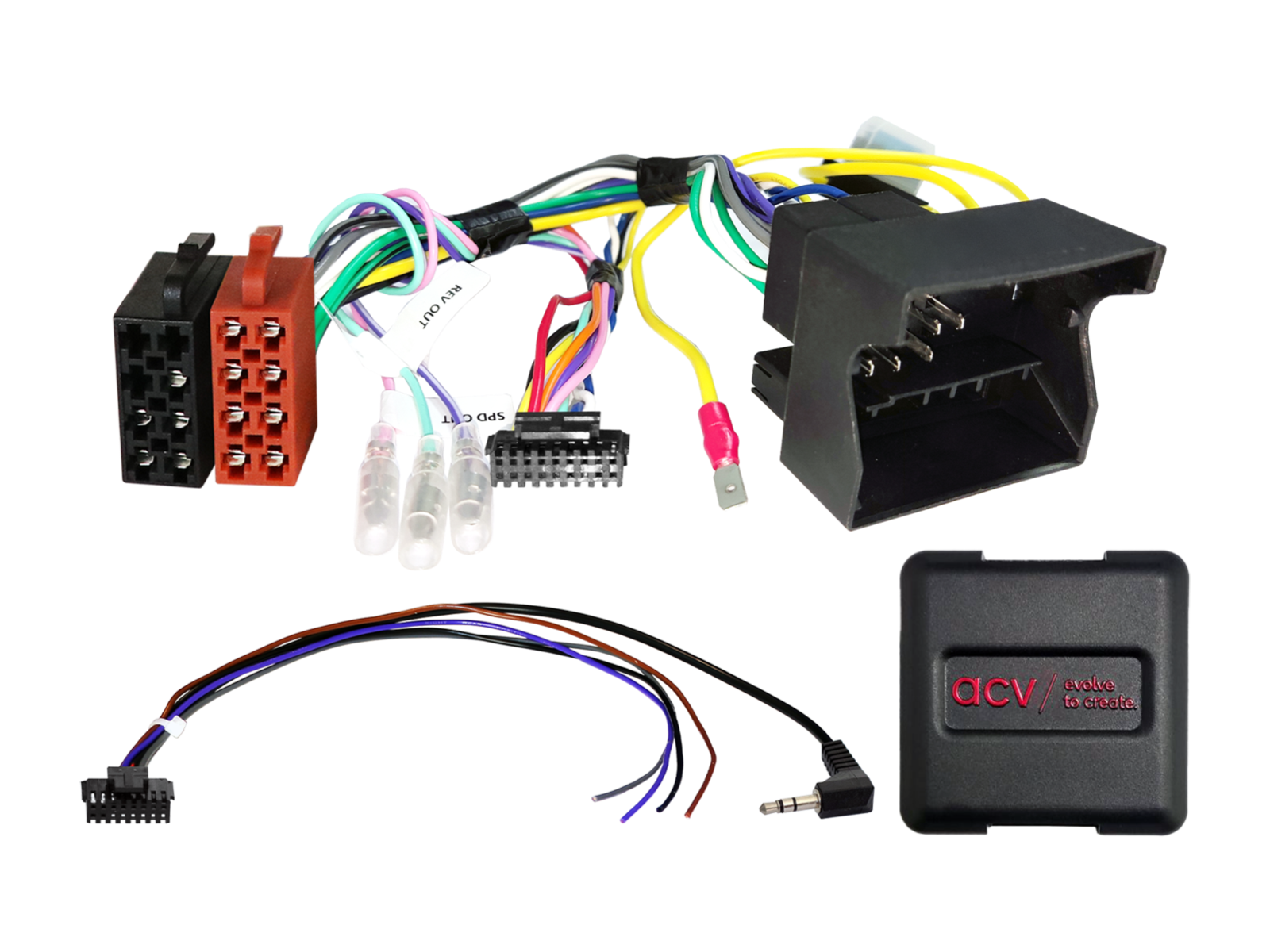

Steering Wheel Control Adapter for BMW / Mini ACV SWC 42XBM005-0

Maintain the original radio control functions from the steering wheel when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with those in your vehicle to ensure they match both technically and visually. Check if any of the listed OEM radios were originally installed. Verify vehicle functionality, system settings, and proper steering wheel control operation (SWC) before final installation.

Intended for Vehicles

BMW 1 Series [E81, E82, E87, E88] (2004 -> 2013) - original BMW Business, Professional radio. Vehicles with OEM MOST amplifier require an active BMW MOST to RCA adapter.
BMW 3 Series [E90, E91, E92, E93] (2005 -> 2013) - original BMW Business, Professional radio. Vehicles with OEM MOST amplifier require an active BMW MOST to RCA adapter.
BMW 5 Series [E60, E61] (2003 -> 2010) - original BMW Business, Professional radio. Vehicles with OEM MOST amplifier require an active BMW MOST to RCA adapter.
BMW 6 Series [E63, E64] (2004 -> 2010) - original BMW Business, Professional radio.
BMW 7 Series [E65, E66] (2001 -> 2008) - original BMW Business, Professional radio.
BMW Z4 [E89] (2009 -> 2016) - original BMW Business, Professional radio.
BMW X1 [E84] (2009 -> 2015) - original BMW Business, Professional radio.
BMW X5 [E70] (2007 -> 2013) - original BMW Business, Professional radio. Vehicles with OEM MOST amplifier require an active BMW MOST to RCA adapter.
BMW X6 [E71, E72] (2008 -> 2014) - original BMW Business, Professional radio. Vehicles with OEM MOST amplifier require an active BMW MOST to RCA adapter.

Mini [R55, R56, R57, R58, R59] (2006 -> 2015) - original BMW Business, Professional radio. OEM tachodisplay not supported.

CAN Bus Information

Connectors and Power:

Connector: 40-pin BMW Quadlock.
Power: +12 V constant (Klemme 30, fuse) – yellow wire.
Output for OEM steering control: 3.5 mm jack or free wire.

Settings:

Set DIP switches according to the brand of the aftermarket radio used.

Vehicle Compatibility:

Vehicles with original Business/Professional radio.
Vehicles without iDrive.
Vehicles without OEM MOST amplifier.

Vehicles with OEM MOST Amplifier:

Require an active BMW MOST to RCA adapter.

Vehicles with Parking Sensors (PDC):

PDC and warning tones not supported.
For additional support of warning tones, use Warnton Interface BMW/Citroen/Peugeot/Fiat/Ford/Volvo.

Available Auxiliary Signals:

+12 V ignition (Klemme 15).
+12 V lighting (Klemme 58).
+12 V reverse gear.
Speed signal.
GND for handbrake signal.

Important Additional Information

Intended for aftermarket radios from brands like Sony, Kenwood, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, XZent, Digital Dynamics, ESX, Snooper, and universal "China HU" with Key1/Key2/GND wires or 3.5mm jack as applicable.
A connecting cable for the specific radio brand is required for full adapter activation.

General Installation Guidelines

Verification Before Installation:

Check all control functions and vehicle settings with the original OEM head unit.
Remove the original radio without power.
Verify that all interface connections are correctly connected – without power.

Connection and Wiring Sequence:

Set and configure the interface hardware without power.
Verify the configuration of the connection cable to the HU.
Connect the cable to the HU according to the aftermarket device instructions.
Connect other wires according to the device instructions.
Connect the entire installation to the vehicle – connect the main power connection last.
Perform software configuration of the interface according to product description or manual instructions.
Configure the aftermarket HU (steering control, camera, hands-free, antenna power, etc.).
Conduct a functional test of the steering control and vehicle communication.

Changing Interface and HU Cable Configuration:

Make all changes without power.
After changes, repeat steps 5 to 8 listed above.

In Case of Interface or Vehicle System Failure:

Reinstall the original OEM HU.
Start the original unit.
Wait for the CAN Bus system to sleep.
Check the HW configuration of the interface.
After the CAN Bus sleeps, repeat steps 5 to 8 listed above.

When Modifying Wiring or Cable Routing:

Connections and modifications should only be performed by professionally trained personnel.
All changes must be verified for manufacturer approval or vehicle warranty impact before connection.
All changes must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
Modifications are at your own risk, without a guarantee of functionality.
Modifications are performed at your own risk, with no assurance of preventing damage to the vehicle, device, or interface.
Changes to pre-installed cables may void the product warranty.

Catalog number	42XBM005-0
