Steering wheel button control adapter for Nissan / Renault ACV SWC 42XRN005-0

Be the first to rate the product
steering wheel adapter for Nissan Primastar (X83) (2008->12/10) and Renault Clio III (R) (09/05->04/09), Grand Scenic (JM) (09/06->04/09), Kangoo II (W) (03/08->03/13), Laguna II (BG) (04/05->10/07), Master II (JD) (02/02->02/10), Megane II (CM) (01/06->01/10), Modus (P) (09/04->04/08), Modus (P) (08/08->03/13), Scenic (JM) (05/05->06/09), Trafic II (I/JL) (10/05->12/10) and Twingo II (N) (09/07->12/11)
More about the product
75,81 EUR
Catalog number: 42XRN005-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days

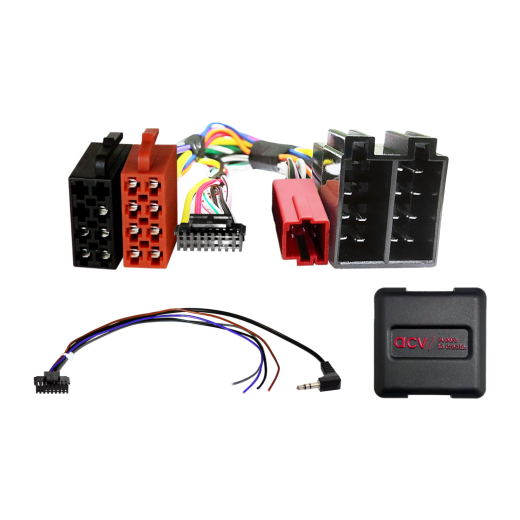

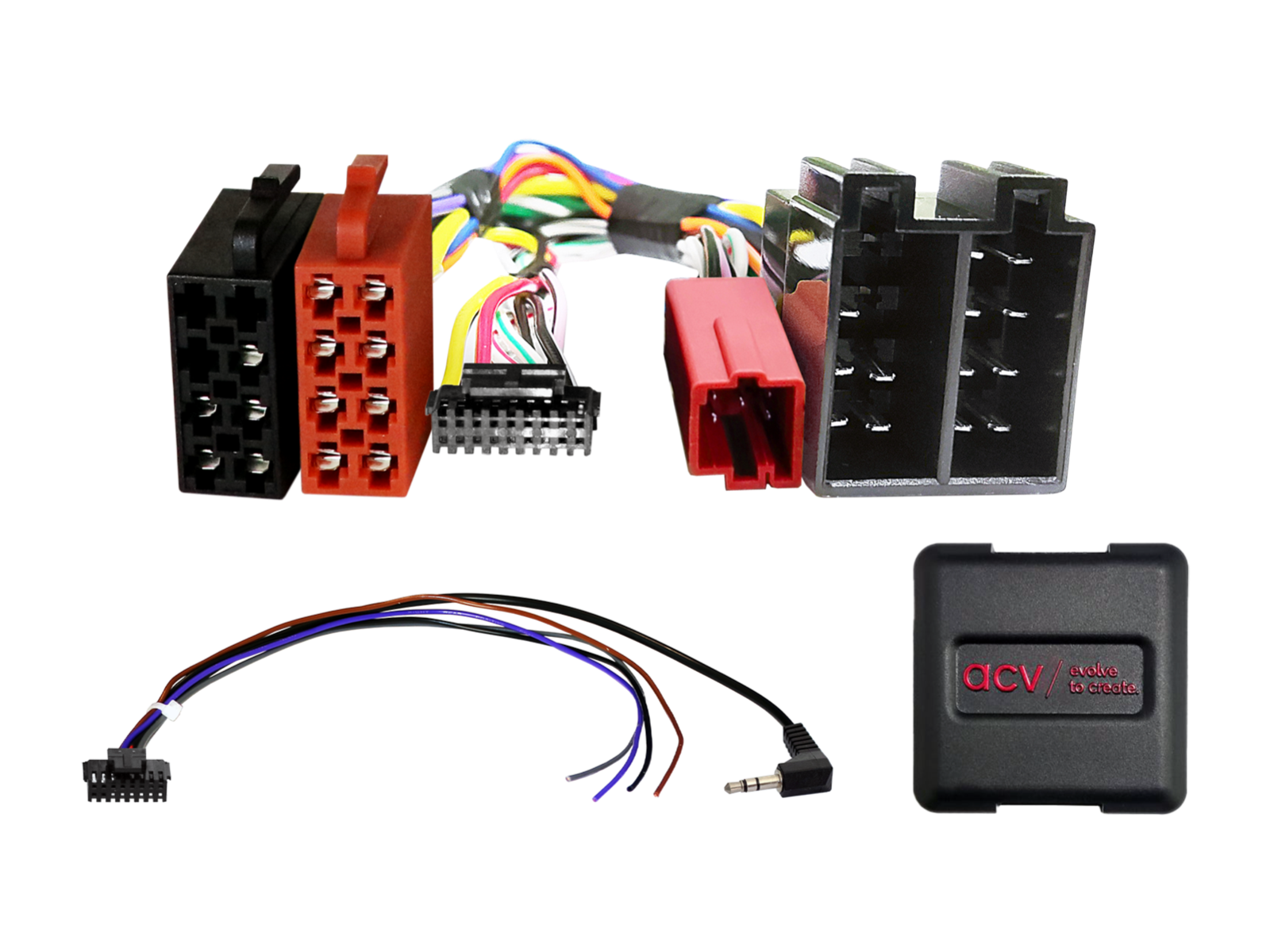

Steering wheel button control adapter for Nissan / Renault ACV SWC 42XRN005-0
New

Steering wheel button control adapter for Nissan / Renault ACV SWC 42XRN005-0

Preserve the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, range of functions and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and ensure they match both technically and visually. Check whether one of the listed OEM radios was originally installed. Before final installation, verify vehicle functionality, system settings and correct operation of the steering wheel controls (SWC).

Intended for vehicles

  • Nissan Primastar [X83] (2008 -> 12/2010) - original OEM head unit.
  • Renault Clio III [R] (09/2005 -> 04/2009) - original OEM head unit.
  • Renault Grand Scenic [JM] (09/2006 -> 04/2009) - original OEM head unit.
  • Renault Kangoo II [W] (03/2008 -> 03/2013) - original OEM head unit.
  • Renault Laguna II [BG] (04/2005 -> 10/2007) - original OEM head unit.
  • Renault Master II [JD] (02/2002 -> 02/2010) - original OEM head unit.
  • Renault Megane II [CM] (01/2006 -> 01/2010) - original OEM head unit.
  • Renault Modus [P] (09/2004 -> 04/2008) - original OEM head unit.
  • Renault Modus [P] (08/2008 -> 03/2013) - original OEM head unit.
  • Renault Scenic [JM] (05/2005 -> 06/2009) - original OEM head unit.
  • Renault Trafic II [I/JL] (10/2005 -> 12/2010) - external display must be reconnected to the vehicle after installation.
  • Renault Twingo II [N] (09/2007 -> 12/2011) - original OEM head unit.

CAN Bus information

Connectors and interfaces:

  • Connectors: ISO / Mini ISO yellow.
  • OEM steering wheel control connection: 3.5 mm jack or a spare wire to the radio's SWC input.
  • Mini ISO connector C: 5 pins used, pin 6 not connected.

Settings:

  • Set DIP switches according to the aftermarket unit manufacturer (refer to the device manual).

Vehicle compatibility:

  • Vehicles with VDO Update List OEM head unit without a built-in display and with an external display; the external display must be reconnected to the vehicle after installation.
  • Vehicles without Carminat / Tuner List OEM navigation and without the Cabasse amplifier system.
  • Date/time setting is not supported.

Important additional information

  • Compatible with aftermarket radios that have an analog steering wheel control input (e.g., Sony, Kenwood, JVC, Pioneer, Alpine, Blaupunkt, Clarion, Zenec, etc.).
  • To fully activate the adapter, it is necessary to order the connecting cable for the specific radio brand.

General installation instructions

Checks before installation.

  1. Check all steering wheel control functions and vehicle settings with the original OEM head unit installed.
  2. Disconnect the original radio (OEM HU) with power removed.
  3. Check all interface connections to ensure they are correctly connected, with power removed.

Connections and wiring order:

  1. Set and check the hardware configuration of the interface with power removed.
  2. Check the configuration of the connection cable to the head unit (HU) with power removed.
  3. Connect the cable to the head unit according to the aftermarket device instructions.
  4. Connect the remaining wires according to the device instructions.
  5. Connect the entire installation to the vehicle, connecting the main power last.
  6. Perform the software configuration of the interface according to the product description or manual.
  7. Configure the aftermarket head unit (steering wheel control, camera, handsfree, antenna power, etc.).
  8. Perform a functional test of the steering wheel control and communication with the vehicle.

Changing interface and head unit (HU) cable configuration:

  • Make all changes with power removed.
  • After changes, repeat steps 5 to 8 listed above.

In case of interface or vehicle system malfunction:

  • Reinstall the original OEM head unit.
  • Start the original unit.
  • Initiate CAN Bus system shutdown.
  • Check the hardware configuration of the interface.
  • After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When modifying wiring or cable routing:

  • Wiring and modifications must be performed only by professionally trained personnel.
  • All changes must be verified with regard to manufacturer approval or impact on the vehicle warranty before connection.
  • All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
  • Modifications are carried out at your own risk, without guarantee of functionality.
  • Modifications are performed at your own risk, without any guarantee of avoiding damage to the vehicle, device or interface.
  • Pre-modified harnesses may result in loss of product warranty.
Catalog number42XRN005-0
BrandACV
LinksOfficial web presentation
