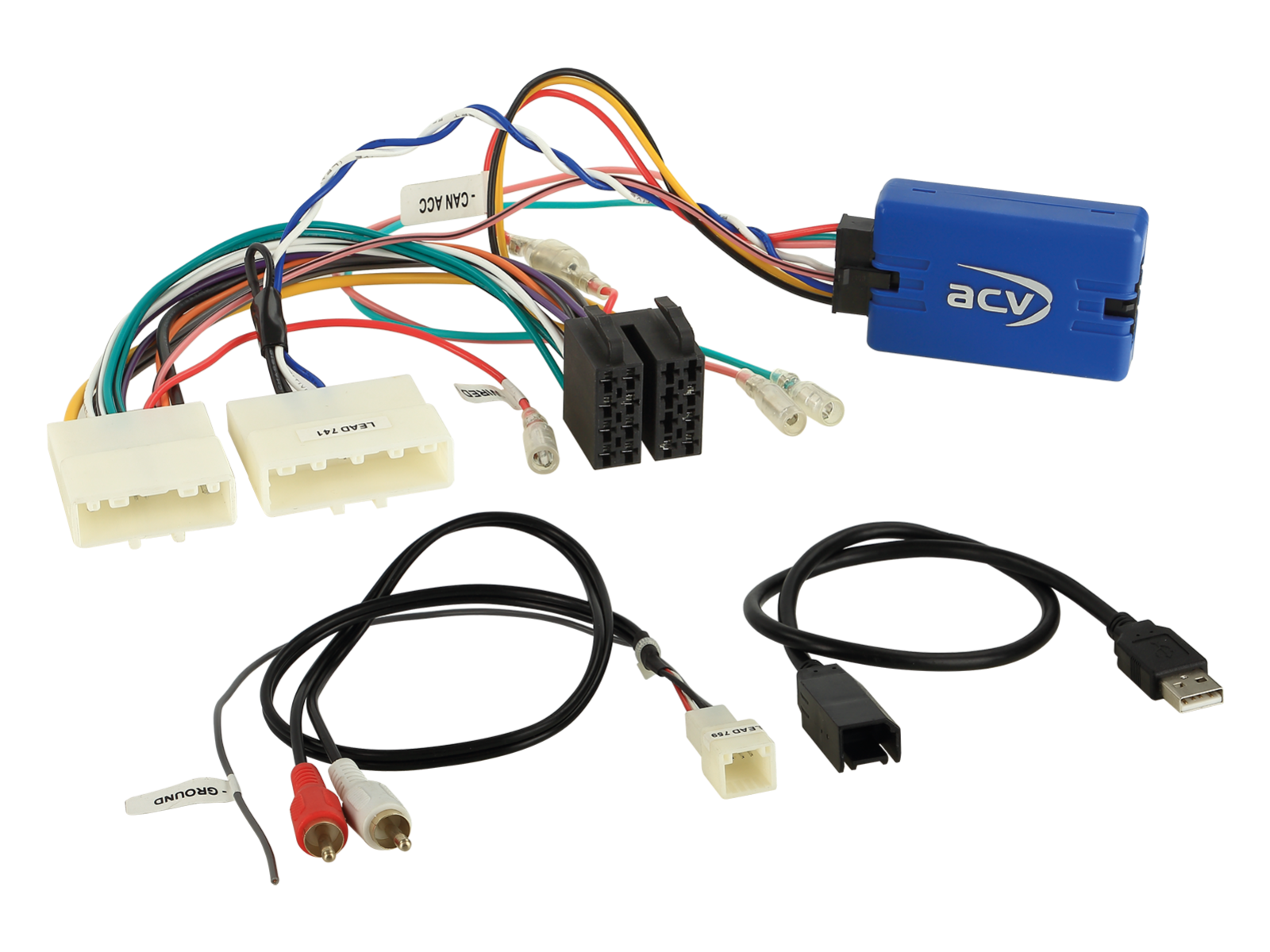

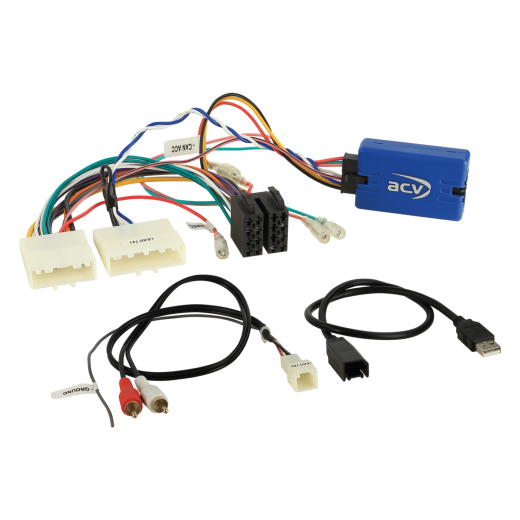

Steering Wheel Control Adapter for Nissan ACV SWC 42SNS012-0

Retain the original steering wheel control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions, and the software of the aftermarket unit, some functions may be limited or replaced by others. Compare the displayed connectors of the adapter with the connectors in your vehicle to ensure they match both visually and technically. Verify if any of the listed original radios were used in the vehicle. Before final installation, check the vehicle functions, settings, and steering wheel controls.

Compatible with Vehicles

• Nissan Altima (L33) (06/2012->08/2018) with 20 Pin / 32 Pin Nissan connector, OEM AUX to RCA red/white and OEM USB to USB-A.
• Nissan Rogue II (2014->2017) with 20 Pin / 32 Pin Nissan connector, OEM AUX to RCA red/white and OEM USB to USB-A, supports date/time setting.
• Nissan Sentra II (B17) (2015->2018) with 20 Pin / 32 Pin Nissan connector, OEM AUX to RCA red/white and OEM USB to USB-A, supports date/time setting.

CAN Bus Information

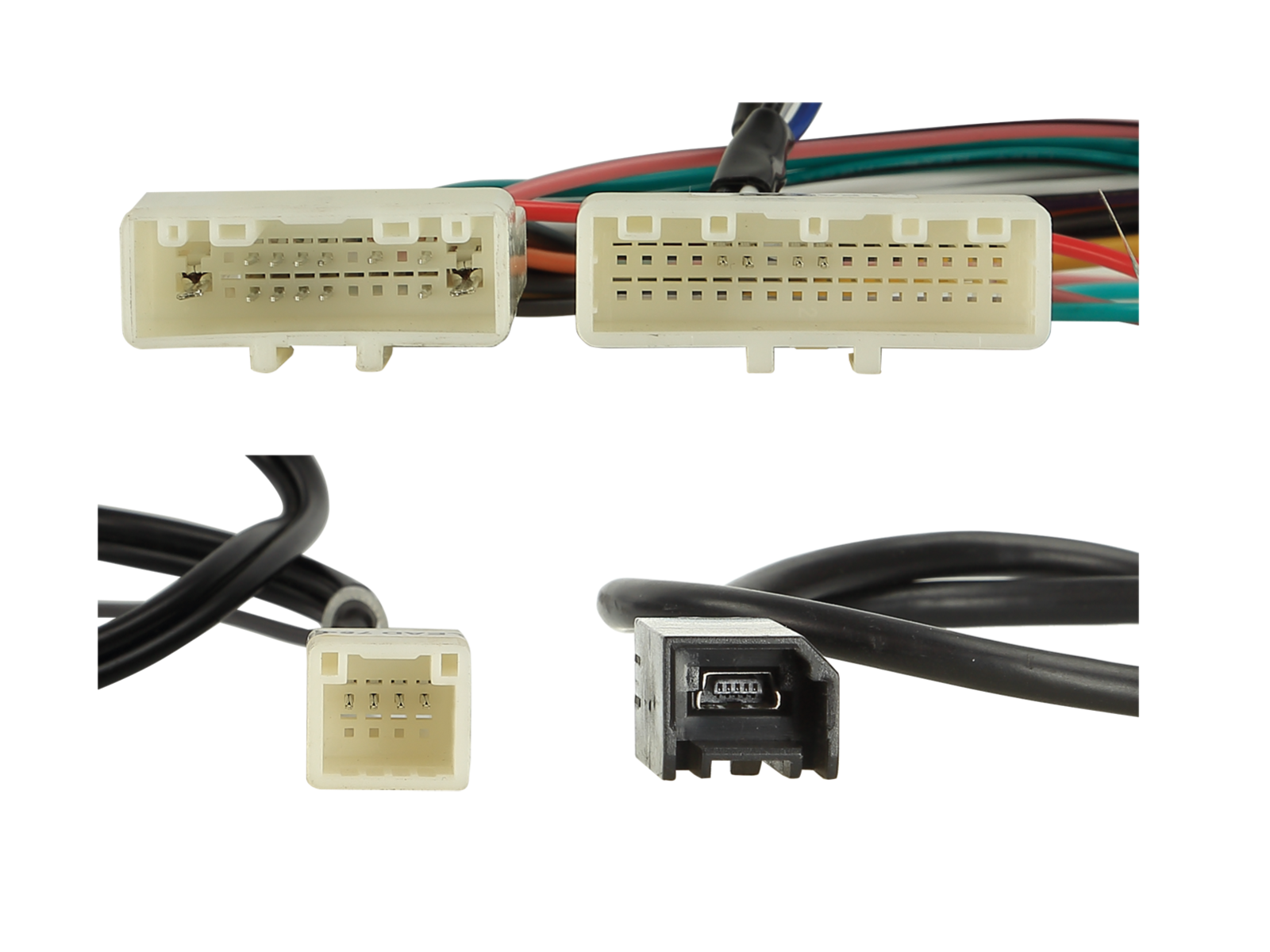

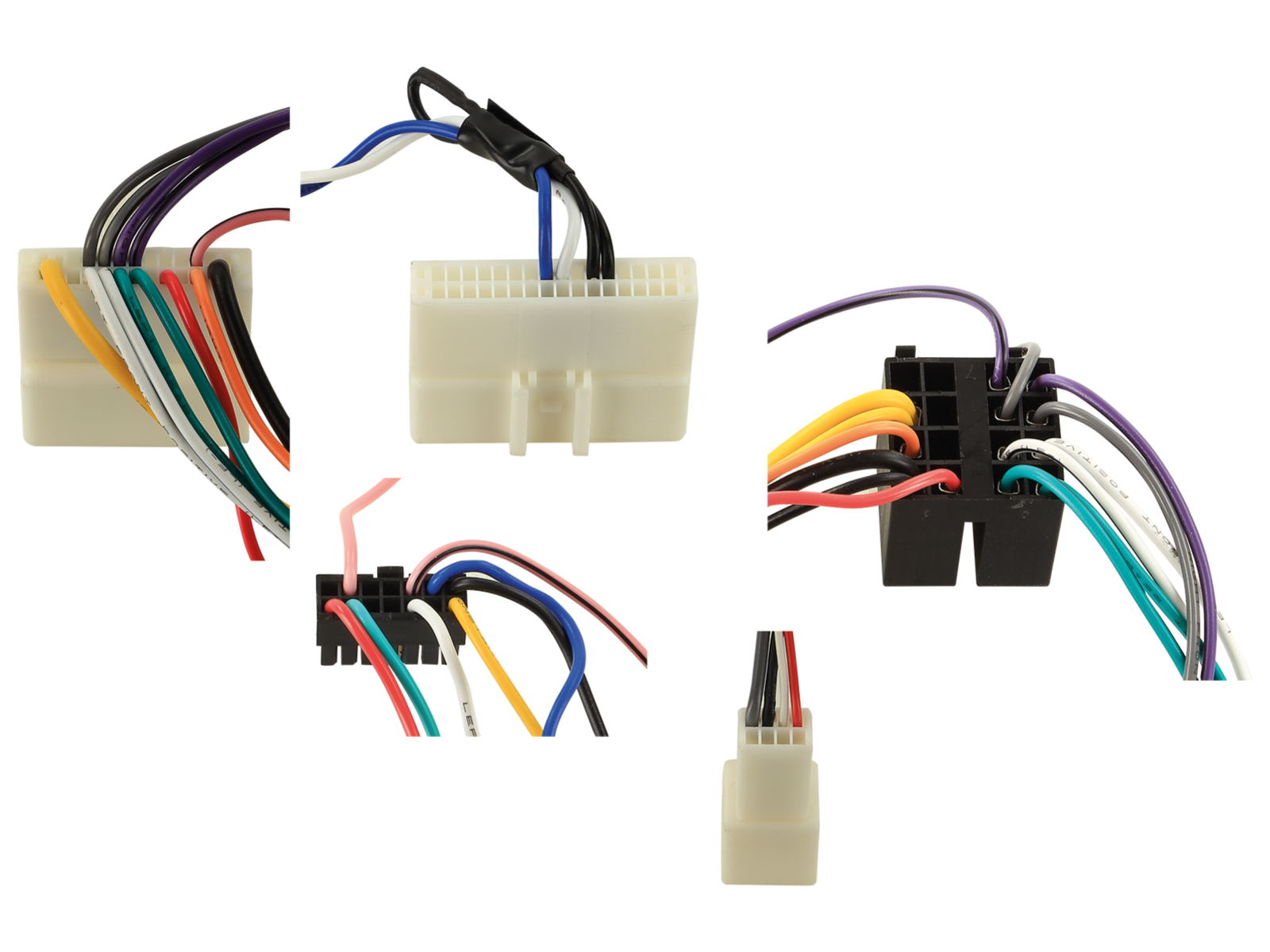

• Connection: 20 Pin / 32 Pin Nissan connector.
• Connection: OEM AUX -> RCA red/white.
• Connection: OEM USB -> USB-A.
• Supports date/time setting for selected models.

Important Additional Information

• A specific radio brand connecting cable is required for full adapter activation.

General Installation Guidelines

Pre-Installation Verification

1. Check all control functions and vehicle settings with the original OEM radio.
2. Remove the OEM unit without power.
3. Check all interface connections without power.

Connection and Wiring Sequence

1. Perform all settings and configurations without power.
2. Check the radio connection cable configuration.
3. Connect the cable according to the aftermarket radio instructions.
4. Connect other wires according to the device instructions.
5. Connect the main power supply last.
6. Perform software configuration of the interface as per instructions in the description and BDA.
7. Configure the aftermarket radio for SWC functions, camera, hands-free, antenna power, etc.
8. Test the steering wheel control function and vehicle communication.

Interface and HU Cable Configuration Change

• Make changes without power.
• After changes, follow steps 5–8 above.

In Case of Interface or Vehicle System Malfunction

• Reinstall the original OEM unit in the vehicle.
• Turn on the OEM unit.
• Wait for the CAN Bus to sleep.
• Check the hardware configuration of the interface.
• After the CAN Bus sleeps, follow steps 5–8 above.

When Modifying Wiring or Cable Routing

• Modifications should only be performed by professionally trained personnel.
• Verify compliance with manufacturer requirements and warranty impact before connecting.
• Verify function through measurement and vehicle diagram before connecting.
• Modifications are done at your own risk without guarantee of functionality.
• Modifications come without warranty for potential vehicle, device, or interface damage.
• Modifications to pre-installed cabling may void the product warranty.
