Steering wheel button control adapter for Mazda ACV SWC 42XMZ012-0

Be the first to rate the product
steering wheel adapter for Mazda MX-5 (NB) (04/98->08/05), MX-5 (NC) (10/05->02/09) and MX-5 (NC) (02/09->07/15)
More about the product
91,86 EUR
Catalog number: 42XMZ012-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days
Steering wheel button control adapter for Mazda ACV SWC 42XMZ012-0
New

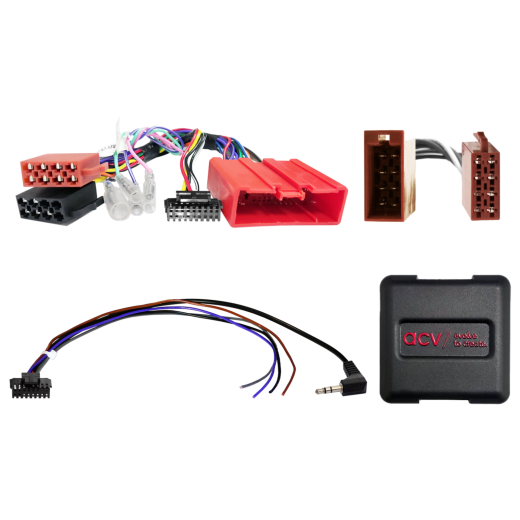

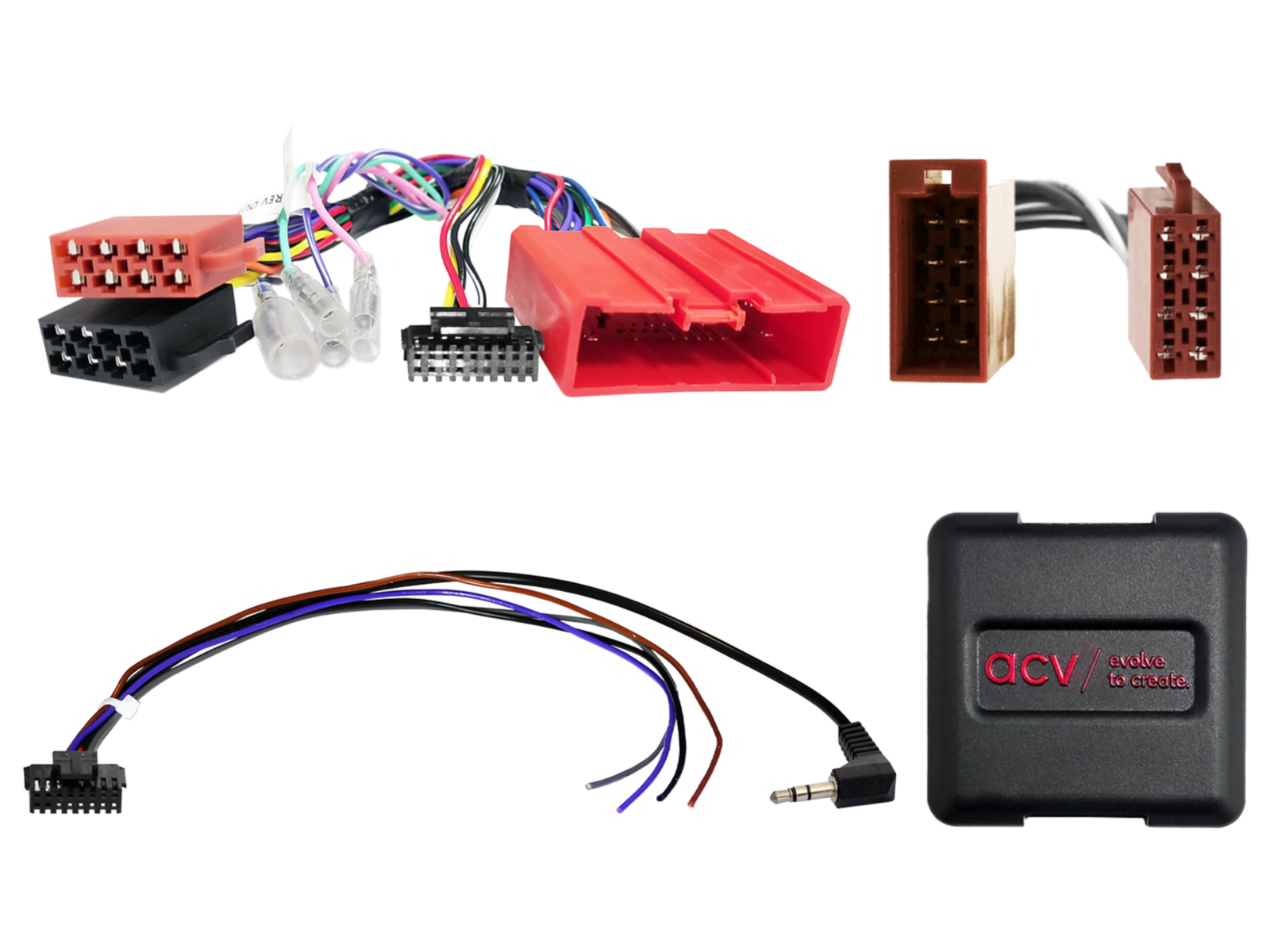

Steering Wheel Button Control Adapter for Mazda ACV SWC 42XMZ012-0

Preserve the original steering wheel controls for the car radio when replacing the factory radio with an aftermarket unit. Depending on the vehicle equipment, range of functions and software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether any of the listed OEM head units were originally installed. Before final installation, verify the vehicle functionality, system settings and correct operation of the steering wheel control (SWC).

Intended for vehicles

  • Mazda MX-5 (NB) (04/1998 -> 08/2005) vehicles with Panasonic OEM HU and BOSE OEM amplifier system, vehicles without BOSE OEM amplifier system installation without OEM amplifier system ISO(m) > ISO(f) connector.
  • Mazda MX-5 (NC) (10/2005 -> 02/2009) vehicles with Panasonic OEM HU and BOSE OEM amplifier system, vehicles without BOSE OEM amplifier system installation without OEM amplifier system ISO(m) > ISO(f) connector.
  • Mazda MX-5 (NC) (02/2009 -> 07/2015) vehicles with Panasonic OEM HU and BOSE OEM amplifier system, vehicles without BOSE OEM amplifier system installation without OEM amplifier system ISO(m) > ISO(f) connector.

CAN Bus information

Connectors and power:

  • Connector: 24 Pin Mazda.
  • Connector: OEM SWC > 3.5mm Jack / spare wire.
  • Connector: OEM amplifier system ISO(m) > ISO(f).
  • Blue/white: +12V amp remote.

Compatibility:

  • Vehicles with Panasonic OEM HU.
  • Vehicles with BOSE OEM amplifier system.
  • Vehicles without BOSE OEM amplifier system: installation without OEM amplifier system ISO(m) > ISO(f) connector.
  • Supports date/time settings.
  • Supports trip data settings.
  • Fader supported.

Important additional information

  • To fully activate the adapter it is necessary to order the connection cable for the specific car radio brand.

General installation instructions

Pre-installation checks:

  1. Check all steering control functions and vehicle settings with the original OEM head unit.
  2. Disconnect the original radio (OEM HU) with the power off.
  3. Check all interface connections to ensure they are properly connected – with power off.

Connections and wiring sequence:

  1. Check the interface settings and hardware configuration – with power off.
  2. Check the configuration of the cable connected to the radio – with power off.
  3. Connect the cable to the radio according to the aftermarket device manual.
  4. Connect the other wires according to the device manual.
  5. Connect the entire installation to the vehicle – connect the main power connection last.
  6. Perform software configuration of the interface according to the product description or manual.
  7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power and others).
  8. Perform a functional test of the steering wheel control and communication with the vehicle.

Changing the interface and HU cable configuration:

  • Make all changes with power off.
  • After changes, repeat steps 5 to 8 listed above.

In case of interface or vehicle system malfunction:

  • Reinstall the original OEM HU.
  • Start the original unit.
  • Perform a CAN Bus system shutdown.
  • Check the hardware configuration of the interface.
  • After CAN Bus shutdown, repeat steps 5 and 6 listed above.

When modifying wiring or cable routing:

  • Wiring and modifications may only be performed by professionally trained personnel.
  • All changes must be verified in terms of manufacturer approval or impact on the vehicle warranty before connection.
  • All modifications must be verified by measurement and compared with the vehicle wiring diagram before connection.
  • Modifications are made at your own risk, without warranty of functionality.
  • Modifications are carried out at your own risk, without guarantee of preventing damage to the vehicle, device or interface.
  • Modifications to pre-installed cabling may result in loss of product warranty.
