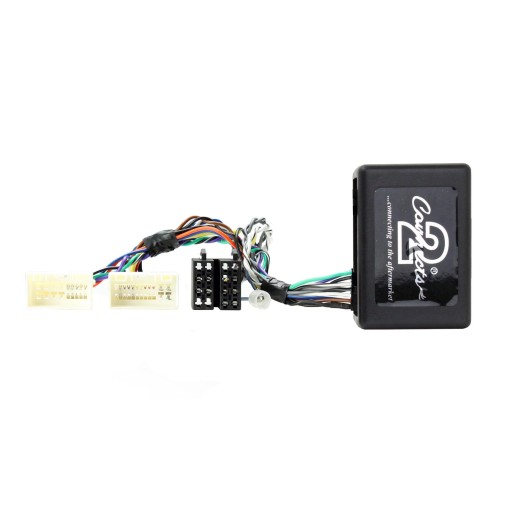

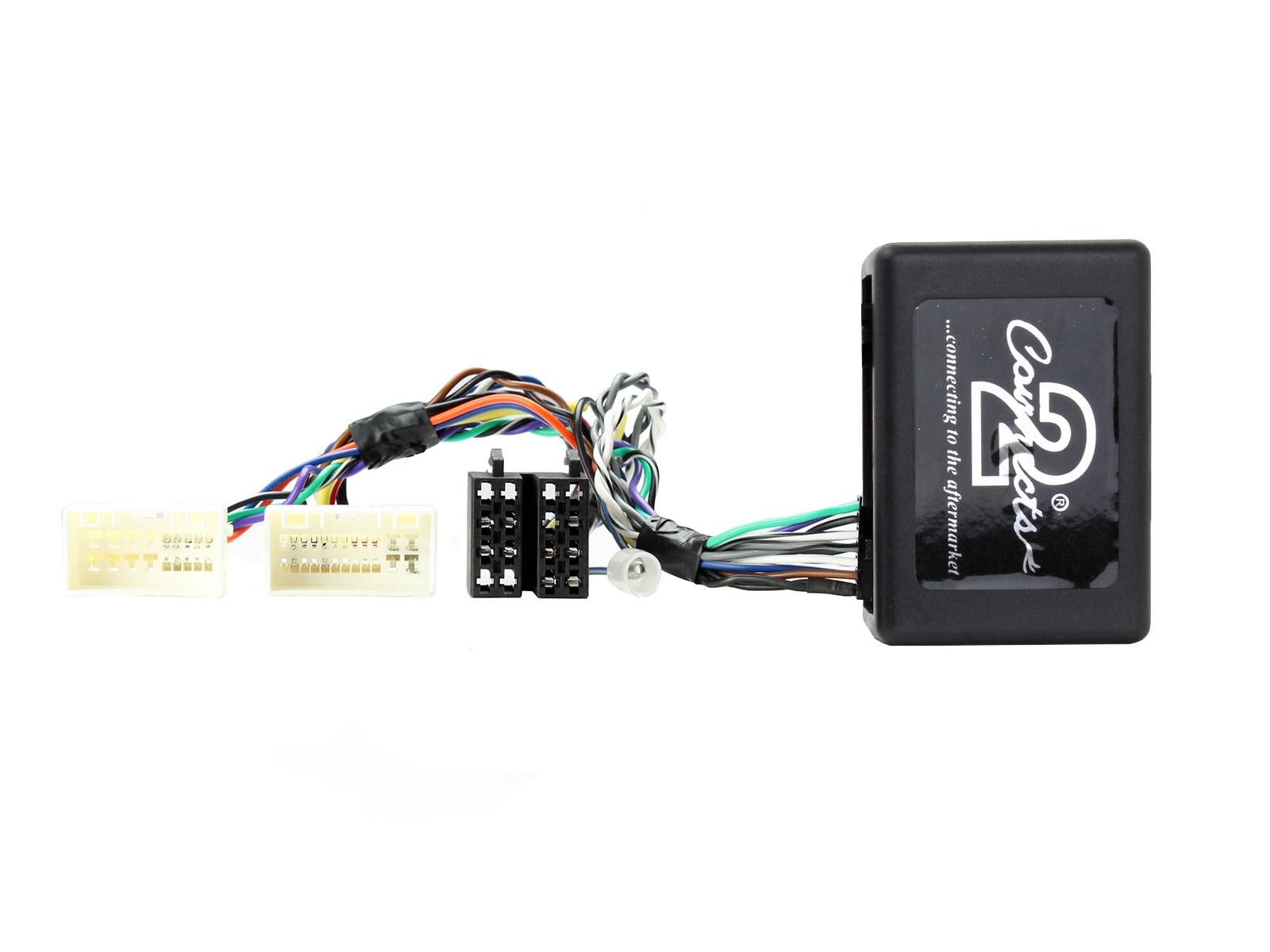

Steering wheel button control adapter for Hyundai Veloster Connects2 CTSHY018.2

Steering wheel button control adapter for Hyundai Veloster Connects2 CTSHY018.2

Interface for steering wheel controls for the Hyundai Veloster. When upgrading to an aftermarket head unit, it preserves steering wheel controls, the amplifier and other key vehicle functions. The climate control display will no longer be visible after installation.

Intended for vehicle

• Hyundai Veloster (2017 -> 2021)

Main features

• Steering wheel button control adapter.
• Designed for branded aftermarket head units Sony, Kenwood, Panasonic, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, Becker.
• The interface allows connection of an aftermarket head unit while retaining the use of the original steering wheel control buttons.
• Allows you to keep your hands on the wheel and your eyes on the road.
• Plug & Play - no need to cut wires.
• Provides outputs for speed pulse and reverse gear.
• To fully activate the adapter you must order the connection cable for the specific head unit brand!
• This product was developed based on carefully documented data and research.
• Connects2 Ltd. is not responsible for discrepancies or inconsistencies that may occur due to changes or additions in vehicle production, nor for damage that may occur to the vehicle during component installation.
• All application data may change over time; neither Ahifi nor the manufacturer is responsible for such changes.
• Before installation, check that the vehicle wiring connector matches the adapter harness you are purchasing.

Additional info about analog inputs

• The steering wheel adapter includes wires with analog signals.
• +12 V with ignition on (terminal 15) - present in the ISO connector.
• +12 V with vehicle lights on - present in the ISO connector.
• +12 V when reverse gear is engaged - separate wire.
• Speed pulses - separate wire.
• Ground (negative) when handbrake is pulled - separate wire.
