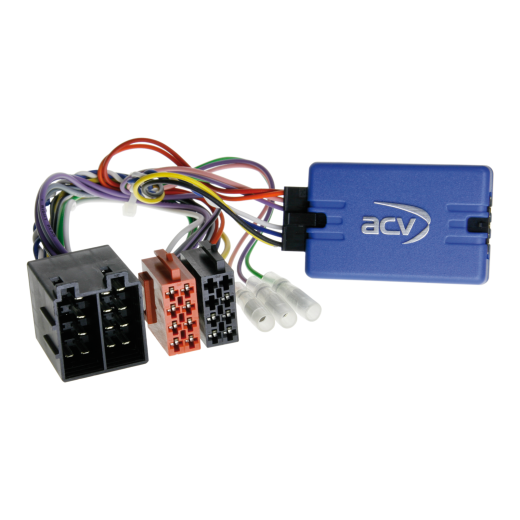

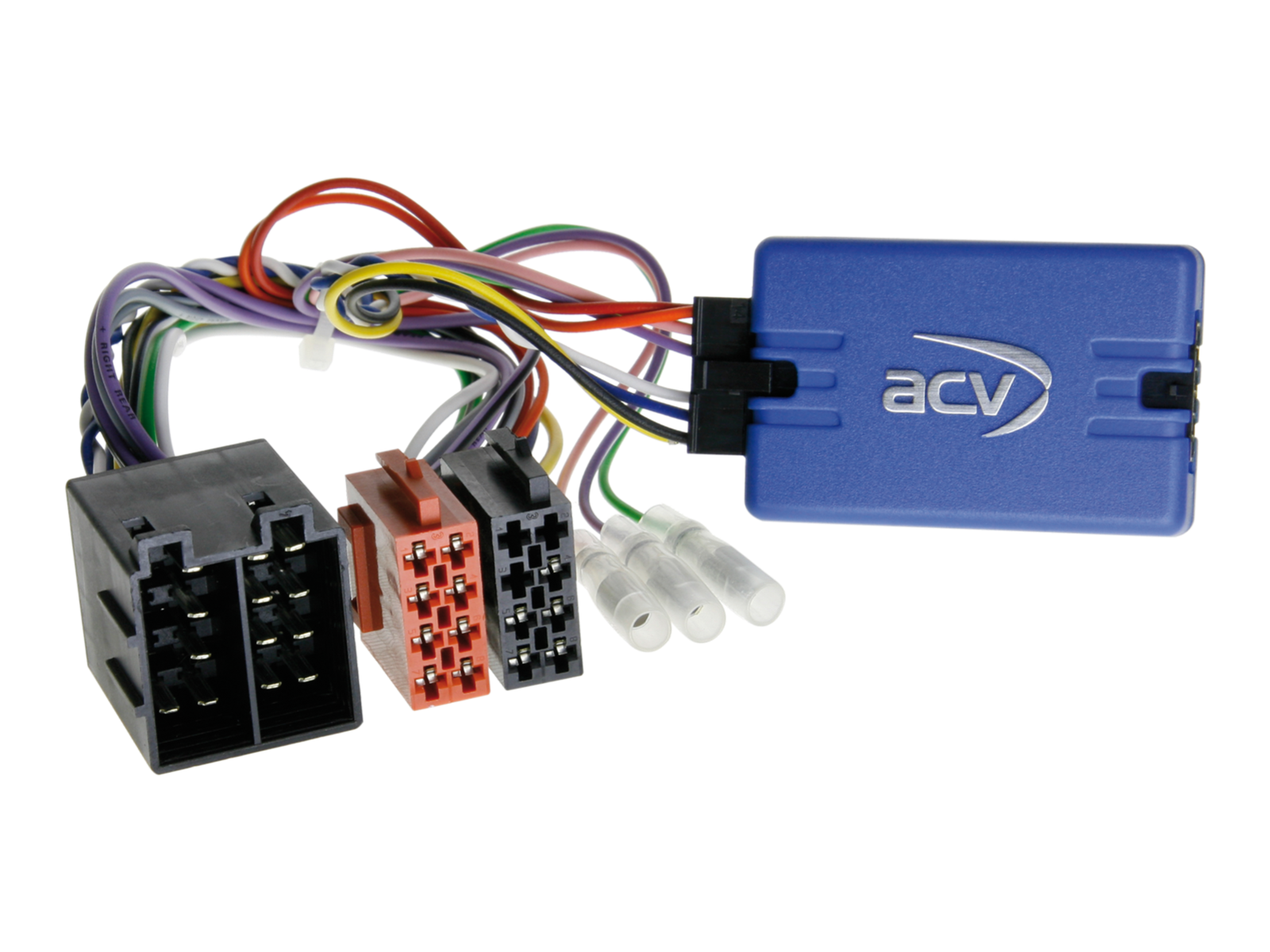

Steering wheel button control adapter for Fiat ACV SWC 42SFA005-0

steering wheel adapter for Fiat Bravo (ZAF 198) (04/07->01/14), Ritmo (07->14) and Stilo (ZAF 192) (08/01->09/04, 06/03->04/06, 04/06->01/08)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for Fiat ACV SWC 42SFA005-0

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Control Adapter for Fiat ACV SWC 42SFA005-0

Maintain original radio control functions from the steering wheel when replacing the original radio with a non-original unit. Compare the displayed connector harnesses with the connectors in your vehicle to ensure they match both technically and visually. Before installation, verify that one of the listed original radios was used in the vehicle. Always test vehicle functions, system settings, and steering wheel control (SWC) before final installation.

Designed for Vehicles

Fiat Bravo (ZAF 198) (04/2007 -> 01/2014) with OEM unit Blaupunkt/VDO and CAN Bus in ISO power connector
Fiat Ritmo (2007 -> 2014) with OEM unit Blaupunkt/VDO and CAN Bus in ISO power connector
Fiat Stilo (ZAF 192) (08/2001 -> 09/2004, 06/2003 -> 04/2006, 04/2006 -> 01/2008) with OEM unit Blaupunkt/VDO and CAN Bus in ISO power connector, vehicles with Blue&Me require the Silverbox module, without OEM unit Visteon.

CAN Bus Information

Connection: ISO connector
Vehicles with OEM unit Blaupunkt/VDO
Vehicles with CAN Bus in ISO power connector
Vehicles with Blue&Me require the Silverbox module
Vehicles without OEM unit Visteon
Provided interfaces: +12V ignition (Klemme 15), +12V lighting (Klemme 58), +12V reverse, GND handbrake
Maximum output load: 100 mA
For consumption above 100 mA: minimum relay coil resistance 75 Ω (1 relay) or 150 Ω (2 relays)

Important Additional Information

To fully activate the adapter, it is necessary to order a connecting cable for the specific radio brand.

General Installation Guidelines

Verification Before Installation

Check all control functions and vehicle settings with the original OEM radio (if installed).
Remove the OEM unit without power.
Check all interface connections without power.

Connection and Wiring Order

Perform all settings and configurations without power.
Check the configuration of the connecting cable.
Connect the cable according to the instructions for the aftermarket radio.
Connect other wires according to the device instructions.
Connect the main power connection last.
Perform software configuration of the interface according to the description and BDA.
Configure the aftermarket radio for SWC functions, camera, hands-free, antenna power, etc.
Test the steering wheel control function and vehicle communication.

Changing Interface and HU Cable Configuration

Make changes without power.
After changes, follow steps 5–8 above.

In Case of Interface or Vehicle System Malfunction

Return the original OEM unit to the vehicle.
Turn on the OEM unit.
Wait for the CAN Bus to sleep.
Check the hardware configuration of the interface.
After the CAN Bus sleeps, follow steps 5–8 above.

When Modifying Wiring or Cable Routing

Modifications should only be performed by professionally trained personnel.
Before connecting, verify compliance with manufacturer requirements and impact on warranty.
Before connecting, verify function through measurement and vehicle schematics.
Modifications are at your own risk without a guarantee of functionality.
Modifications are without warranty for potential damage to the vehicle, device, or interface.
Modifications to pre-installed cabling may void the product warranty.
