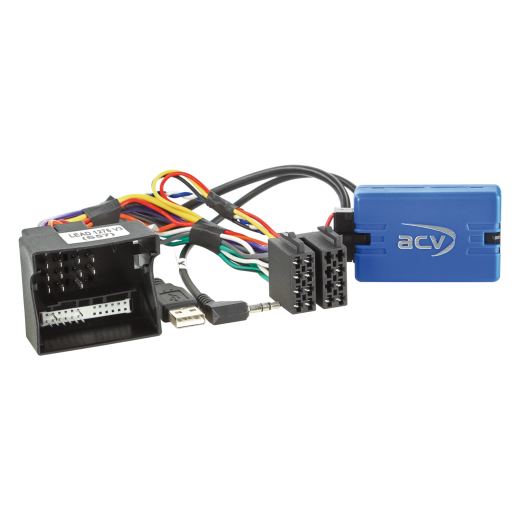

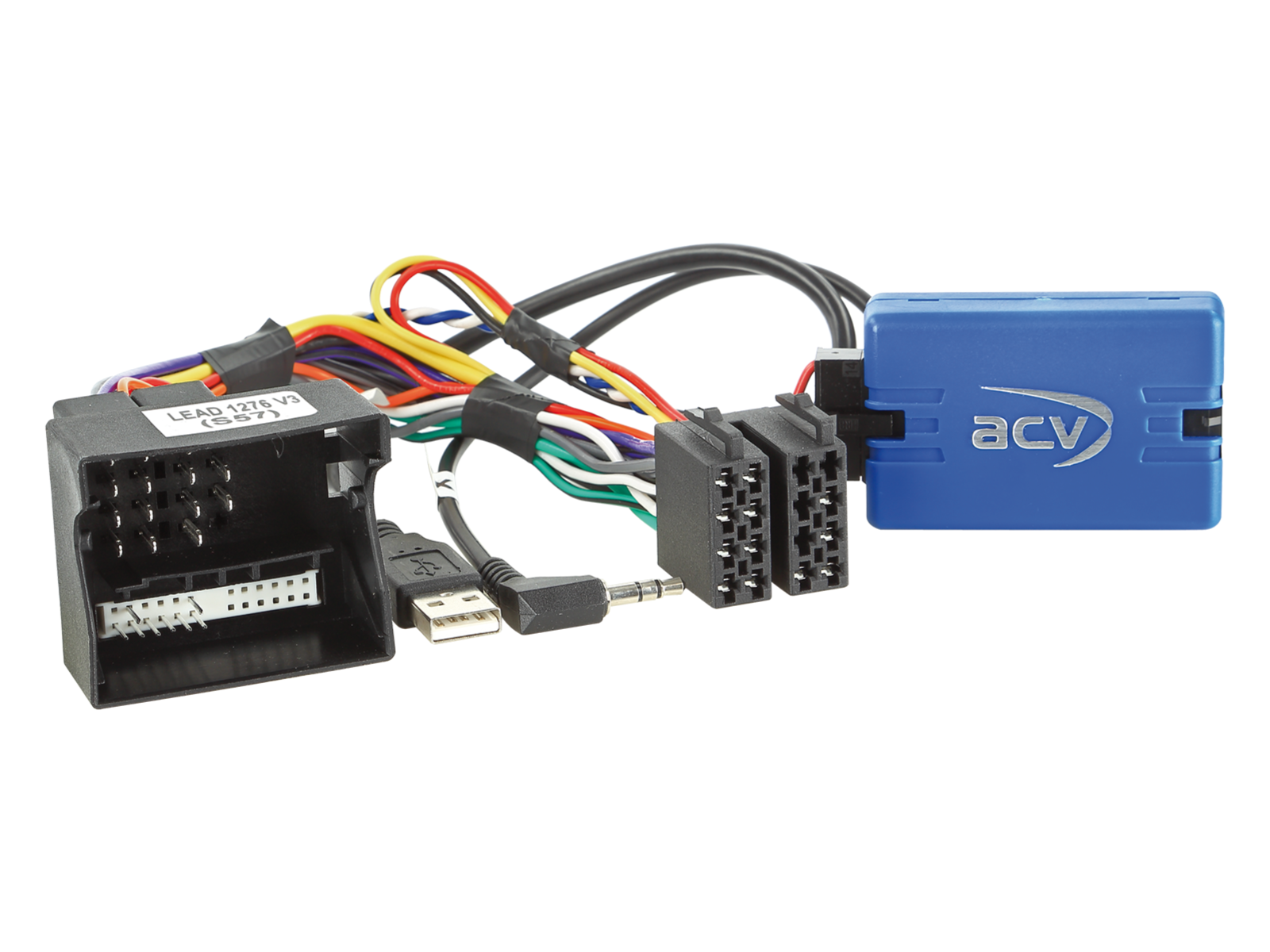

Steering wheel button control adapter for DAF ACV SWC 42SDF001-0

Be the first to rate the product

Add to FavoritesRemove from favourites

steering wheel adapter for DAF CF (17->21) and XF (17->21)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Button Control Adapter for DAF ACV SWC 42SDF001-0

Maintain the original steering wheel radio control functions when replacing the original radio with a non-original unit. Compare the displayed wiring connectors with the connectors in your vehicle to ensure they match both technically and visually. Always test the vehicle functions, system settings, and steering wheel control (SWC) before final installation.

Designed for Vehicles

DAF CF (2017 -> 2021) vehicles with OEM radio, OEM BT module supporting phone button functions, connection via 40-pin Quadlock DAF connector +12V, OEM AUX (3.5mm jack), and OEM USB (USB-A), display information not supported.
DAF XF (2017 -> 2021) vehicles with OEM radio, OEM BT module supporting phone button functions, connection via 40-pin Quadlock DAF connector +12V, OEM AUX (3.5mm jack), and OEM USB (USB-A), display information not supported.

CAN Bus Information

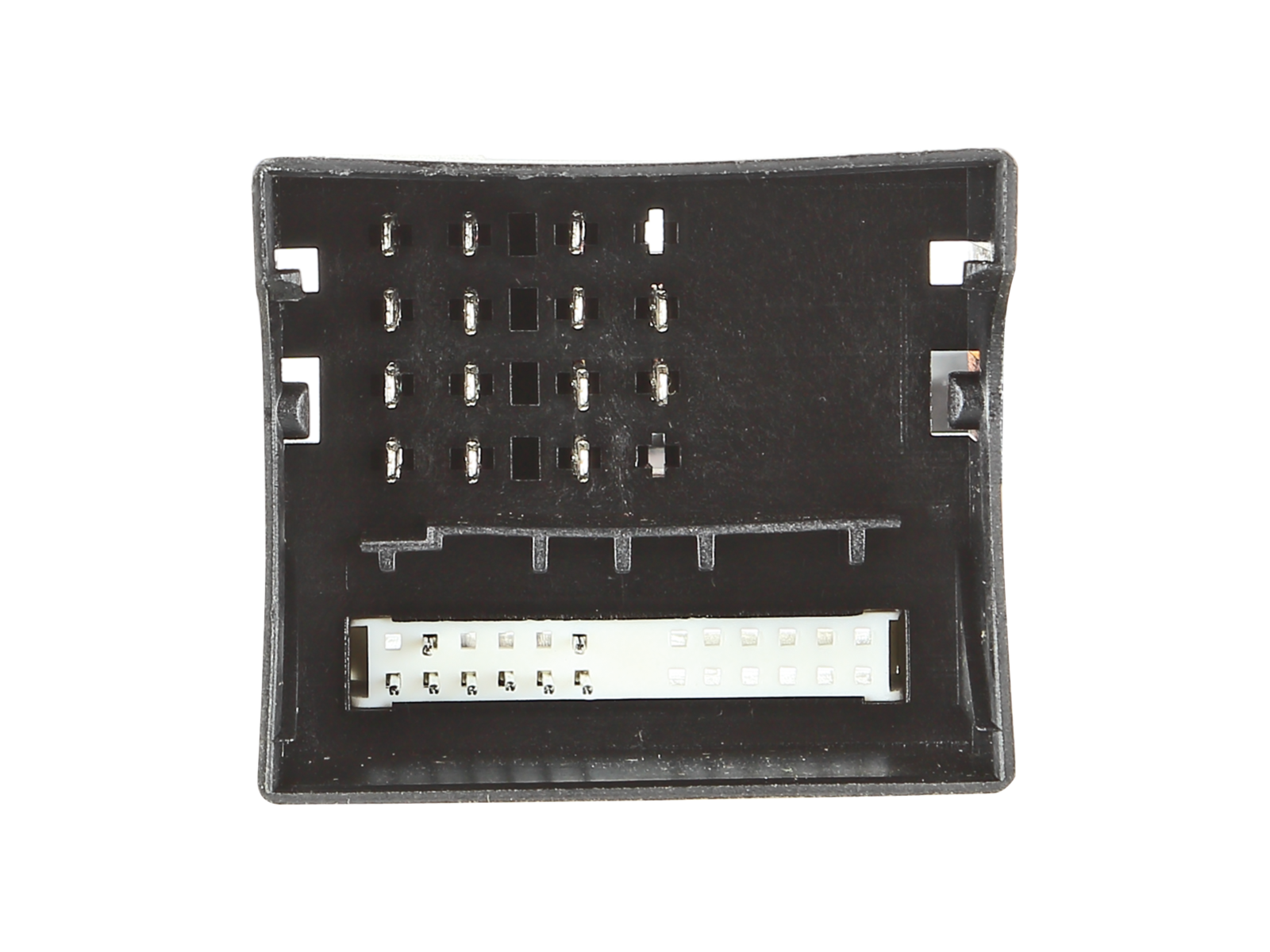

Connection: 40-pin Quadlock DAF connector +12V
OEM AUX: 3.5mm jack
OEM USB: USB-A
Support for phone buttons via OEM BT module
Display information not supported
DIP switches – settings according to BDA
Optional: voltage converter 24V > 12V, max. 10A

Important Additional Information

A connecting cable for the specific brand of radio is required for full adapter activation.

General Installation Guidelines

Pre-installation Verification

Check all control functions and vehicle settings with the original OEM radio.
Remove the OEM unit without power.
Check all interface connections without power.

Connection and Wiring Order

Perform all settings and configurations without power.
Check the connection cable configuration.
Connect the cable according to the instructions to the aftermarket radio.
Connect other wires as per the device instructions.
Connect the main power supply last.
Perform software configuration of the interface as per the instructions and BDA.
Configure the aftermarket radio for SWC functions, camera, handsfree, antenna power, etc.
Test the steering wheel control function and vehicle communication.

Changing Interface Configuration and HU Cable

Make changes without power.
After changes, follow steps 5–8 above.

In Case of Interface or Vehicle System Malfunction

Reinstall the original OEM unit in the vehicle.
Turn on the OEM unit.
Wait for the CAN Bus to sleep.
Check the hardware configuration of the interface.
After CAN Bus sleep, follow steps 5–8 above.

When Modifying Wiring or Cable Routing

Modifications should only be made by professionally trained personnel.
Verify compliance with manufacturer requirements and warranty impact before connection.
Verify functionality by measuring and using the vehicle's diagram before connection.
Modifications are done at your own risk without warranty of functionality.
Modifications are made without warranty on possible vehicle, device, or interface damage.
Modifications to pre-installed cabling may void the product warranty.
