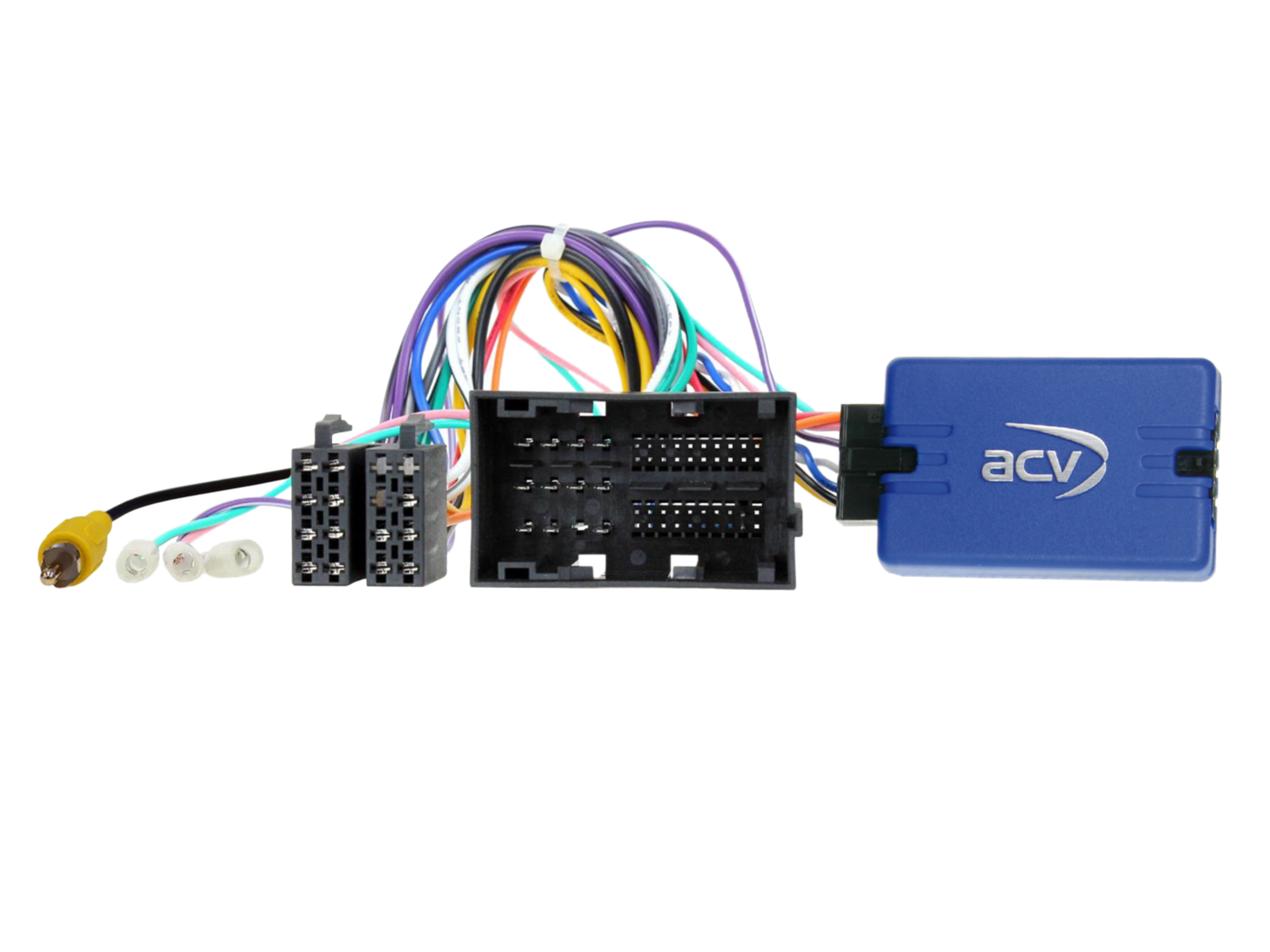

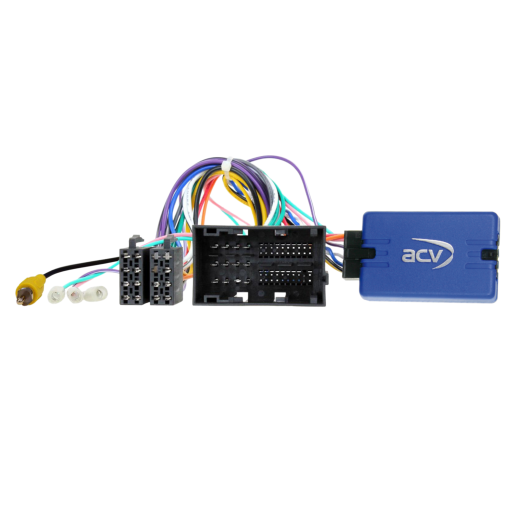

Steering wheel button control adapter for Citroen / Fiat / Opel / Peugeot ACV SWC 42SFA019-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

Citroën Jumper (250) (05/2014 -> 10/2022)
Citroën Jumper (250) (10/2022 -> 2024)
Citroën e-Jumper (259) (10/2021 -> 2024)
Citroën Relay (250) (2006 -> 2024)

Fiat 500 (ZAF 312) (07/2016 -> 2023)
Fiat 500L (ZAF 199) (10/2012 -> 07/2017)
Fiat 500L (ZAF 199) (07/2017 -> 03/2022)
Fiat Doblo (ZAF 263) (01/2015 -> 06/2022)
Fiat Ducato (ZFA 250) (05/2014 -> 11/2021)

Opel Movano Cargo C (Y) (10/2021 -> 01/2024)
Opel Movano Cargo C (Y) (01/2024 -> 2024)
Opel Movano Electrik Cargo C (Y) (10/2021 -> 01/2024)
Opel Movano Electrik Cargo C (Y) (01/2024 -> 2024)

Peugeot Boxer (Y) (09/2014 -> 12/2019)
Peugeot Boxer (Y) (08/2018 -> 2024)
Peugeot e-Boxer (Y) (10/2021 -> 2024)

CAN Bus Information

Connection: 52 pin Fiat connector.
OEM reverse camera: Cinch (male) yellow to head unit reverse camera input.
Supported OEM units: Continental 250VP1 / 250VP2, UConnect, Daiichi.
Daiichi – black harness: remove harness adapter in radio slot on driver side. Daiichi – directly wired colored cables: use adapter 42a-1094-018.
DIP switches for trip counter error: 1 ON for 250VP1, 2 ON for 250VP2, 3 ON for Blue&Me, 4 ON for Pioneer, 1 OFF + 2 OFF + 3 ON for Daiichi. Set without power and after change let CAN Bus go to sleep.
Not compatible with persistent error and different software versions.
Not supported: onboard computer and vehicle settings, high beam assist, selected assistance systems, date/time setting.

OEM reverse camera – OEM connector wiring

OEM camera adapter 52 pin Fiat / 32 pin Ford: 771000-2000.
Red: Pin 31 Video+.
White: Pin 32 Video−.
Black: Pin 33 shielding.

Available signals

+12 V ignition (Klemme 15).
+12 V illumination (Klemme 58).
+12 V reverse signal.
Speed signal.
GND parking brake.
Maximum output load: 100 mA. Above 100 mA use relay with minimum coil resistance 75 Ω (1 relay) or 150 Ω (2 relays).

Important Additional Information

To fully activate the adapter, a connection cable must be ordered for the specific head unit brand.

General Installation Instructions

Verification Before Installation:

Check all control functions and vehicle settings using the original OEM HU.
Disconnect the original radio (OEM HU) in a voltage-free condition.
Check all interface connections – without power.

Connection and Installation Sequence:

Set and check the HW configuration of the interface – without power.
Check the configuration of the HU connection cable – without power.
Connect the cable to the HU according to the aftermarket device manual.
Connect the remaining wires according to the device manual.
Connect the complete installation to the vehicle – connect the main power supply last.
Perform the software configuration of the interface according to the product description or manual.
Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power etc.).
Perform a functional test of steering wheel control and vehicle communication.

Configuration Changes:

All changes must be carried out without power.
After changes repeat steps 5 to 8 above.

In Case of Failure:

Reinstall the original OEM HU.
Start the original unit.
Initiate CAN Bus shutdown.
Check the HW configuration of the interface.
After CAN Bus shutdown repeat steps 5 and 8.

When Modifying Wiring:

Installation and modifications may only be carried out by professionally trained personnel.
All changes must be verified before connection regarding manufacturer approval or impact on vehicle warranty.
All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
Modifications are carried out at your own responsibility without guarantee of functionality.
Modifications are performed at your own risk without guarantee against damage to the vehicle, device or interface.
Modifications of pre-installed wiring may result in loss of product warranty.
