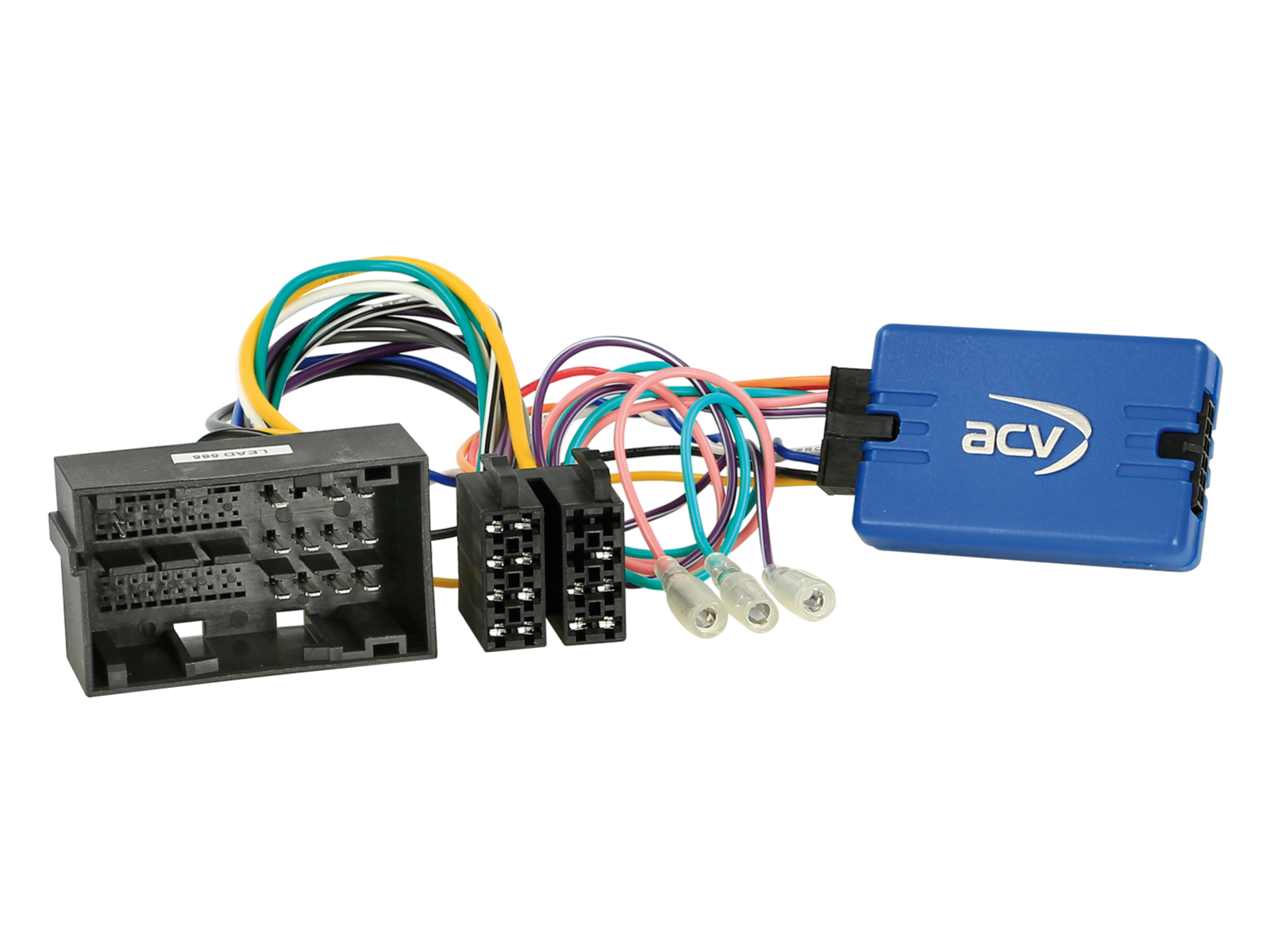

Steering Wheel Control Adapter for Citroën / Fiat / Opel / Peugeot ACV SWC 42SFA015-0

Retain the original steering wheel radio control functions when replacing the original radio with a non-original unit. Compare the displayed wiring connectors with those in your vehicle and ensure they match both technically and visually. Before installation, verify if one of the listed original radios was used in the vehicle. Always test the vehicle functions, system settings, and steering wheel controls (SWC) before final installation.

Intended for Vehicles

Citroën Jumper (250) (05/2014 -> 2024) without OEM unit Continental VP1/VP2/Daiichi, Relay (250) (05/2014 → 2024) without OEM unit Continental VP1/VP2/Daiichi

Fiat Ducato (ZAF 250) (05/2014 -> 11/2021) without OEM unit Continental VP1/VP2/Daiichi

Opel Movano Cargo C (Y) (10/2021 -> 2024) without OEM unit Continental VP1/VP2/Daiichi

Peugeot Boxer (Y) (05/2014 -> 2024) without OEM unit Continental VP1/VP2/Daiichi

CAN Bus Information

Connection: 52 Pin Fiat connector
Vehicles with OEM unit
Without OEM unit Continental VP1/VP2/Daiichi
Provided interfaces: +12V ignition (Klemme 15), +12V lighting (Klemme 58), +12V reverse, speed signal, GND handbrake
Maximum load of outputs: 100 mA
For consumption over 100 mA: min. coil resistance of relay 75 Ω (1 relay) or 150 Ω (2 relays)

Important Additional Information

A connecting cable specific to the radio brand is required for full activation of the adapter.

General Installation Guidelines

Verification Before Installation

Check all control functions and vehicle settings with the original OEM radio (if installed).
Remove the OEM unit without power.
Check all interface connections without power.

Connection and Wiring Order

Perform all settings and configurations without power.
Check the configuration of the connecting cable.
Connect the cable according to the aftermarket radio manual.
Connect other wires as per the device instructions.
Connect the main power connection last.
Perform software configuration of the interface as per the description and BDA.
Configure the aftermarket radio for SWC functions, camera, hands-free, antenna power, etc.
Test the steering wheel control function and vehicle communication.

Changing Interface and HU Cable Configuration

Make changes without power.
After changes, follow steps 5–8 above.

In Case of Interface or Vehicle System Malfunction

Return the original OEM unit to the vehicle.
Turn on the OEM unit.
Wait for the CAN Bus to sleep.
Check the hardware configuration of the interface.
After the CAN Bus sleeps, follow steps 5–8 above.

When Modifying Connections or Wiring

Modifications should only be performed by professionally trained personnel.
Before connecting, verify compliance with the manufacturer's requirements and impact on warranty.
Verify functionality by measuring and according to the vehicle's schematic before connecting.
Modifications are performed at your own risk, without a guarantee of functionality.
Modifications are made without warranty for potential damage to the vehicle, device, or interface.
Modifications on pre-wired cabling may void the product warranty.
