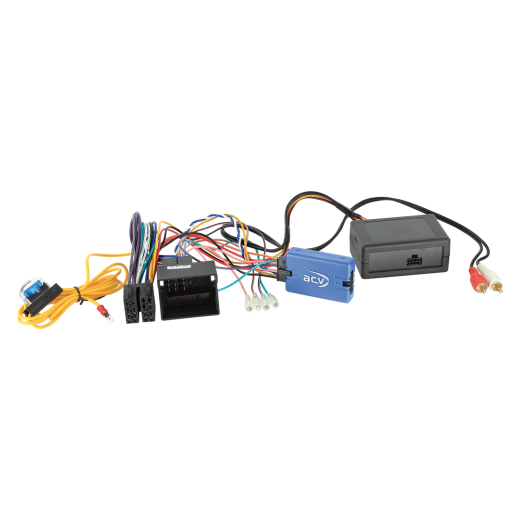

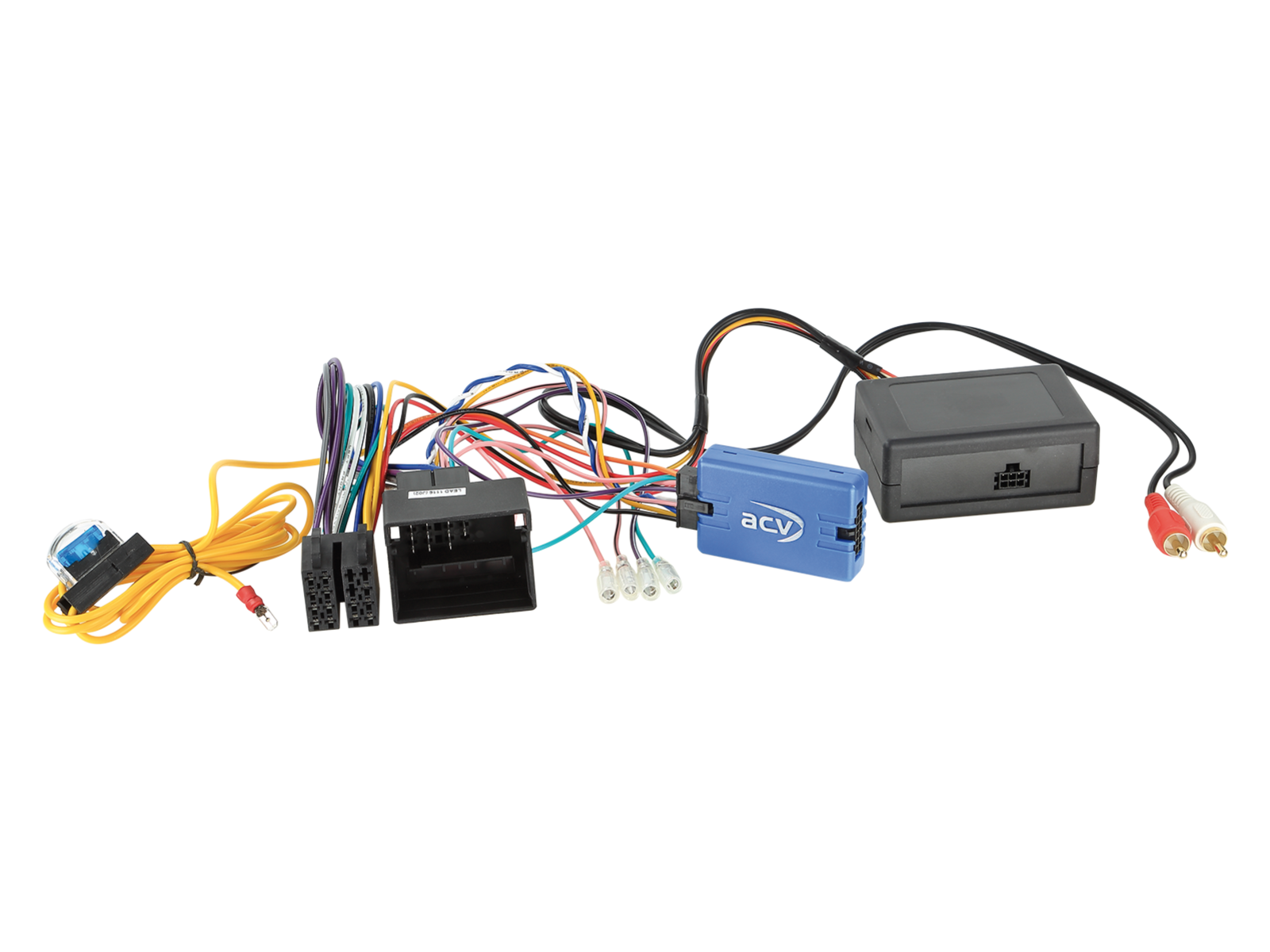

Steering wheel button control adapter for BMW ACV SWC 42SBM012-0

steering wheel adapter for BMW 1 series (E81/E82/E87/E88) (03/04->10/13), 3 series (E90/E91/E92/E93) (03/05->10/13), 5 series (E60/E61) (07/03->07/10), X5 (E70) (03/07->09/13) and X6 (E71/E72) (05/08->06/14)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for BMW ACV SWC 42SBM012-0

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Control Adapter for BMW ACV SWC 42SBM012-0

Retain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Compare the displayed cable connectors with the connectors in your vehicle and ensure they match both technically and visually. Verify the vehicle's functionality, system settings, and correct steering wheel control (SWC) operation before final installation.

Designed for vehicles

BMW 1 Series (E81/E82/E87/E88) (03/2004 -> 10/2013) – vehicle with 40 Pin Quadlock BMW connector, +12V constant power supply (Klemme 30) via fused battery connection, MOST output to Cinch, original Business Professional OEM radio, OEM MOST sound system, without iDrive and without PDC and warning tones support.
BMW 3 Series (E90/E91/E92/E93) (03/2005 -> 10/2013) – same conditions as above.
BMW 5 Series (E60/E61) (07/2003 -> 07/2010) – same conditions as above.
BMW X5 (E70) (03/2007 -> 09/2013) – same conditions as above.
BMW X6 (E71/E72) (05/2008 -> 06/2014) – same conditions as above.

CAN Bus Information

Connectors and Wiring:

40 Pin Quadlock BMW connector
+12V constant power supply (Klemme 30) – battery connection with fuse
MOST – conversion to Cinch
PDC – not supported
Warning tones – not supported
Without iDrive

Important Additional Information

To fully activate the adapter, it is necessary to order a connecting cable for the specific brand of radio.

General Installation Guidelines

Pre-Installation Verification:

Check all control functions and vehicle settings with the original OEM head unit.
Remove the original radio (OEM HU) without power.
Check all interface connections for correct wiring – without power.

Connection and Wiring Order:

Set up and configure the interface hardware without power.
Check the configuration of the connecting cable to the HU.
Connect the cable to the HU according to the aftermarket device's instructions.
Connect other wires according to the device's instructions.
Link the entire installation with the vehicle – connect the main power connection last.
Perform software configuration of the interface according to the product description and BDA.
Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power, etc.).
Conduct a functional test of steering wheel control and vehicle communication.

Changing Interface and HU Cable Configuration:

Make all changes without power.
After changes, repeat steps 5 to 8 above.

In Case of Interface or Vehicle System Malfunction:

Return the original OEM HU to the vehicle.
Start the original unit.
Induce the CAN Bus system to sleep.
Check the interface hardware configuration.
After the CAN Bus calms, repeat steps 5 to 8 above.

When Modifying Connections or Cabling:

Connections and modifications should only be performed by professionally trained personnel.
All changes must be verified for manufacturer approval or impact on vehicle warranty before connecting.
All modifications must be verified by measurement and comparison with the vehicle wiring diagram before connecting.
Modifications are made at your own risk, without warranty of functionality.
Modifications are at your own risk, without guarantee against damage to the vehicle, device, or interface.
Pre-set cable modifications may lead to loss of product warranty.
