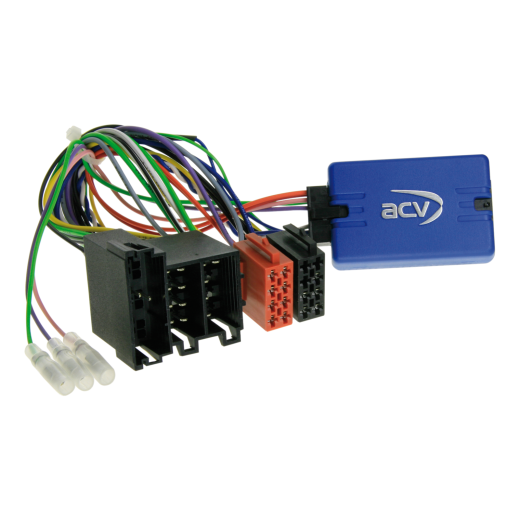

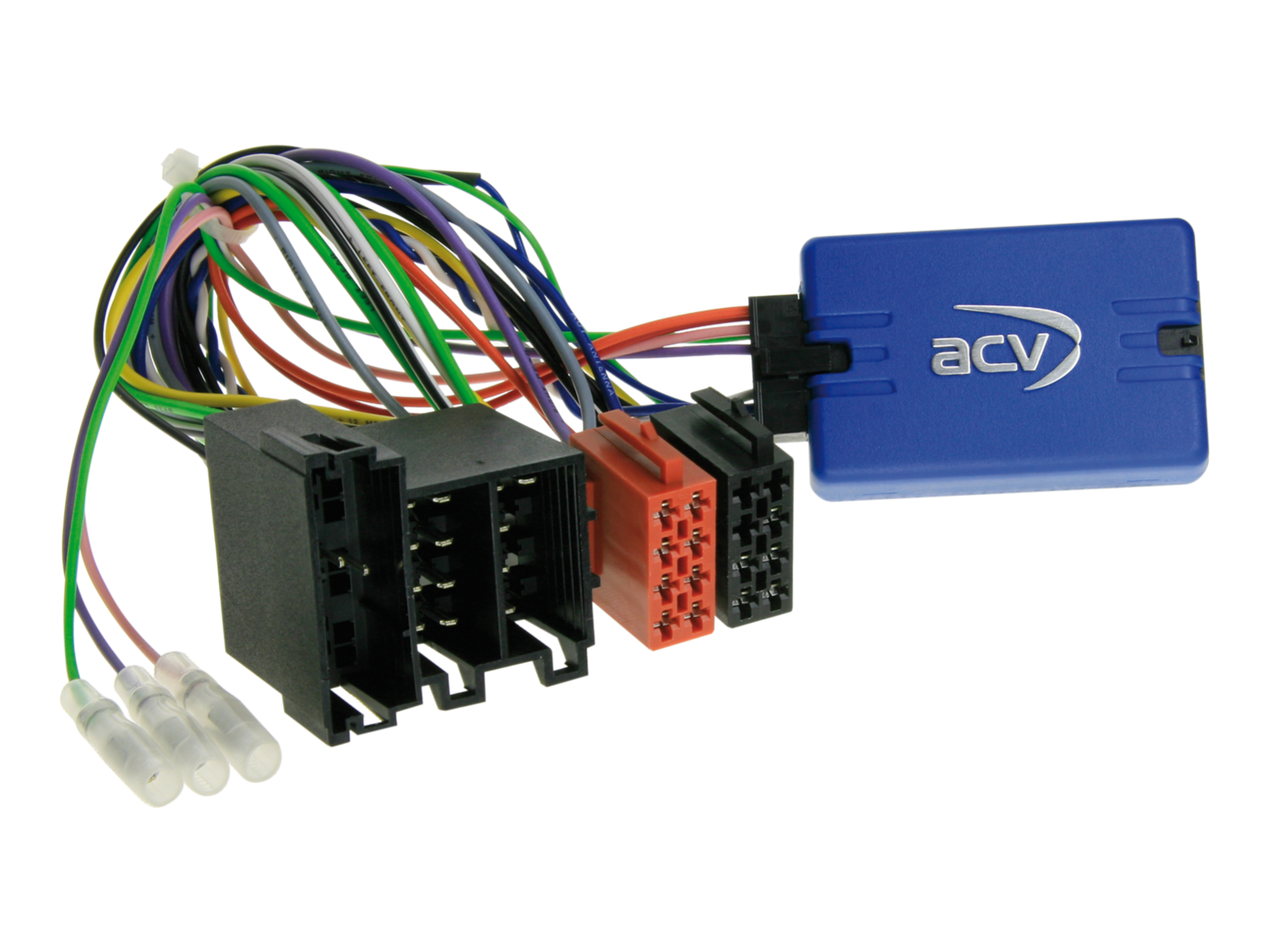

Steering wheel button control adapter for Alfa Romeo / Citroen / Fiat ACV SWC 42SAR003-0

steering wheel adapter for Alfa Romeo 147 (973) (01/01->08/06), 147 GTA (12/02->12/05), 156 (932) (10/97->03/07), GT (937) (02/04->10/10), Fiat Croma (ZAF 194) (06/05->09/10) and Punto (ZAF 188) (07/99->10/05)
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Steering wheel button control adapter for Alfa Romeo / Citroen / Fiat ACV SWC 42SAR003-0

Description and parameters
Comments0
Evaluation0
Category

Steering Wheel Control Adapter for Alfa Romeo / Citroen / Fiat / Peugeot ACV SWC 42SAR003-0

Retain the original radio control functions from the steering wheel when replacing the original radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions, and the software of the newly installed radio, some functions may be limited or replaced by others. Compare the displayed wiring connectors with those in your vehicle to ensure they match both technically and visually. Check whether one of the listed OEM radios was originally installed. Verify the vehicle's functionality, system settings, and proper operation of steering wheel control (SWC) before final installation.

Designed for Vehicles

Alfa Romeo 147 (973) (09/2007 -> 04/2010) - vehicle with CAN Bus power via ISO connector, analog steering wheel control RC-A/GND/RC-B via Mini ISO C2 Pin 10/11/12, Blue&Me module must remain installed, without +12V ignition power Klemme 15, for vehicles with BOSE OEM Soundsystem +12V Amp Remote on Mini ISO C1 Pin 6.
Alfa Romeo GT (937) (02/2004 -> 10/2010) - vehicle with CAN Bus power via ISO connector, analog steering wheel control RC-A/GND/RC-B via Mini ISO C2 Pin 10/11/12, Blue&Me module must remain installed, without +12V ignition power Klemme 15, for vehicles with BOSE OEM Soundsystem +12V Amp Remote on Mini ISO C1 Pin 6.
Citroen Jumper (250) (10/2006 -> 11/2011) - vehicle with CAN Bus power via ISO connector, analog steering wheel control RC-A/GND/RC-B via Mini ISO C2 Pin 10/11/12, Blue&Me module must remain installed, without +12V ignition power Klemme 15, vehicle with radio preparation.
Citroen Relay (250) (2006 -> 2011) - vehicle with CAN Bus power via ISO connector, analog steering wheel control RC-A/GND/RC-B via Mini ISO C2 Pin 10/11/12, Blue&Me module must remain installed, without +12V ignition power Klemme 15, vehicle with radio preparation.
Fiat Ducato (ZAF 250) (06/2006 -> 06/2011) - vehicle with CAN Bus power via ISO connector, analog steering wheel control RC-A/GND/RC-B via Mini ISO C2 Pin 10/11/12, Blue&Me module must remain installed, without +12V ignition power Klemme 15, with OEM radio.
Peugeot Boxer (Y) (02/2007 -> 07/2011) - vehicle with CAN Bus power via ISO connector, analog steering wheel control RC-A/GND/RC-B via Mini ISO C2 Pin 10/11/12, Blue&Me module must remain installed, without +12V ignition power Klemme 15, with OEM radio.

CAN Bus Information

Connectors and Wiring:

Connector: ISO / Mini ISO
CAN Bus power via ISO connector
Analog steering wheel control: RC-A/GND/RC-B via Mini ISO C2 Pin 10/11/12
Blue&Me module must remain installed
Without +12V ignition power Klemme 15
For vehicles with BOSE OEM Soundsystem: +12V Amp Remote on Mini ISO C1 Pin 6

Important Additional Information

Active system adapter Alfa Romeo/Lancia ISO>ISO: 13-1001-50
Active system adapter for various vehicles ISO>ISO: 13-1190-50
To fully activate the adapter, an interconnecting cable for the specific brand of radio must be ordered.

General Installation Instructions

Verification Before Installation:

Check all control functions and vehicle settings with the original OEM head unit.
Disassemble the original radio (OEM HU) without power.
Check all interface connections for correct wiring – without power.

Connection and Wiring Order:

Perform interface setup and hardware configuration without power.
Check the configuration of the connecting cable to the HU.
Connect the cable to the HU according to the aftermarket device instructions.
Connect other wires according to the device instructions.
Connect the entire installation to the vehicle – connect the main power supply last.
Perform software configuration of the interface according to the product description and BDA instructions.
Configure the aftermarket HU (steering wheel control, camera, hands-free, antenna power, and others).
Conduct a functional test of steering wheel control and communication with the vehicle.

Change of Interface and HU Cable Configuration:

Make all changes without power.
After changes, repeat steps 5 to 8 listed above.

In Case of Interface or Vehicle System Malfunction:

Reinstall the original OEM HU into the vehicle.
Start the original unit.
Induce a calm (sleep) state of the CAN Bus system.
Check the interface hardware configuration.
After calming the CAN Bus, repeat steps 5 to 8 listed above.

When Modifying Wiring or Cable Routing:

Only professionally trained personnel may perform connections and modifications.
All changes must be verified for manufacturer approval or impact on vehicle warranty before connection.
All modifications must be verified by measurement and comparison with the vehicle's wiring diagram before connection.
Modifications are performed at your own risk, with no guarantee of functionality.
Modifications are made at your own risk, without a guarantee of excluding damage to the vehicle, device, or interface.
Modifications of pre-installed cabling may lead to the loss of product warranty.
