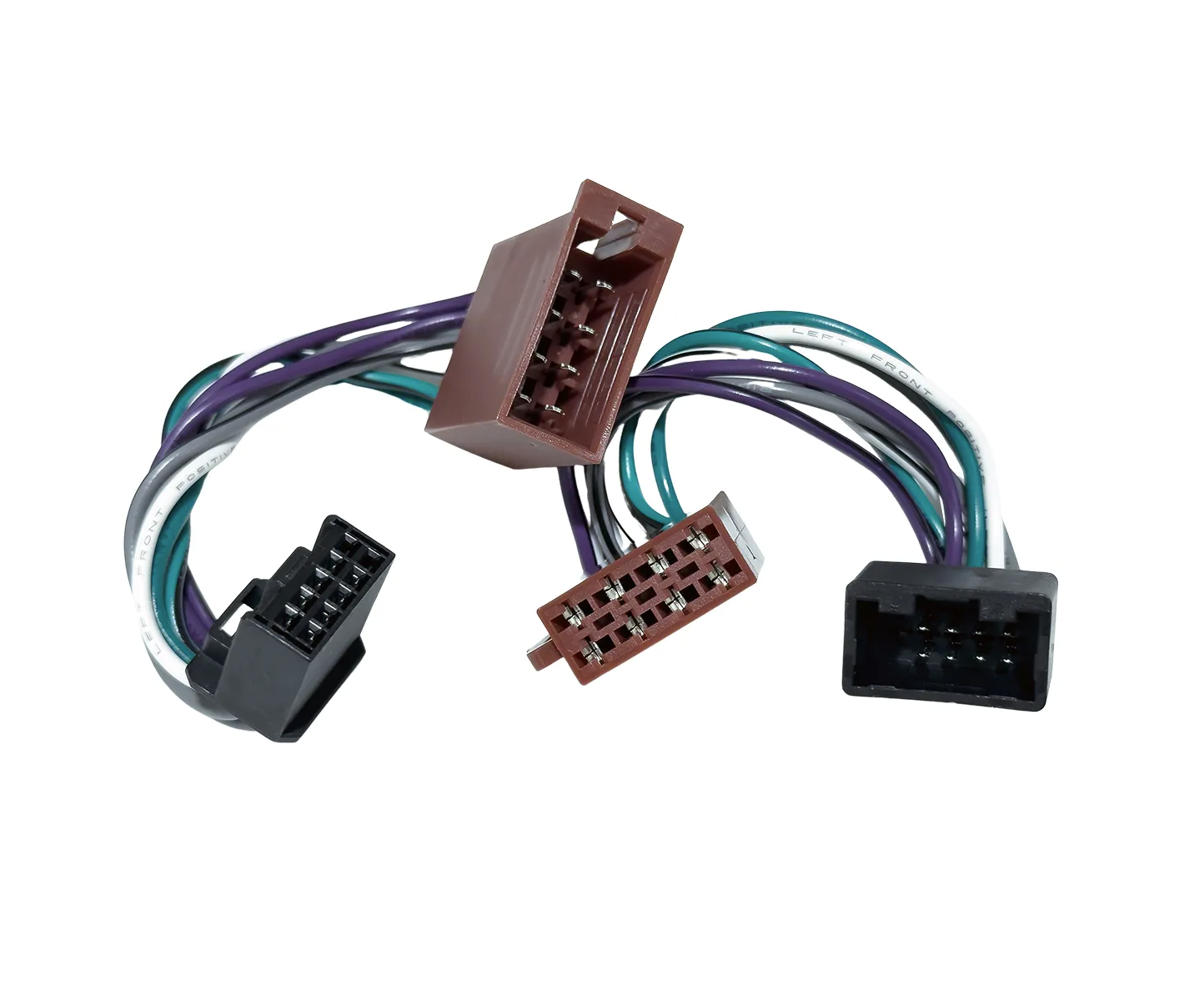

Wiring harness Connection CN ISO TH TOY02

Connection CN ISO T-H TOY02 cable assembly

Plug & Play wiring for Audison DSP amplifiers ensures maximum installation simplicity in line with the “OEM Integrator” philosophy.
For this purpose, the cables are designed with Plug & Play type connectors and with the same materials used in original (factory) wiring. Connection offers these variants: CN T-Harness compatible with CN extension cables and a dedicated T-Harness for special vehicles. Thanks to these wiring kits, Audison DSP amplifiers can be installed in a wide range of vehicles with significantly less labor and without modifying the original wiring. All cables have appropriate conductor cross-sections and are twisted to ensure the highest shielding effectiveness along the entire length of the input and output runs.

Key features

• Manufactured with twisted conductors for effective noise suppression.
• CN ISO extension cables available in three lengths: 1.6 m, 2.6 m and 5.6 m.
• CN MX extension cables available in two lengths: 2.6 m and 5.6 m.
• Cut-proof protective shielding.
• Double connector (In/Out) also allowing reception of the amplified signal from the DSP amplifier.
• Installation without the need for soldering.

Evaluation

• Amplifiers, processors and accessories Cable jumpers and Plug & Play cables
• Cables and mounting material CONNECTION

Product assembly

BMW 5 (E60)Mini John Cooper Works GPBMW 1 (F21)
