Wiring harness Connection CN ISO TH FCA01
More about the product
- You can return the goods to us within 14 days

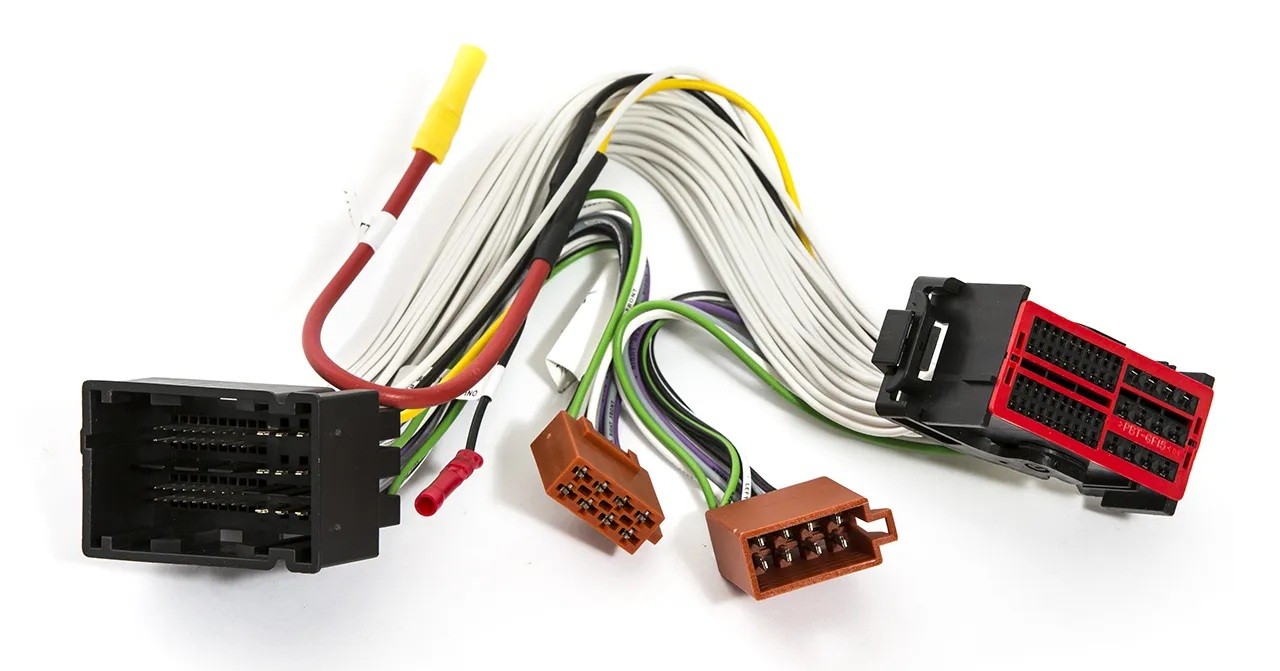

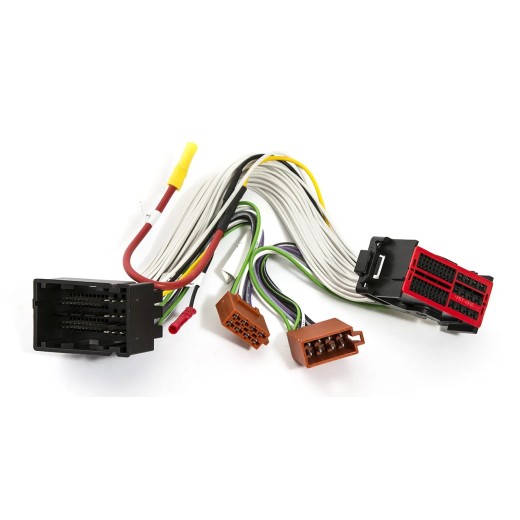

Connection CN ISO T-H FCA01
The Connection CN ISO T-H FCA01 interconnection wiring harness is a reliable solution for easy integration of Audison DSP amplifiers into your existing car audio system. This Plug & Play cable minimizes installation complexity and allows a safe connection without any intervention in the vehicle's original electrical system. Thanks to precise workmanship and quality materials you get stable signal transmission and clean sound without interference.
Installing a new audio system in modern cars can be challenging due to complex factory wiring. This specific T-harness addresses that problem by using identical connectors and materials as those used in original production. The OEM Integrator concept ensures that the adapter fits perfectly into the vehicle's existing system, significantly reducing installation time and eliminating the risk of damaging factory circuits.
All conductors in this harness are carefully twisted, which is crucial for effective suppression of electromagnetic interference commonly found in modern vehicles full of electronics. Cut-resistant shielding provides high mechanical protection of the wiring even in demanding conditions behind the dashboard. The result is clean transmission of low-level and power signals between the radio and the DSP amplifier.
Another unquestionable advantage is the presence of a double input/output connector, which allows not only taking the signal from the radio but also sending the amplified signal from the DSP amplifier back to the original speaker wiring. The whole process is carried out without soldering or cutting wires, which is especially appreciated in new cars under warranty. This interconnection harness is thus a practical helper for anyone who demands a sound upgrade with maximum respect for the vehicle's original condition.
Key features
- Specific T-type interconnection harness designed for easy connection of DSP amplifiers to the vehicle's factory audio system without intervention in the original wiring.
- Made with twisted conductors for effective suppression of surrounding interference.
- Compatible with CN ISO extension cables in three lengths: 1.6 m, 2.6 m and 5.6 m.
- Compatible with CN MX extension cables in two lengths: 2.6 m and 5.6 m.
- Protective shielding resistant to mechanical damage and tearing.
- Double input/output connector allowing easy return of the amplified signal to the original wiring.
- Simple installation without the need for soldering
About the brand
Connection is an Italian brand of high-quality cables, accessories and installation materials for audio systems, belonging to the renowned company Elettromedia — the same group that includes the prestigious brands Audison and Hertz. Elettromedia is a long-established leader in the audio industry with a strong tradition of innovation and quality in the manufacture of car-audio components. The Connection brand focuses primarily on interconnect cables, power cables, speaker cables and a wide range of accessories designed to transmit signals with maximum accuracy and without compromise. Connection combines Italian design, top-quality materials and precise manufacturing, making it the choice for those seeking reliable and long-lasting performance solutions for their audio systems. It is a brand synonymous with high quality and technological advancement in cabling and accessories for car audio installations.
| Catalog number | 64200523 |
| Brand | Connection |
| Links | Official web presentation (English) |
