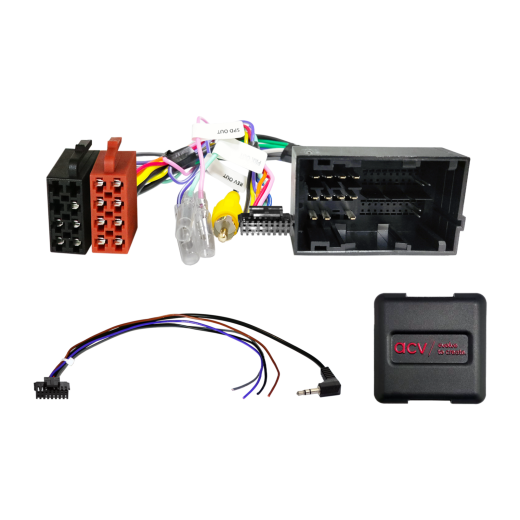

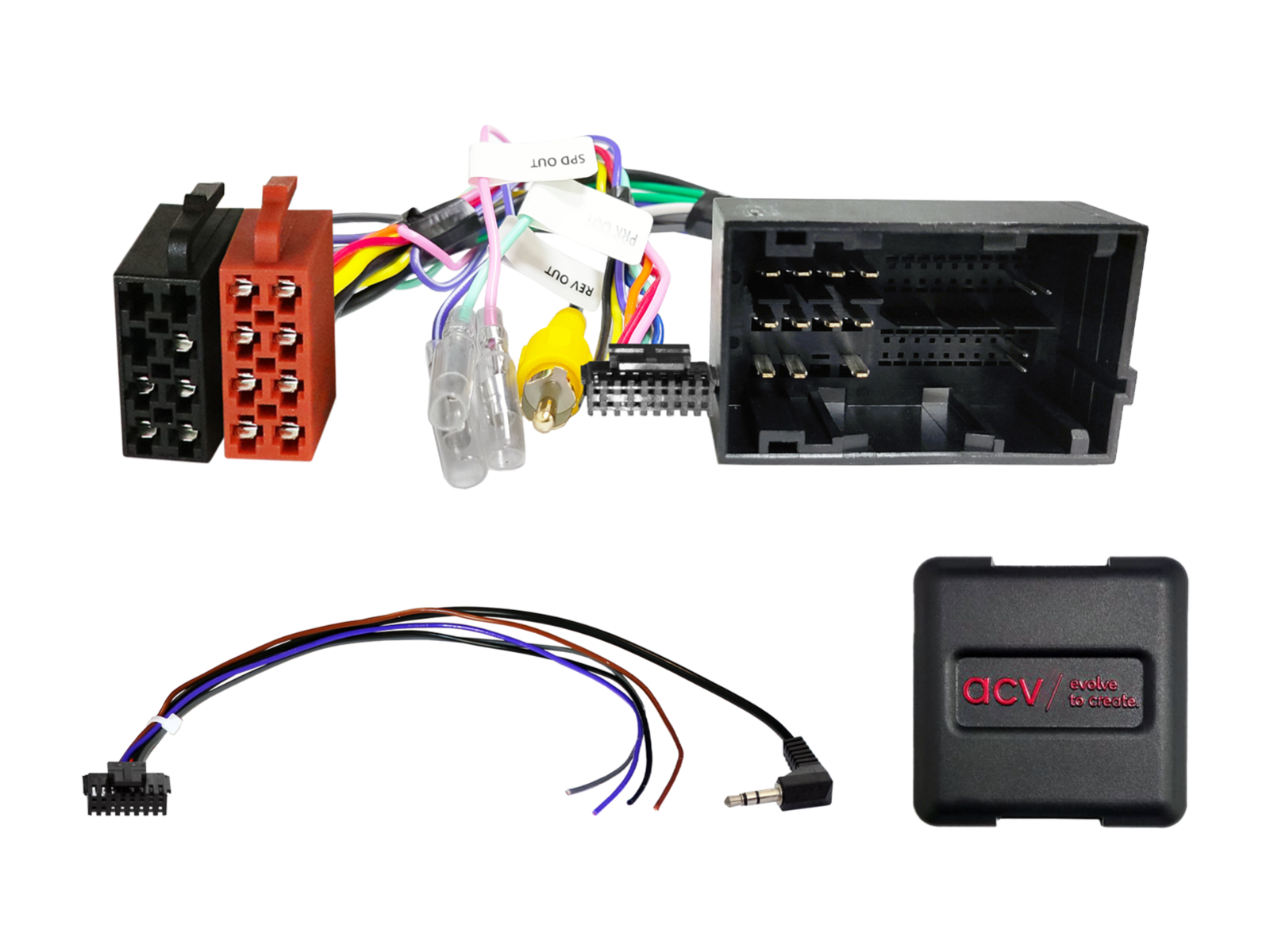

Steering wheel button control adapter for Alfa Romeo / Citroen / Fiat / Opel / Peugeot ACV SWC 42XFA015-0

Be the first to rate the product
steering wheel adapter for Alfa Romeo 4C (960) (01/14->08/18), Giulietta (940) (10/13->04/16, 04/16->12/21), MiTo (955) (12/13->08/16, 08/16->08/18), Citroen Jumper (250) (05/14->10/22, 10/22->06/24), e-Jumper (259) (10/21->06/24), Relay (250) (2006->2024), Fiat 500 (ZAF 312) (07/16->2023), 500L (ZAF 199) (10/12->07/17, 07/17->03/22), Doblo (ZAF 263) (01/15->06/22), Ducato (ZFA 250) (05/14->11/21), Opel Movano Cargo C (Y) (10/21->01/24), Movano Electric Cargo C (Y) (10/21->01/24), Peugeot Boxer (Y) (09/14->12/19, 08/18->06/24), e-Boxer (Y) (10/21->06/24)
More about the product
75,60 EUR
Catalog number: 42XFA015-0
1 to 4 weeksWatchdog
We will help you with your purchase
  • You can return the goods to us within 14 days
Steering wheel button control adapter for Alfa Romeo / Citroen / Fiat / Opel / Peugeot ACV SWC 42XFA015-0

Steering wheel button control adapter for Alfa Romeo / Citroen / Fiat / Opel / Peugeot ACV SWC 42XFA015-0

Retain the original steering wheel radio control functions when replacing the factory radio with an aftermarket unit. Depending on the vehicle's equipment, the range of functions and the software of the newly installed head unit, some functions may be limited or replaced by others. Compare the displayed wiring connectors with the connectors in your vehicle and make sure they match both technically and visually. Check whether one of the listed OEM head units was originally installed. Before final installation, verify the vehicle functionality, system settings and proper operation of the steering wheel control (SWC).

Intended for vehicles

      • Alfa Romeo 4C [960] (01/2014 -> 08/2018) - vehicles with OEM Continental touchscreen unit.
      • Alfa Romeo Giulietta [940] (10/2013 -> 04/2016) - original OEM head unit.
      • Alfa Romeo Giulietta [940] (04/2016 -> 12/2021) - vehicles with OEM Continental touchscreen unit.
      • Alfa Romeo MiTo [955] (12/2013 -> 08/2016) - original OEM head unit.
      • Alfa Romeo MiTo [955] (08/2016 -> 08/2018) - original OEM head unit.
      • Citroën Jumper [250] (05/2014 -> 10/2022) - vehicles with OEM Daiichi unit with black wiring – removal of the radio-side wiring adapter on the driver's side, or vehicles where the OEM Daiichi unit is directly wired with colored wires, are not compatible.
      • Citroën Jumper [250] (10/2022 -> 06/2024) - vehicles with OEM Daiichi unit with black wiring – removal of the radio-side wiring adapter on the driver's side, or vehicles where the OEM Daiichi unit is directly wired with colored wires, are not compatible.
      • Citroën e-Jumper [259] (10/2021 -> 06/2024) - vehicles with OEM Daiichi unit with black wiring – removal of the radio-side wiring adapter on the driver's side, or vehicles where the OEM Daiichi unit is directly wired with colored wires, are not compatible.
      • Citroën Relay [250] (2006 -> 2024) - original OEM head unit.
      • Fiat 500 [ZAF 312] (07/2016 -> 2023) - original OEM head unit.
      • Fiat 500L [ZAF 199] (10/2012 -> 07/2017) - original OEM head unit.
      • Fiat 500L [ZAF 199] (07/2017 -> 03/2022) - original OEM head unit.
      • Fiat Doblo [ZAF 263] (01/2015 -> 06/2022) - original OEM head unit.
      • Fiat Ducato [ZFA 250] (05/2014 -> 11/2021) - vehicles with OEM Daiichi unit with black wiring – removal of the radio-side wiring adapter on the driver's side, or vehicles where the OEM Daiichi unit is directly wired with colored wires, are not compatible.
      • Opel Movano Cargo C [Y] (10/2021 -> 01/2024) - vehicles with OEM Daiichi unit with black wiring – removal of the radio-side wiring adapter on the driver's side, or vehicles where the OEM Daiichi unit is directly wired with colored wires, are not compatible.
      • Opel Movano Electric Cargo C [Y] (10/2021 -> 01/2024) - vehicles with OEM Daiichi unit with black wiring – removal of the radio-side wiring adapter on the driver's side, or vehicles where the OEM Daiichi unit is directly wired with colored wires, are not compatible.
      • Peugeot Boxer [Y] (09/2014 -> 12/2019) - vehicles with OEM Daiichi unit with black wiring – removal of the radio-side wiring adapter on the driver's side, or vehicles where the OEM Daiichi unit is directly wired with colored wires, are not compatible.
      • Peugeot Boxer [Y] (08/2018 -> 06/2024) - vehicles with OEM Daiichi unit with black wiring – removal of the radio-side wiring adapter on the driver's side, or vehicles where the OEM Daiichi unit is directly wired with colored wires, are not compatible.
      • Peugeot e-Boxer [Y] (10/2021 -> 06/2024) - vehicles with OEM Daiichi unit with black wiring – removal of the radio-side wiring adapter on the driver's side, or vehicles where the OEM Daiichi unit is directly wired with colored wires, are not compatible.

      CAN Bus Information

          • Connector: 52 pin Fiat.
          • OEM steering wheel control output: 3.5 mm jack or loose wire.
          • OEM reverse camera connection: RCA (cinch) – yellow connector.

          Important Additional Information

                    • Compatible with aftermarket head units: Sony, Kenwood, JVC, Pioneer, Blaupunkt, Clarion, Alpine, LG, Zenec, XZent, Digital Dynamics, ESX, Snooper and universal “China HU” (Key1/Key2/GND or 3.5 mm jack depending on type).
                    • To fully activate the adapter, a connection cable must be ordered.

                    General Installation Instructions

                    Verification Before Installation:

                    1. Check all control functions and vehicle settings using the original OEM HU.
                    2. Disconnect the original radio (OEM HU) in a voltage-free condition.
                    3. Check all interface connections – without power.

                    Connection and Installation Sequence:

                    1. Set and check the HW configuration of the interface – without power.
                    2. Check the configuration of the HU connection cable – without power.
                    3. Connect the cable to the HU according to the aftermarket device manual.
                    4. Connect the remaining wires according to the device manual.
                    5. Connect the complete installation to the vehicle – connect the main power supply last.
                    6. Perform the software configuration of the interface according to the product description or manual.
                    7. Configure the aftermarket HU (steering wheel control, camera, handsfree, antenna power etc.).
                    8. Perform a functional test of steering wheel control and vehicle communication.

                    Configuration Changes:

                    • All changes must be carried out without power.
                    • After changes repeat steps 5 to 8 above.

                    In Case of Failure:

                    • Reinstall the original OEM HU.
                    • Start the original unit.
                    • Initiate CAN Bus shutdown.
                    • Check the HW configuration of the interface.
                    • After CAN Bus shutdown repeat steps 5 and 8.

                    When Modifying Wiring:

                    • Installation and modifications may only be carried out by professionally trained personnel.
                    • All changes must be verified before connection regarding manufacturer approval or impact on vehicle warranty.
                    • All modifications must be verified by measurement and comparison with the vehicle wiring diagram.
                    • Modifications are carried out at your own responsibility without guarantee of functionality.
                    • Modifications are performed at your own risk without guarantee against damage to the vehicle, device or interface.
                    • Modifications of pre-installed wiring may result in loss of product warranty.
                    Catalog number42XFA015-0
                    BrandACV
                    LinksOfficial web presentation
