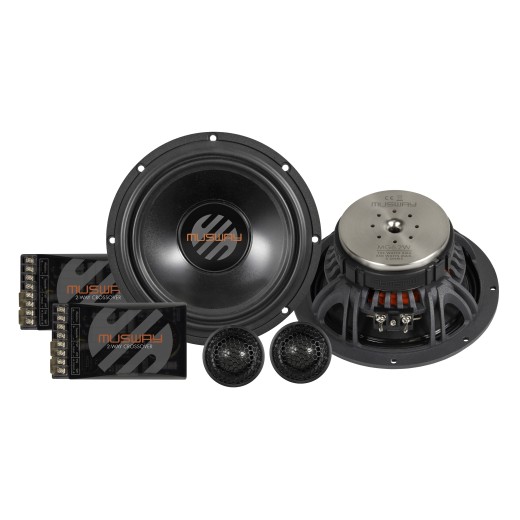

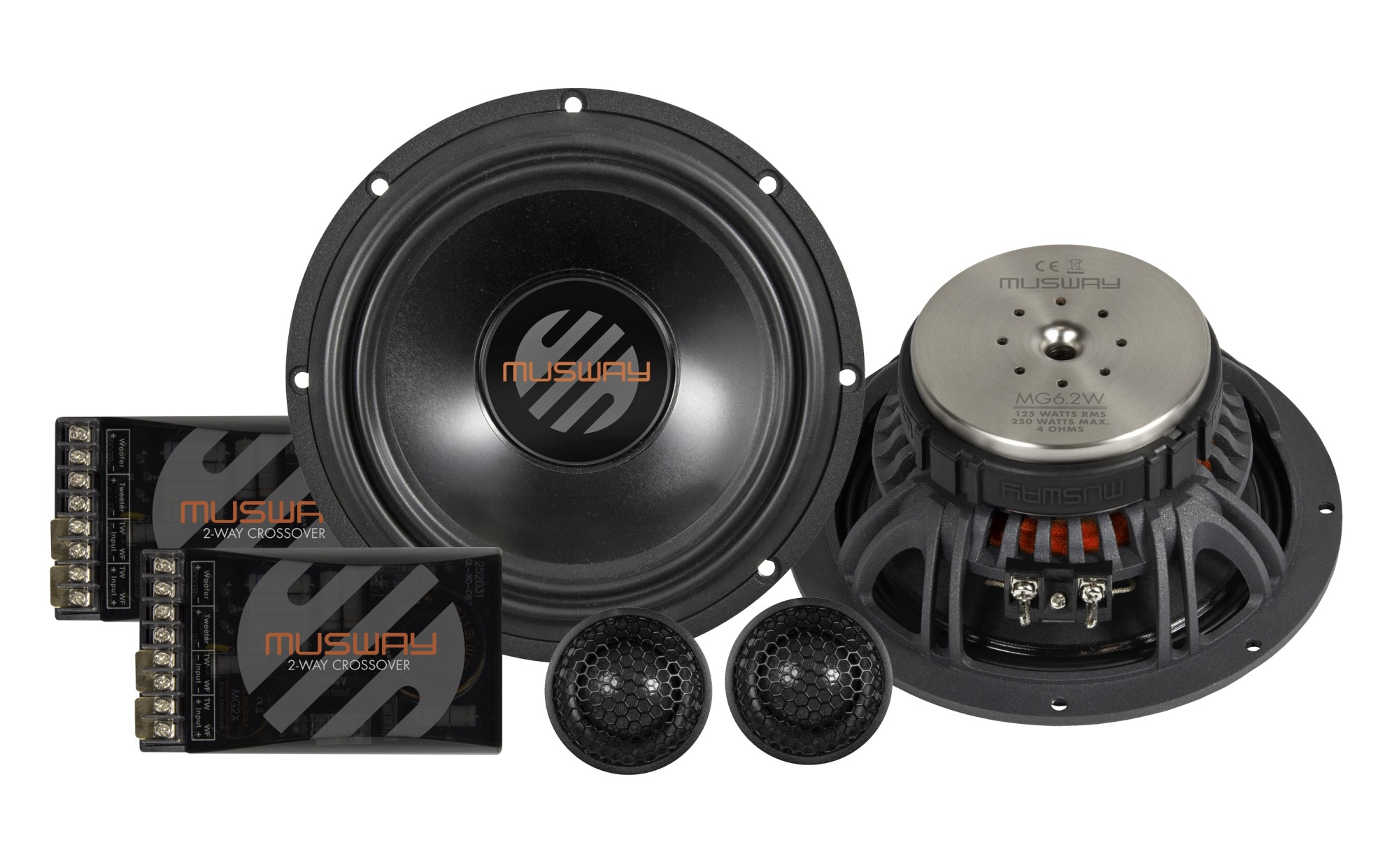

Musway MG6.2C speakers

component speakers, Ø 165 / 25 mm, 125 W RMS, 4 Ω, cone: aluminum-paper / silk, compact crossovers
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Description and parameters
files for download
Evaluation0
Category

Musway MG6.2C Speakers

Musway MG6.2C are the flagship 2-way component speakers from the top MG model series, which represents the pinnacle of Musway's range of universal speakers. The MG series was designed with an emphasis on maximum accuracy, low distortion and a technically sophisticated construction that in many respects exceeds the common standard for its price category. These are not just visually attractive speakers, but above all an exceptionally refined whole with thoughtful acoustics, precise workmanship and top-notch sonic performance.

The 165 mm mid-woofer drivers use a highly engineered die-cast aluminum basket with slim spokes to allow maximum free airflow behind the cone. The entire construction is fully ventilated, including a drilled pole piece and additional venting holes around the T-plate, which significantly improves voice coil cooling and speaker stability under high load. The 32 mm voice coil itself features an above-standard winding length of 13.4 mm, providing very high linear excursion and the ability to reproduce high sound levels with minimal distortion. Drive is provided by a strong 13.7 oz magnetic circuit protected by a rubber boot.

One of the main design features is a sandwich cone that combines an ultra-thin aluminum layer with a damping paper base. This solution combines the high stiffness of aluminum with the natural damping of paper and allows a very linear frequency response without pronounced resonances or unwanted peaks in the upper band. The result is an exceptionally clean and accurate presentation with excellent control of the midrange, fast transient response and very low distortion.

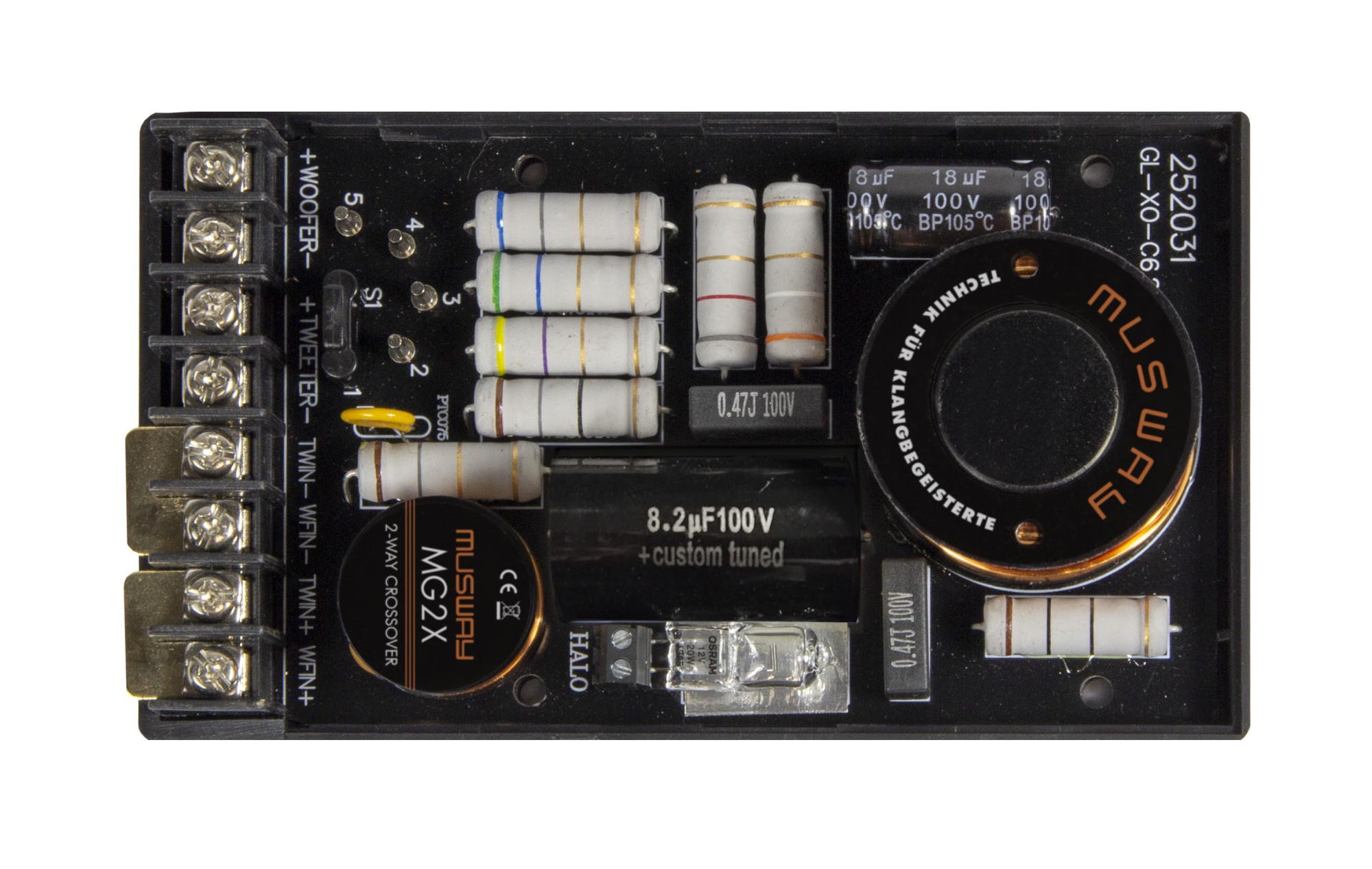

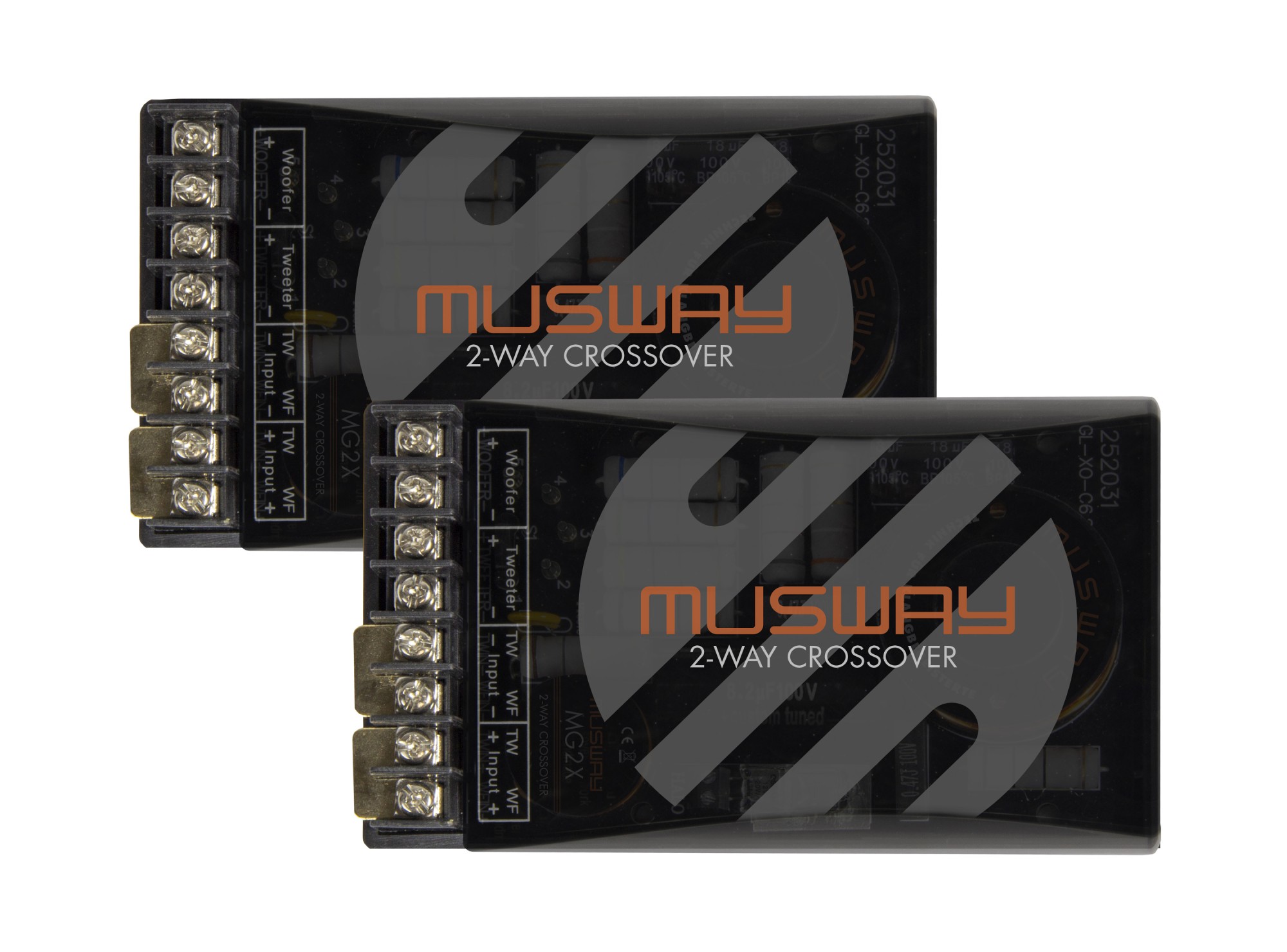

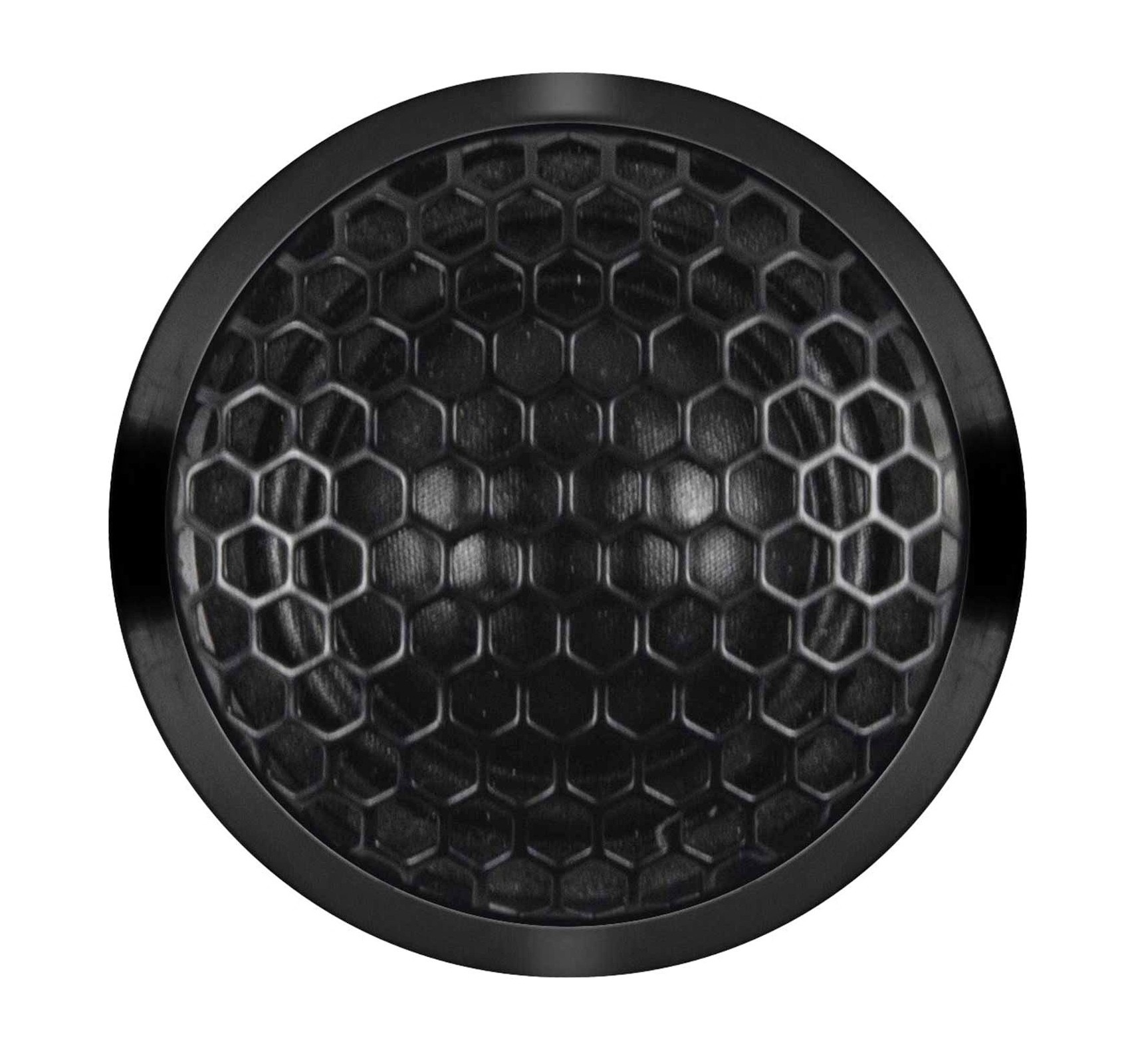

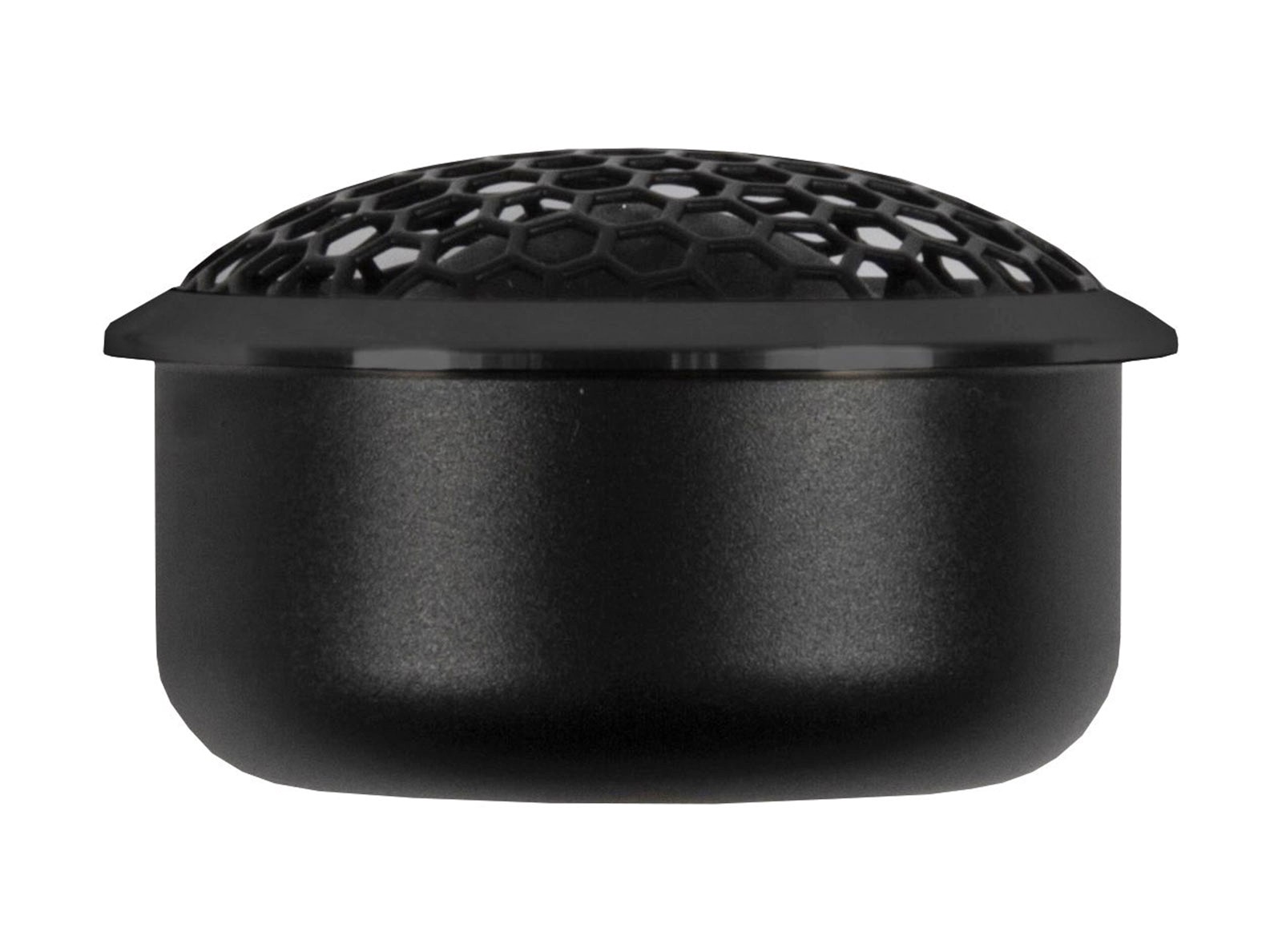

The high-frequency range is handled by the MG6.2T model with a 26 mm silk dome mounted in an aluminum housing with an integrated rear acoustic volume. This allows the tweeter to be crossed very low while maintaining a linear character beyond 25 kHz. Great attention was also paid to the crossover itself. It uses quality components including air-core inductors, film capacitors and a sophisticated tweeter level control via a real voltage divider instead of simple series resistors. It also includes two protective circuits for the tweeter – a PTC element and a halogen bulb acting as a soft limiter, both of which can be deactivated if necessary.

In an independent test by Car&Hifi magazine, the MG6.2C model received an excellent rating of 1.1 in the Spitzenklasse class and the Best Product award. The editors highlighted the extraordinarily detailed midrange, airy highs, precise and dynamic bass foundation and the overall musical and natural character of the reproduction. The extremely low distortion values and the very linear frequency response of both drivers were also rated very positively. The editors even described the MG series speakers as one of the best component systems under €500.

Main features

2-way component speakers from the MG series.
165 mm mid-woofers with die-cast aluminum basket.
Aluminum-paper sandwich cone.
Very linear frequency response without pronounced resonances.
Fully ventilated driver construction.
32 mm voice coil with long 13.4 mm winding.
Powerful 13.7 oz magnetic circuit.
26 mm silk dome tweeter.
Aluminum tweeter housing with integrated rear volume.
Frequency range up to 30 kHz.
Refined crossover with quality components.
Five-step treble level adjustment.
Tweeter protection via PTC and halogen soft limiter.
Best Product award from Car&Hifi magazine.
Overall rating 1.1 in the Spitzenklasse class.

About the brand

MUSWAY is an abbreviation of the motto "Music is the Way". The brand was born out of a passion for high-quality sound reproduction and achieved its first notable successes with high-quality Hi-Res audio players and digital signal processors. The real breakthrough came with the introduction of the first Class D amplifiers with integrated DSP, which gradually became internationally acclaimed products in specialist magazine tests and received a number of prestigious awards, including EISA. Since 2015 the brand's development has been anchored in Germany, where product design, technical tuning and final concept of each model take place. Musway has gradually built a reputation as a maker of compact, technically advanced and musically natural components that combine modern digital technologies with a focus on clean and linear sound. The portfolio today includes standalone and DSP amplifiers, speakers and subwoofers, with each new generation continuing the brand philosophy – to offer the maximum musical experience without compromise in technology, functionality or build quality.

Catalog number	MG6.2C
Brand	Musway
Links	Official web presentation
Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.	2-way component
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged!	125 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged!	250 W
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.	4 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	39 – 30000 Hz
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm.	165 mm
Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces.	67 mm
Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems.	Aluminum-coated paper
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter.	26 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter.	Silk
Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter.	Yes
Options for setting the frequency crossoverThe unwritten rule is that the more expensive the speakers, the more options the crossover has for adjusting the sound. The most common way to adjust the crossover is attenuation on the tweeter. More advanced crossovers also offer the option of setting the steepness on the mid-bass and tweeter or adjusting the frequency range.	5 levels of tweeter adjustment
Cover grids included in the packageOriginal cover grilles in speaker packaging.	No
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover.	Pair
