Kamera CAM3HD

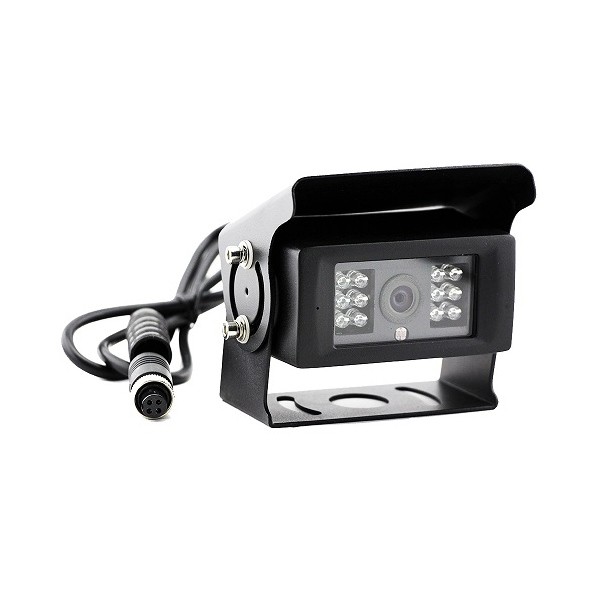

Vehicle camera CAM3HD

Vehicle AHD camera with 720p resolution and automatic IR illumination is intended for display on an AHD monitor. It is powered from the monitor via screw M12 4PIN connectors. Ideal for use as a front or rear camera, or in the cargo area. The metal body, automatic lens heater and vibration resistance make it suitable for use even in demanding conditions. Image orientation is set on the monitor; it is homologated.

Technical specifications

• CMOS 1/3" image sensor
• HD resolution: 720p
• Automatic illumination, 12 x IR LED
• Viewing angle: 120°
• TV system: PAL
• Water resistance: IP69K
• Shock resistance: min. 4G
• Image orientation: mirrored
• Camera can be tilted during installation
• 0.5 m cable terminated with 4PIN M12 screw connector
• Automatic lens heater at low temperatures
• Power supply: DC 12 V (from monitor)
• Metal camera body
• Microphone: no
• Power consumption: <3W
• Operating temperature: from -20 to +70 °C
• Dimensions: 85 x 43 x 52 mm (without shield and bracket)
• Homologated

Package contents

• Camera with "U" bracket
• Allen key
