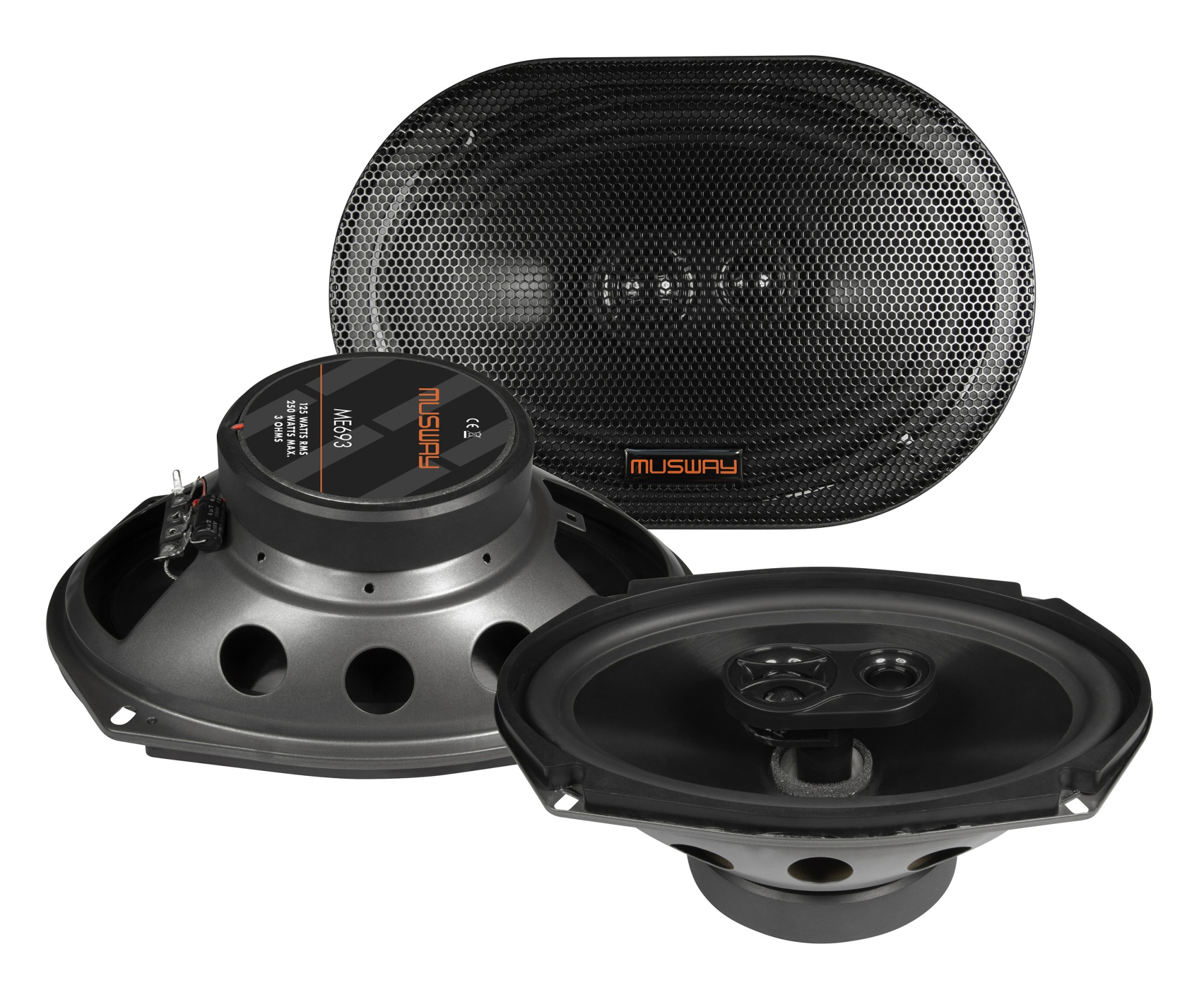

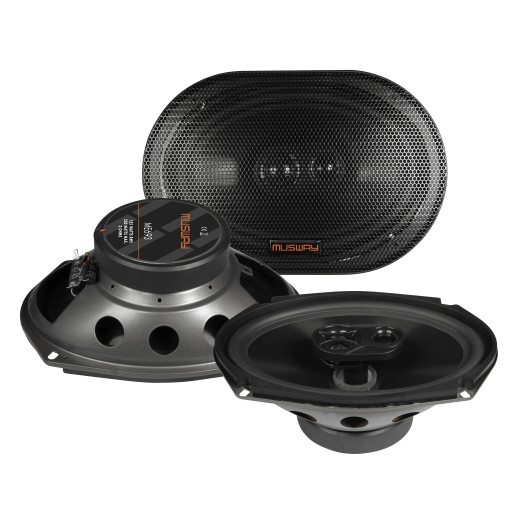

Musway ME693 speakers

Name: Musway ME693 speakers
Brand: Musway
Price: 99.00 EUR

Be the first to rate the product

Add to FavoritesRemove from favourites

triaxial speakers, 6 x 9" / 25 mm / 20 mm, 125 W RMS, 3 Ω, membrane: polypropylene / silk
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

NewTip

Description and parameters
Evaluation0
Category

Musway ME693 Speakers

Musway ME572 are triaxial speakers in size 6 x 9" from the ME model series, which represents the entry into the Musway world. Even as an entry-level series they retain the brand's typical character — a detailed, balanced and natural sound with a linear frequency response and a refined presentation that does not tire even during long listening sessions. Contributing to this is also the double silk tweeter, which represents an above-standard solution in this price category. The ME series comprises twelve component and coaxial speaker models for easy integration into a wide range of cars.

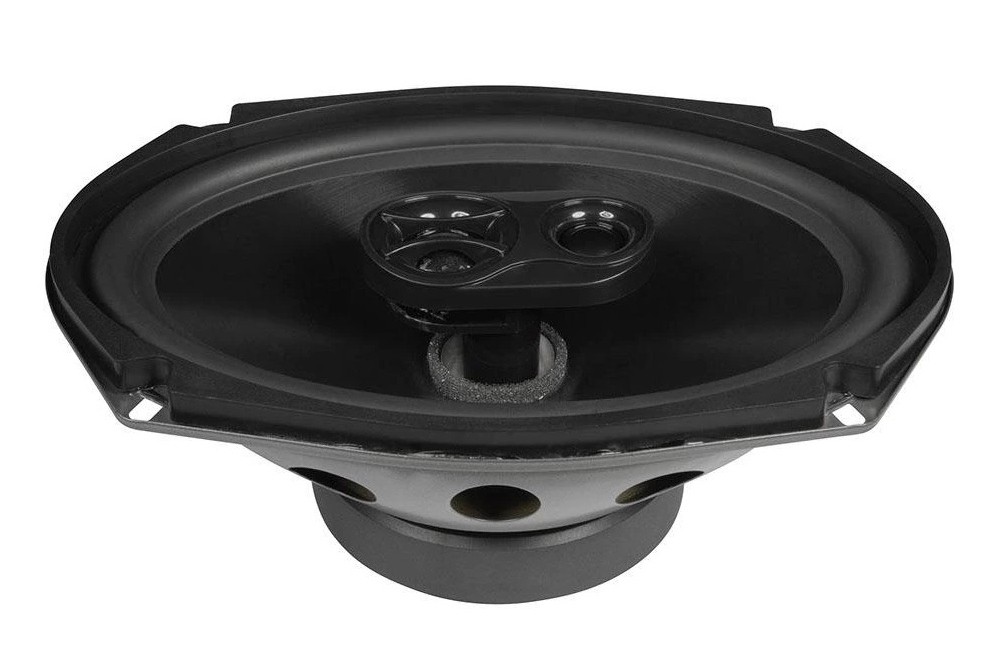

The mid-bass driver uses a polypropylene cone with a rubber surround, a 25 mm voice coil and a stamped steel basket. The relatively light moving mass combined with a balanced magnetic circuit helps deliver fast response and a musical character without technical hardness. The combination of sensitivity and the 3 Ω impedance allows very good use of power from a typical car radio, while the speakers respond to a quality amplifier with even better bass control and more precise rendering of details. The high-frequency band is provided by an integrated 20 mm silk dome with a neodymium magnet, which excels with a smooth, refined and spatially clear presentation.

Main features

3-way triaxial speakers.
3 Ω impedance for efficient use of power from car radios and amplifiers.
6 x 9" polypropylene cone with rubber surround.
25 mm voice coil for the mid-bass driver.
Stamped steel basket.
25 + 20 mm silk tweeter domes with a neodymium magnet.

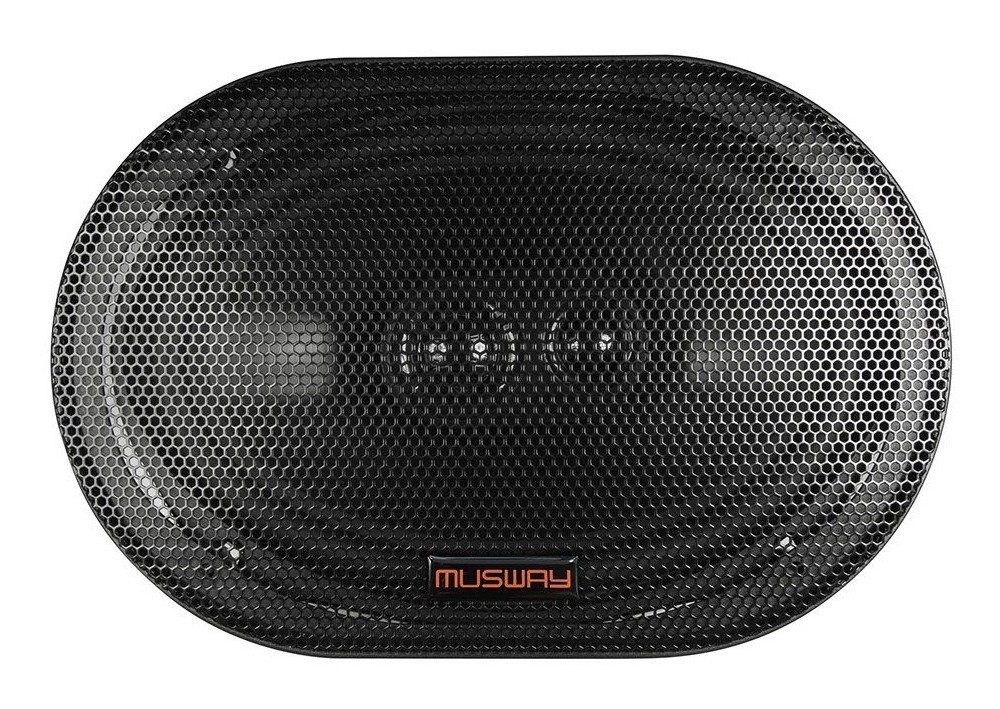

Protective grilles included.

About the brand

MUSWAY is an abbreviation of the motto "Music is the Way". The brand was founded out of a passion for high-quality sound reproduction and first recorded notable successes with high-quality Hi-Res audio players and digital signal processors. The real breakthrough came with the introduction of the first Class D amplifiers with integrated DSP, which gradually became internationally acclaimed products in specialist magazine tests and received a number of prestigious awards, including EISA. Since 2015 the brand's development has been anchored in Germany, where product design, technical tuning and the final conception of individual models take place. Musway has gradually built a reputation as a manufacturer of compact, technically advanced and musically natural components that combine modern digital technologies with an emphasis on clean and linear sound. The portfolio today includes standalone and DSP amplifiers, speakers and subwoofers, with each new generation following the brand philosophy — to offer the maximum musical experience without compromises in technology, functionality or craftsmanship.

Catalog number	ME693
Brand	Musway
Links	Official web presentation
Speaker typeCoaxial speakers: Coaxial speakers are characterized by a so-called all-in-one design. The tweeter and mid-bass speaker are in one basket. The advantage is simpler assembly, but thanks to the connection or proximity of the bands in one speaker, the sound quality will usually be reduced. As a rule, in the middle of the mid-bass speaker, there is a tweeter whose voice coil works in the second air gap of the common magnetic circuit. The three-way coaxial speaker consists of a mid-bass speaker, a center speaker and a separate tweeter in the front on a special beam. Component Speakers: Component speakers are characterized by a division into individual frequency bands, treble + mid-bass + or. bass band. The individual speakers can be placed completely separately, which results in a better sound and acoustic performance. In the vast majority of cases of component speakers, an external crossover is also supplied, which divides the treble, middle / mid-bass, and into the three-band the bass band or allows setting the decibel level of the tweeter (e.g. +2 dB, 0 dB, -2 dB), steepness (e.g. 6dB/Oct. 12dB/Oct.) or active or bi-amp connection.	Triaxial
RMS powerRMS speaker power is the constant power of the entire system, not just one speaker or one side. This is also the performance of continuous use of the speakers. If the RMS power is exceeded for a long time, the speakers may be irreversibly damaged!	125 W
Max. (maximum performancePeak performance , which the speaker can play for a moment (approx. 0.5 s), for example when hitting drums in a song. If the max power is exceeded, the speakers will usually be damaged!	250 W
ImpedanceImpedance - measurement of electrical resistance. When buying speakers, it is important to make sure that the impedance matches the amplifier or car stereo you are using. Example: A 2 Ohm speaker cannot be connected to an amplifier that is only stable up to 4 Ohms! A 4 Ohm speaker can easily be used with an amplifier that is stable up to 2 Ohms. The most common speaker impedance today is 3 - 4 Ohm.	3 Ω
Frequency rangeThe ability of the speakers to play a signal from the lowest frequency to the highest, or the speaker's ability to faithfully reproduce sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	50 – 22000 Hz
The diameter of the mid-bass speakerWe state the diameter of the speaker as the diameter of the entire speaker, not including the mounts, when smaller speakers (87, 100, 130 mm) have extra mounts. Some speakers are oval and there the dimension is given in inches, always the shortest side to the longest side. One inch is approx. 2.5 cm.	6 x 9"
Installation depth of the mid-bass speakerThe installation depth of the speaker is measured from the bottom edge of the magnet to the bottom edge of the tin, plastic or cast speaker basket, or speaker bearing surfaces.	74 mm
Mid-woofer diaphragm materialThe material that was used for the speaker diaphragm. Don't be afraid of the paper, it surprisingly has a very natural and high-quality sound and, thanks to the surface treatment, it can withstand moisture without any problems.	Polypropylene
Tweeter dome diameterThe net diameter of the dome (diaphragm) of the tweeter.	25 + 20 mm
Tweeter dome materialThe shell material that was used in the manufacture of the tweeter.	Silk
Frequency crossover included in the packageThe crossover is an important part of defacto all loudspeakers. A crossover usually contains different resistor values, coil sizes, and capacitor types that fundamentally modify the sound. We describe below what the turnouts are for. Component Speakers: A crossover is part of every quality component speaker system. Its task is to ensure the distribution of frequencies that the amplifier produces in the entire acoustic spectrum of frequencies so that each of the speakers receives only that part of the band that it can optimally play in terms of efficiency and minimal distortion. Coaxial speakers: In most cases, coaxial loudspeakers have a simple crossover (6dB/Oct.) formed by a capacitor at the tweeter.	Integrated
Cover grids included in the packageOriginal cover grilles in speaker packaging.	Yes
Price forIf the price is for a pair, the package always includes 2 pieces of everything, e.g. 2x mid-bass, 2x tweeter and 2x crossover.	Pair
