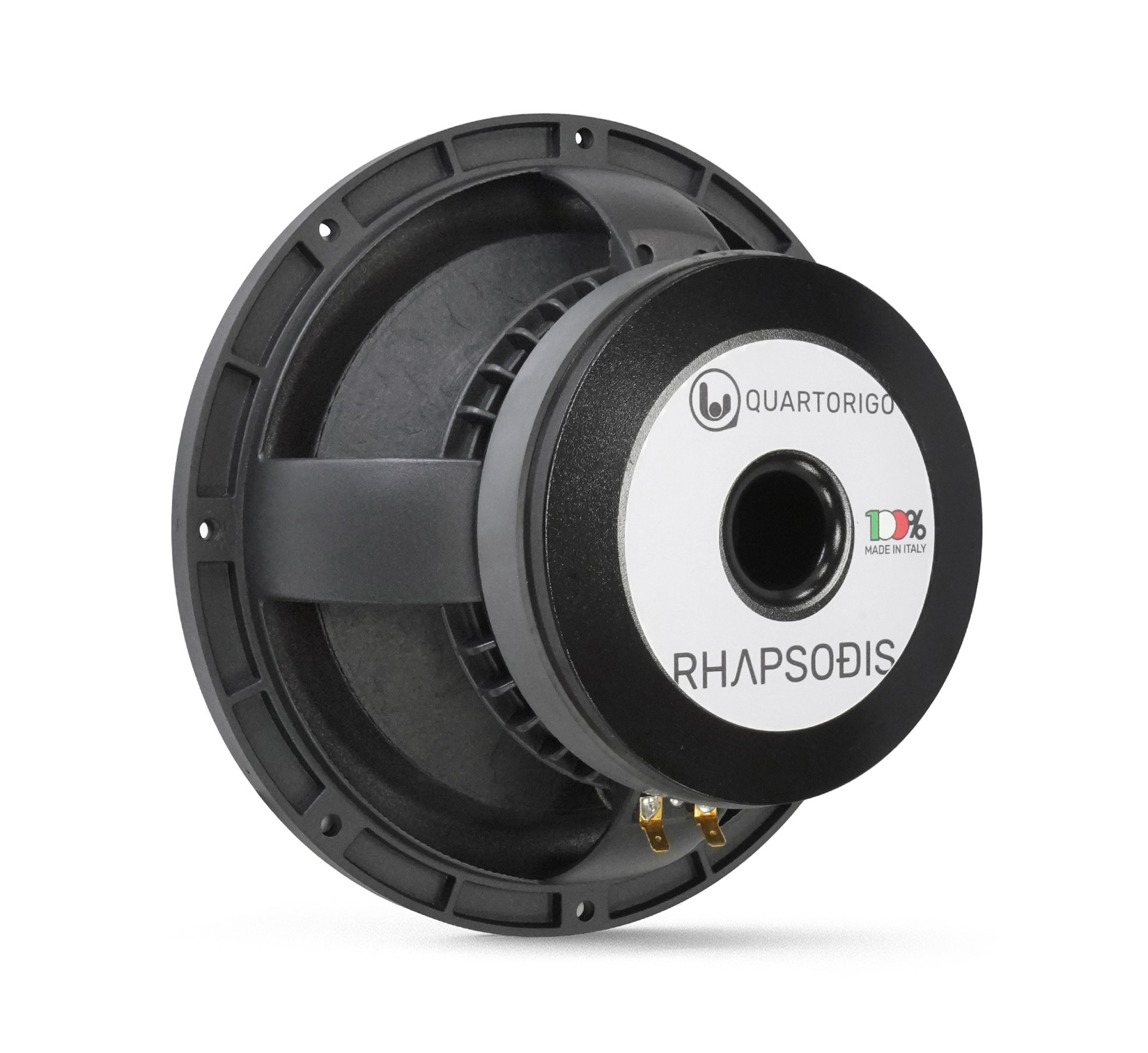

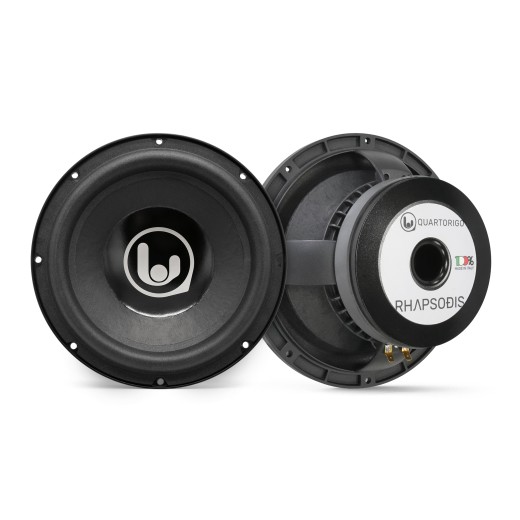

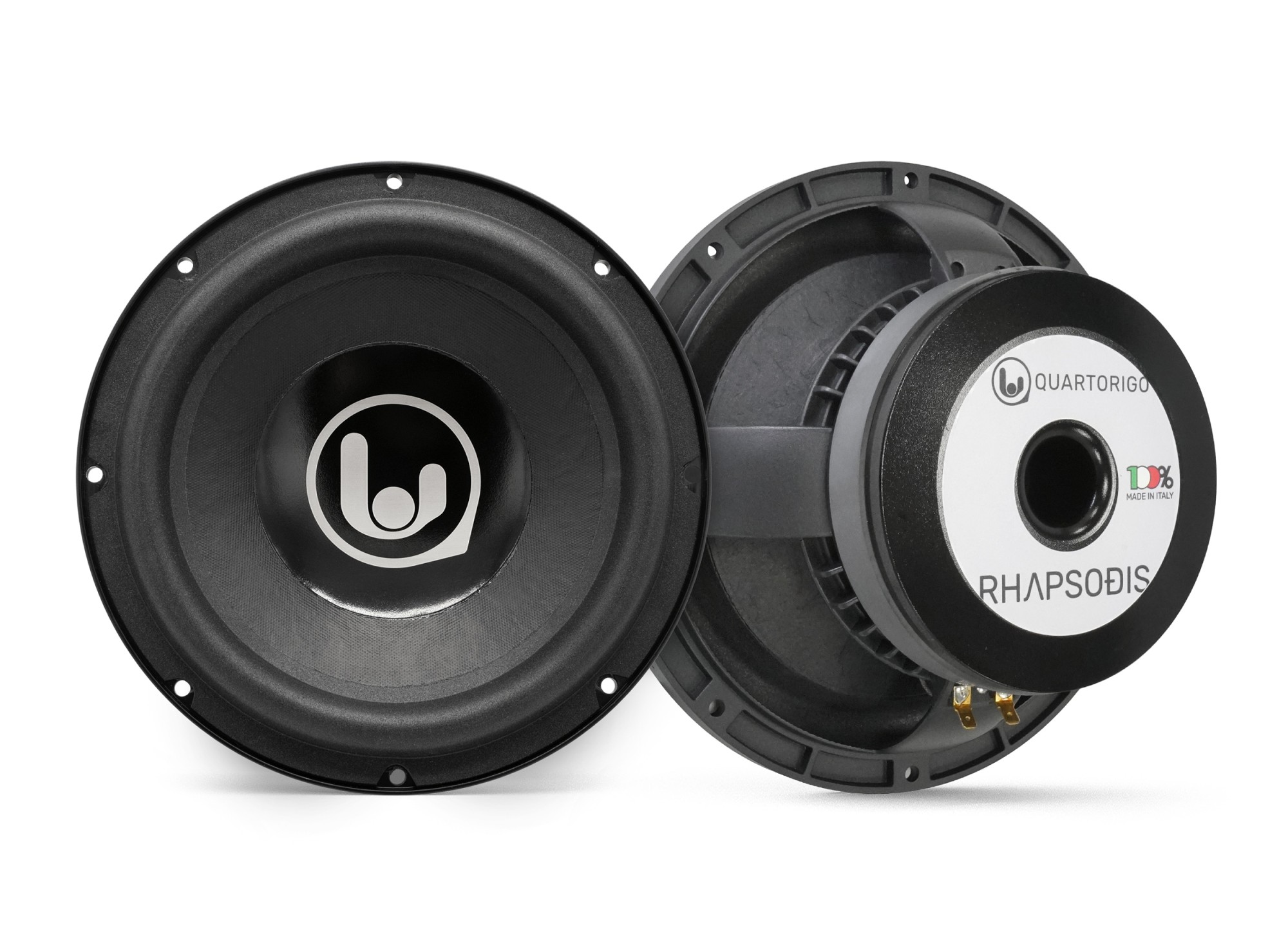

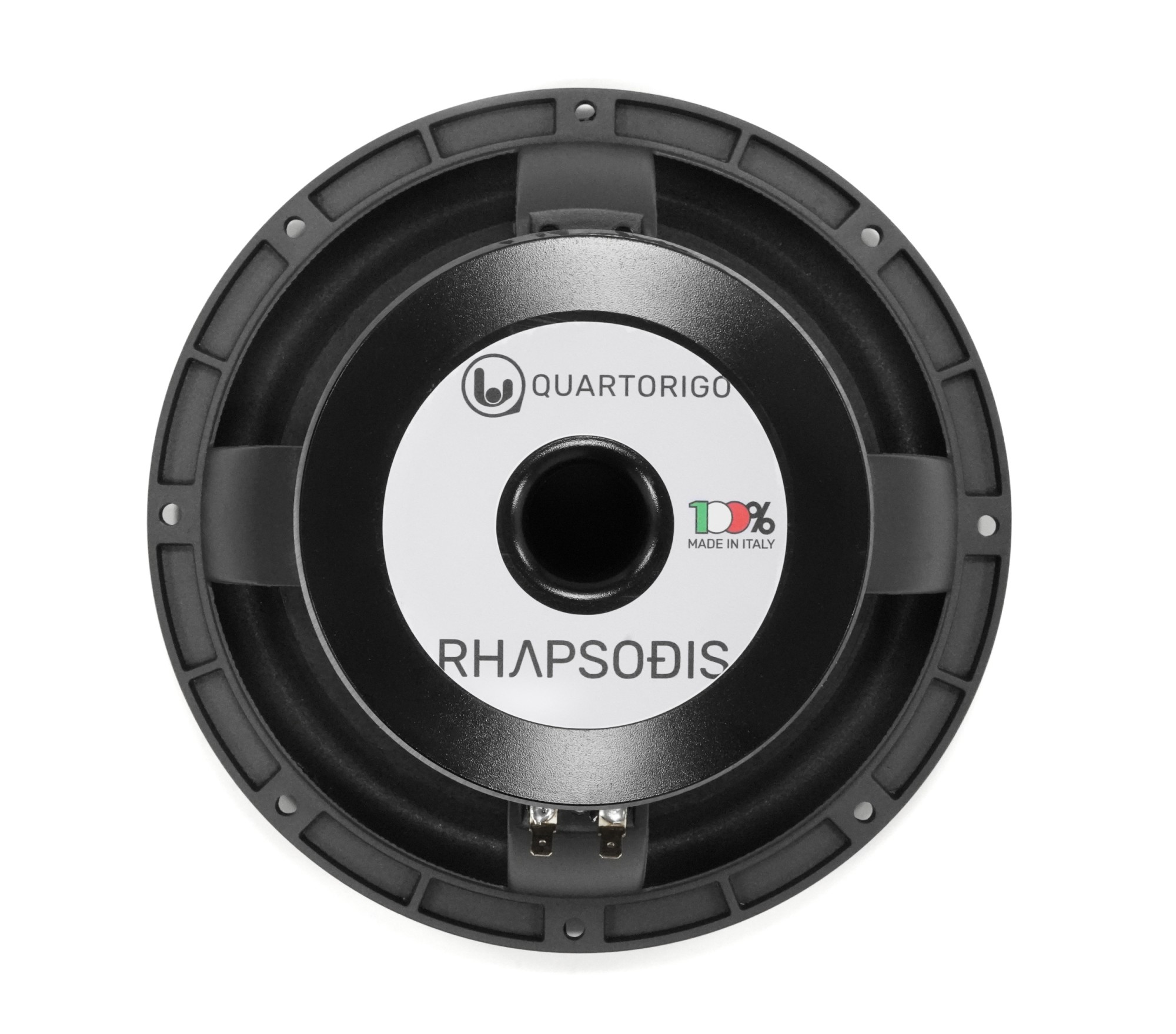

Subwoofer Quartorigo Rhapsodis Sub
subwoofer, Ø 10" (250 mm), 120 W RMS, 93 dB (2.83V/1m), 4 Ω
More about the product
More about the product
We will help you with your purchase
- You can return the goods to us within 14 days
Quartorigo Rhapsodis Subwoofer

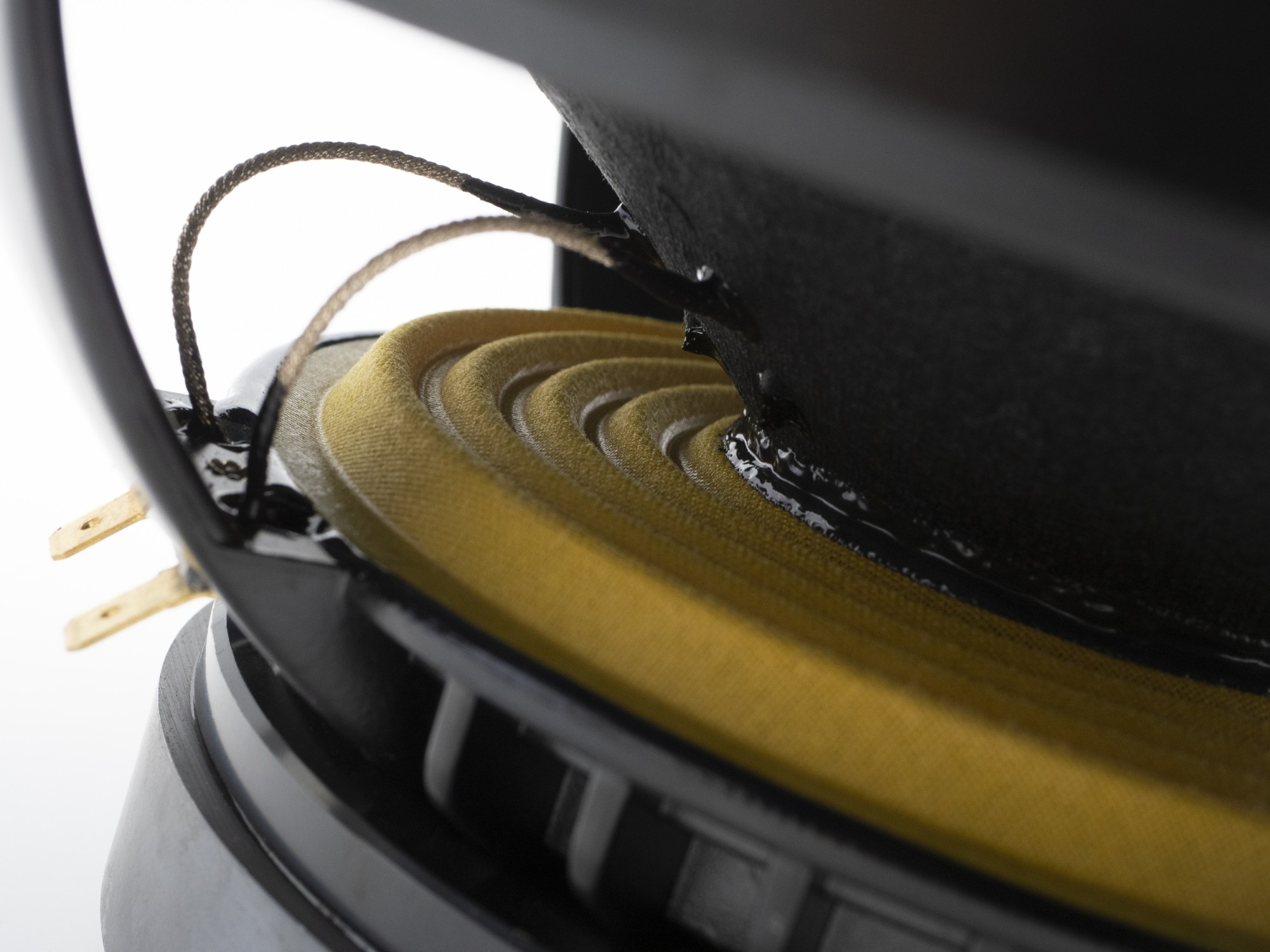

As the etymology perfectly captures, the term Rhapsodis expresses a highly emotional composition full of strong feelings and enthusiasm. In a similar way, the Rhapsodis speakers can be defined as some of the most versatile on the market today. Born to evoke intense emotions faithful to the music and true to their DNA. Rhapsodis offers a complete range from the deepest bass to the higher frequencies, with amazing dynamics and realism. A perfectly tuned four-way system will delight you with its advanced sound and includes everything you need for high-quality audio in your car. Specifically: a midbass, a midrange, a tweeter and, of course, a subwoofer. Its cone is made, as with the other speakers, from pressed paper to ensure the highest possible quality and sound fidelity. Thanks to thorough reinforcement, the cone is sufficiently stiff despite its low weight and resistant to resonance in motion, aided by a highly durable surround. The massive die-cast basket also excels in stiffness and vibration damping. Thanks to its very open design, optimal ventilation and heat dissipation from the voice coil are ensured at high power. Speaking of the subwoofer's power, don’t be misled by the seemingly modest paper specifications. A 64 mm diameter voice coil combined with a robust ferrite magnet provides perhaps surprisingly strong dynamics and high power with precise reproduction of low frequencies. This applies to all Quartorigo products, which do not boast marketing-friendly parameters demanded by the market, but the real ones. Rhapsodis, due to its design, is even a bit "faster" than its siblings from higher model ranges and, given its high sensitivity, is an excellent choice even for lower-power amplifiers. The internationally recognized 100% Made in Italy certification guarantees high quality and perfect workmanship.
Main features of the Quartorigo Rhapsodis Subwoofer
- "Sound Quality" subwoofer with 4 Ω impedance.

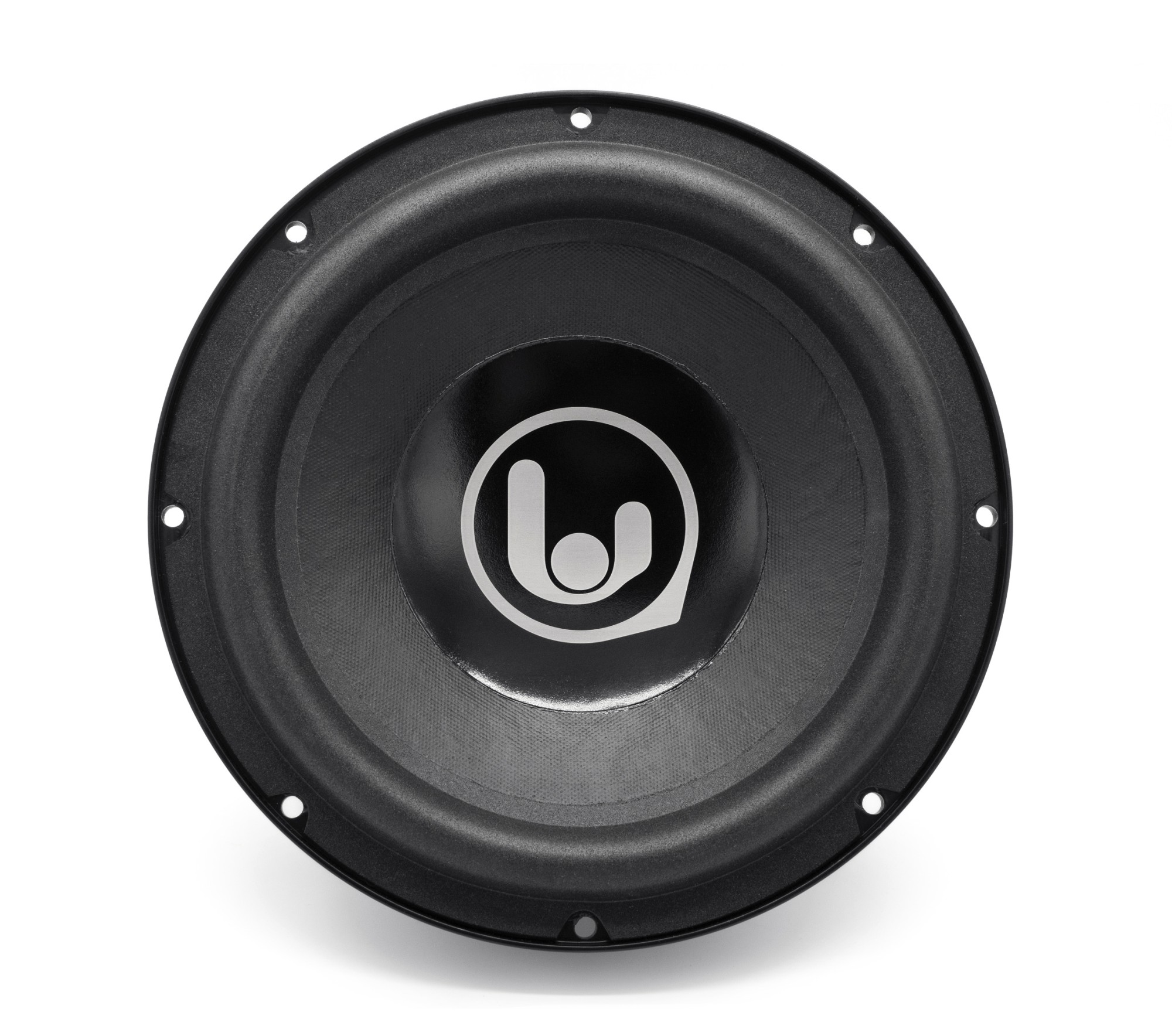

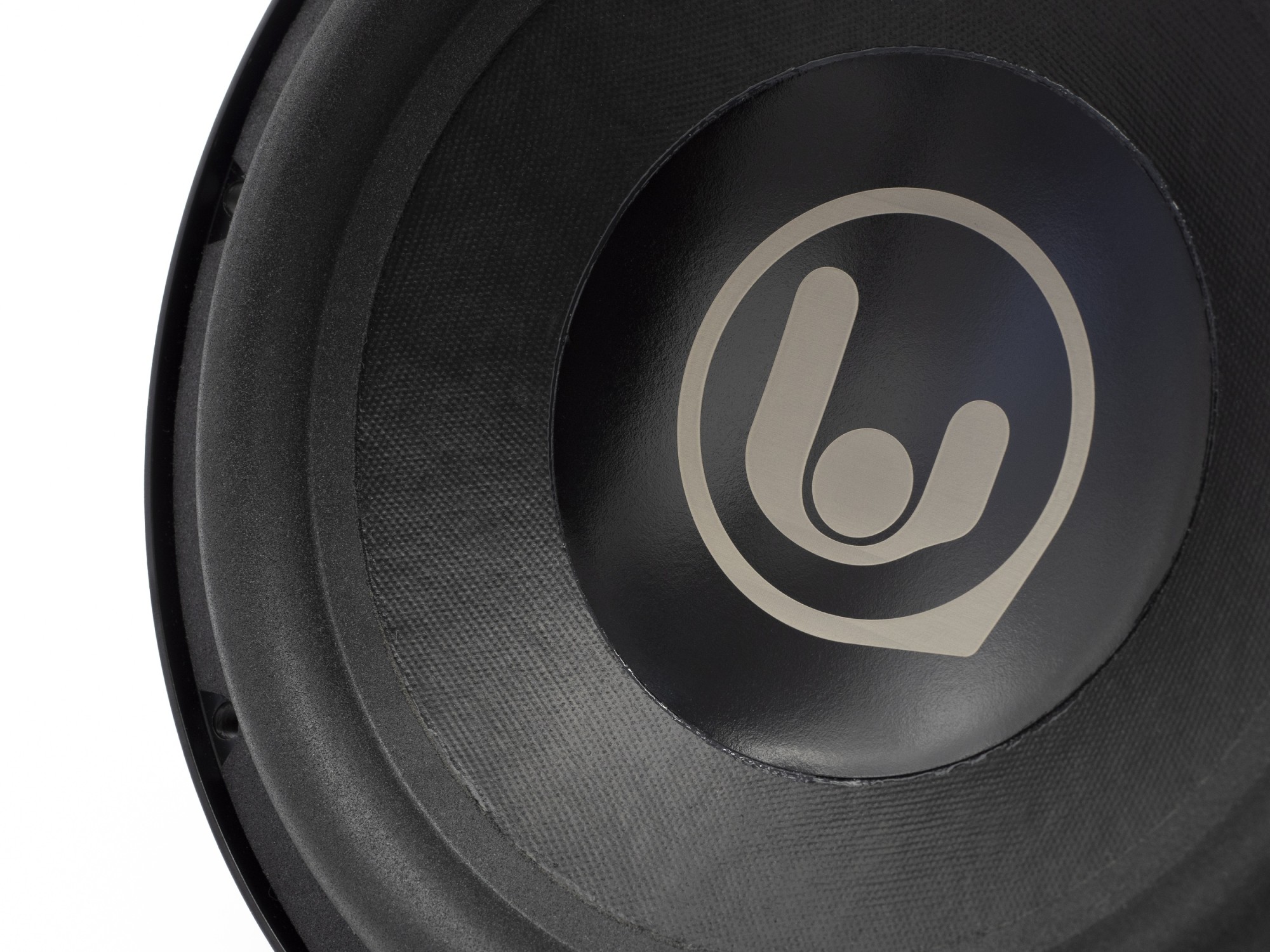

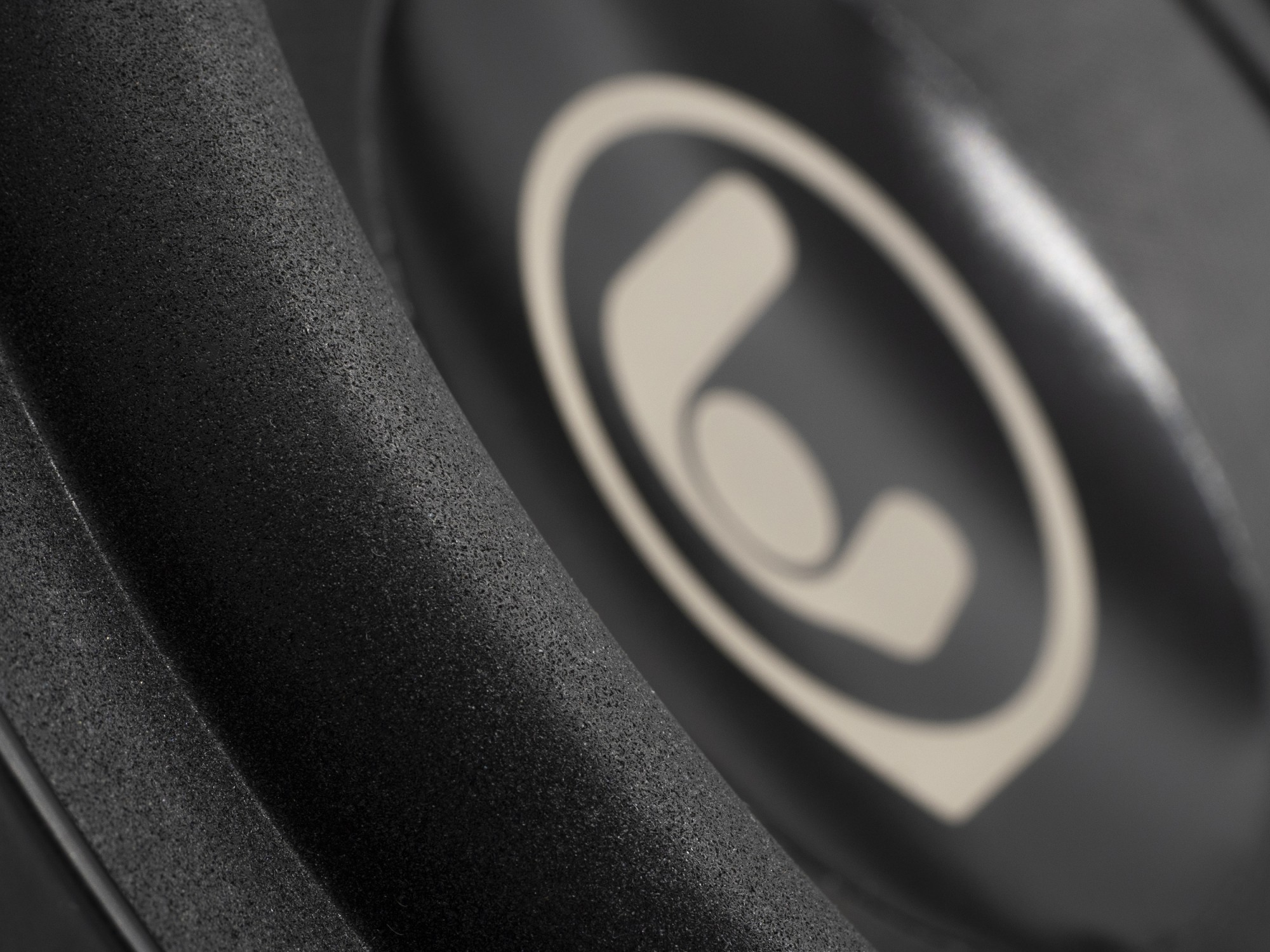

- Paper cone with durable rubber surround.
- Dynamic, highly accurate and musical sound.
- High sensitivity allows connection to weaker amplifiers (4 Ω).
- Recommended amplifier power: 150 to 300 W RMS.

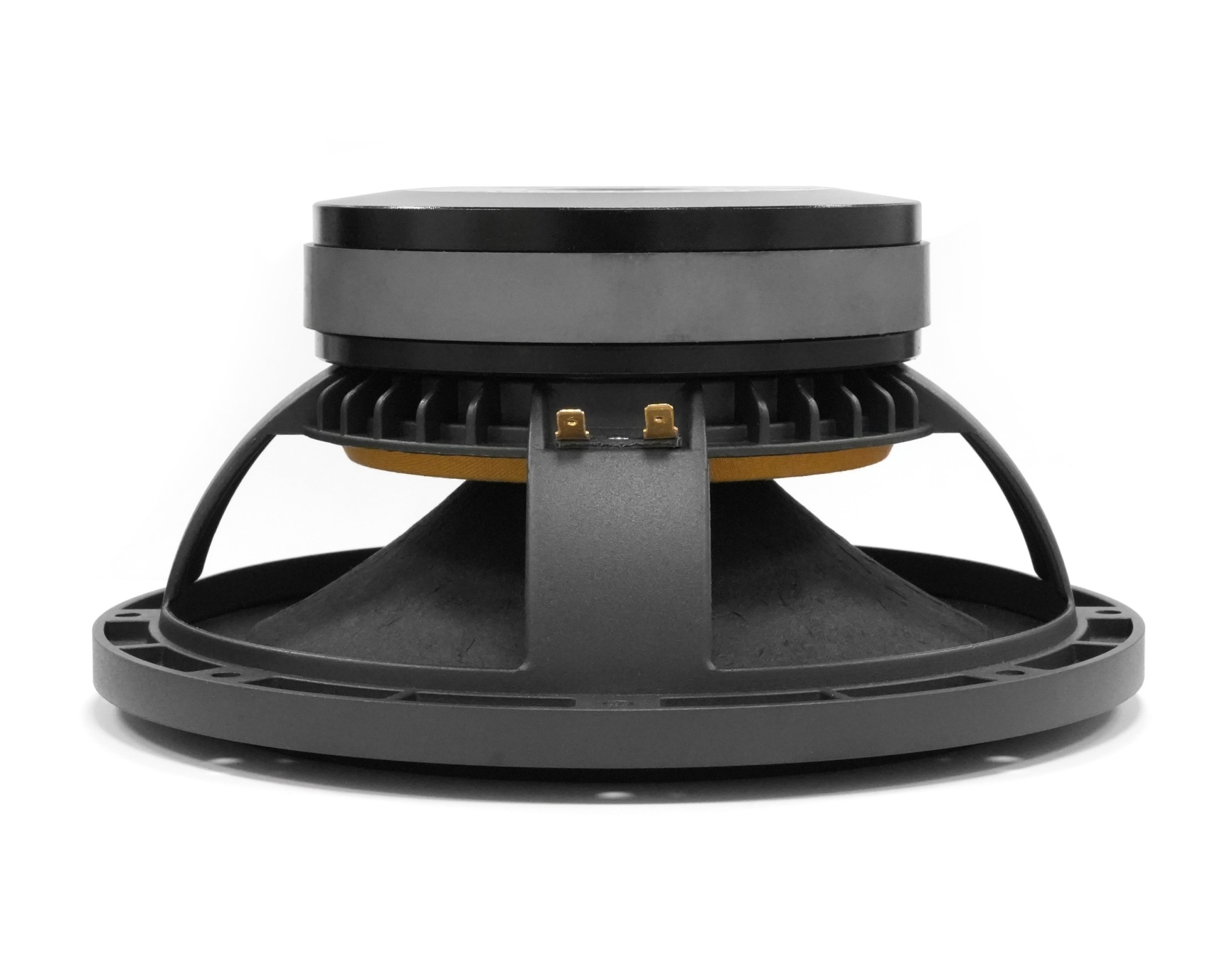

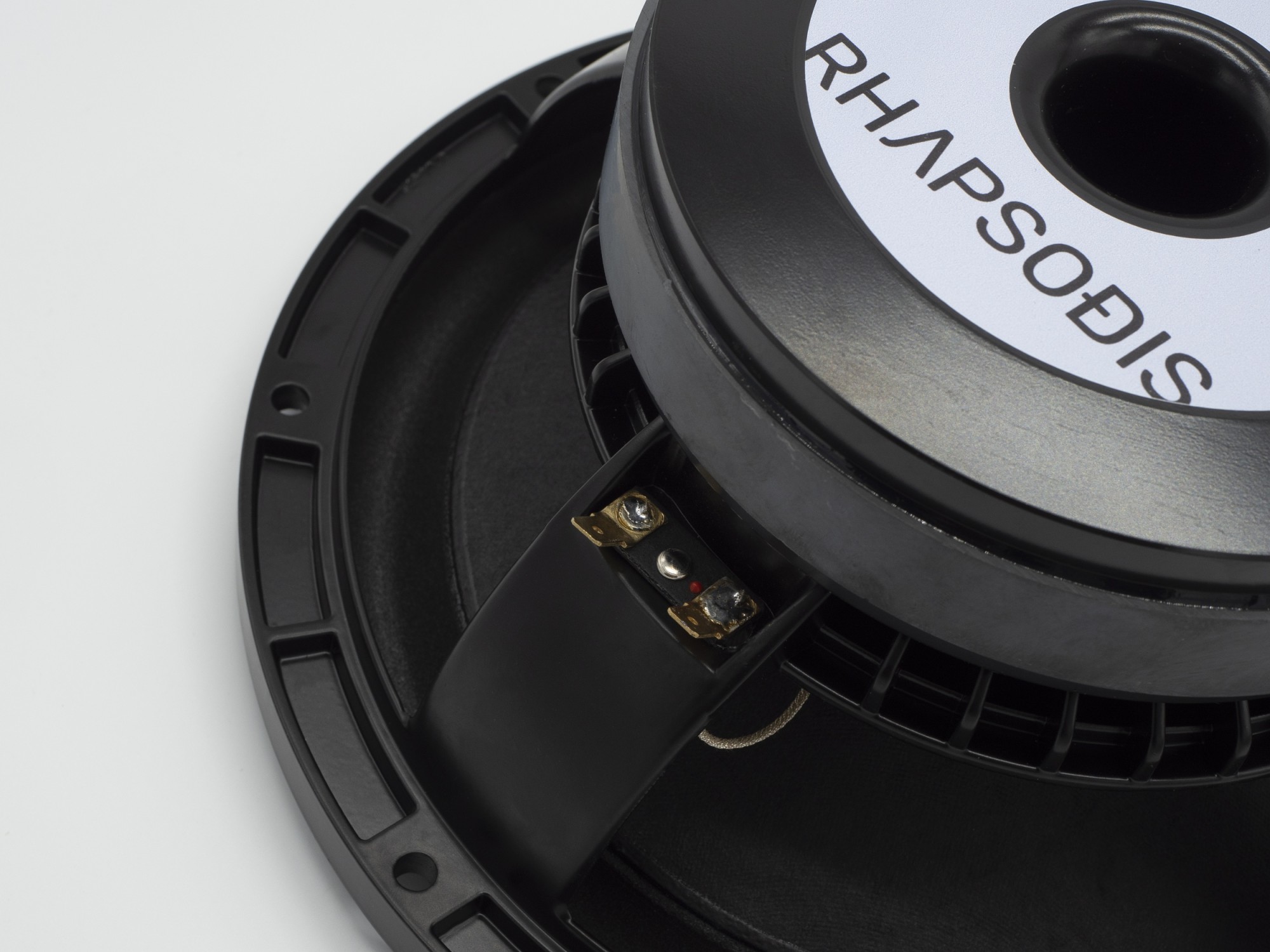

- Exceptionally rigid die-cast basket with excellent vibration damping.

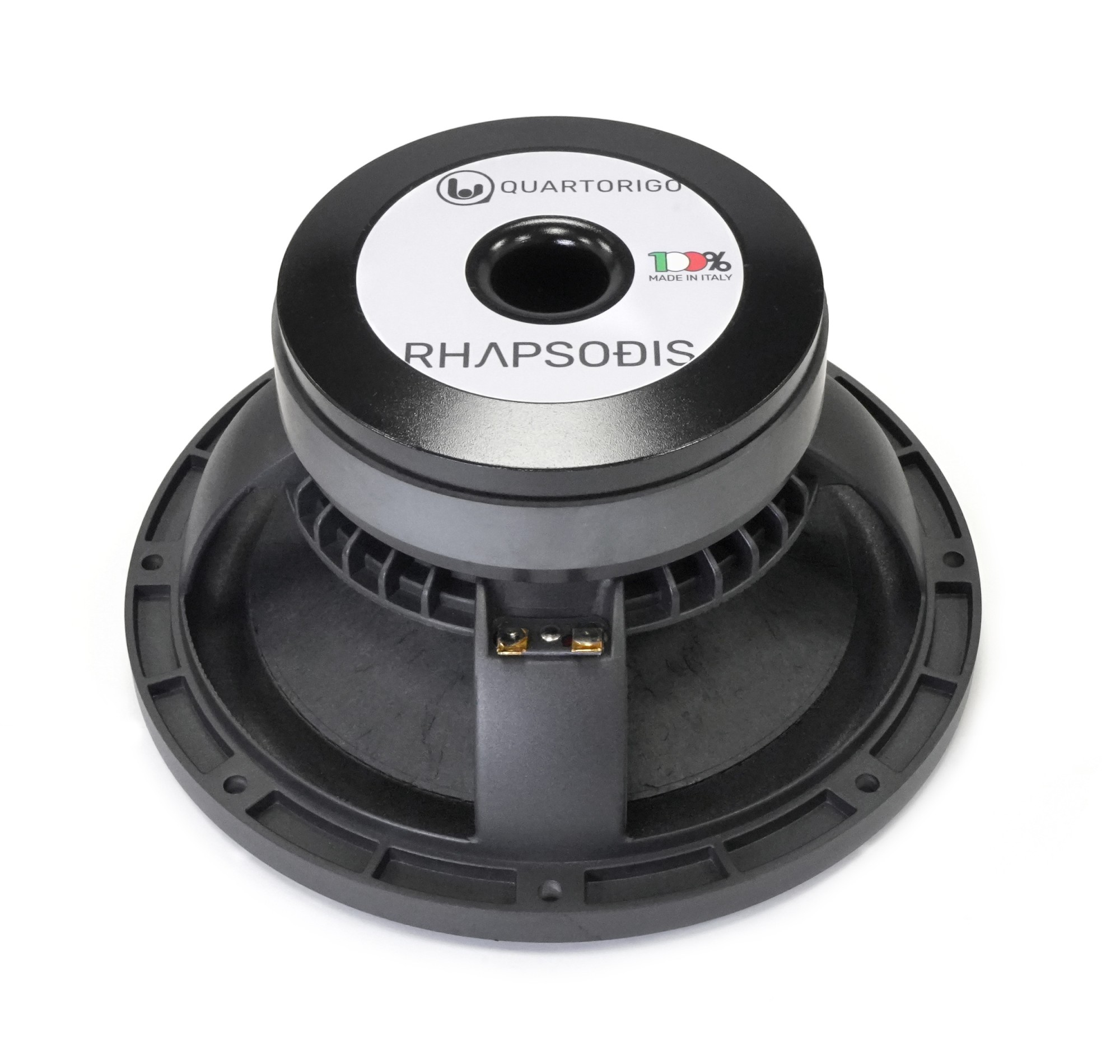

- Powerful ferrite magnet for excellent power control.
- Low volume requirements for a sealed enclosure.
- 100% Made in Italy certification.
- Price per unit.
About the Quartorigo brand
For music Lovers. The motto of this Italian manufacturer, depicted by the conductor in its logo, also expresses Quartorigo's basic principles. In a highly competitive market where brands and products quickly lose their identity, Quartorigo offers a clear and solid origin. Quartorigo is proud of its heritage and in every product combines the essence of Italian design, honest craftsmanship and a passion for music through which it seeks to present its way of being, thinking and perceiving. With Quartorigo products you instantly move from the concert hall to the seats of your car, experiencing the same emotions without losing a single tone. In line with this concept, Quartorigo embodies a true conductor sitting in front of you to provide a unique musical experience that remains true to its origin. For more than 25 years you can rely on handcrafted products born in the distant past, perfected over time and made to last a lifetime.| Catalog number | RHAPSODIS SUB |
| Brand | Quartorigo |
| Links | Official web presentation |
| Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers. | 250 mm (10\") |
| RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer. | 120 W |
| Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur, or to burn out the voice coil of the subwoofer. | 300 W |
| Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with 91 dB sensitivity needs only 150 Watts to reach the same efficiency. | 93 dB |
| Sensitivity (SPL 1W/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 watts to produce a certain volume, then a 91 dB subwoofer needs only 150 watts to reach the same efficiency. | 90 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm. | 4 Ω |
| Frequency rangeThe ability of the subwoofer to play a signal from the lowest frequency to the highest, or the ability of a subwoofer to faithfully reproduce sound in a specific frequency band. Subwoofers ideally play from 20 - 150 Hz. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even indicate this maximum tolerance of sound pressure in decibels in their catalogs for tactical reasons. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural. | 30 - 550 Hz |
| Subwoofer diaphragm materialThe specific material from which the subwoofer membrane is made. | Pressed paper |
| Recommended enclosure volumeThe closed enclosure is characterized by a simple construction. Closed enclosures are usually smaller than bass-reflex enclosures, and a special damping fleece is used for their damping. A closed baffle has the advantage of preventing an acoustic short between the front and back radiation of the subwoofer diaphragm. The disadvantage is that the closed enclosure raises the natural resonance frequency of the used subwoofer and thereby also increases the lower limit frequency. This is because the back side of the diaphragm is forced to compress and dilute the air inside the enclosure when the subwoofer is radiating in a closed enclosure. This adds to the inherent stiffness of the subwoofer's oscillation system the stiffness of the air in the closed enclosure. This causes an increase in the stiffness of the oscillating system and thus an increase in the resonant frequency of the entire system: subwoofer -> loudspeaker. The increase in resonant frequency for a given subwoofer is greater, the smaller the volume of air in the closed enclosure. The relatively small volume of air in the closed enclosure acts on the subwoofer as an acoustic spring when radiating the back side of the membrane into the enclosed enclosure. USE: Mainly for quality bass listening in the entire band with an emphasis on detail and accurate reproduction in the lower band. Pros and cons: + pure reproduction + small closets + easier tuning - low level of efficiency in deep bass - loudness only at the cost of enormous deflection of the membrane - a significant acoustic pressure cannot be expected | 18 - 19 l |
| Subwoofer voice coil diameterThe larger the diameter of the voice coil, the more load capacity the subwoofer has, in layman's terms. | 64 mm |
| Fs - resonant frequencyFs - is the lower resonant frequency. This parameter is the de facto free air resonant frequency of the subwoofer. Simply put, it is the point at which the weight of the subwoofer's moving parts equals the force of the subwoofer's suspension while it is in motion. If you've ever seen a piece of string start to hum uncontrollably in the wind, you've seen the effect of reaching a resonant frequency. The weight of the moving parts and the stiffness of the suspension (surround and spider) are key elements that affect the resonant frequency. As a general rule, a lower Fs indicates a subwoofer that would be better at reproducing low frequencies than a subwoofer with a higher Fs. However, this is not always the case, as other important parameters of the subwoofer also enter the resulting sound. | 48.27 Hz |
