Hyundai Sonata OEM parking camera (BC HYU-06)

OEM parking camera for Hyundai Sonata

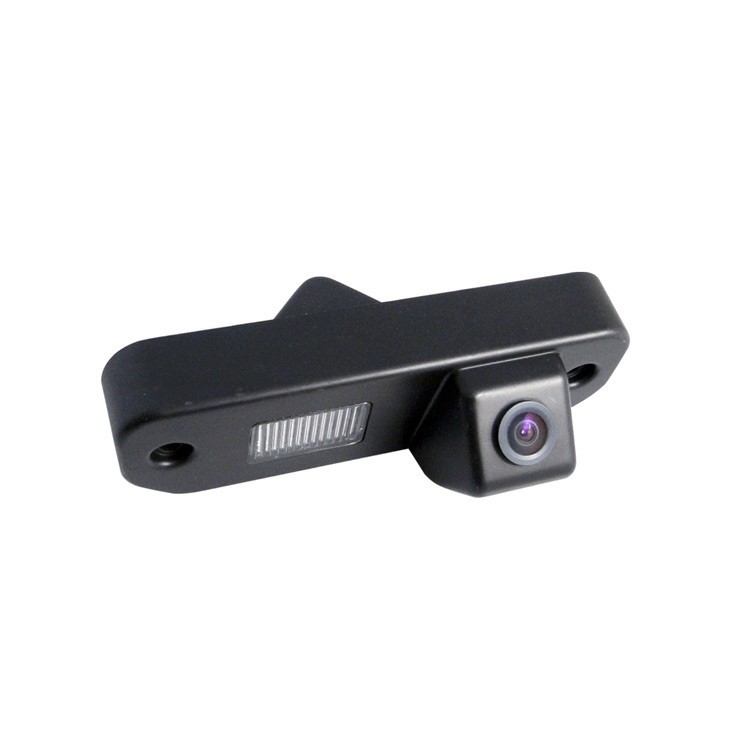

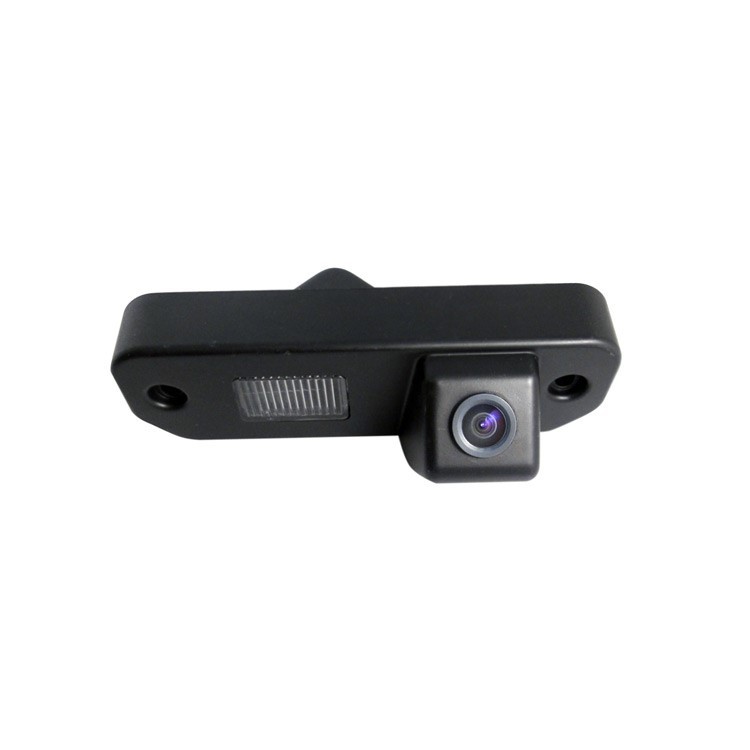

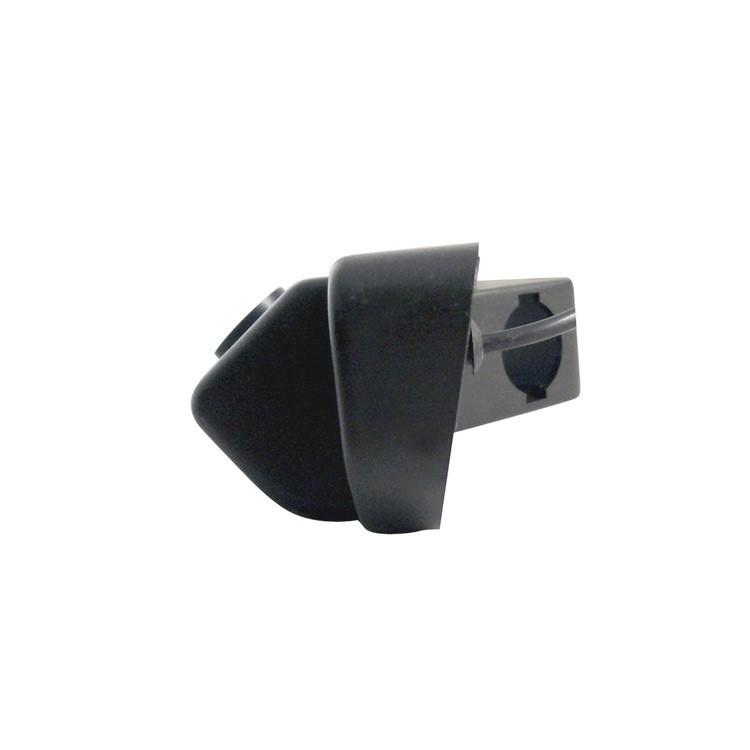

OEM color parking camera for installation in the rear license plate lamp. The camera includes a place to place the socket with the bulb from the original license plate light.

Camera suitable for the following vehicles:

• Hyundai Sonata (2008 ->)

Technical parameters of OEM camera for Hyundai Sonata:

• sensing sensor: PC3089 1/3"
• the option to turn on / off the display of auxiliary trajectories (guide lines)
• electronic aperture: 1/60 1/10000 sec.
• minimum illumination: 0.1 lux
• signal / noise ratio: > 48 dB
• TV system: NTSC
• number of TV lines: 600
• effective pixels: 668 × 576
• weather protection: IP67
• scanning angle: 170°
• camera body: durable plastic "private housing"
• image display: mirror image
• white balance: automatic
• operating temperature: from -30°C to +70°C
• AGC, BLC, white balance: automatic
• signal cable: length 6.2 m terminated with CINCH / RCA connector
• video output: 1.0V / 75 ohm
• power cable length: 1 m
• power supply: 12 V DC
• consumption: <1W

Camera dimensions:

• base: 38 x 118 mm
• pitch of screw holes: 96 mm

Note:
The camera is intended for non-original (re-assembled) radios with CINCH AV input. Use with the original radio may require the connection of a video adapter for the parking camera!
