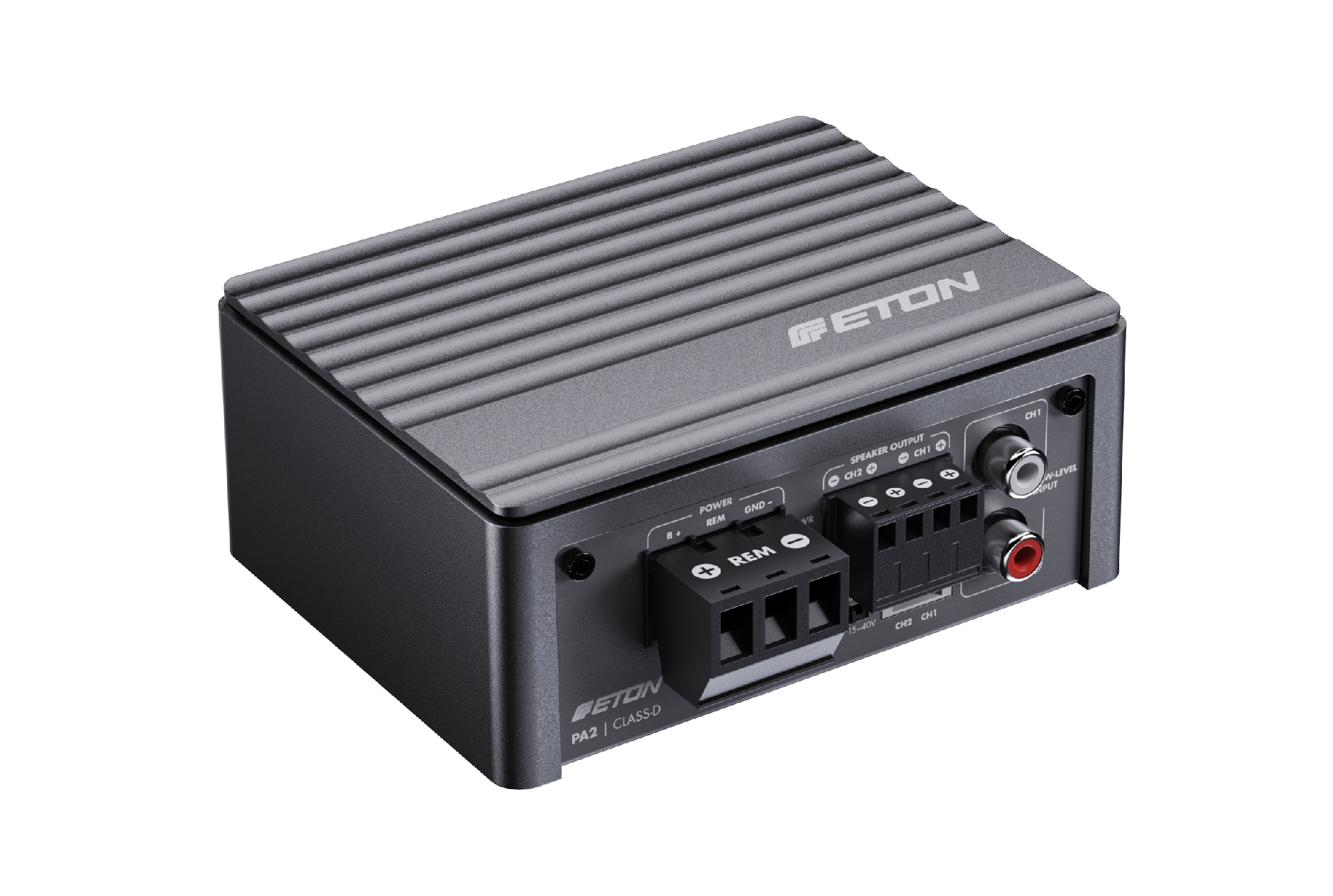

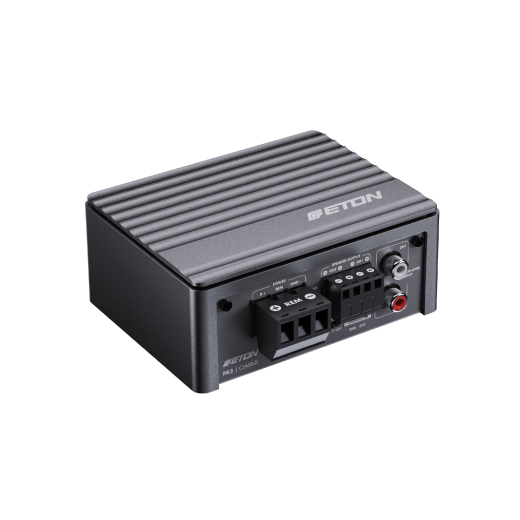

Eton PA 2 amplifier

Amplifier Eton PA 2

Ultra-compact, flexible, and powerful – the new PA amplifiers are the successors of the ETON MICRO series, which received numerous awards. The monoblock PA 1, two and four-channel models PA 2 and PA 4 are completely newly developed and focus on optimal performance with the smallest possible dimensions for easy installation. Small, smaller PA with minimal dimensions of 110 x 85 x 45 mm (PA 2), the 2-channel amplifier can be flexibly integrated into any vehicle. The PA series offers top-quality electronics in a beautifully designed casing made of simple die-cast aluminum, anodized in a matte bronze finish. The aluminum cast housings function as heat sinks with their entire surface, ensuring highly efficient thermal management. The top plate is removable. PA amplifiers offer top control, with all adjustment options accessible from the top of the amplifier, but hidden under the top plate once the setup is complete. It covers all setup needs imaginable: high-pass and low-pass filters, subsonic filter (PA 1), adjustable high-level input voltage, adjustable high-level input resistance (EPS load), and gain control. PA amplifiers continue to impress with small but practical design features, such as a setup tool integrated into the heat sink for uncomplicated setup execution. Removable power and audio signal connectors and variable mounting legs complement the thoughtfully designed feature set of the PA series. Another bonus is the stackable design of the amplifiers for installing two identical models on top of each other. The internal values are no less impressive - multi-layer boards, high-quality electronic components, and top-notch manufacturing form the basis for the advanced class D amplifier circuits, which are highly efficient. It offers top SQ for demanding listeners, with the lowest distortion and highest control. Whether it's a four-channel amplifier for operating a car audio system or a monoblock for powerful subwoofers - the PA series offers the right amplifier for every requirement and use.

Main Features

• Newly developed advanced class D amplifier technology.
• Newly designed, high-quality die-cast aluminum casing in matte gunmetal grey with a removable machined aluminum top plate.
• Adjustable low-pass filter with a slope of 12 / 24 dB/oct and subsonic filter.
• Auto turn-on function (SIG / DC).
• Start-Stop function.
• Adjustable gain 0.45 - 6 V.
• Adjustable high-level input resistance (EPS load) for each pair of channels: 10 / 150 / 600 Ω.
• Adjustable high-level signal input voltage for each pair of channels: 1 - 15 V / 15 - 40 V.
• High-level inputs, low-level inputs (RCA).
• Removable connectors for power and audio signal connection.
• Variable mounting feet for quick and easy installation.
• Amplifier is stackable.
• Integrated adjustment tool, remote level control.
• Designed in Germany.
