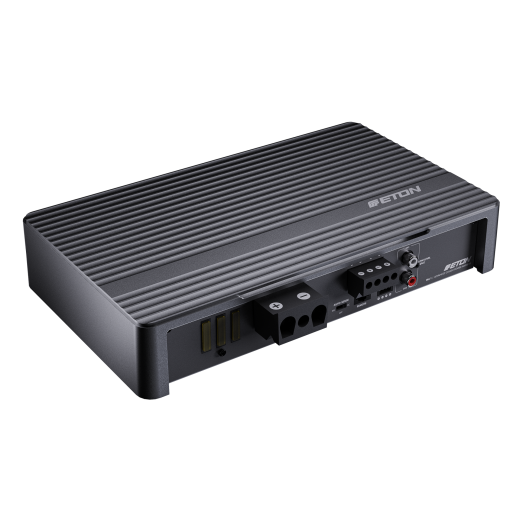

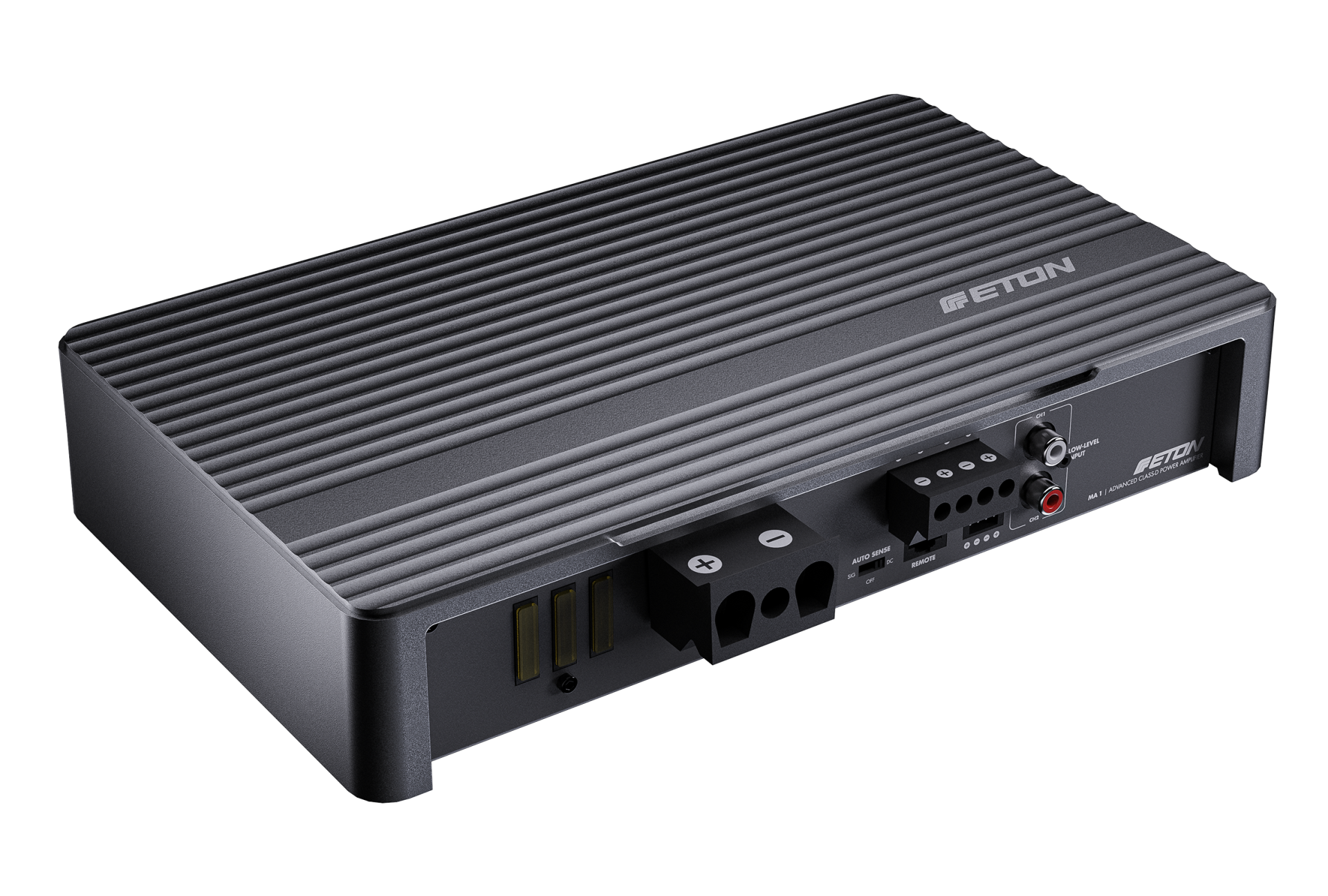

Eton MA 1 amplifier

Eton MA 1 Amplifier

The new MA power amplifiers - the six-channel MA 6, two and four-channel models MA 2 and MA 4, and the monoblock MA 1 are successors to the award-winning ETON MINI and ETON POWER amplifiers. The MA series is a new design line with a full set of features, premium sound, and high performance, compactly designed for the easiest installation. The amplifiers are built on modern Class D amplifier technology, offering truly high output power with fine resolution, low distortion, and providing HIGH GRADE CAR AUDIO developed in Germany. The MA amplifier series offers top-notch electronics in a beautifully designed housing made of simple pressure-cast aluminum, anodized in a matte bronze finish. The die-cast aluminum cases act as heat sinks over their entire surface, ensuring highly efficient thermal management. The top panel with the ETON logo is removable (another elegant design solution) and can be rotated 180° for optimal cosmetic integration in both directions. MA amplifiers offer top control, with all setting options accessible from the top side of the amplifier, but hidden under the top panel once settings are complete. It covers all adjustment needs imaginable: high and low-frequency filters, adjustable high-level input voltage, adjustable high-level input impedance (EPS load), and gain control. The MA series continues to impress with small yet practical design features like a setting tool integrated into the heat sink for easy adjustment. There is also an LED light indicating the amplifier's operating status, serving as a source for easier control adjustment in dark spaces. Removable power and audio signal connectors and variable mounting feet complete the thoughtful feature set of the MA series. Another bonus is the stackable design of the amplifiers for installing two identical amplifier models on top of each other, fitting into tight spaces, or additional mounting points and blanking plugs for even greater versatility. The internal values are equally impressive: multi-layered boards, high-quality electronic components, and premium manufacturing form the basis for the advanced Class D amplifier circuits that are highly efficient. It offers top sound quality for demanding listeners with the lowest distortion and highest control. Whether it's a six-channel amplifier for fully active operation of a three-way front system or a monoblock for powerful subwoofers - the MA series offers an unprecedented selection.

Main Features

• Newly developed advanced Class D amplifier technology.
• Newly designed, high-quality pressure-cast aluminum housing in matte gunmetal grey finish with a removable top panel made of milled aluminum (rotatable by 180°).
• Adjustable low-pass filter with slope steepness of 12 / 24 dB/oct and subsonic filter.
• Automatic turn-on function (SIG / DC).
• Start-Stop function.
• Adjustable gain 0.45 V - 6 V.
• Adjustable high-level input impedance (EPS load) for each pair of channels: 10 / 150 / 600 Ω.
• Adjustable high-level signal input voltage for each pair of channels: 1 - 15 V / 15 - 40 V.
• High-level inputs, low-level inputs (RCA).
• Removable connectors for power and audio signal connection.
• Variable mounting feet for quick and easy installation.
• Possibility of hidden mounting thanks to additional mounting points and blanking plugs.
• Amplifier can be stacked.
• Newly designed LED status light bar.
• Remote control for subwoofer level adjustment.
• Developed in Germany.
