Eton MA 6 amplifier

Eton MA 6 Amplifier

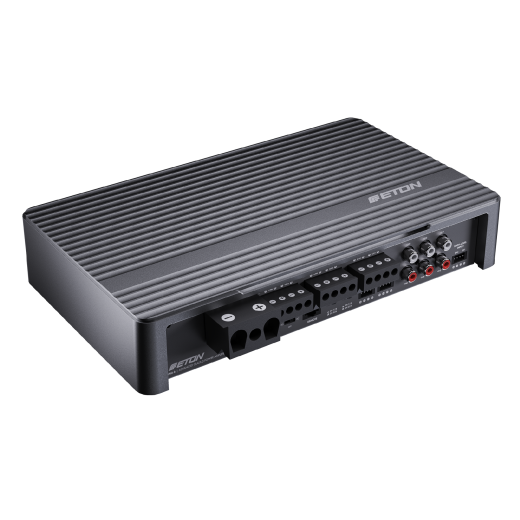

The new MA series power amplifiers - the six-channel MA 6, the two and four-channel models MA 2 and MA 4, and the monoblock MA 1, are the successors of the award-winning ETON MINI and ETON POWER amplifiers. The MA series is a new design line with a full set of features, premium sound, and high performance, compactly designed for easy installation. Built on modern Class D amplifier technology, these amplifiers provide high output power with fine resolution, low distortion, and offer HIGH GRADE CAR AUDIO developed in Germany. The MA series offers top-notch electronics in a beautifully designed casing made from a simple pressure-cast aluminum, anodized in a matte bronze finish. The aluminum housings act as heat sinks, ensuring efficient thermal management. The top panel with the ETON logo is removable and can be rotated 180° for optimal cosmetic integration. The MA amplifiers offer top control, with all settings accessible from the top of the amplifier, hidden under the top panel once configured. It covers all setting needs, including high and low-frequency filters, adjustable high-level input voltage, adjustable high-level input resistance (EPS load), and gain control. The MA series also features practical design elements like an adjustment tool integrated into the heat sink for easy settings. There's also an LED light indicating the operational status and providing a light source for easier control settings in dark spaces. Removable power and audio signal connectors and variable mounting feet complete the thoughtful feature set of the MA series. The amplifiers' stackable design allows two identical models to be installed on top of each other, fitting into tight spaces, with additional mounting points and blind holes for even greater versatility. The internal values are equally impressive: multilayer boards, high-quality electronic components, and premium manufacturing form the basis for the advanced Class D amplifier circuits, which are highly efficient. They offer superior sound for discerning listeners with the lowest distortion and highest control. Whether it's a six-channel amplifier for fully active operation of a three-way front system or a monoblock for powerful subwoofers, the MA series offers an unprecedented selection.

Main Features

• Newly developed advanced Class D amplifier technology.
• Newly designed, high-quality die-cast aluminum housing in a matte gunmetal grey finish with a removable top plate (rotatable by 180°).
• Adjustable high-pass 12 dB/octave and low-pass 12 dB/octave.
• Automatic turn-on function (SIG / DC).
• Start-Stop function.
• Adjustable gain 0.45 V - 6 V.
• Adjustable high-level input resistance (EPS load) for each channel pair: 10 / 150 / 600 Ω.
• Adjustable high-level signal input voltage for each channel pair: 1 - 15 V / 15 - 40 V.
• High-level inputs, low-level inputs (RCA), and low-level outputs (RCA).
• Removable connectors for power and audio signal connection.
• Variable mounting feet for quick and easy installation.
• Option for concealed mounting with additional mounting points and blind holes.
• Amplifier stackable.
• Newly designed status LED light bar.
• Remote control for subwoofer level adjustment.
• Developed in Germany.
