AudioControl PNW-XN3 crossovers

3-way crossovers, 2 pcs per package
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Description and parameters
Evaluation0
Category

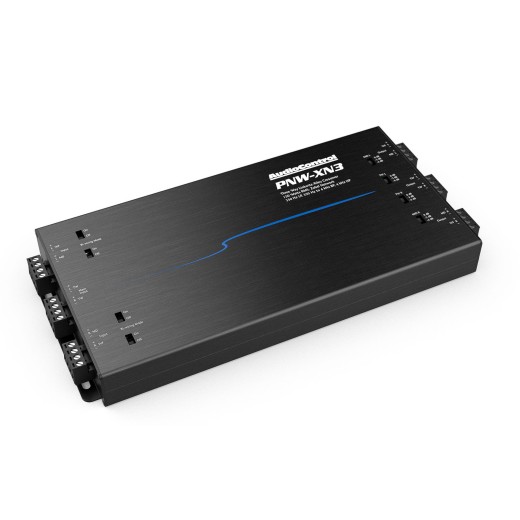

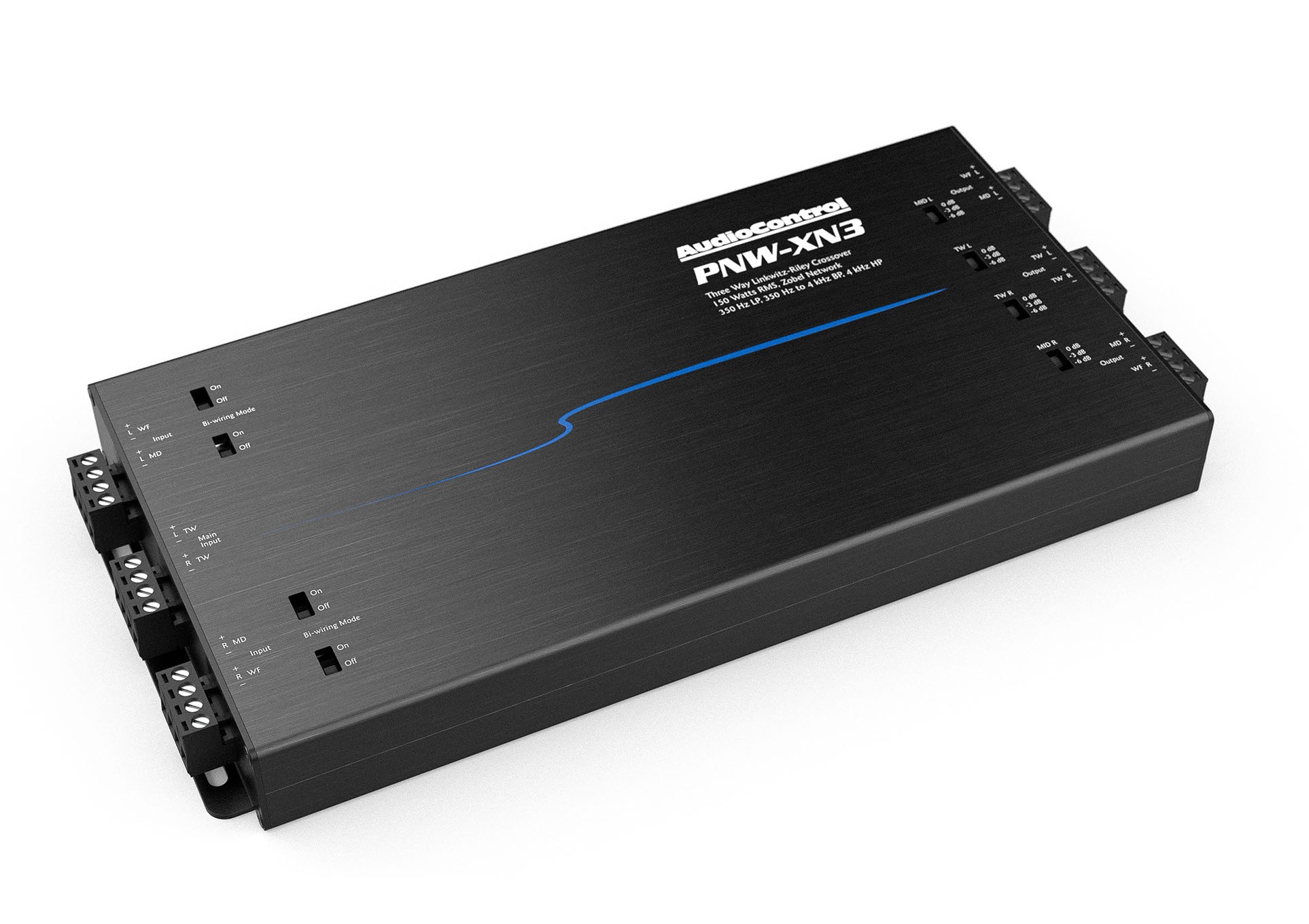

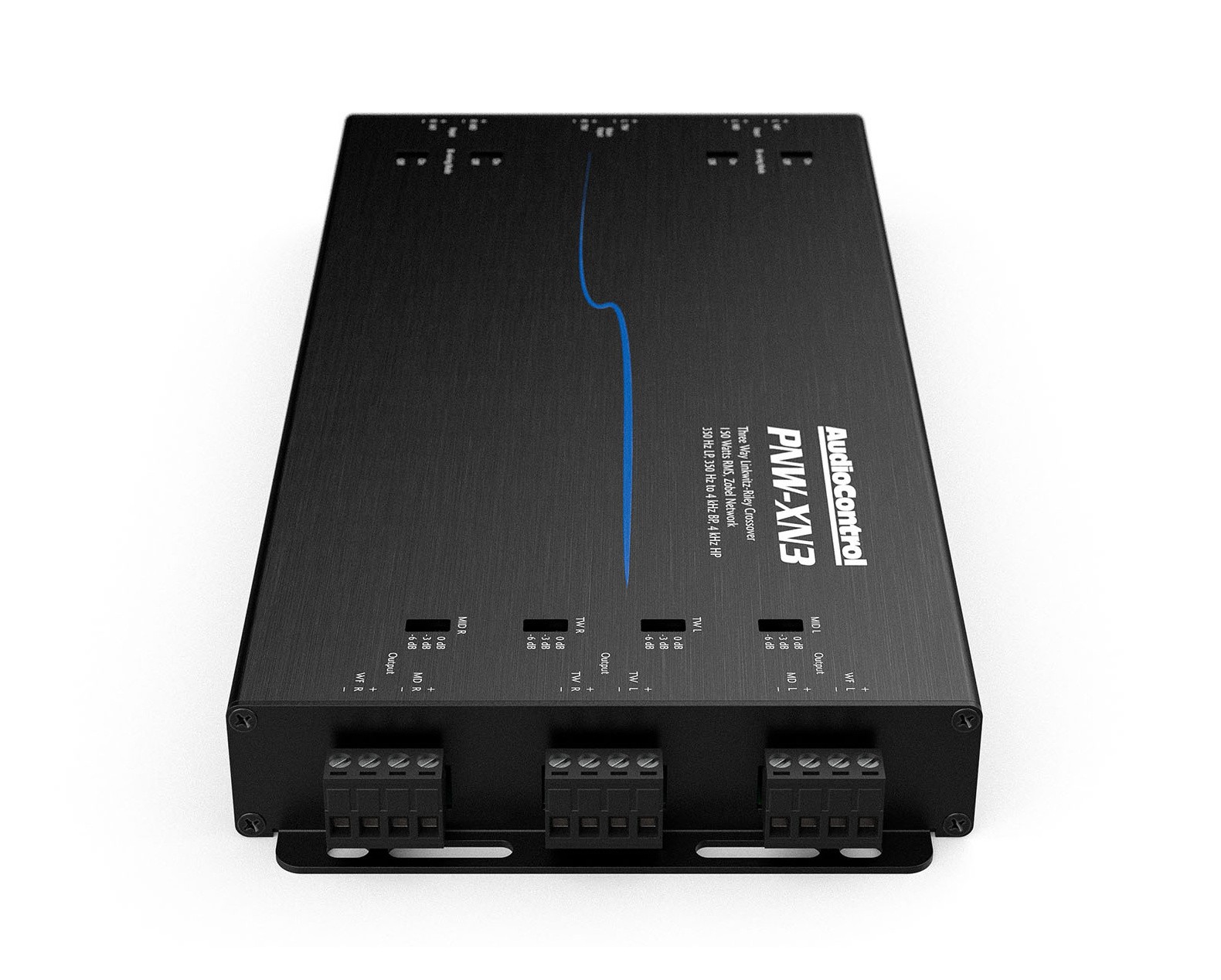

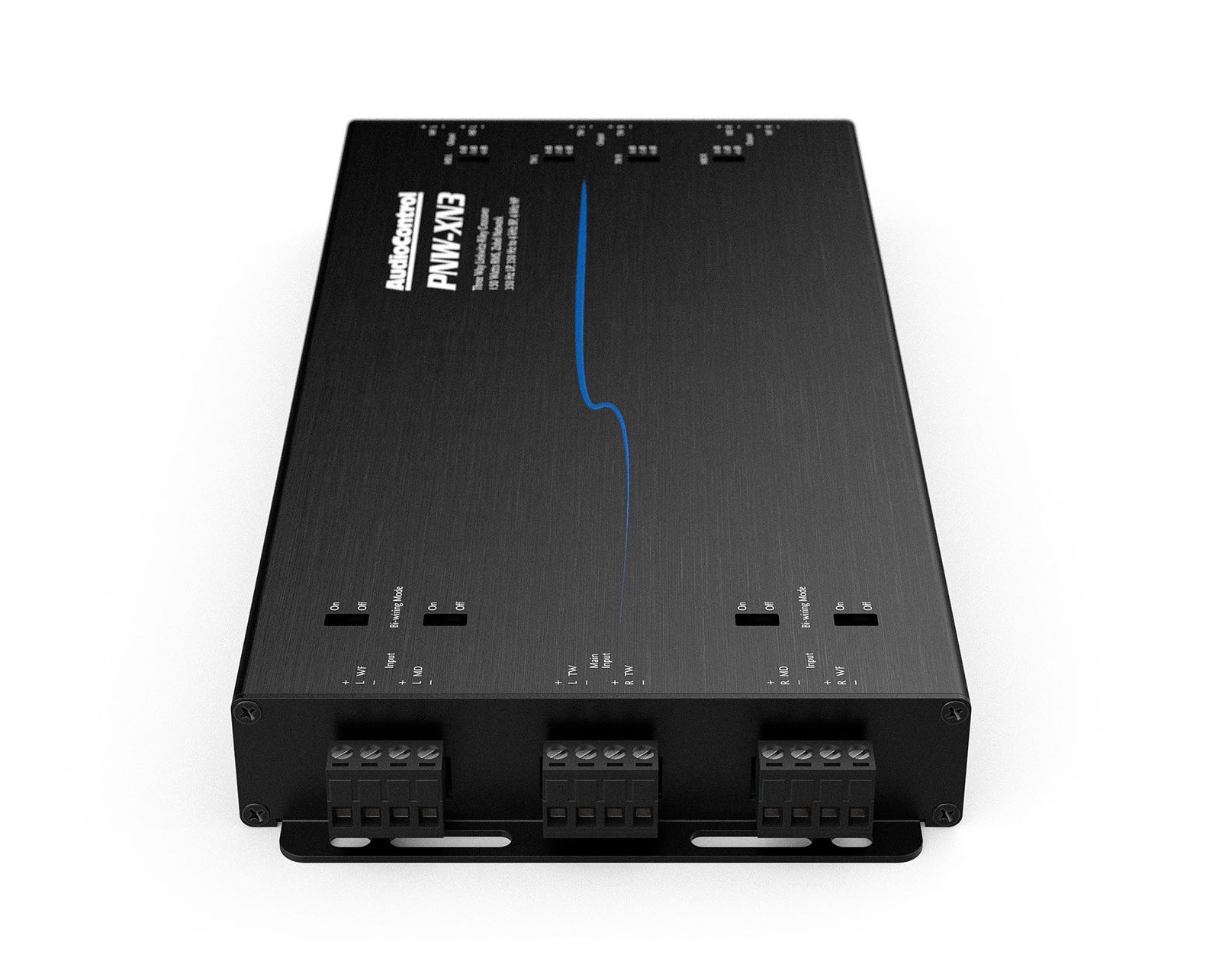

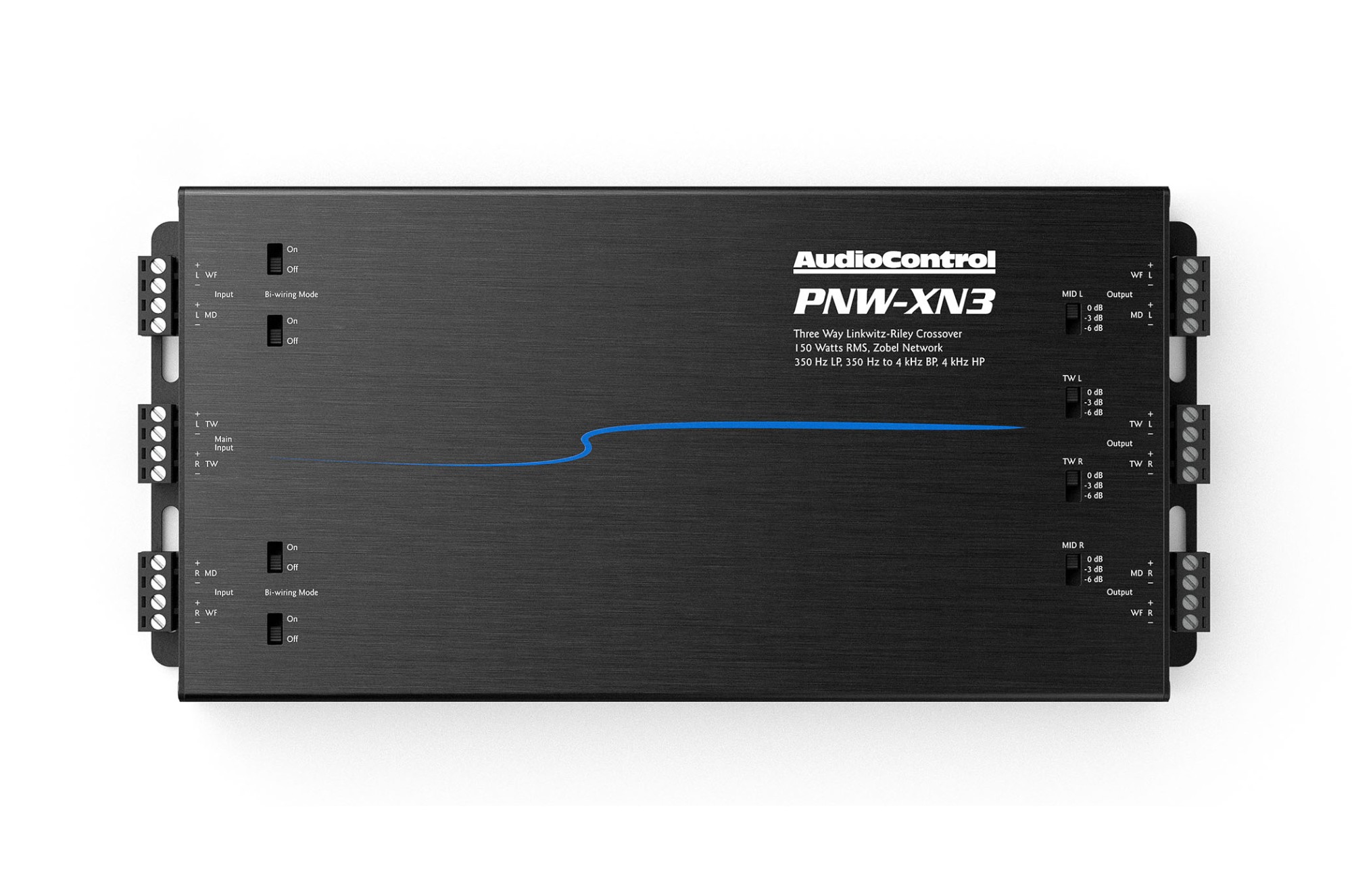

AudioControl PNW-XN3 Frequency Crossovers

The AudioControl PNW-XN3 frequency crossovers make it easy to build a full 3-way speaker system from PNW series components. By combining the PNW-275 center driver with the PNW-65CS2 or PNW-69CS2 two-way sets, you get precise frequency division and a highly balanced sound. The network uses 2nd-order Linkwitz-Riley filters and provides crossover points at 350 Hz (LP), 350 Hz – 4 kHz (BP) and 4 kHz (HP), ensuring smooth transitions between bass, midrange and treble. For fine tuning, the mid and high bands can be attenuated in steps of 0 / -3 / -6 dB. The PNW-XN3 handles up to 150 W RMS, providing ample headroom for most applications. The crossover is compact and easy to install, with robust terminals for reliable connections.

Key features

3-way frequency crossovers.
Crossover points: 350 Hz LP / 350 Hz – 4 kHz BP / 4 kHz HP.
Filter slope: -12 dB/octave.
Selectable attenuation for mid and high bands (0 / -3 / -6 dB).
Power handling: 150 W RMS (200 W max).
Compatible sets: PNW-65CS2 + PNW-275 or PNW-69CS2 + PNW-275.
Can also be used with speakers from other manufacturers.
