AudioControl EPICFIVE amplifier

Be the first to rate the product

Add to FavoritesRemove from favourites

5-channel amplifier, 4 x 75 + 1 x 300 W RMS (4 Ω) / 4 x 150 + 500 W RMS (2 Ω), class D
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Description and parameters
Evaluation0
Category

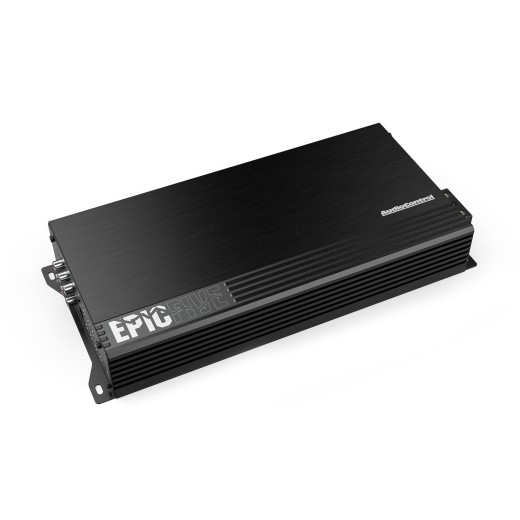

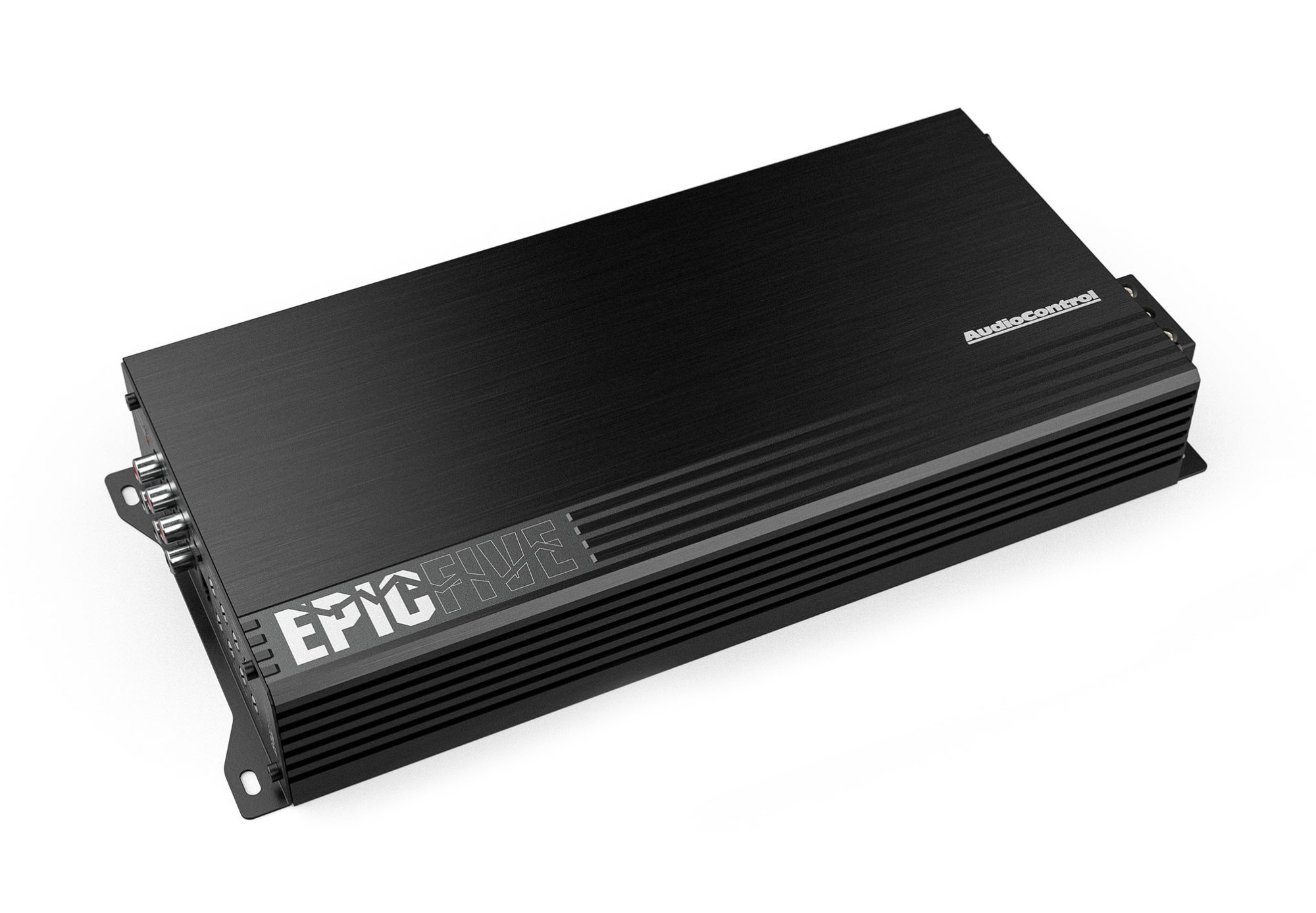

AudioControl EPICFIVE Amplifier

The AudioControl EPIC series amplifiers combine high power, compact dimensions and stable operation at low impedance. They are designed to drive subwoofers and high-performance speakers and, thanks to Class-D digital technology, provide efficient power transfer even under heavy load. The EpicFive model is a five-channel amplifier offering four channels for speakers and a separate high-power channel for a subwoofer. This makes it an ideal solution for a complete car audio setup from a single amplifier. Stable operation down to 1 Ω on the subwoofer channel allows connection of demanding bass systems. The package includes an ACR-E remote control for easy bass adjustment from the driver's seat. The EpicFive can be linked with The Epicenter Bass Restoration processor, which gives the bass component even greater control and detail. The amplifier is equipped with intelligent protection circuits with automatic reset and robust screw terminals that ensure reliable connections.

Main features

Compact 5-channel Class D amplifier.
Stable operation: channels down to 2 Ω, subwoofer channel down to 1 Ω.

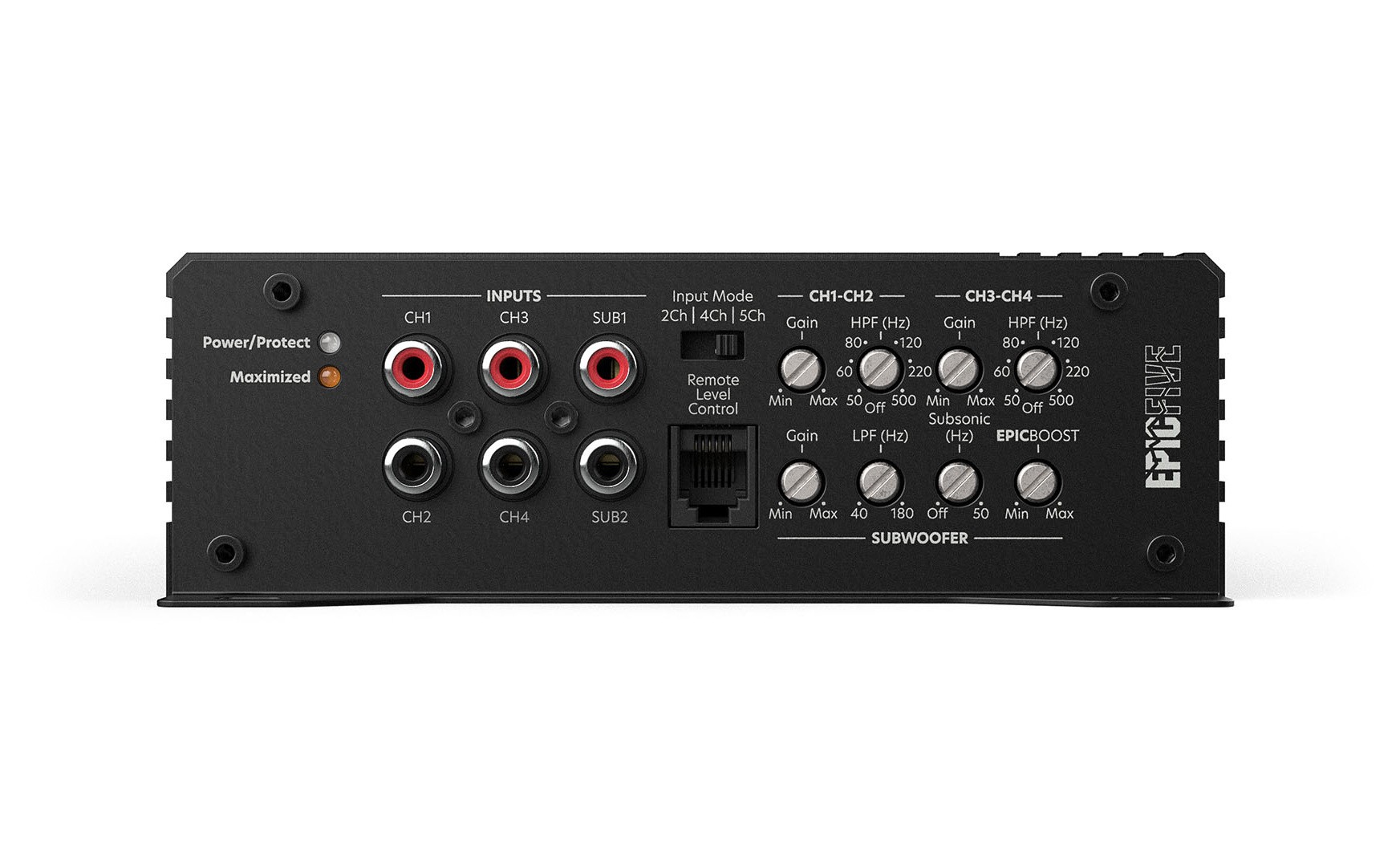

Variable Linkwitz-Riley high-pass and low-pass filters 12 dB/oct.
Variable subsonic filter (12 dB/oct).
EPIC Boost: adjustable bass gain up to +12 dB (45 Hz).
Signal-to-noise ratio 92 dB+ according to CEA standard.
Intelligent protection circuits (OCP, OVP, UVP, DCP, OTP) with automatic reset.
ACR-E bass remote included.
Direct connection to The Epicenter processor possible.

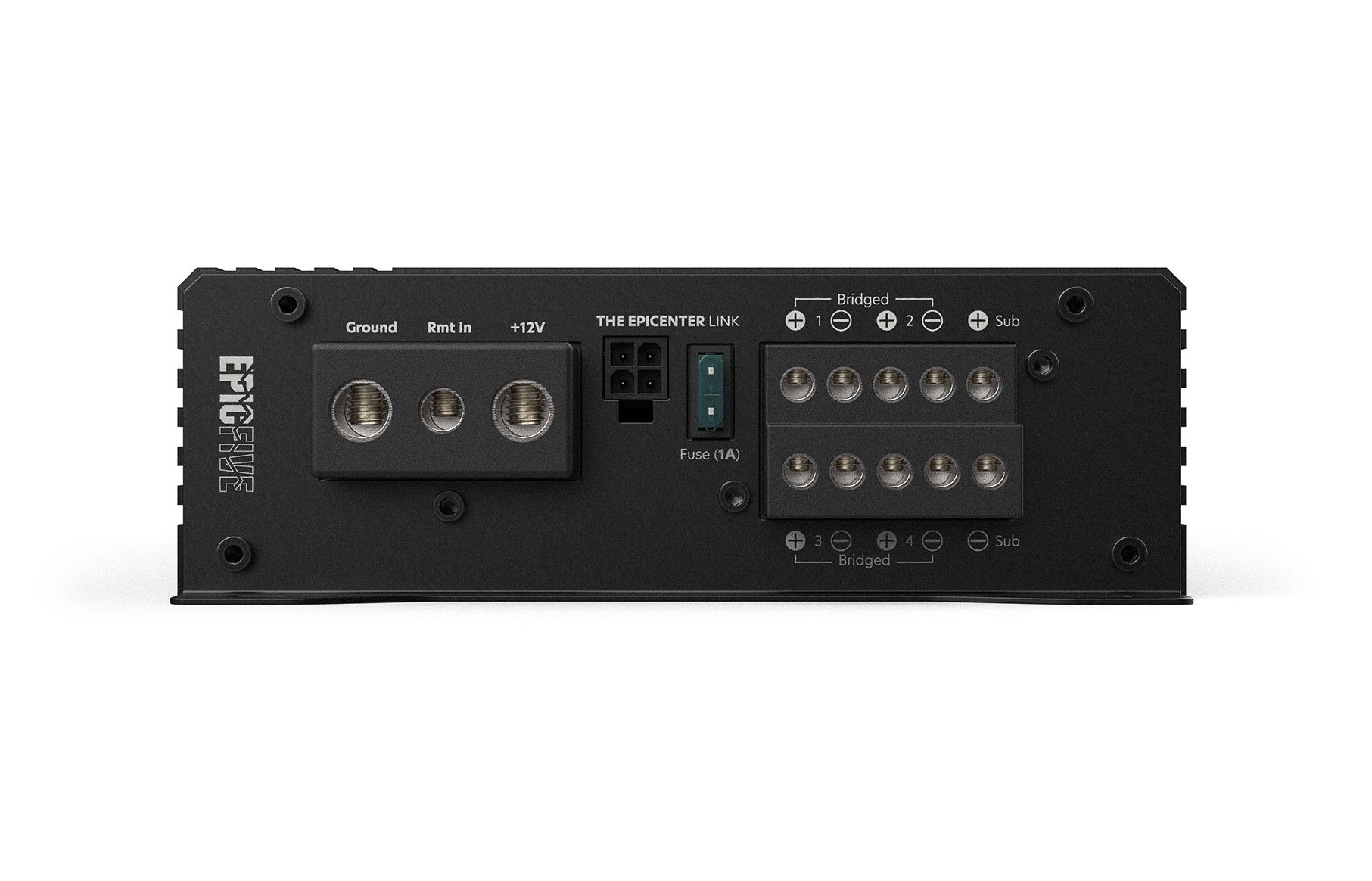

Heavy-duty screw terminals.

About AudioControl

As the name suggests, at AudioControl everything revolves around control of sound — and they've been doing it for more than 40 years. Especially in the United States, AudioControl is a respected and popular manufacturer not only of car audio but also of home audio. The company's headquarters, including research, development, manufacturing and training facilities, thrives in Mountlake Terrace, Washington, in the heart of the temperate rainforest of the Pacific Northwest. All products are therefore still designed and proudly manufactured in the USA, which ensures their high quality and reliability. This is also evidenced by the five-year warranty that AudioControl provides on its products. AudioControl engineers are responsible for several patented technologies that created new ways to improve car audio, and that's exactly what the company focuses on. The product range is relatively narrow, specializing in high-end digital amplifiers, DSP processors, equalizers, preamps and especially a range of products for implementing a new sound system into existing factory units. Professional measurement tools are also available to help fulfill AudioControl's main goal, perfectly captured by their slogan "Making good sound great".

Catalog number	EPICFIVE
Brand	Audio control
Links	Official web presentation (English)
Energy class of the amplifierAmplifiers are divided into two basic classes: analog and digital . Analog amplifiers (A/B) have higher consumption requirements, but usually have a more natural sound. Digital amplifiers (D) have significantly lower consumption and higher efficiency, but the sound may not be as faithful as with classic analog amplifiers.	D
Number of amplifier channelsAmplifiers are divided into: - Monoblocks - 2-channel - 3-channel - 4-channel - 5-channel - 6-channel - multi-channel Each channel is used to power one speaker for the coaxial type, or one side if they are component speakers. Monoblock type amplifiers are mainly used for subwoofers. 2-channel are suitable for both subwoofers and, for example, the front pair of speakers in a car. 3-channel is used for front or rear speakers + subwoofer. 4-channel are used for front + rear speakers or 1 pair of speakers + subwoofer. 6 or 5-channel are used for 2 pairs of speakers + subwoofer, most often. Bridging means connecting the amplifier to a bridge, using the + pole from one channel and the - pole from the other channel. In most cases this is shown as "BRIDGED" on the amplifier.	5
RMS power into 4 ΩRMS power when loading speakers or subwoofer at 4 Ω. RMS power is the constant power of the amplifier and is one of the most important parameters when choosing an amplifier.	4 x 75 + 1 x 300 W
RMS power into 2 ΩRMS power when loading speakers or subwoofer at 2 Ω. RMS power is the constant power of the amplifier and is one of the most important parameters when choosing an amplifier.	4 x 150 + 1 x 500 W
RMS power into 1 ΩRMS power when the subwoofer is loaded at 1 Ω. RMS power is the constant power of the amplifier and is one of the most important parameters when choosing an amplifier. When connected to 1 Ω, significant heating of the amplifier may occur.	4 x 150 + 1 x 700 W
Frequency rangeThe ability of the amplifier to reproduce the signal from the lowest frequency to the highest = faithfully reproduce the sound in a specific frequency band. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even specify this maximum tolerance of sound pressure in decibels in their catalogs for reasons of prestige. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	10 - 24,000 Hz
Signal-to-noise ratioThe signal-to-noise ratio means that the output signal always contains noise. The signal-to-noise ratio expresses how much of this noise is compared to the useful signal. The so-called A value is given, which does not take deep and very high frequencies into account. This corresponds to the characteristic of human hearing, which is not so sensitive to deep frequencies, especially below 1 kHz. The higher the value, the better the amplifier is.	92.1 dB
High pass filter (HPF)HPF / HP or The "hi pass filter" offers the option of setting the amplifier using a potentiometer so that medium, possibly mid-bass and treble frequencies play upwards from a certain frequency. Example: Amplifiers most often have an HPF from 40 to 300 Hz. If we set the potentiometer to a value of approx. 150 Hz, the sound will be clipped so that it plays frequencies from 150 Hz up to the maximum upper limit of the entire frequency range of the amplifier, perhaps up to 20,000 Hz. We recommend setting this potentiometer in the range of 80-160 Hz. Thanks to this setting option, the speakers can handle a higher performance, as you will not overload them with bass in the lower frequency range.	50 - 500 Hz
Low-pass filter (LPF)LPF / LP or "low pass filter" offers the possibility to adjust the amplifier using a potentiometer so that the lower band plays only the frequencies in a certain band that you need. This filter is used to adjust the frequency range for the subwoofer, so that it does not overload or distort the sound. Example: Amplifiers most often have an LPF from 20 to 300 Hz. We recommend setting this potentiometer in the range of 45-80 Hz.	40 - 180 Hz
Standby power consumption	< 1 A
High level inputsThe high-level input on the amplifier allows connection directly to the existing speakers in the car without additional purchase of an external high/low adapter. Important equipment in the case of installing an amplifier on an original car radio.	No
Automatic on and offThis function allows you to automatically switch on the amplifier.	Yes
Socket input terminalsFerrule terminals allow better wiring contact to the amplifier. It is also a more secure form of terminals. If you are tightening the sleeve terminals, we recommend retightening them after 1 day, as the connected cable gradually compresses.	Yes
Dimensions of the amplifier	155 × 339 × 51 mm
