AudioControl EPIC750 amplifier

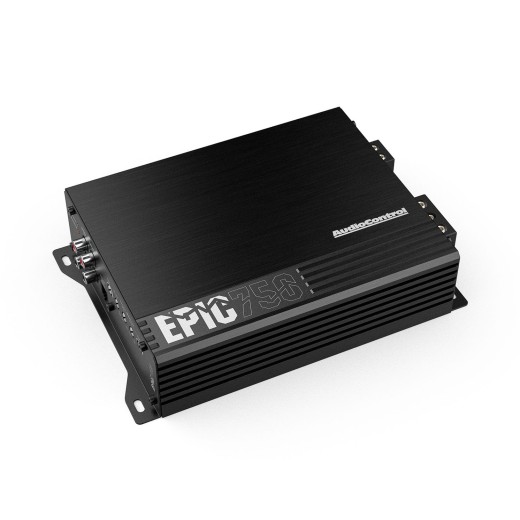

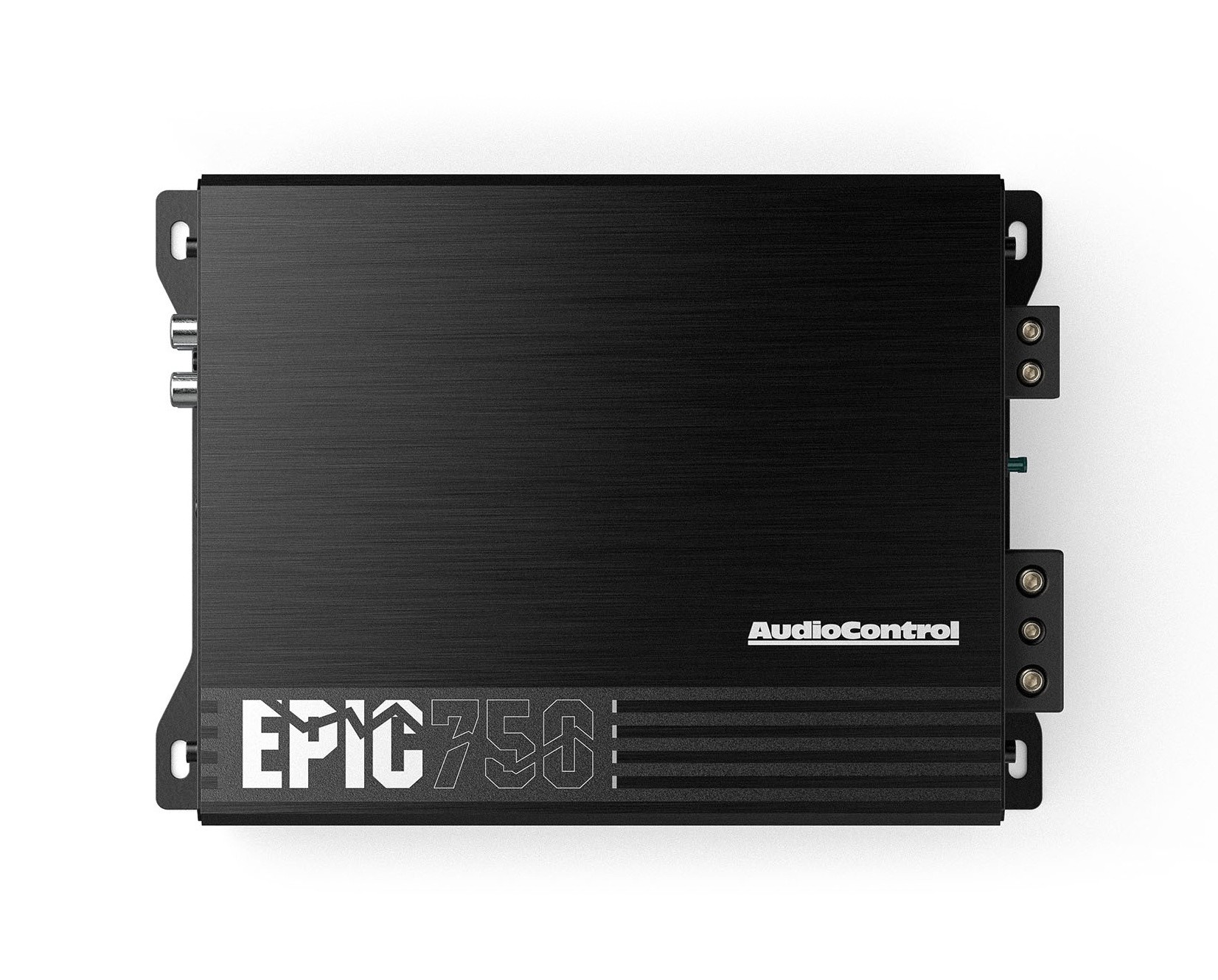

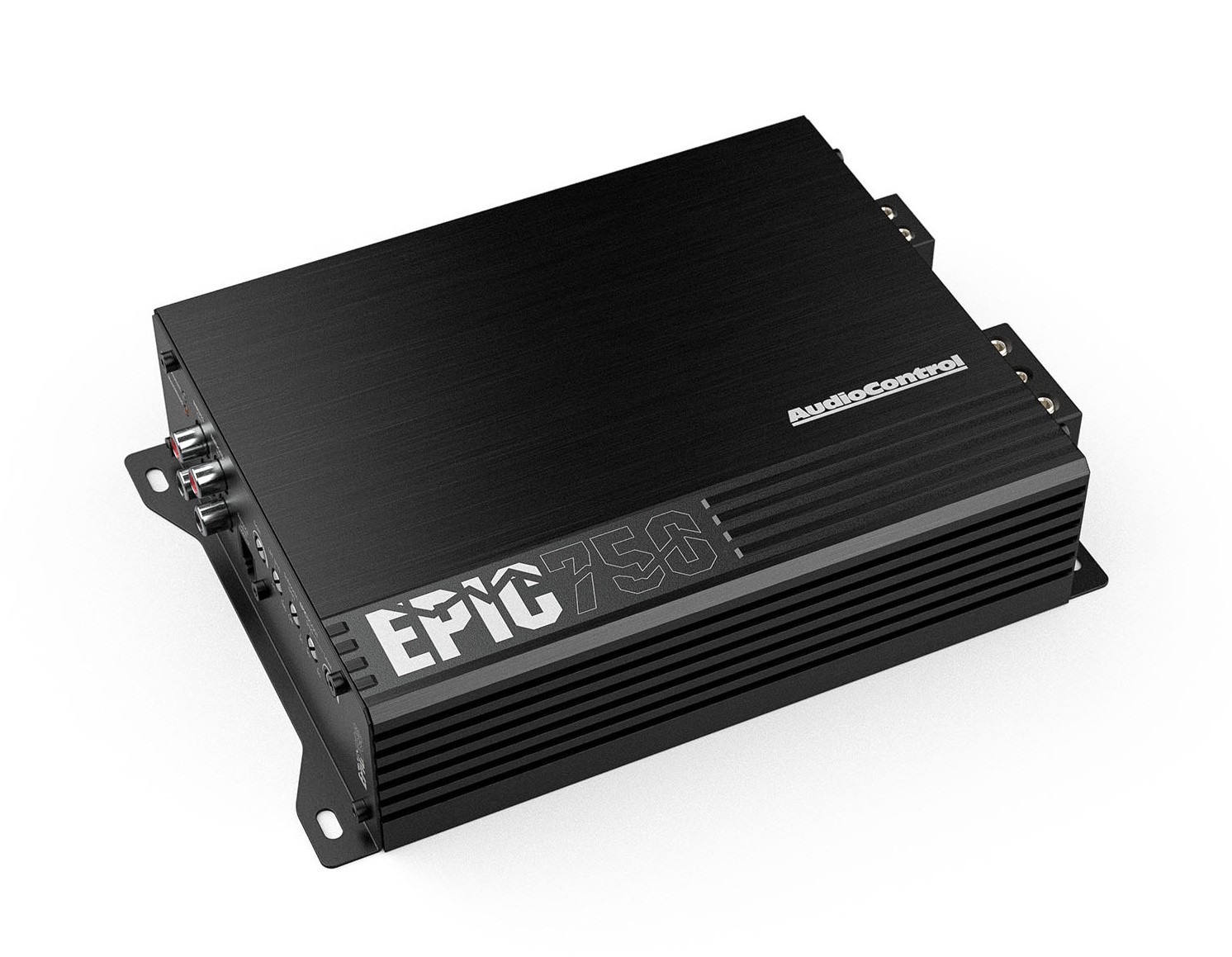

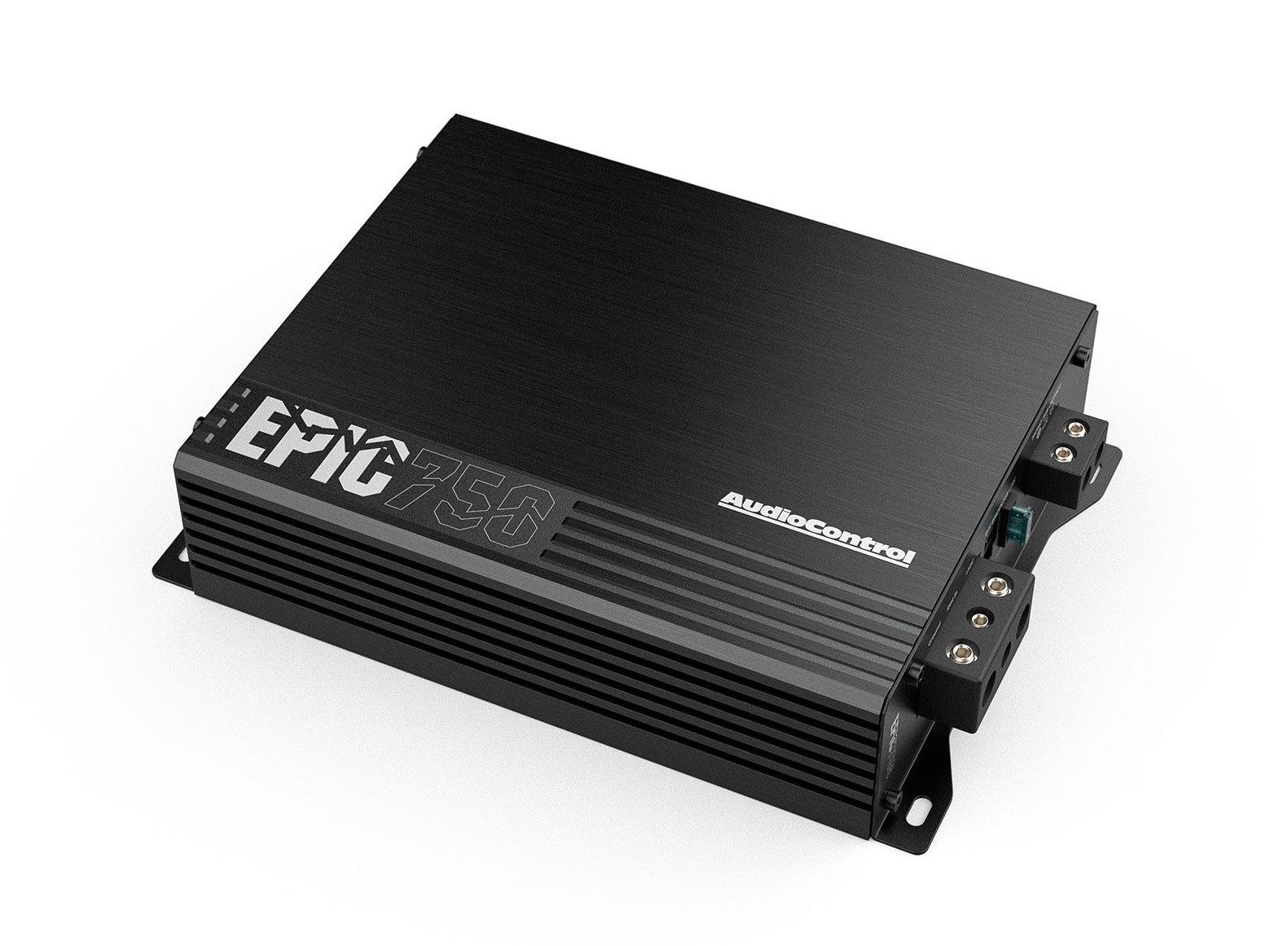

AudioControl EPIC750 Amplifier

AudioControl's EPIC series amplifiers combine high power, compact size and stable operation at low impedance. They are designed to drive subwoofers and high-performance speakers and, thanks to Class-D digital technology, deliver efficient power transfer even under demanding loads. The Epic750 model offers stability down to 1 Ω, variable filters and adjustable bass boost, allowing precise tuning of the bass response as needed. Included is the ACR-E remote for bass level control from the driver's seat. The amplifier is also equipped with protection circuits against overcurrent, overvoltage, undervoltage and overheating, ensuring reliable long-term operation. Heavy-duty power and speaker terminals with solid screw connections are provided for installation. The Epic500 can also be linked to The Epicenter Bass Restoration processor, which expands tuning and bass performance options.

Key features

• Compact Class-D monoblock.
• Stable operation down to 1 Ω.

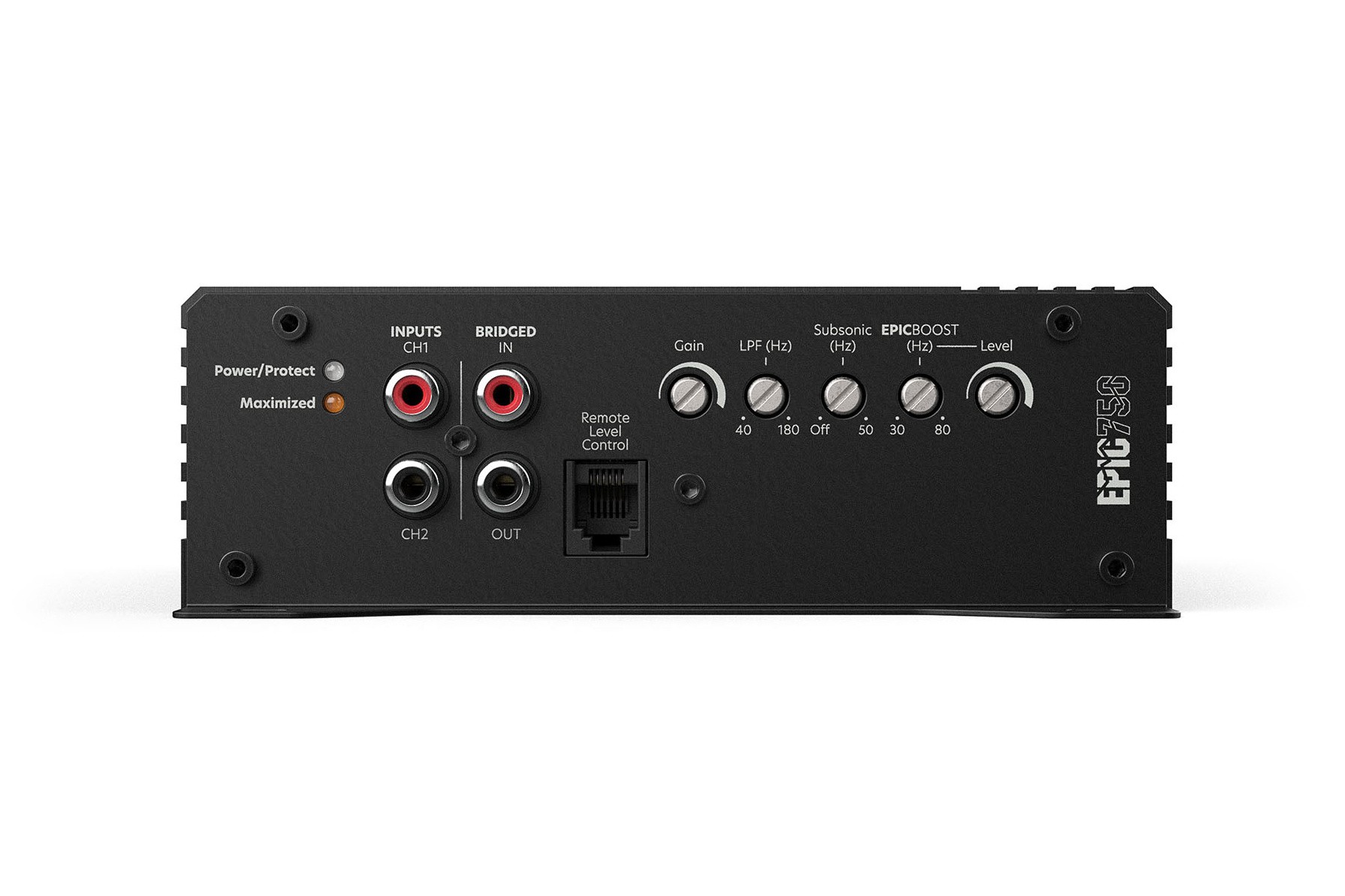

• Variable low-pass Linkwitz-Riley 12 dB/oct.
• Variable subsonic filter 12 dB/oct.
• Bass boost (EPICBoost™) with adjustable frequency.
• ACR-E remote bass level control included.
• Protection circuits: OCP, OVP, UVP, DCP, OTP with automatic reset.
• Signal-to-noise ratio 92 dB+ according to CEA standard.

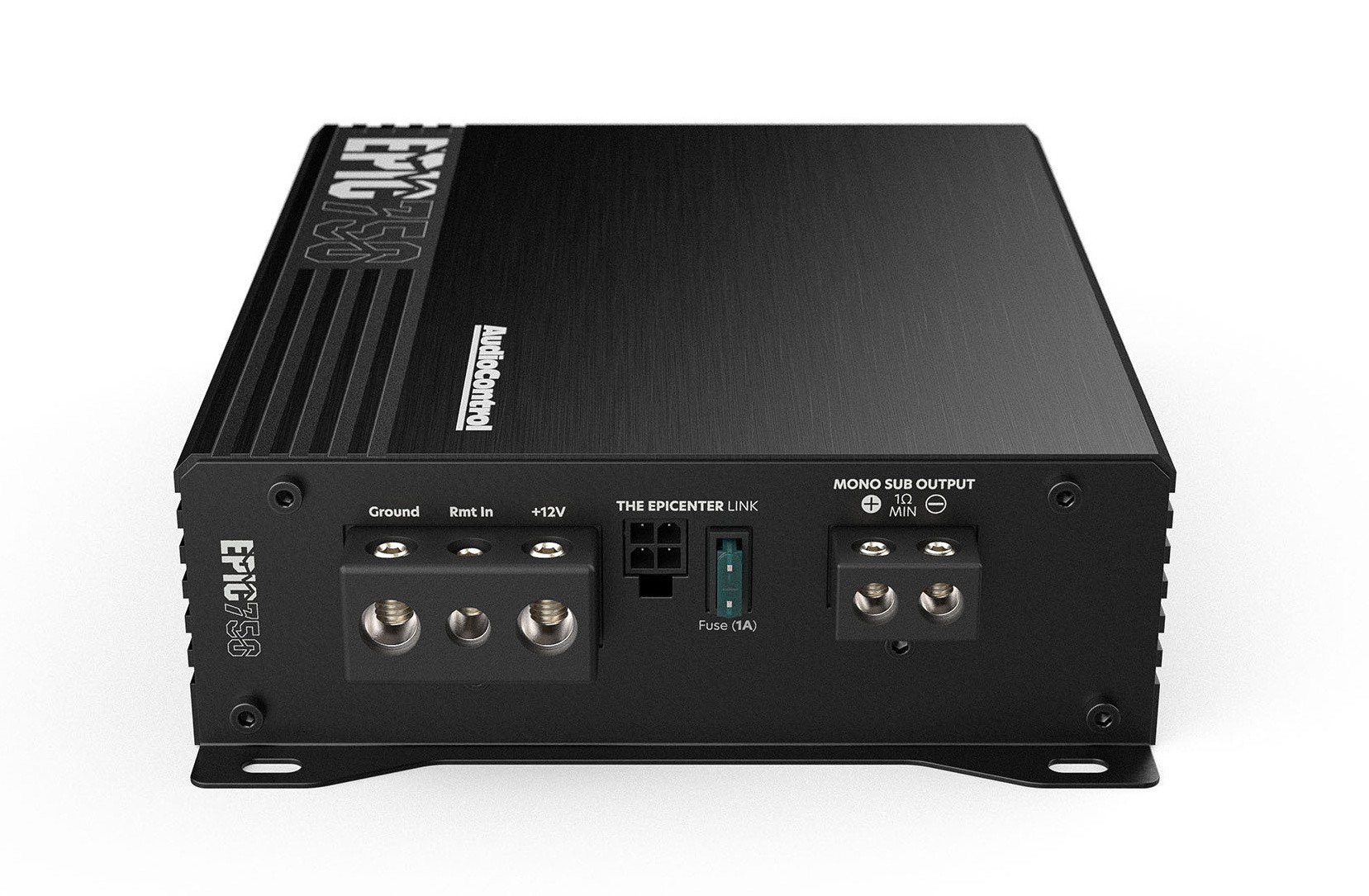

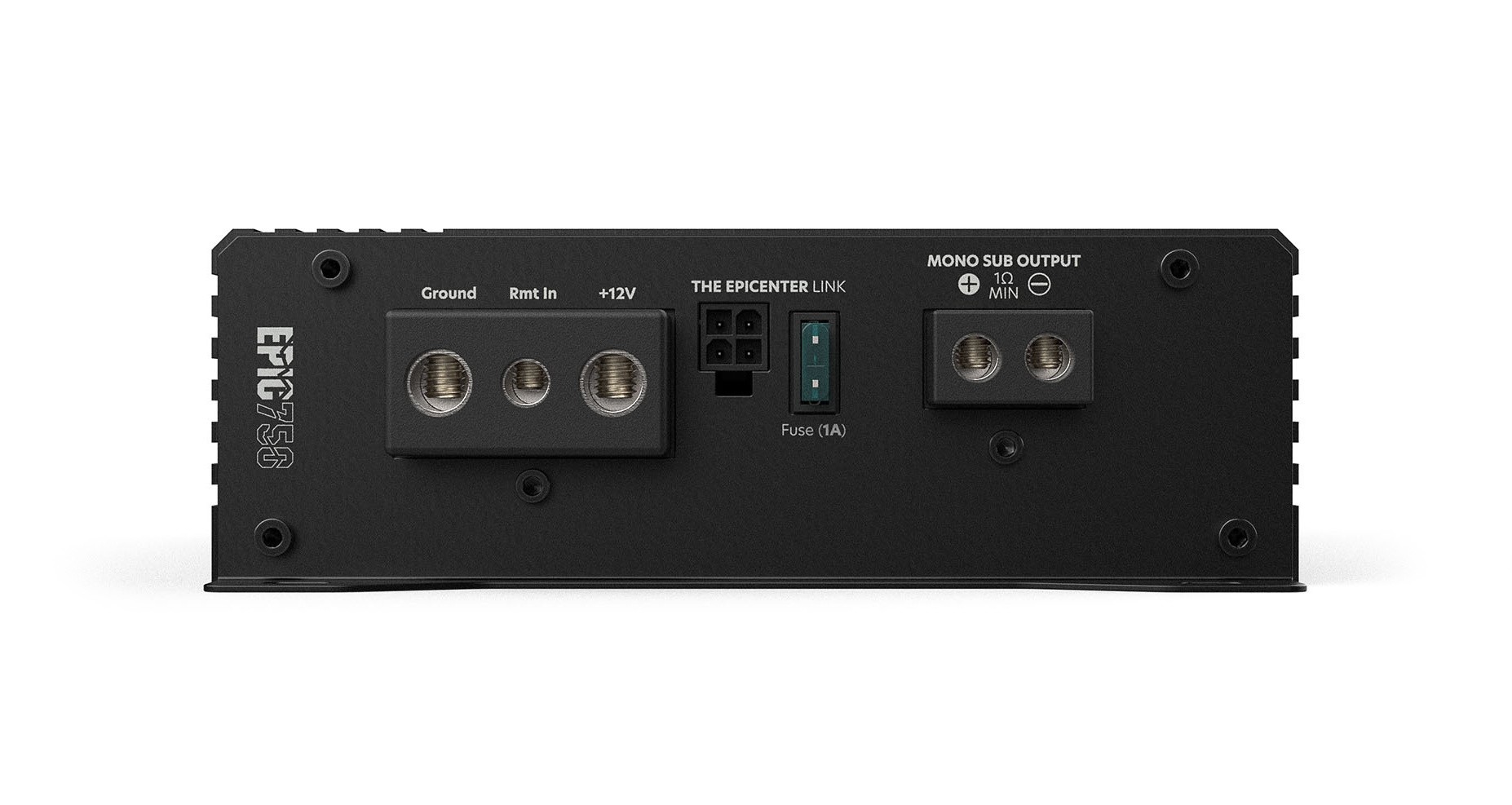

• Heavy-duty power and speaker terminals with screw connections (8 AWG).
• Ready to connect to the Epicenter processor.

About AudioControl

As the name suggests, AudioControl has been focused on controlling sound for more than 40 years. Particularly in the United States, AudioControl is a respected and popular manufacturer of both car and home audio. The company's headquarters, including research, development, manufacturing and training facilities, thrive in Mountlake Terrace, Washington, in the heart of the temperate rainforest of the Pacific Northwest. All products are still designed and proudly built in the USA, which guarantees high quality and reliability. This is reflected in the five-year warranty AudioControl offers on its products. AudioControl engineers are behind several patented technologies that created new ways to improve automotive audio—and that is the company's core focus. The product range is relatively narrow, specializing in high-end digital amplifiers, DSP processors, equalizers, preamplifiers and, above all, solutions for integrating new sound systems into existing factory units. Professional measurement tools are also available to help achieve AudioControl's main goal, perfectly captured by their slogan "Making good sound great".
