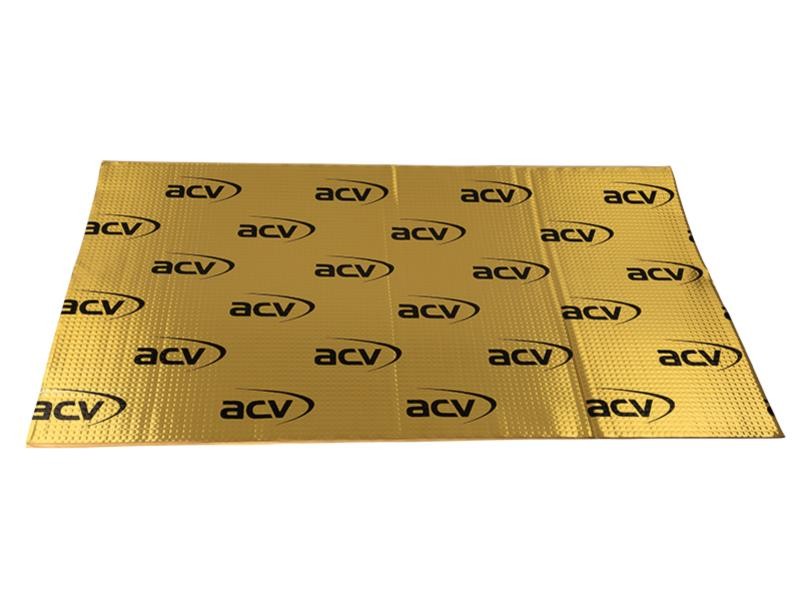

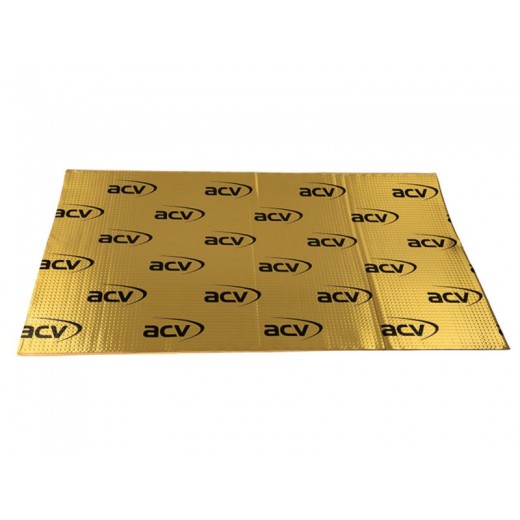

ACV Alu Butyl Heavy Duty multi-layer damping material
multi-layer material, 460 x 800 mm, thickness 6 mm
More about the product
More about the product
The sale is over
Please choose similar goods from the same category
The sale is over
Features of ACV Alu Butyl Heavy Duty damping material
- Effectively dampens vibrations thanks to a thick butyl layer.
- It is characterized by high weight and rigidity.
- It is suitable for cushioning vehicle floors and wheel arches.
- Composition: butyl layer + flexible intermediate layer approx. 3 mm + butyl layer + aluminum top layer.
- Price for 1 piece !!!
Technical parameters of ACV Alu Butyl Heavy Duty damping material
- Weight: 13.5 kg / 1 m².
- Weight of 1 plate: 4968 g.
ACV Alu Butyl Heavy Duty damping material dimensions
- Board size: 46 x 80 cm (0.368 m²).
- Material thickness stated by the manufacturer: 6 mm.
Where to apply ACV Alu Butyl Heavy Duty damping
- Floor, wheel arches.
| Catalog number | 30.1232-60-5 |
| Brand | ACV |
| Oversized shipment | Yes, |
| Links | Official web presentation |
| Material type | Multi-layered |
| Thickness | 6 mm |
| Dimension | 460 x 800 mm |
| Anti-noise membrane | No |
| Water resistance | Yes |
| Color | Gold with black print |
| Price for | 1 piece |
| Layer order | 1st and 2nd layer |
