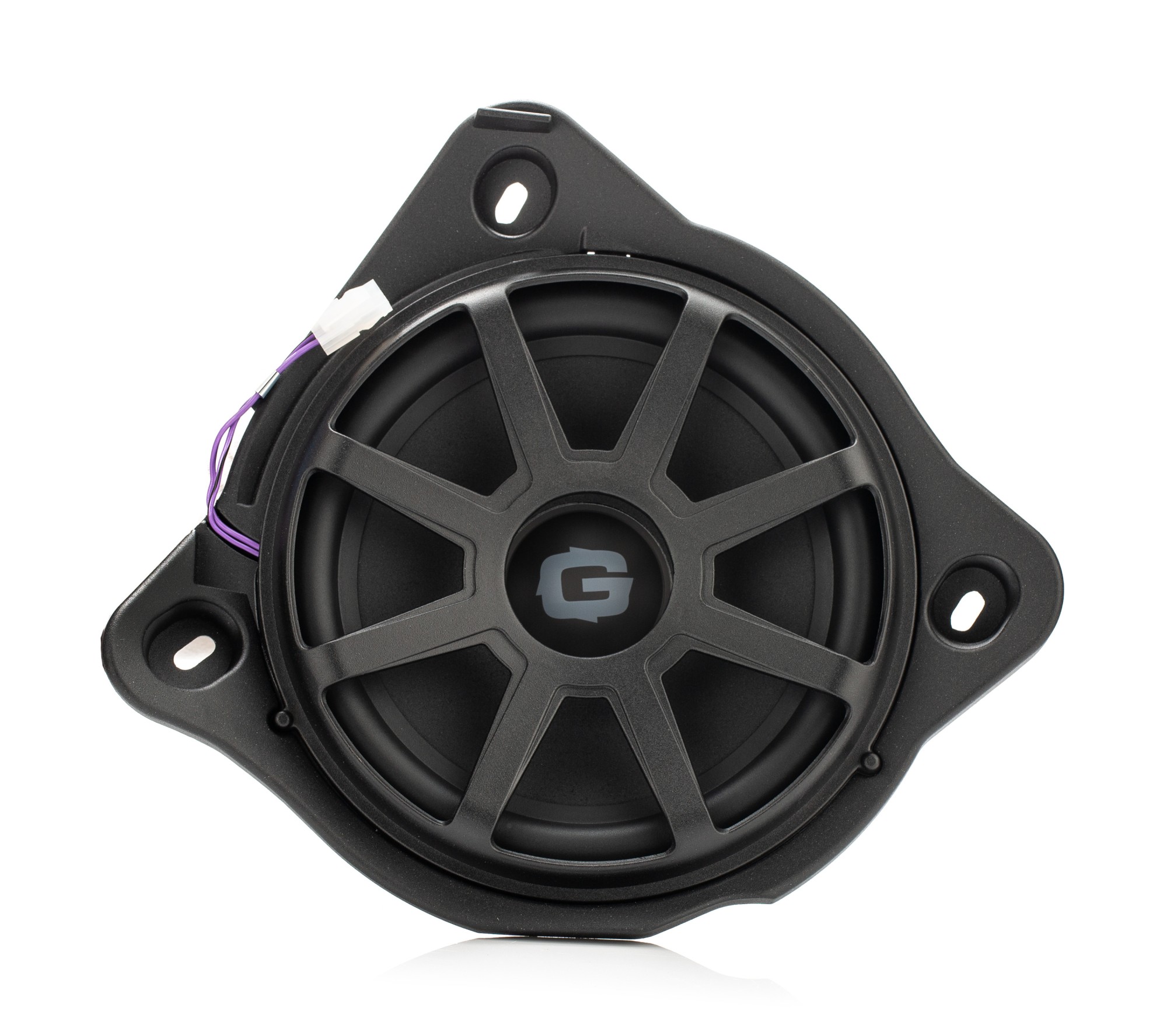

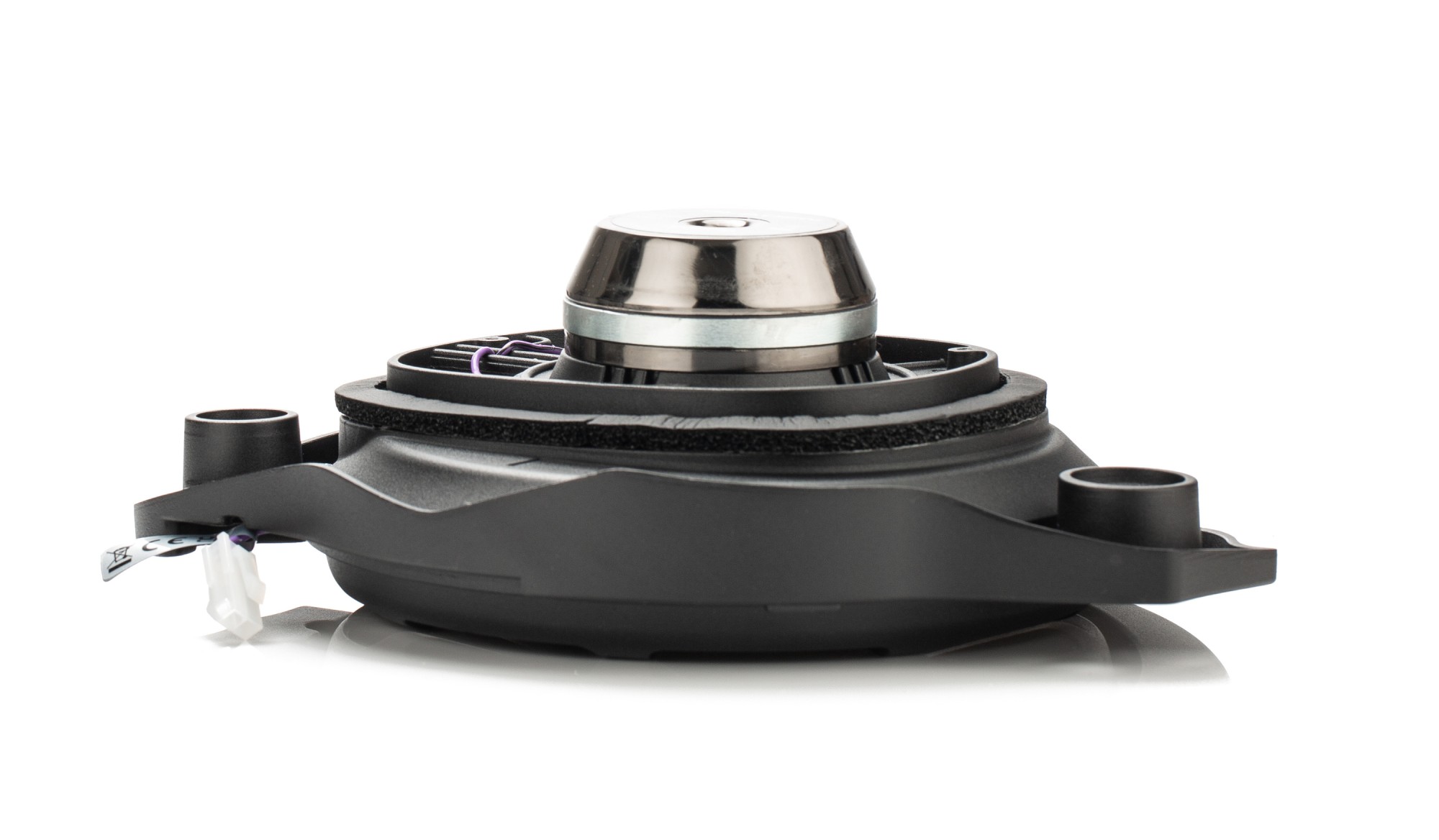

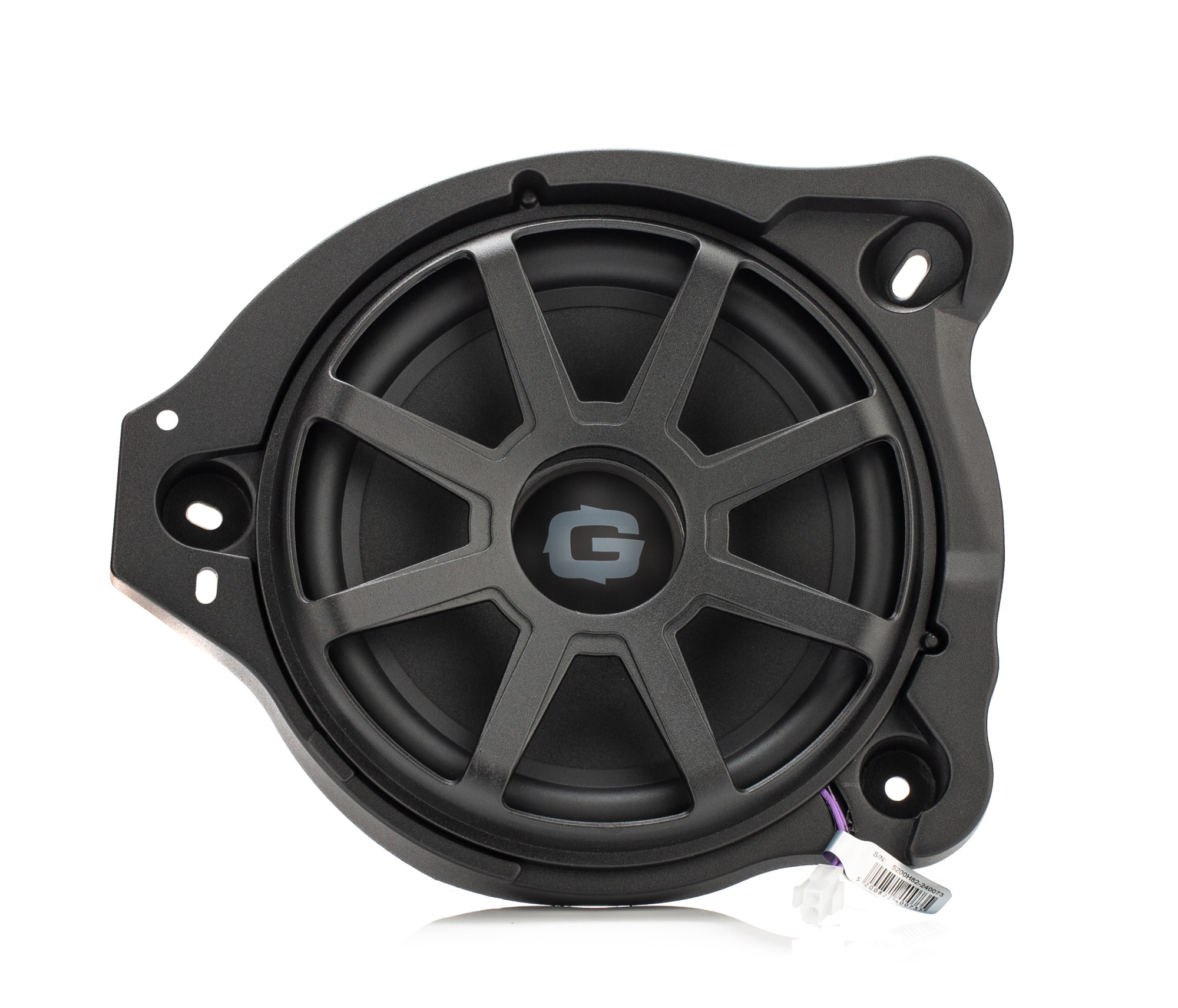

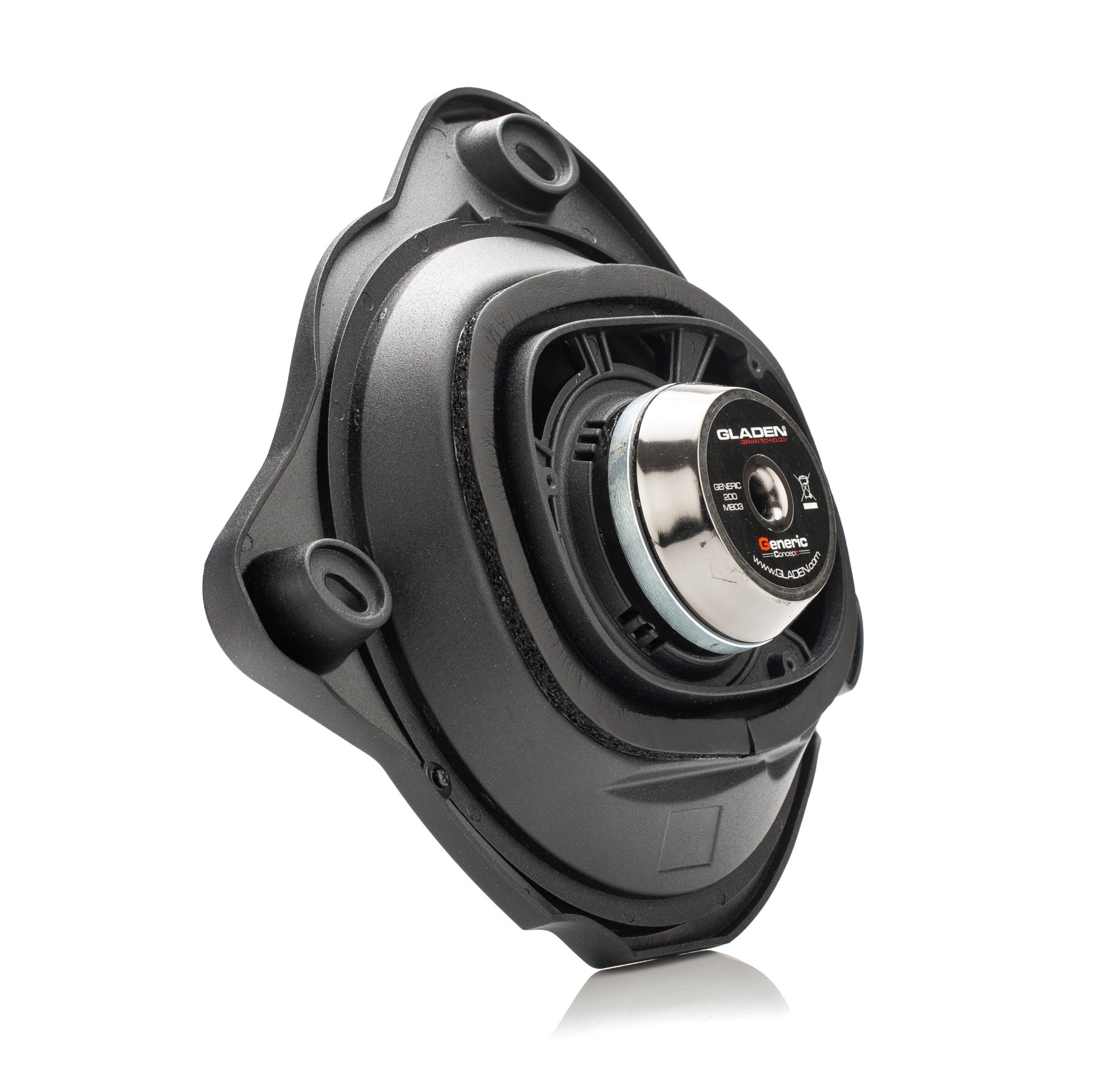

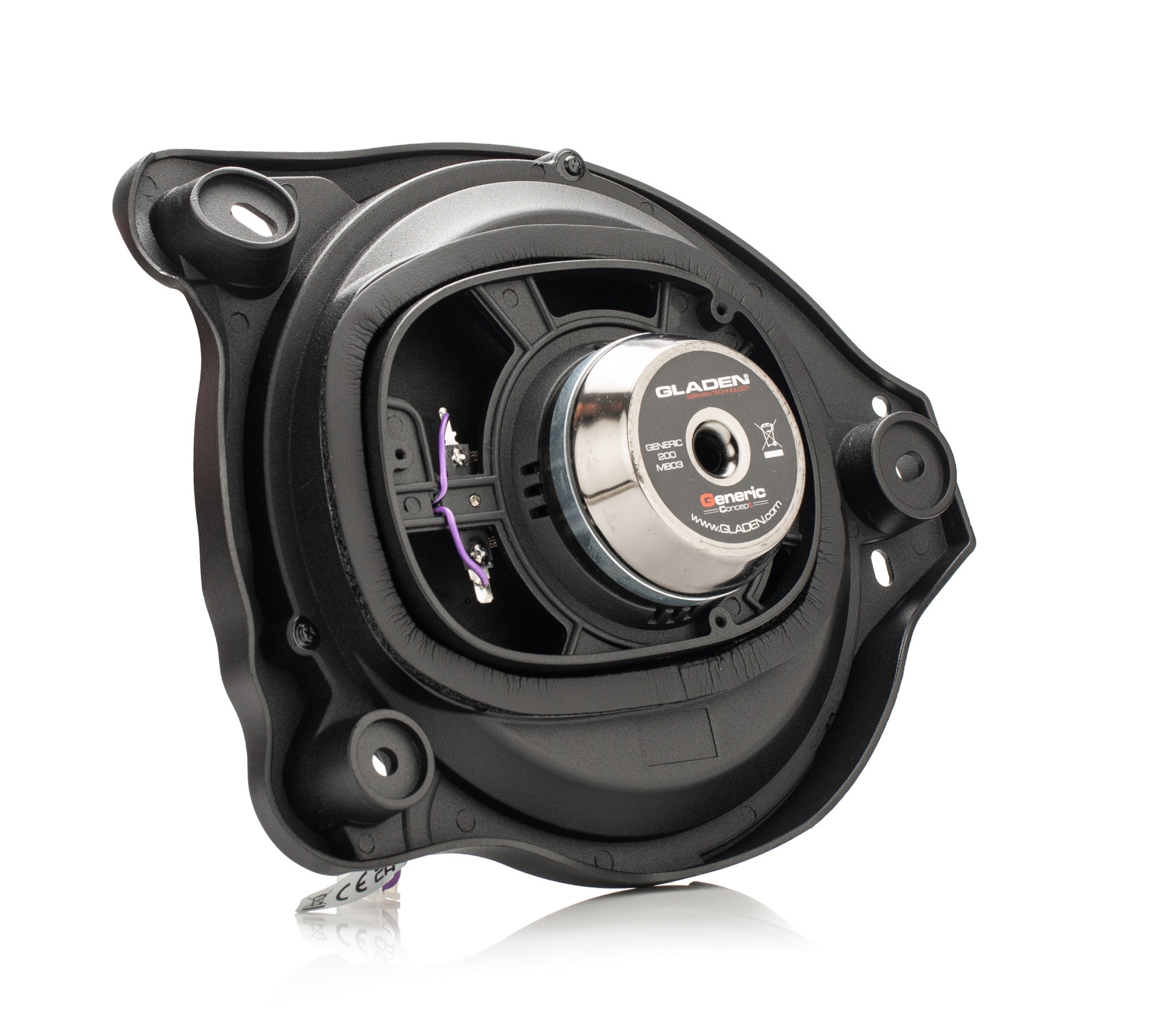

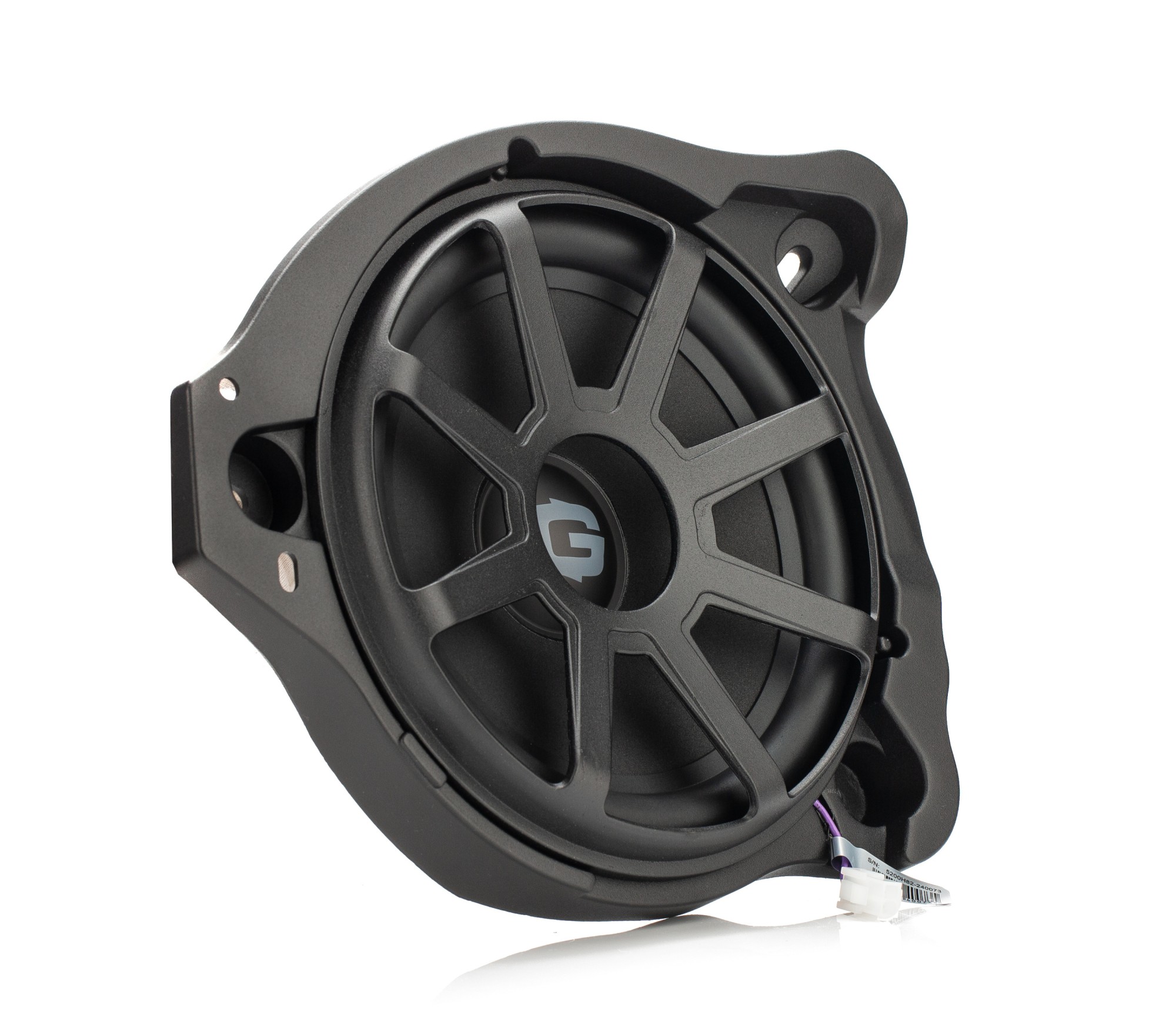

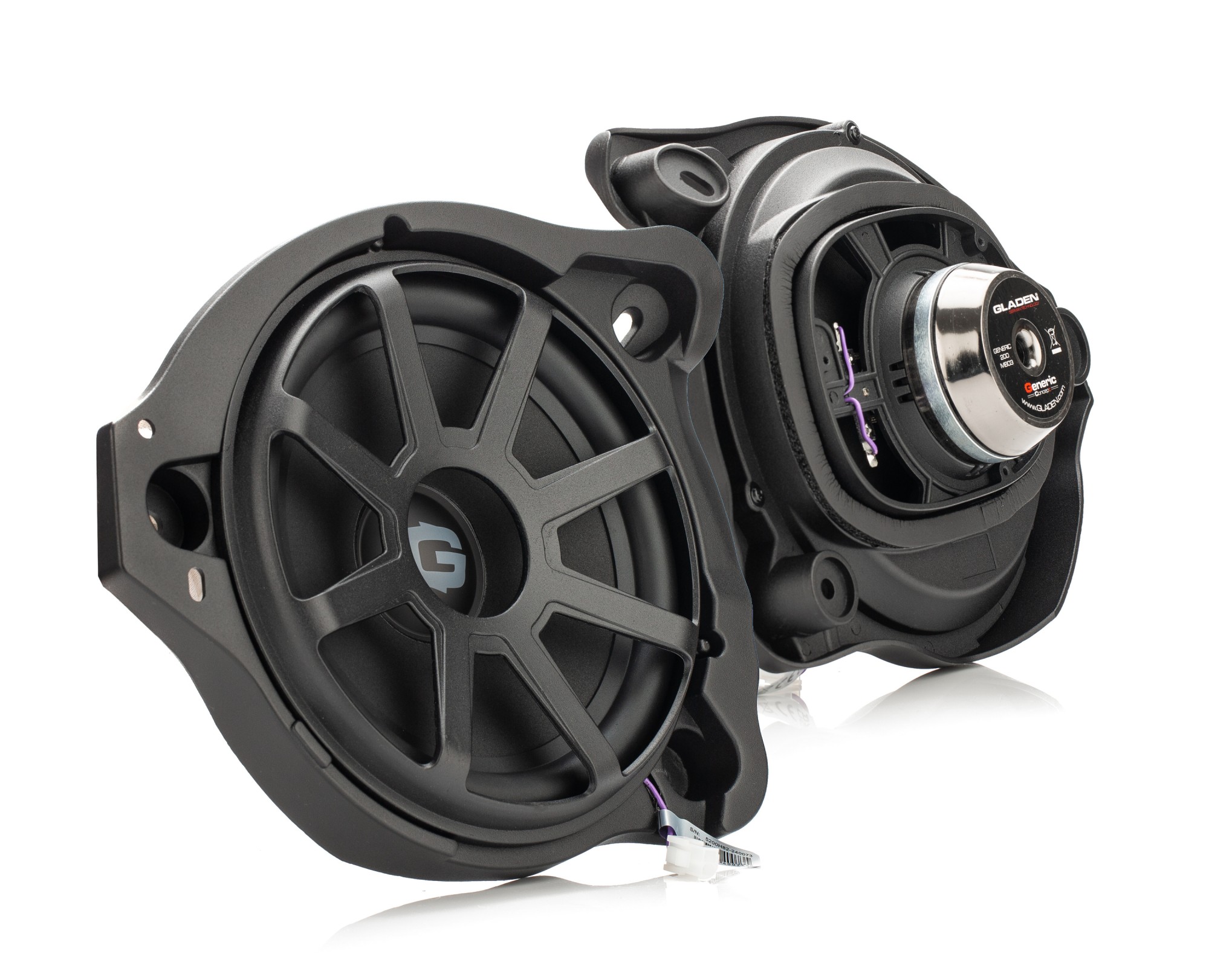

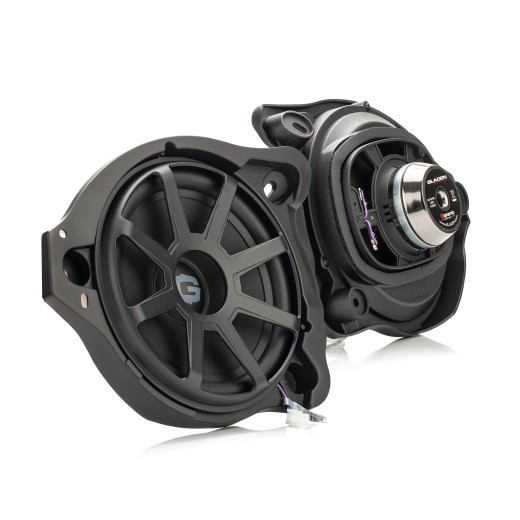

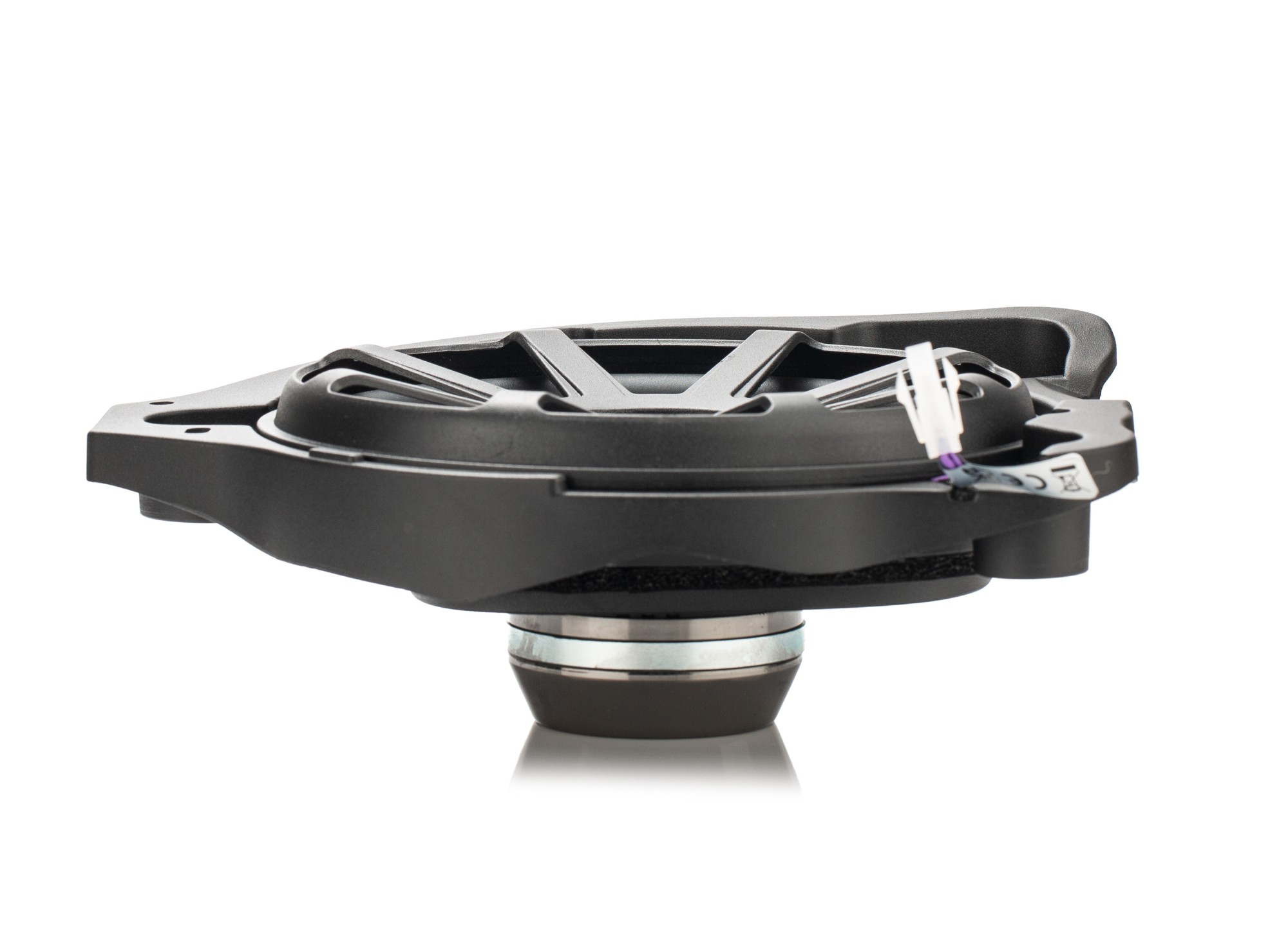

Subwoofers for Mercedes-Benz Gladen Generic 200 - MB03
Gladen presents the unique Generic concept, aimed at creating an optimized speaker system for specific car models from universal components. This series incorporates all the accumulated experience of Gladen engineers to produce high-quality products that significantly outperform standard plug & play solutions. Achieving this is possible only through extensive development, rich experience, and the use of the highest quality materials. Key features of the Generic components include a sturdy aluminum basket, ensuring extremely low vibrations and resonances. The newly developed cone of midrange and midbass speakers, made from special mineral paper, provides exceptionally accurate, open, and dynamic sound, complemented by a high-quality silk tweeter. The new Generic concept offers a wide range of installation accessories in the form of adapters for specific vehicle models, which can either be purchased or printed by yourself using a 3D printer.
Main Features of the Gladen Generic 200 - MB03 Subwoofer
- High-quality subwoofers for selected Mercedes-Benz vehicles.
- Easy installation in the models listed below due to specific design.
- Optimal solution in combination with Gladen Generic midrange and tweeter speakers.
- Mineral paper cone for faithful and rich bass component.
- Sturdy ABS plastic basket eliminating vibrations and resonances.
- Powerful neodymium magnet for excellent control and high performance.
- Same size, shape, and connectors as factory subwoofers.
- Plug & play wiring for quick and easy installation.
- Designed for a matching amplifier and DSP processor, but can also be used with a factory amplifier.
- Price per pair.
Compatibility
- C-Class (W205)
- E-Class (W213)
- GLC (X253)
| Catalog number | GENERIC 200 - MB03 |
| Brand | Gladen |
| RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer. | 100 W |
| Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur, or to burn out the voice coil of the subwoofer. | 200 W |
| Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with 91 dB sensitivity needs only 150 Watts to reach the same efficiency. | 91 dB |
| Sensitivity (SPL 1W/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 watts to produce a certain volume, then a 91 dB subwoofer needs only 150 watts to reach the same efficiency. | 88 dB |
| ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm. | 3 Ω |
| Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers. | 200 mm |
| Fs - resonant frequencyFs - is the lower resonant frequency. This parameter is the de facto free air resonant frequency of the subwoofer. Simply put, it is the point at which the weight of the subwoofer's moving parts equals the force of the subwoofer's suspension while it is in motion. If you've ever seen a piece of string start to hum uncontrollably in the wind, you've seen the effect of reaching a resonant frequency. The weight of the moving parts and the stiffness of the suspension (surround and spider) are key elements that affect the resonant frequency. As a general rule, a lower Fs indicates a subwoofer that would be better at reproducing low frequencies than a subwoofer with a higher Fs. However, this is not always the case, as other important parameters of the subwoofer also enter the resulting sound. | 46.03 Hz |
| Subwoofer diaphragm materialThe specific material from which the subwoofer membrane is made. | Mineral paper |
