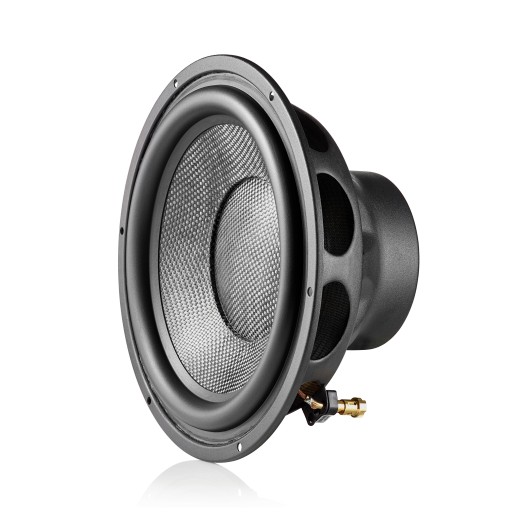

Subwoofer Morel Ultimo SC-X 122

Name: Subwoofer Morel Ultimo SC-X 122
Brand: Morel
Price: 679.00 EUR
Availability: InStock

Be the first to rate the product

Add to FavoritesRemove from favourites

subwoofer, Ø 12", 600 W RMS, 86.5 dB (2.83V/1m), 2 Ω, for SQ installations, design grille
More about the product

We will help you with your purchase

You can return the goods to us within 14 days

Description and parameters
Evaluation0
Category

Subwoofer Morel Ultimo SC-X 122

The Ultimo SC-X represents the latest generation of legendary Morel subwoofers, offering significant improvements in all key areas. A newly designed motor, enhanced voice coil, redesigned suspension, and innovative diaphragm design make this subwoofer a benchmark in its class. The Ultimo SC-X delivers uncompromising performance, exceptional control, low distortion, and versatile use in both sealed and bass-reflex enclosures. An ideal choice for anyone seeking the perfect combination of musicality, dynamics, and precision.

Carbon Fiber and Paper Composite Diaphragm

The sandwich diaphragm made from a hybrid composition of carbon fibers and paper offers up to 200% higher stiffness than conventional materials, contributing to a highly controlled and precise bass response without distortion. This material combination ensures excellent self-damping without unwanted resonances. The new suspension system allows greater diaphragm excursion and provides an even wider dynamic range. The Ultimo SC-X can play even the most demanding bass passages with full force and control.

DMM™ – Double Magnet Motor System

The Ultimo SC-X subwoofers utilize an advanced DMM™ (Double Magnet Motor) system, which combines a pair of powerful ferrite magnets to maximize magnetic efficiency. The result is more precise coil movement, higher power reserve, and minimal distortion even at maximum load.

5.1" Hexatech™ Voice Coil

The core of the subwoofer is a large 5.1" aluminum voice coil with Hexatech™ technology, ensuring extreme power handling, excellent cooling, and piston-like linear motion without distortion. This construction delivers deep and accurate bass even at high power.

Optimized Motor

The ventilated motor with ingenious construction significantly improves cooling, extending the lifespan of the coil and eliminating thermal compression during prolonged use. The heavy-duty steel Uniflow basket also eliminates vibrations and contributes to sound clarity.

Design and Application

The package also includes a brand new protective grille inspired by the shape of a lotus flower, highlighting the unique design of this new generation. Robust 10 AWG spring-loaded terminals ensure easy and reliable installation. SC-X subwoofers are suitable for use in both sealed and bass-reflex enclosures. With its tuning, it offers both high acoustic pressure and precise, detailed reproduction. It stands out in any system focused on sound quality.

Main Features

Carbon fiber sandwich diaphragm for maximum precision, detail, and efficiency.
Completely redesigned motor structure for higher dynamics and precision.
Large 5.1" Hexatech™ coil on aluminum carrier for maximum control and minimal distortion.
Improved suspension system allows greater excursion and performance.
10 AWG spring terminals for easy connection.
Double ferrite magnet assembly (Double Magnet Motor).
Ventilated motor structure for efficient cooling and long-term reliability.
Heavy steel Uniflow basket eliminates unwanted resonances.
Newly designed protective grille inspired by the shape of a lotus flower is included.

Catalog number	ULTIMO SCX122
Brand	Morel
Links	Official web presentation
RMS powerThe RMS power of the subwoofer is the constant power of continuous use of the subwoofer. If the power is exceeded for a longer period of time, irreversible damage may occur, or to burn out the voice coil of the subwoofer.	600 W
Max. (maximum performancePeak performance , which the subwoofer can play momentarily (approx. 0.5 s), for example when hitting drums in a song. If the maximum power is exceeded, damage can quickly occur, or to burn out the voice coil of the subwoofer.	2000 W
Sensitivity (SPL 2.83V/1m)Subwoofer sensitivity or efficiency. The sensitivity of the subwoofer is given in decibels (dB) and, in simple terms, means that the higher the value, the lower the demands on the power of the amplifier. This is a de facto rating of how a subwoofer converts watts to sound. Sensitivity ratings are in noise level measured at 1 meter from the subwoofer using 1 W (watt of power) or using 2.83 volts at the source at 1 meter. A higher decibel level means the subwoofer is louder with less power. For every 3 dB increase in sensitivity, the subwoofer requires half the power to reproduce the same volume. For example, if an 88 dB subwoofer needs 300 Watts to produce a certain volume, then a subwoofer with 91 dB sensitivity needs only 150 Watts to reach the same efficiency.	86.5 dB
ImpedanceImpedance - measurement of electrical resistance. When buying a subwoofer, it is very important that everyone make sure that the impedance matches the amplifier that you are connecting to it. For subwoofers with a double voice coil, we recommend following the information in the advice center! Example: A 2 Ohm subwoofer cannot be connected to an amplifier that is only stable up to 4 Ohms. A 4 Ohm subwoofer can easily be used on an amplifier that is stable up to 2 Ohms. Connecting a 4 Ohm subwoofer to an amplifier that is stable up to 4 Ohms also without problems. The most common subwoofer impedance is 4 Ohm.	2 Ω
Frequency rangeThe ability of the subwoofer to play a signal from the lowest frequency to the highest, or the ability of a subwoofer to faithfully reproduce sound in a specific frequency band. Subwoofers ideally play from 20 - 150 Hz. Professionally: In the frequency range from 40 to 16,000 Hz, the vast majority of fundamental and overtones (harmonics) of all musical instruments are found. We are interested in the course of the radiated sound pressure in this range of frequencies when the loudspeaker system is supplied with constant power. We call this course the frequency characteristic, which tells us the level of radiated sound pressure in decibels (dB) depending on the frequency. The frequency characteristic of a speaker or speaker system can be expressed most succinctly with a graph. Mostly, however, the frequency characteristic is indicated by indicating the maximum tolerance of the sound pressure in the given frequency range, e.g. 50 to 15,000 Hz -+ 6 dB. Since the frequency characteristics of loudspeakers and systems in general are quite uneven, some manufacturers do not even indicate this maximum tolerance of sound pressure in decibels in their catalogs for tactical reasons. Data impoverished in this way is unfortunately worthless. What is valid is that the manufacturer offers a speaker system with a frequency range of 30 to 20,000 Hz, if he is worried about stating the maximum unevenness of the sound pressure in this range, because he can have a tolerance of, for example, +- 20 dB. The unevenness or undulation of the frequency curve in good speaker systems for high-quality music performance should not exceed +-3 dB in the 80 to 12,000 Hz band and +-6 dB in the 40 to 16,000 Hz band. Greater unevenness already depletes or emphasizes certain tonal areas, which can cause audible or even disturbing distortion. The proportion between fundamental tones and higher harmonics also changes, thereby changing the color of the sound, and individual musical instruments as well as the entire musical image sound unnatural.	10 - 700 Hz
Subwoofer diameterThe diameter of the subwoofer is indicated on the screw holes. The overall outer diameter of the subwoofer is usually 1-2 cm wider, depending on the size category of the subwoofer. For a 30 cm subwoofer, the outer diameter incl. protective rubber 31.8 cm and in the 25 cm subwoofer it is 26.5 cm incl. protective rubbers.	300 mm (12\")
Subwoofer mounting depthThe mounting depth of the subwoofer is measured from the bottom edge of the magnet to the bottom edge of the subwoofer's metal or cast basket.	143 mm
Recommended enclosure volumeThe closed enclosure is characterized by a simple construction. Closed enclosures are usually smaller than bass-reflex enclosures, and a special damping fleece is used for their damping. A closed baffle has the advantage of preventing an acoustic short between the front and back radiation of the subwoofer diaphragm. The disadvantage is that the closed enclosure raises the natural resonance frequency of the used subwoofer and thereby also increases the lower limit frequency. This is because the back side of the diaphragm is forced to compress and dilute the air inside the enclosure when the subwoofer is radiating in a closed enclosure. This adds to the inherent stiffness of the subwoofer's oscillation system the stiffness of the air in the closed enclosure. This causes an increase in the stiffness of the oscillating system and thus an increase in the resonant frequency of the entire system: subwoofer -> loudspeaker. The increase in resonant frequency for a given subwoofer is greater, the smaller the volume of air in the closed enclosure. The relatively small volume of air in the closed enclosure acts on the subwoofer as an acoustic spring when radiating the back side of the membrane into the enclosed enclosure. USE: Mainly for quality bass listening in the entire band with an emphasis on detail and accurate reproduction in the lower band. Pros and cons: + pure reproduction + small closets + easier tuning - low level of efficiency in deep bass - loudness only at the cost of enormous deflection of the membrane - a significant acoustic pressure cannot be expected	31.1 l
Recommended bass reflex speaker volumeA bass reflex enclosure is designed in the same way as a closed enclosure, but it also has a so-called bass reflex mouthpiece, or "bass reflex" or slot. Needle foam is used to dampen bass reflex enclosures. USE: The ideal use is in cases where the listener wants to achieve a high volume and a good sound pressure level. It is the best compromise between sound quality and performance and is also the most commonly used Pros and cons: + good efficiency in deep bass + a small deflection of the membrane is enough for a large volume - reproduction less accurate than with closed enclosures	42.5 l
Fs - resonant frequencyFs - is the lower resonant frequency. This parameter is the de facto free air resonant frequency of the subwoofer. Simply put, it is the point at which the weight of the subwoofer's moving parts equals the force of the subwoofer's suspension while it is in motion. If you've ever seen a piece of string start to hum uncontrollably in the wind, you've seen the effect of reaching a resonant frequency. The weight of the moving parts and the stiffness of the suspension (surround and spider) are key elements that affect the resonant frequency. As a general rule, a lower Fs indicates a subwoofer that would be better at reproducing low frequencies than a subwoofer with a higher Fs. However, this is not always the case, as other important parameters of the subwoofer also enter the resulting sound.	25 Hz
Subwoofer voice coil diameterThe larger the diameter of the voice coil, the more load capacity the subwoofer has, in layman's terms.	130 mm (5.1\")
Subwoofer diaphragm materialThe specific material from which the subwoofer membrane is made.	Combination of carbon fibers and paper
MassSubwoofer weight in kilograms. The weight is usually given net, i.e. without packaging.	7 kg
